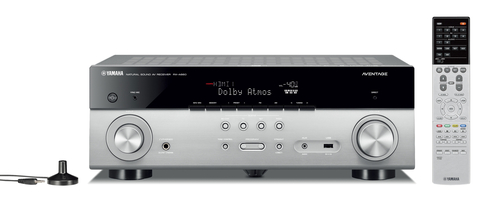

MusicCast RX-A660
Model MusicCast RX-A660Part no. RX-A660 TEAN 4957812600453
49 specifications
- Weight8.1 kg
- ColourTitanium
- Power output per channel (20-20KHz@8 Ohm)80 W
- HDMI in4
- Number of HDMI outputs1
- Audio formats supportedAIFF, ALAC, FLAC, WAV
Overview
- Weight
- 8.1 kg
- Colour
- Titanium
- Power output per channel (20-20KHz@8 Ohm)
- 80 W
- HDMI in
- 4
- Number of HDMI outputs
- 1
- Audio formats supported
- AIFF, ALAC, FLAC, WAV
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- MusicCast RX-A660
- Part number
- RX-A660 T
- EAN / UPC
- 4957812600453
- Also known as
- Yamaha MusicCast RX-A660 80 W 7.2 channels Surround 3D Titanium
Specifications
49 specifications in 11 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 80 W |
| Audio output channels | 7.2 channels |
| Receiver type | Surround |
| Dynamic power per channel (4 Ohm) | 170 W |
| Dynamic power per channel (8 Ohm) | 120 W |
| Pre-out channels | 2 SW |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Composite video in | 4 |
| Audio (L/R) in | 4 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 0 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Composite video out | 1 |
| Audio (L/R) out | 0 |
| Digital audio optical out | 2 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 1 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AIFF, ALAC, FLAC, WAV |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| Internet radio services supported | Pandora, Spotify |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 4096 x 2160 |
| 3D | Yes |
Technical details
| Specification | Value |
|---|---|
| Display | LED |
| Audio decoders | DSD, DTS Neo:X, DTS-HD Master Audio, Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| Apple docking compatibility | Not supported |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Audio Lip synchronization | Yes |
| Auto standby | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| On Screen Display (OSD) | Yes |
| Product colour | Titanium |
| Remote control included | Yes |
| Surround modes quantity | 17 |
| Volume control | Rotary |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 327 mm |
| Height | 161 mm |
| Weight | 8.1 kg |
