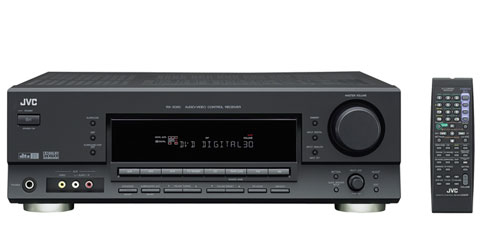

RX-5060 100 W 5.1 channels Surround Black
Model RX-5060Part no. RX5060EAN 4975769320743
35 specifications
- ConnectivityWired
- Weight7 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)100 W
- HDMI in0
- Speakers connectivity typeRCA
Overview
- Connectivity
- Wired
- Weight
- 7 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 100 W
- HDMI in
- 0
- Speakers connectivity type
- RCA
- Brand
- JVC
- Category
- AV Receiver
- Model
- RX-5060
- Part numbers
- RX5060, RX-5060B, RX-5060
- EAN / UPC
- 4975769320743
- Also known as
- JVC RX-5060 100 W 5.1 channels Surround Black
Specifications
35 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 100 W |
| Audio output channels | 5.1 channels |
| Receiver type | Surround |
| Output level | 220 mV |
| Impedance | 8 Ω |
| Signal-to-Noise Ratio (SNR) | 62 dB |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 0 |
| Line-in | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | RCA |
| Connectivity technology | Wired |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| AM band range | 522 - 1629 kHz |
| FM band range | 87.5 - 108.00 MHz |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| 3D | No |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital, Dolby Pro Logic II, DTS, DTS 96/24 |
| Equalizer | Yes |
| Apple docking compatibility | Not supported |
| AirPlay | No |
| Product colour | Black |
| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 Hz |
| Power consumption (standby) | 0.8 W |
| Power consumption (typical) | 140 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 369.5 mm |
| Height | 146.5 mm |
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.12 kg |
Other features
| Specification | Value |
|---|---|
| Package width | 5100 mm |
| Package depth | 4500 mm |
| Package height | 2400 mm |
