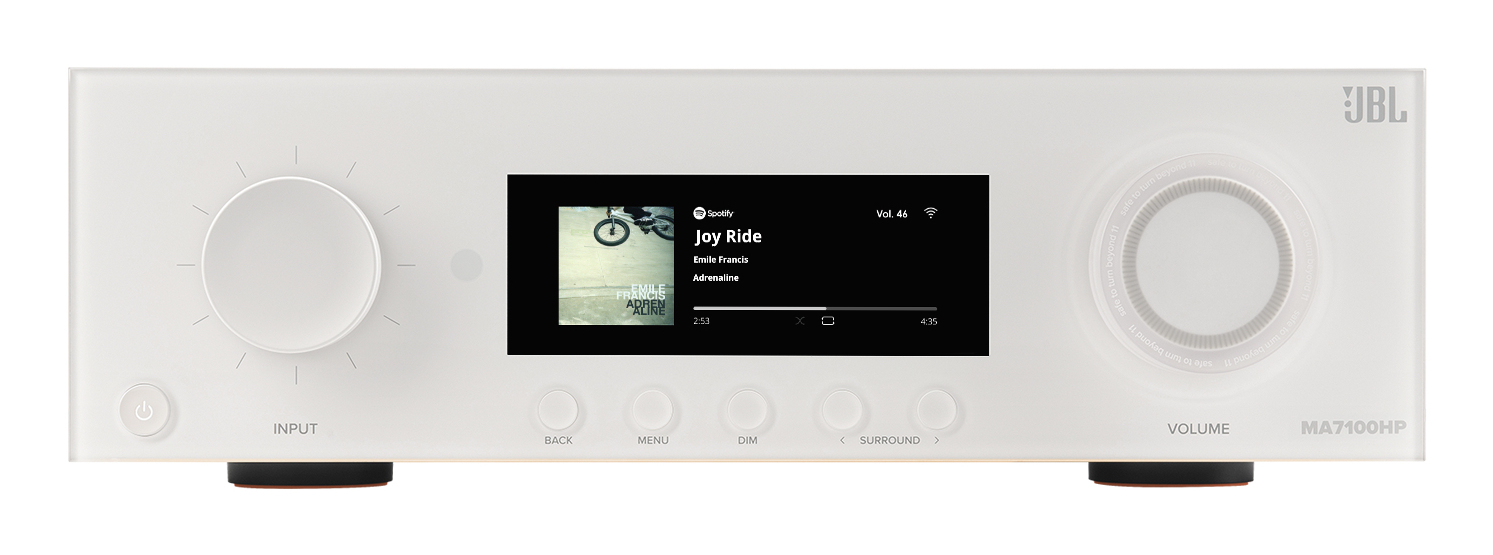

MA7100HP 125 W 7.2 channels Black, White
Model MA7100HPPart no. JBLMA710WHTASEAN 1200130010705
38 specifications
- Weight7.4 kg
- ColourBlack, White
- Power output per channel (20-20KHz@8 Ohm)125 W
- HDMI in6
- Number of HDMI outputs2
- Speakers connectivity typeRCA
Overview
- Weight
- 7.4 kg
- Colour
- Black, White
- Power output per channel (20-20KHz@8 Ohm)
- 125 W
- HDMI in
- 6
- Number of HDMI outputs
- 2
- Speakers connectivity type
- RCA
- Brand
- JBL
- Category
- AV Receiver
- Model
- MA7100HP
- Part numbers
- JBLMA710WHTAS, MA7100HP-WHT, MA7100HP-BLK, JBLMA7100HPWHTAM, JBLMA7100HPBLKAS, JBLMA7100HPWHTAS
- EAN / UPC
- 1200130010705, 1200130010804, 050036400602, 050036400596 +2 more
- Also known as
- JBL MA7100HP 125 W 7.2 channels Black, White
Specifications
38 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 125 W |
| Audio output channels | 7.2 channels |
| Dynamic power per channel (4 Ohm) | 175 W |
| Total Harmonic Distortion (THD) | 0.5% |
| Frequency range | 20 - 20000 Hz |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 6 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | RCA |
| Phono inputs (RCA) | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AIFF, ALAC, FLAC, MP3, PCM, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Video
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10+ (HDR10 Plus) |
| Video D/A Converter (DAC) | 24-bit/192kHz |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Atmos |
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Product colour | Black, White |

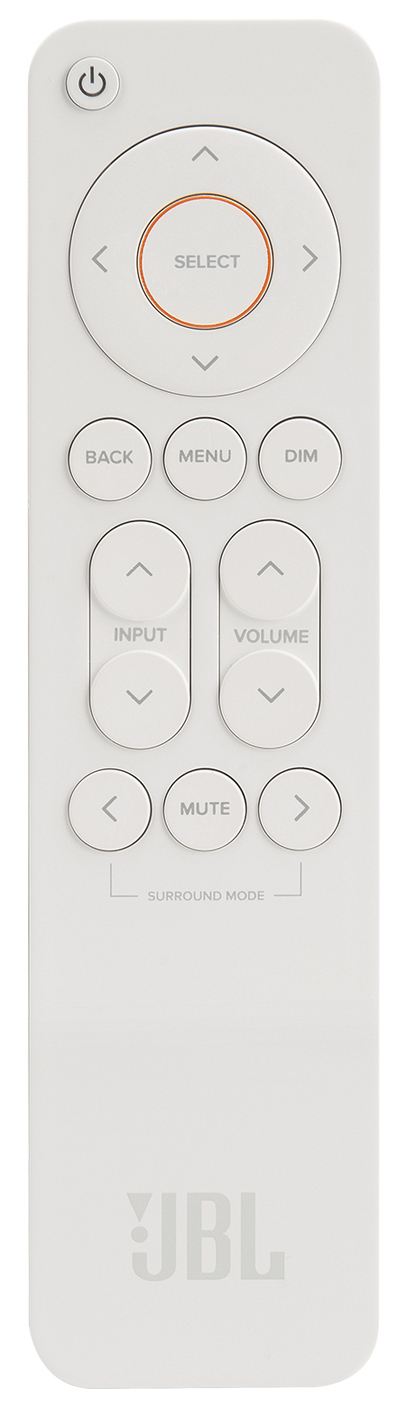

| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 700 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 396.4 mm |
| Height | 135 mm |
| Weight | 7.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Batteries included | Yes |
