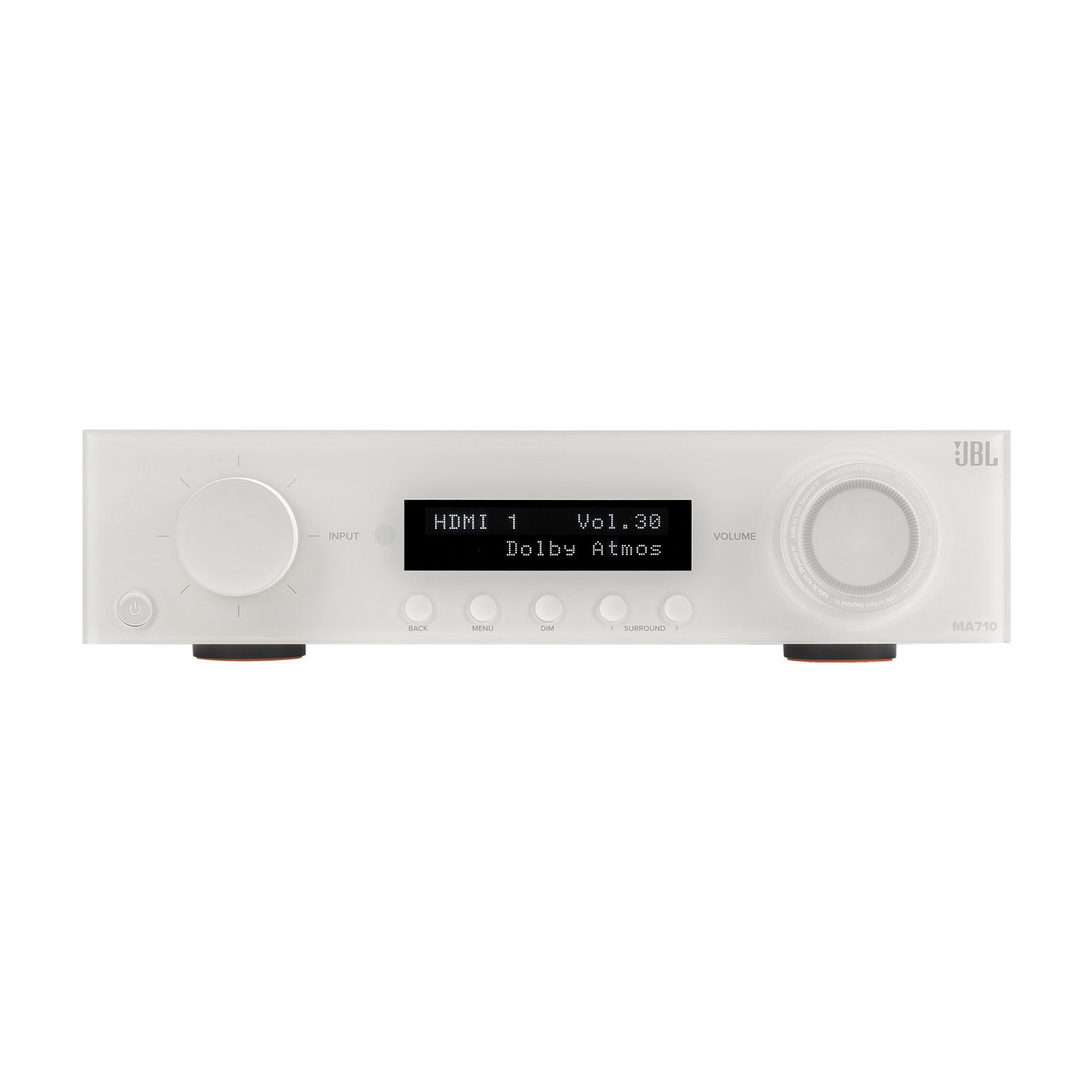

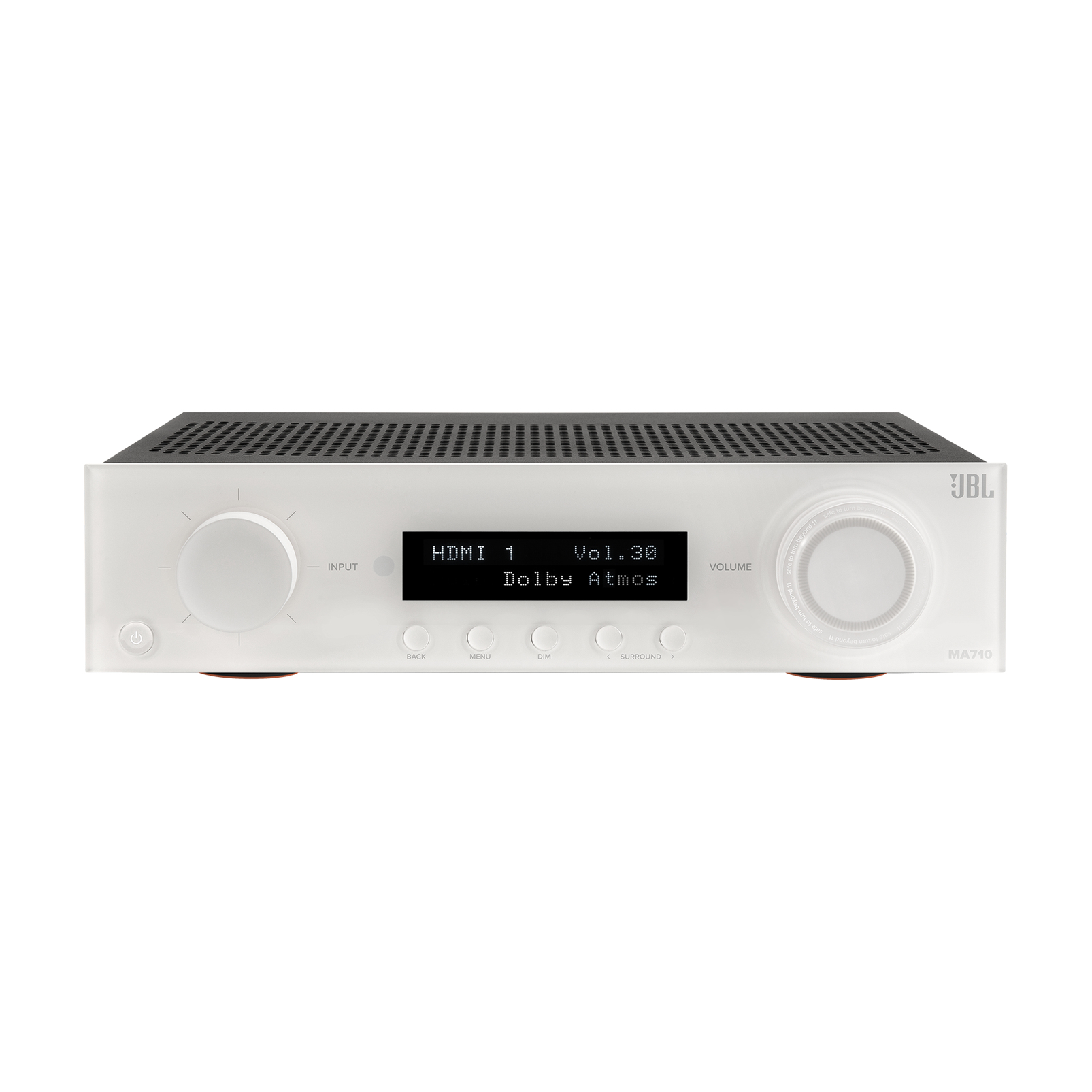

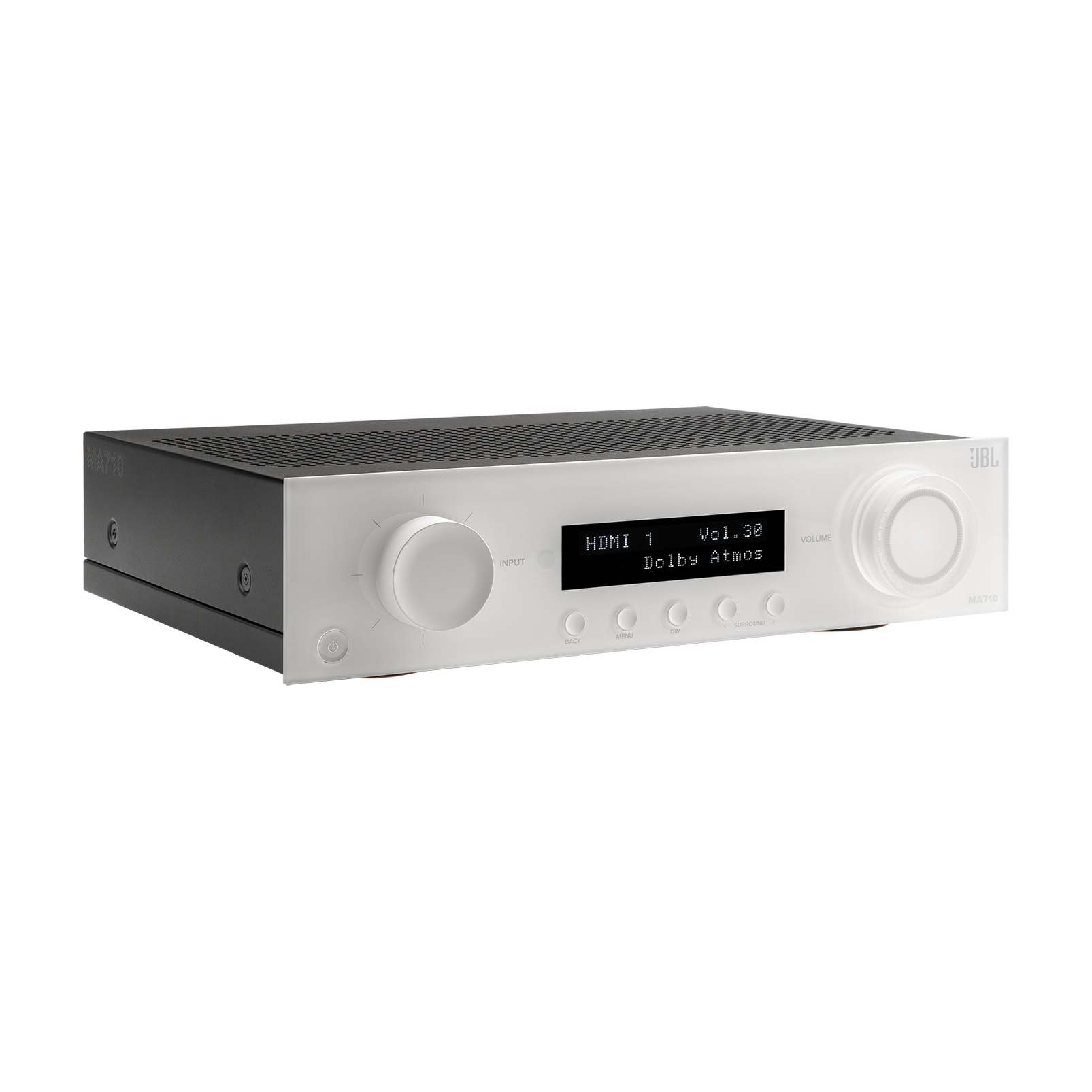

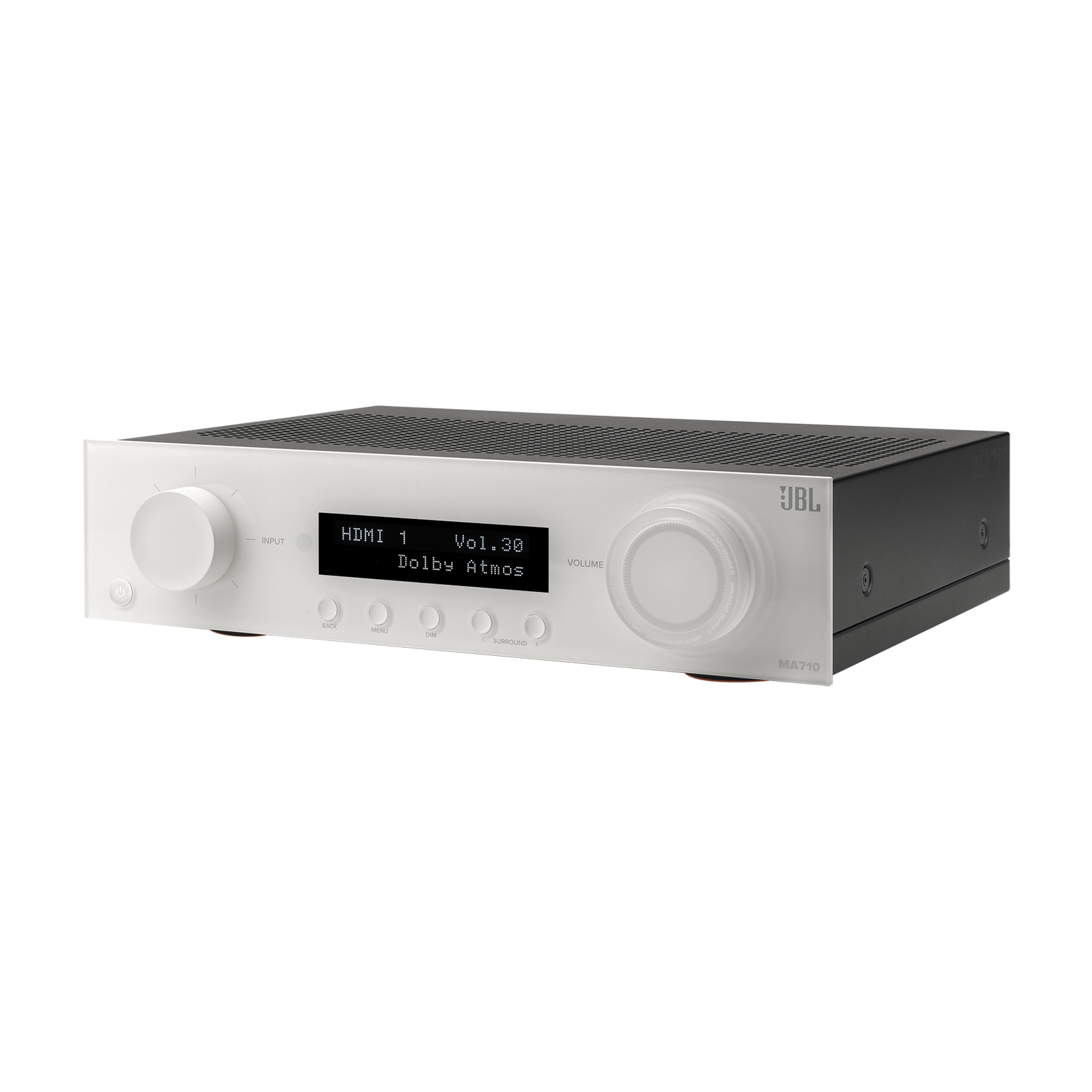

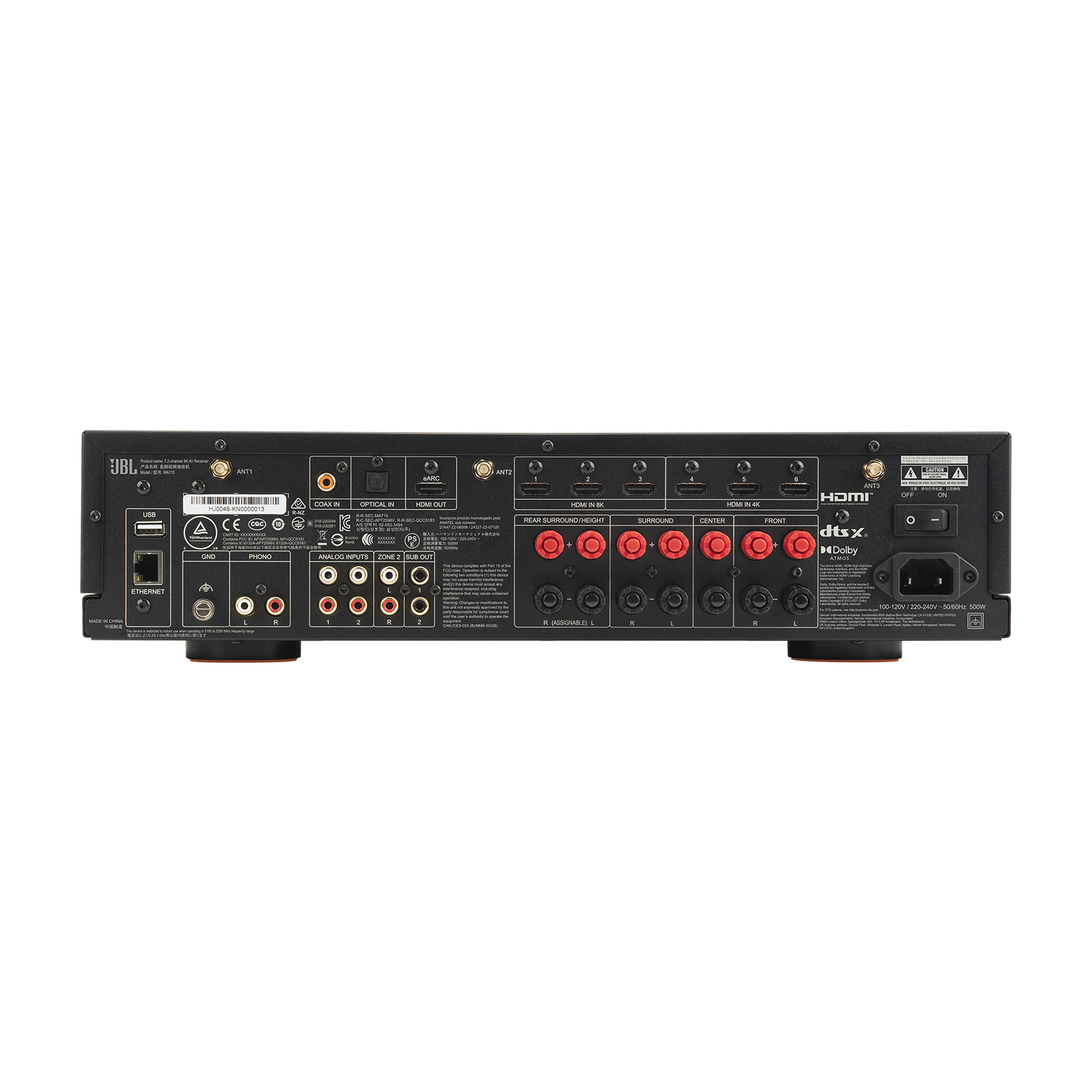

MA710 110 W 7.2 channels Black, White
Model MA710Part no. JBLMA710BLKASEAN 1200130010712
38 specifications
- Weight6.3 kg
- ColourBlack, White
- Power output per channel (20-20KHz@8 Ohm)110 W
- HDMI in6
- Number of HDMI outputs1
- Speakers connectivity typeRCA
Overview
- Weight
- 6.3 kg
- Colour
- Black, White
- Power output per channel (20-20KHz@8 Ohm)
- 110 W
- HDMI in
- 6
- Number of HDMI outputs
- 1
- Speakers connectivity type
- RCA
- Brand
- JBL
- Category
- AV Receiver
- Model
- MA710
- Part numbers
- JBLMA710BLKAS, MA710-WHT, MA710-BLK
- EAN / UPC
- 1200130010712, 050036400459, 1200130010668, 050036400466
- Also known as
- JBL MA710 110 W 7.2 channels Black, White
Specifications
38 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 110 W |
| Audio output channels | 7.2 channels |
| Dynamic power per channel (4 Ohm) | 160 W |
| Total Harmonic Distortion (THD) | 0.5% |
| Frequency range | 20 - 20000 Hz |

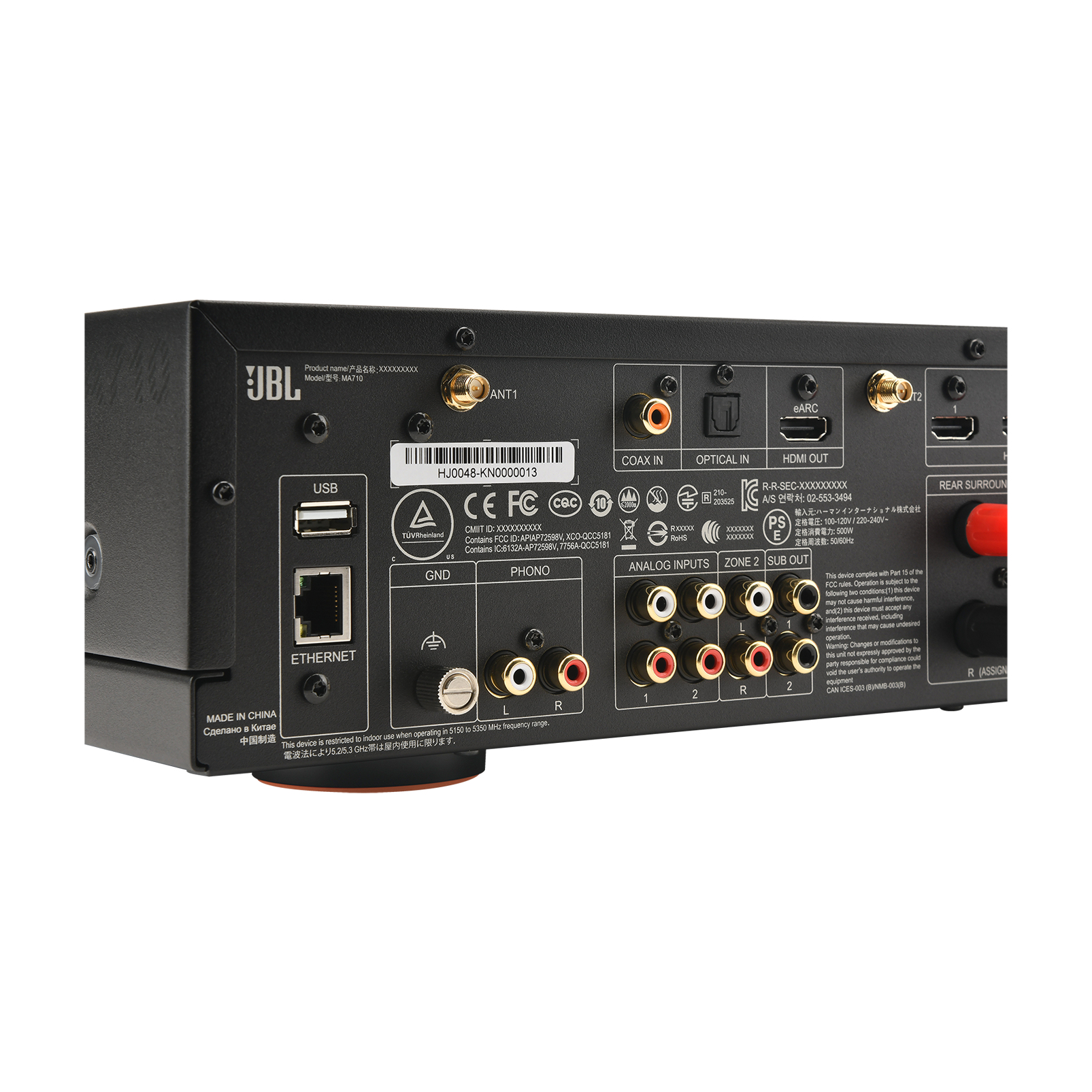

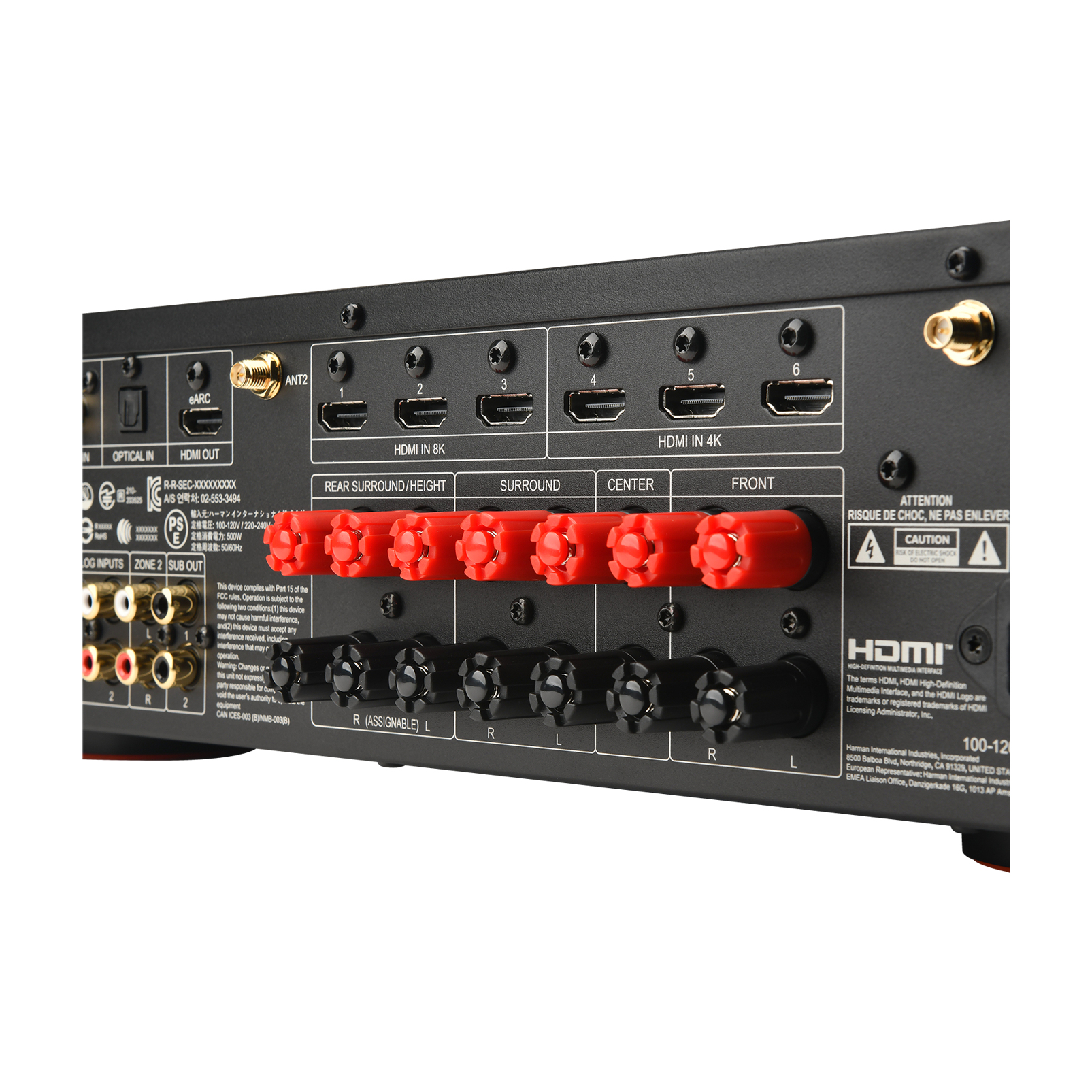

Inputs
| Specification | Value |
|---|---|
| HDMI in | 6 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | RCA |
| Phono inputs (RCA) | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AIFF, ALAC, FLAC, MP3, PCM, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Video
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10+ (HDR10 Plus) |
| Video D/A Converter (DAC) | 24-bit/192kHz |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Atmos |
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Product colour | Black, White |

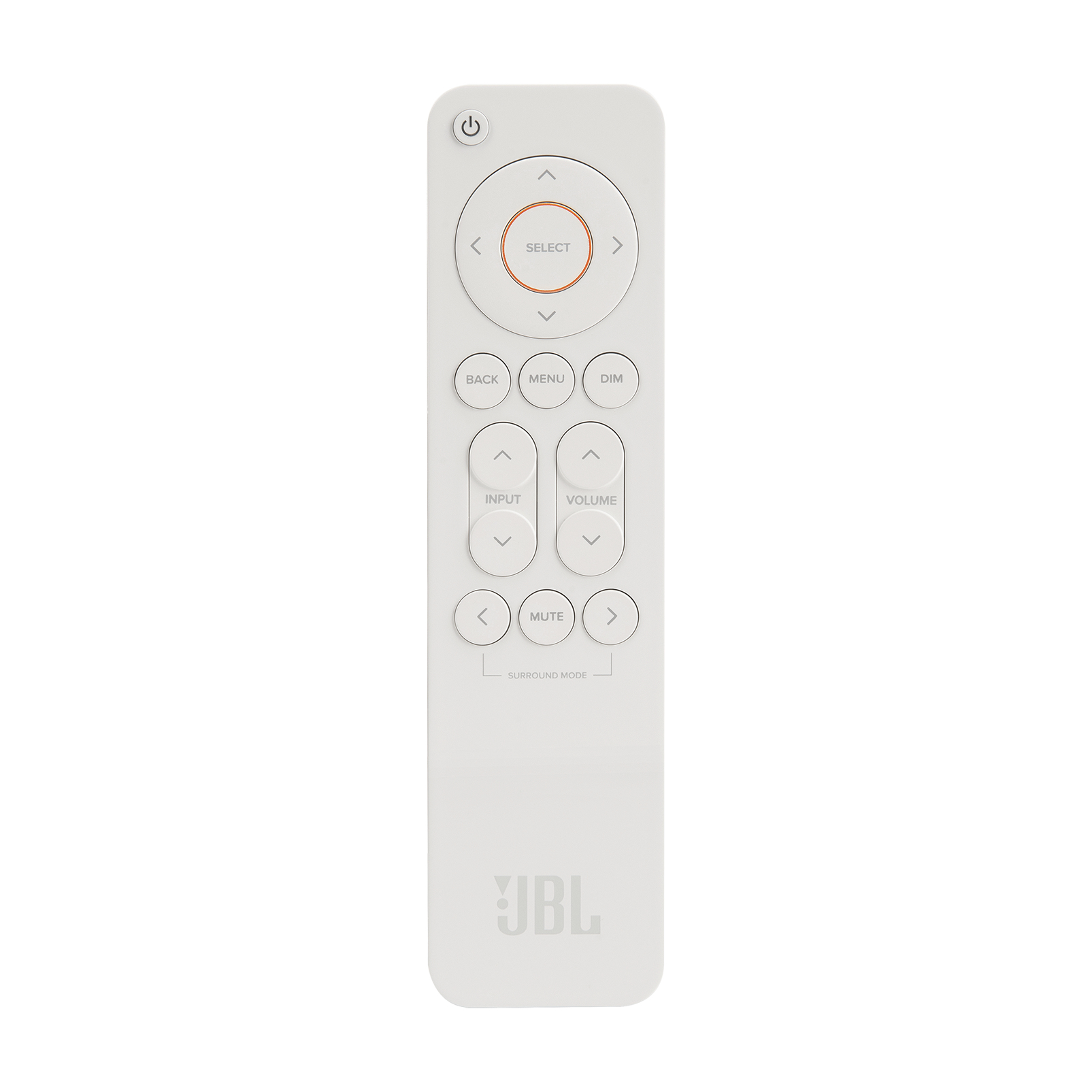

| Remote control included | Yes |

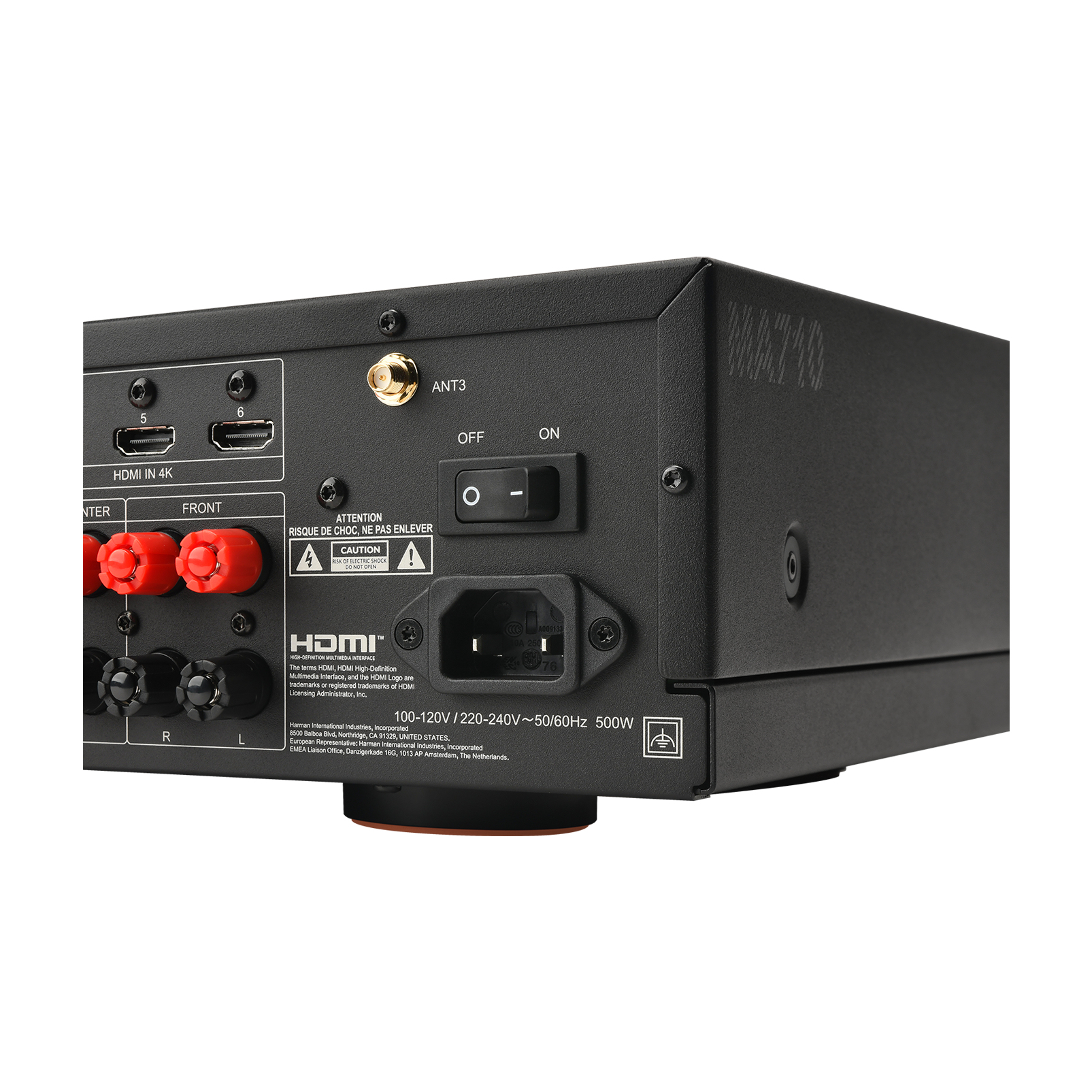

Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 500 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 347.6 mm |
| Height | 109.9 mm |
| Weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Batteries included | Yes |
Similar products
All av receivers

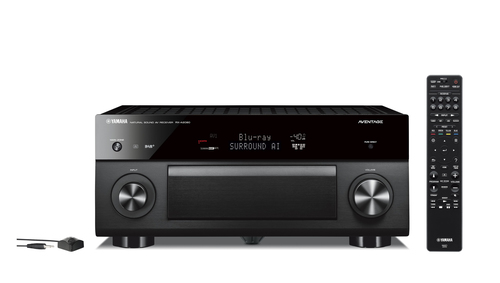

Yamaha
RX-A2080 140 W 9.2 channels Surround 3D Black
Model RX-A2080
- Connectivity
- Wired & Wireless
- Weight
- 17 kg
- Colour
- Black
Yamaha
R-N1000A 100 W 2.0 channels stereo Black
Model R-N1000A
- Connectivity
- Wired & Wireless
- Weight
- 12.3 kg
- Colour
- Black

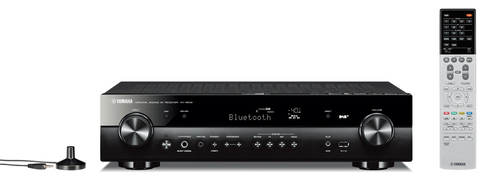

Yamaha
RX-S602 5.1 channels Surround 3D Black
Model RX-S602
- Weight
- 7.8 kg
- Colour
- Black
- Audio output channels
- 5.1 channels
Yamaha
R-N2000A 90 W 2.0 channels stereo Black
Model R-N2000A
- Connectivity
- Wired & Wireless
- Weight
- 22.1 kg
- Colour
- Black

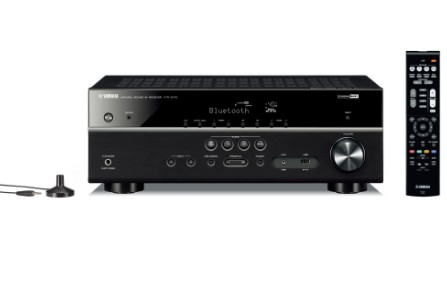

Yamaha
TSR-400 80 W 5.2 channels Surround 3D Black
Model TSR-400
- Connectivity
- Wired & Wireless
- Weight
- 8.8 kg
- Colour
- Black

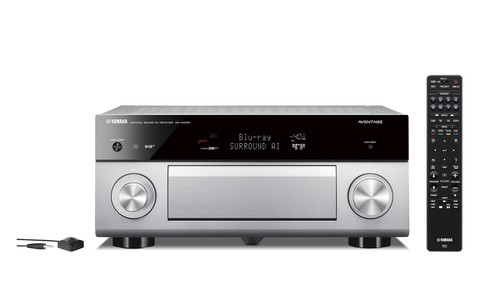

Yamaha
RX-A3080 150 W 9.2 channels Surround 3D Titanium
Model RX-A3080
- Weight
- 19.6 kg
- Colour
- Titanium
- Power output per channel (20-20KHz@8 Ohm)
- 150 W
Yamaha
RX-A680 7.2 channels stereo 3D Black
Model RX-A680
- Connectivity
- Wired & Wireless
- Weight
- 8.3 kg
- Colour
- Black
Yamaha
RX-A1080 110 W 7.2 channels Surround 3D Black
Model RX-A1080
- Weight
- 14.9 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 110 W

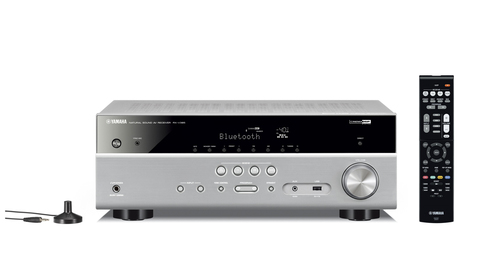

Yamaha
RX-V385 5.1 channels Surround 3D Titanium
Model RX-V385
- Weight
- 7.7 kg
- Colour
- Titanium
- Audio output channels
- 5.1 channels

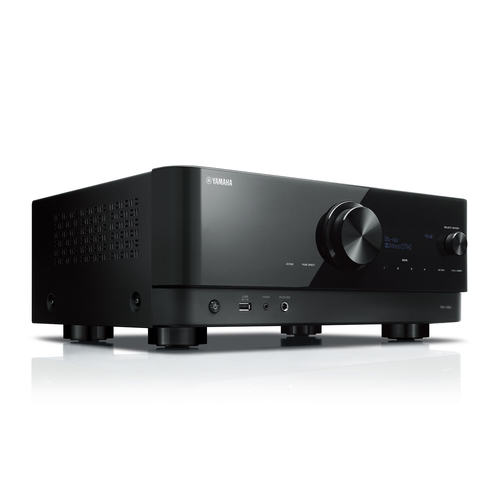

Yamaha
