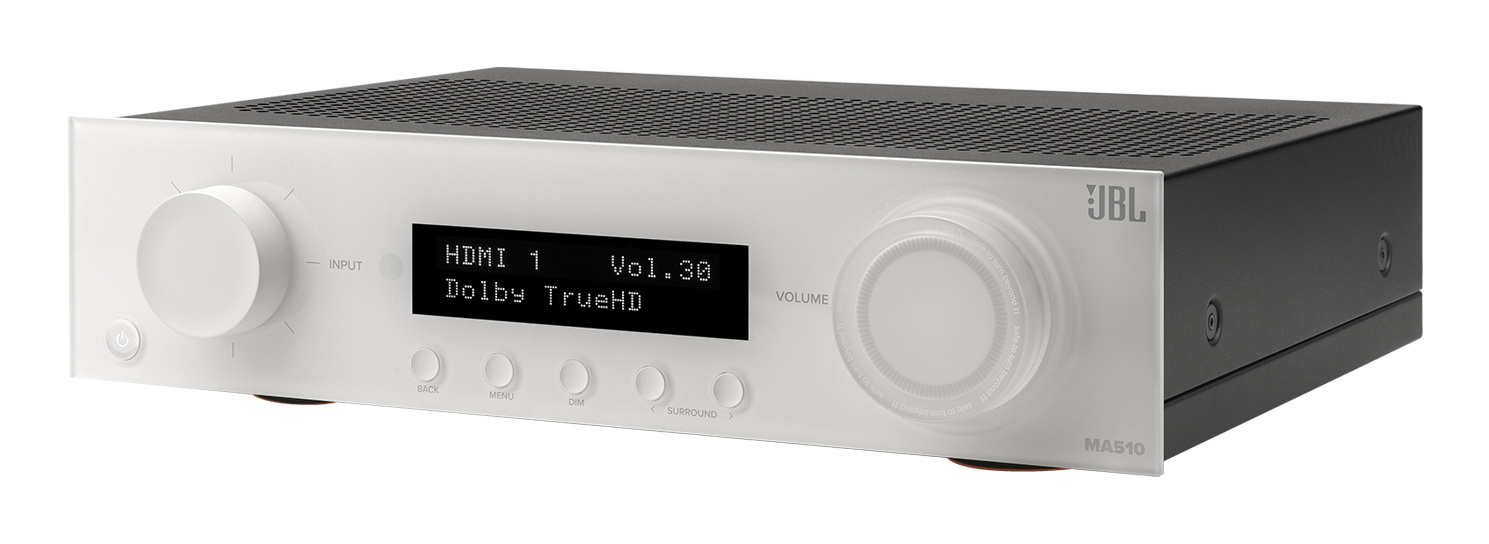

MA510 75 W 5.2 channels Black, White
Model MA510Part no. JBLMA510WHTASEAN 1200130010569
37 specifications
- Weight5.4 kg
- ColourBlack, White
- Power output per channel (20-20KHz@8 Ohm)75 W
- HDMI in4
- Number of HDMI outputs1
- Speakers connectivity typeRCA
Overview
- Weight
- 5.4 kg
- Colour
- Black, White
- Power output per channel (20-20KHz@8 Ohm)
- 75 W
- HDMI in
- 4
- Number of HDMI outputs
- 1
- Speakers connectivity type
- RCA
- Brand
- JBL
- Category
- AV Receiver
- Model
- MA510
- Part numbers
- JBLMA510WHTAS, MA510-WHT, MA510-BLK, JBLMA510WHTAM, JBLMA510BLKAS
- EAN / UPC
- 1200130010569, 1200130010521, 050036400329, 050036400312 +1 more
- Also known as
- JBL MA510 75 W 5.2 channels Black, White
Specifications
37 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 75 W |
| Audio output channels | 5.2 channels |
| Dynamic power per channel (4 Ohm) | 100 W |
| Total Harmonic Distortion (THD) | 0.5% |
| Frequency range | 20 - 20000 Hz |

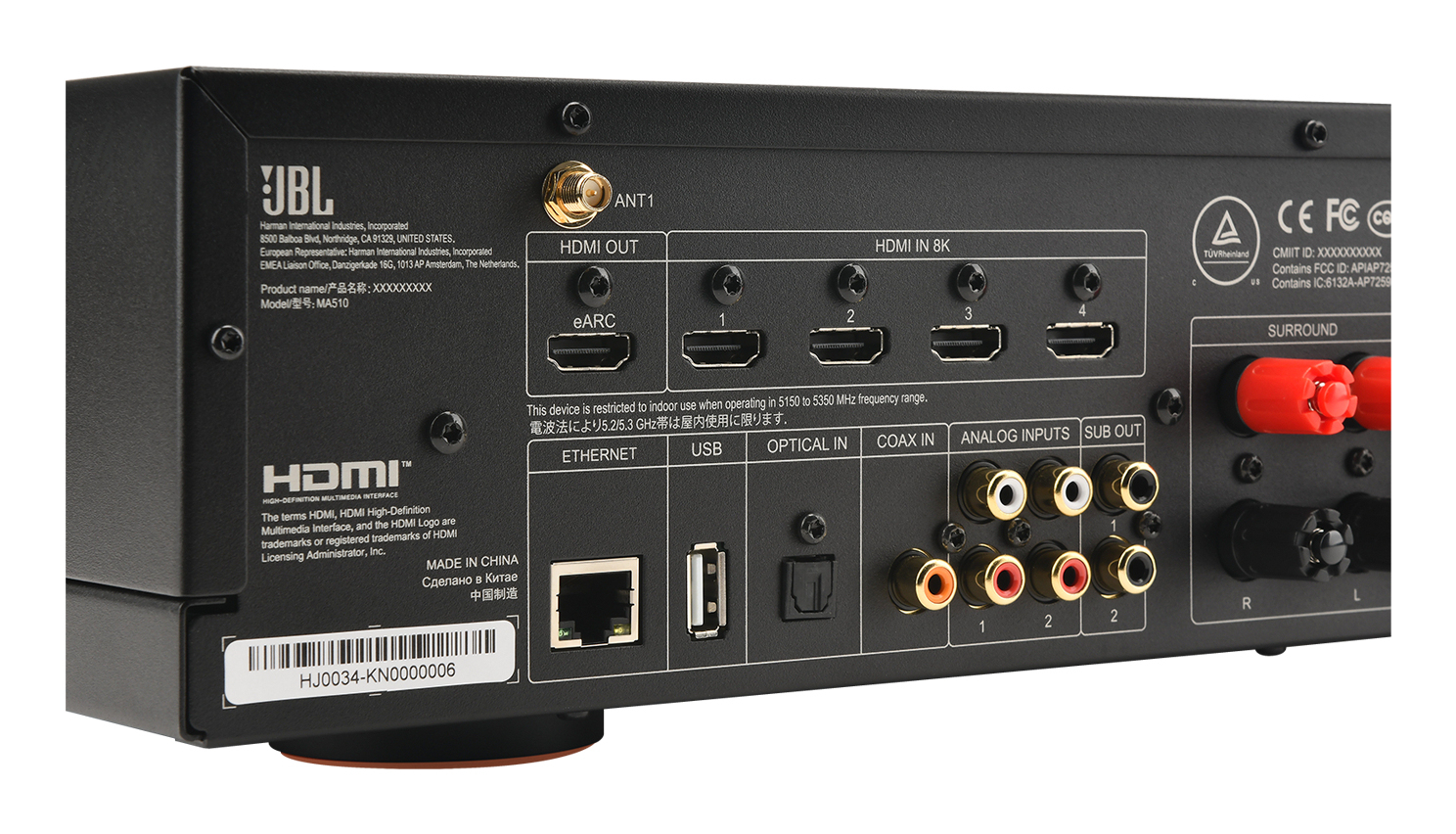

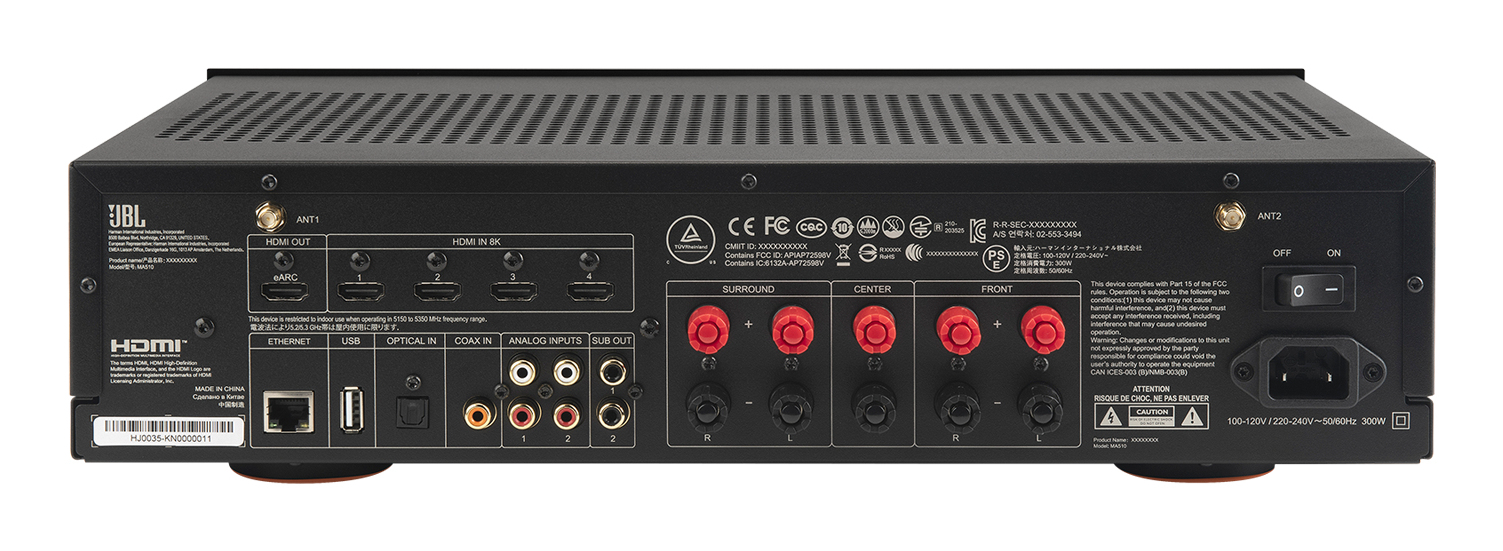

Inputs
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |

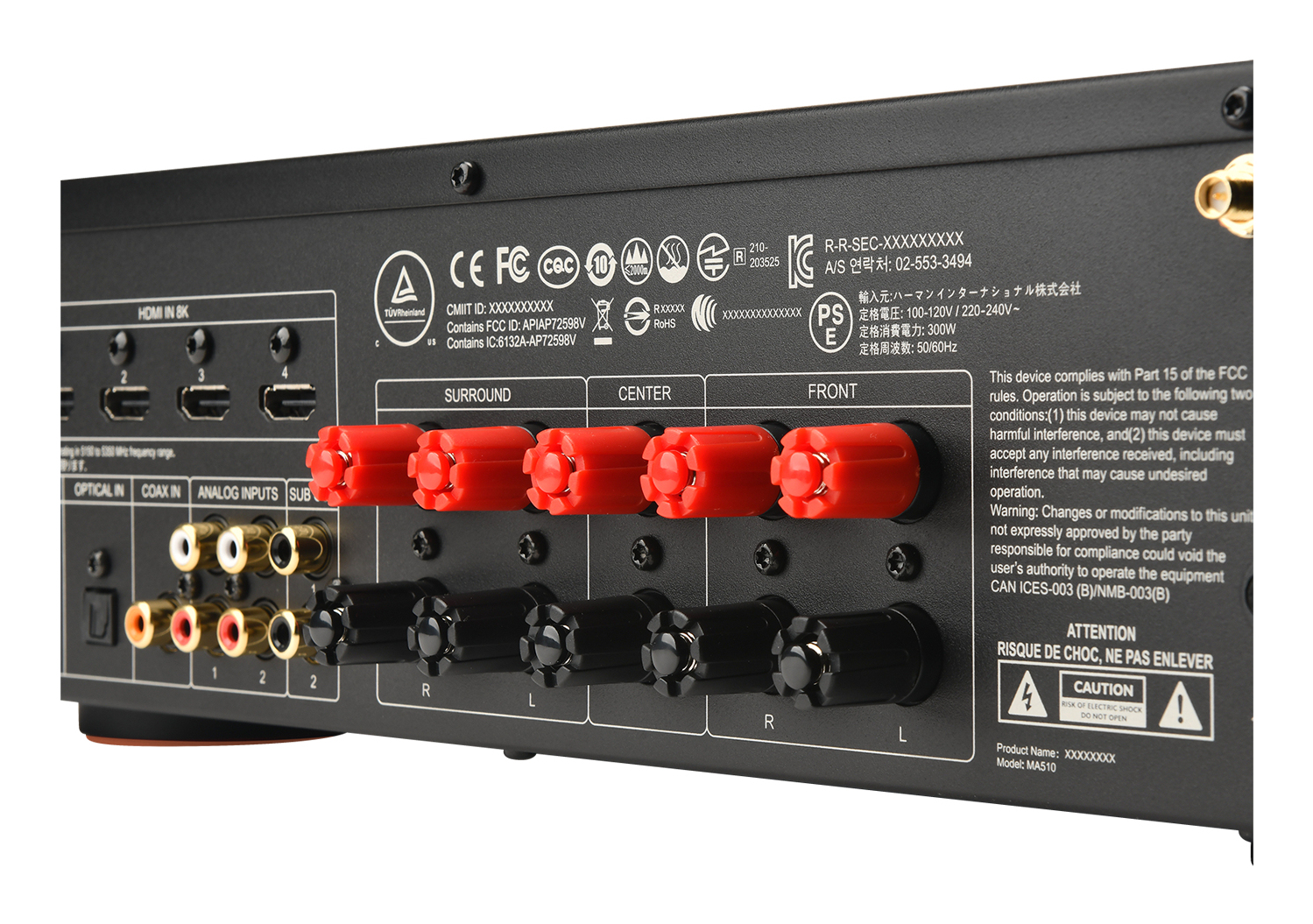

Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | RCA |
| Phono inputs (RCA) | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AIFF, ALAC, FLAC, MP3, PCM, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Video
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10+ (HDR10 Plus) |
| Video D/A Converter (DAC) | 24-bit/192kHz |
Technical details
| Specification | Value |
|---|---|
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Product colour | Black, White |

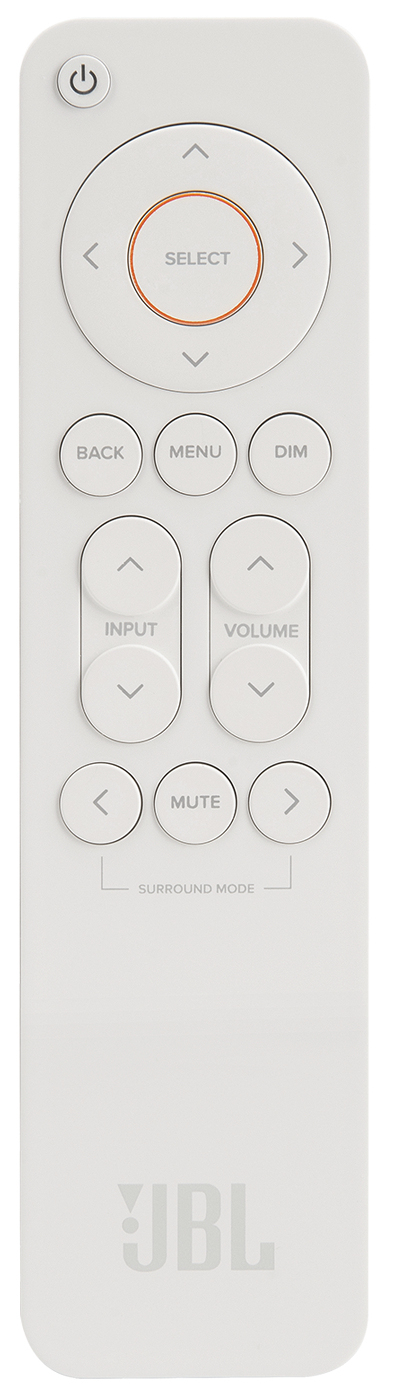

| Remote control included | Yes |

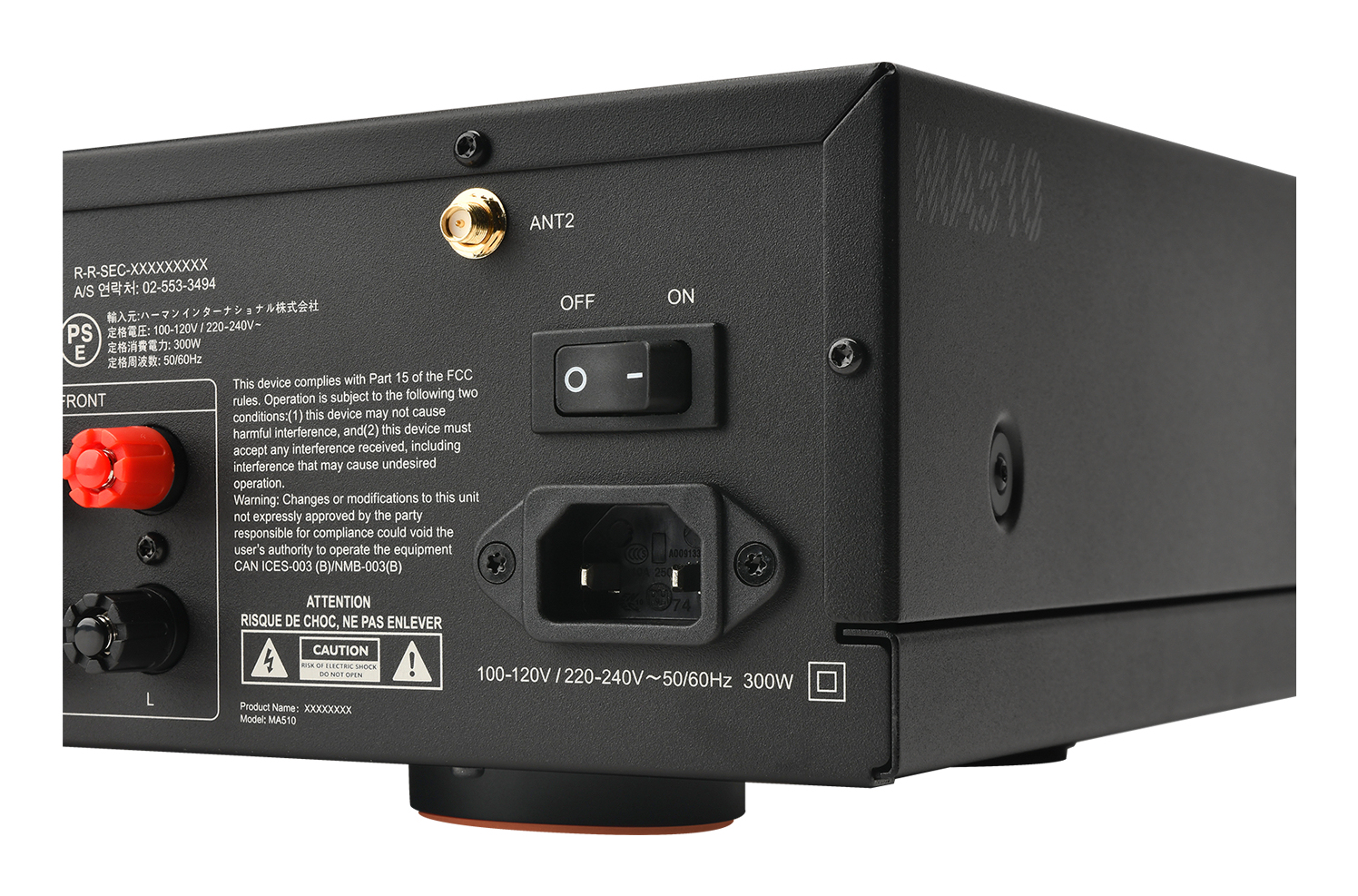

Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 347.6 mm |
| Height | 109.9 mm |
| Weight | 5.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Batteries included | Yes |
