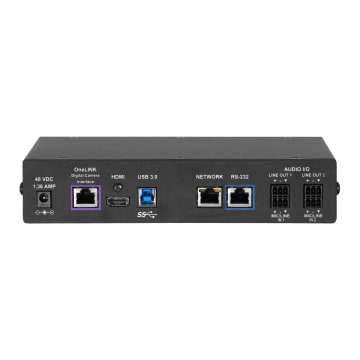

OneLINK Bridge Express for HDBaseT Cameras
Model 999-9595-071EAN 840077507527
31 specifications
- ColourBlack
- Maximum resolution1920 x 1080 pixels
- Ethernet LANYes
- HDMI version1.4b
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Colour
- Black
- Maximum resolution
- 1920 x 1080 pixels
- Ethernet LAN
- Yes
- HDMI version
- 1.4b
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Vaddio
- Category
- AV Conferencing Bridge
- Model
- 999-9595-071
- Part number
- 999-9595-071
- EAN / UPC
- 840077507527
- Also known as
- Vaddio OneLINK Bridge Express for HDBaseT Cameras
Specifications
31 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | Telnet |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Maximum cable length | 100 m |
| Compatible products | RoboSHOT 12E, 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboFLIP 30 HDBT, RoboSHOT IW, DocCAM 20 HDBT |
| Certification | FCC, cULus, TAA |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4b |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Audio input | 2 x Line-in |
| Audio output | 2 x Line-out |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 48 V |
| Input current | 1.36 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 152 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Included power plug types | EU, UK |
