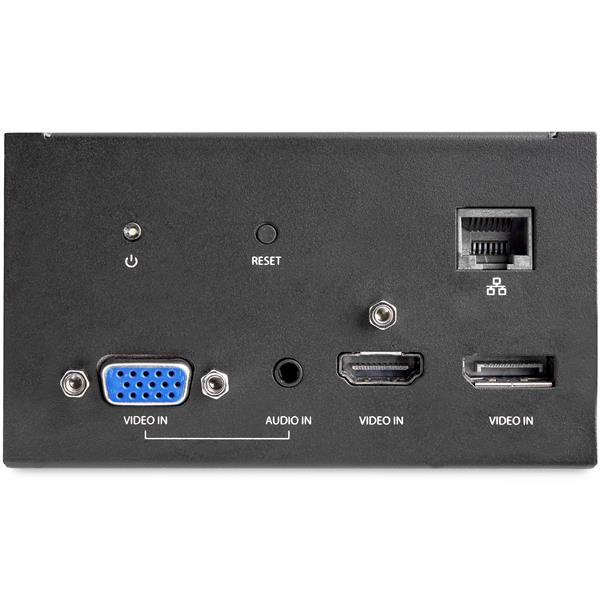

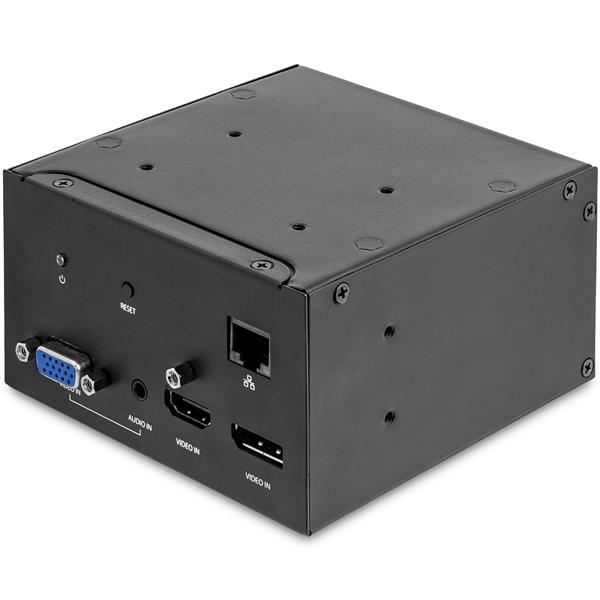

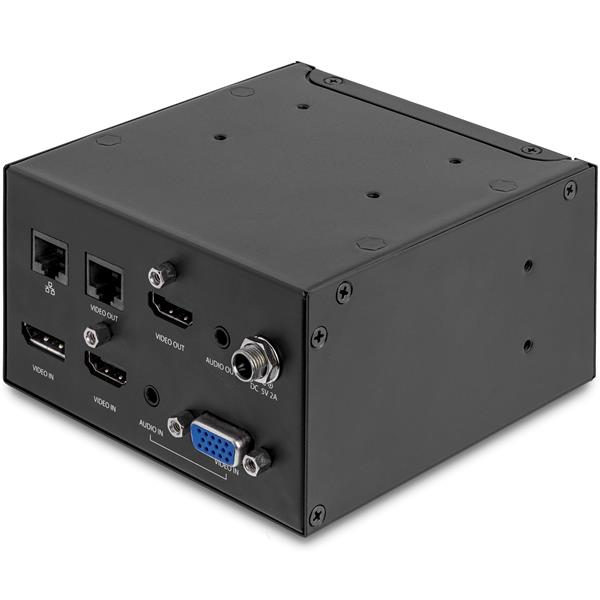

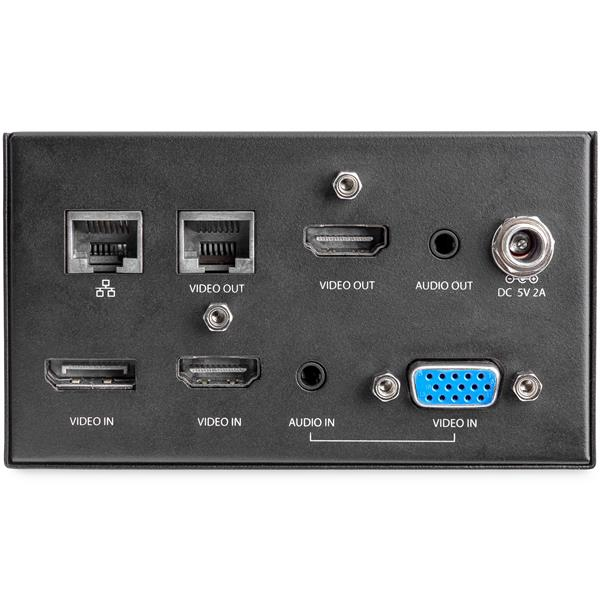

A/V Module for Conference Table Connectivity Box with HDMI over CAT5e/CAT6
Model MOD4AVHDBTEAN 065030871068
44 specifications
- Weight195 g
- ColourBlack
- Maximum resolution3840 x 2160 pixels
- Ethernet LANYes
- HDMI version1.4
- Power consumption (typical)10 W
Overview
- Weight
- 195 g
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels
- Ethernet LAN
- Yes
- HDMI version
- 1.4
- Power consumption (typical)
- 10 W
- Brand
- StarTech.com
- Category
- AV Conferencing Bridge
- Model
- MOD4AVHDBT
- Part number
- MOD4AVHDBT
- EAN / UPC
- 065030871068
- Also known as
- StarTech.com A/V Module for Conference Table Connectivity Box with HDMI over CAT5e/CAT6
Specifications
44 specifications in 10 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported aspect ratios | 16:9 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Power |
| Maximum operating distance | 70 m |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) input ports | 2 |
| Audio input | 2 x 3.5 mm |
| Ethernet LAN (RJ-45) ports | 3 |
| USB pass-through | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
| Input current | 0.4 A |
| External power supply | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66.5 mm |
| Depth | 107 mm |
| Height | 61 mm |
| Weight | 195 g |
| Package width | 100 mm |
| Package depth | 250 mm |
| Package height | 210 mm |
| Package weight | 200 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Screws included | Yes |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 320 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 235 mm |
| Products per master (outer) case | 6 pc(s) |
