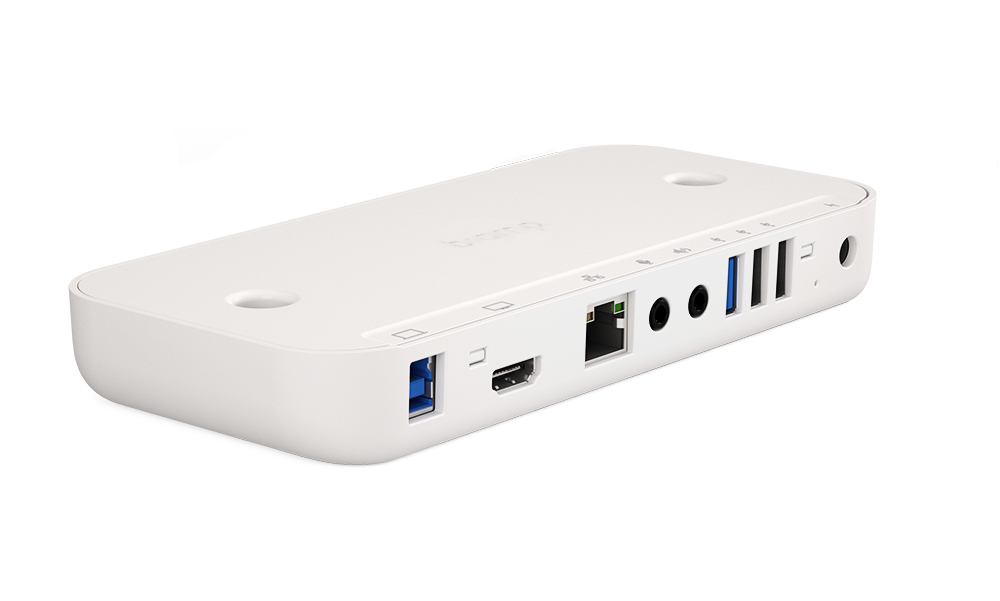

Devio SCR-10
4096 x 2160 pixels Ethernet LAN White
Model SCR-10Part no. 920-01876-00002EAN 810039105184
36 specifications
- Weight200 g
- ColourWhite
- Maximum resolution4096 x 2160 pixels
- Ethernet LANYes
- HDMI ports quantity1
- Power source typeDC
Overview
- Weight
- 200 g
- Colour
- White
- Maximum resolution
- 4096 x 2160 pixels
- Ethernet LAN
- Yes
- HDMI ports quantity
- 1
- Power source type
- DC
- Brand
- Biamp
- Category
- AV Conferencing Bridge
- Model
- SCR-10
- Part number
- 920-01876-00002
- EAN / UPC
- 810039105184
- Also known as
- Biamp Devio SCR-10 4096 x 2160 pixels Ethernet LAN White
Specifications
36 specifications in 10 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Maximum refresh rate | 60 Hz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 3 |
| Audio input | 3.5 mm |
| Audio output | 3.5 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 15 W |
| External power supply | Yes |
| AC adapter output voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 85 mm |
| Height | 23 mm |
| Weight | 200 g |
| Package width | 279.9 mm |
| Package depth | 195.1 mm |
| Package height | 80 mm |
| Package weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Screws included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
| Export Control Classification Number (ECCN) | EAR99 |
Similar products
All av conferencing bridges
StarTech.com

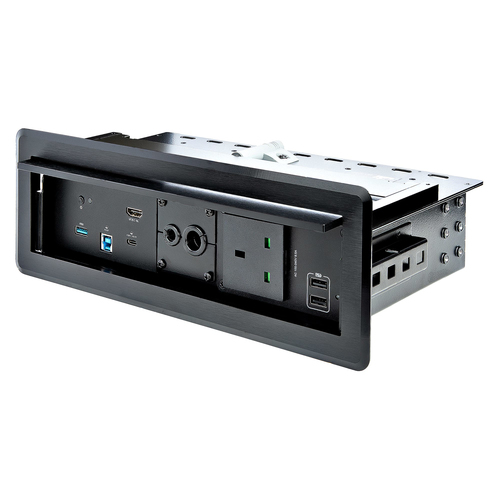

Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock
Model KITBXDOCKPUK
- Weight
- 2.7 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels

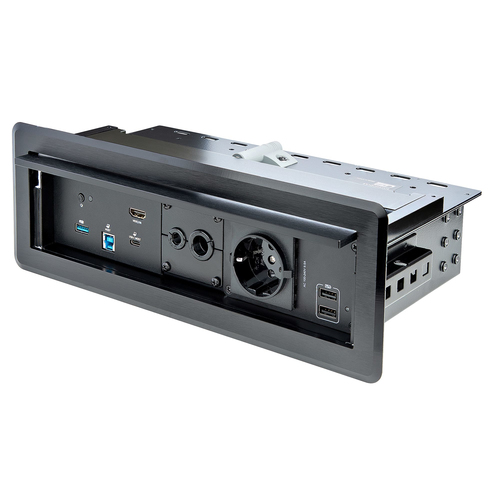

StarTech.com
Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock
Model KITBXDOCKPEU
- Weight
- 2.7 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels

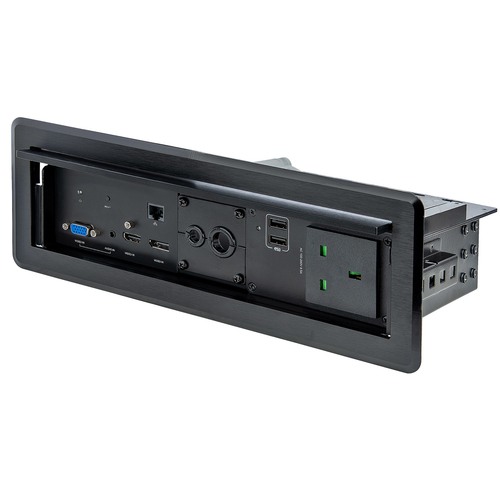

StarTech.com
Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A &
Model KITBXAVHDPUK
- Weight
- 3.15 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels
StarTech.com
Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A &
Model KITBXAVHDPEU
- Weight
- 3.1 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels
StarTech.com
Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A &
Model KITBXAVHDPNA
- Weight
- 3.1 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels

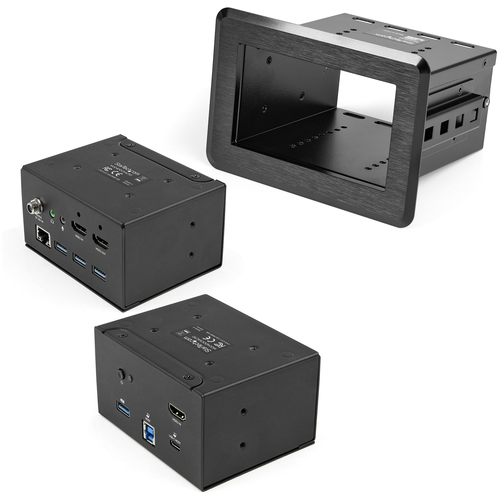

StarTech.com
Conference Room Docking Station - Universal Laptop Dock - 4K HDMI
Model KITBZDOCK
- Weight
- 1.1 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels

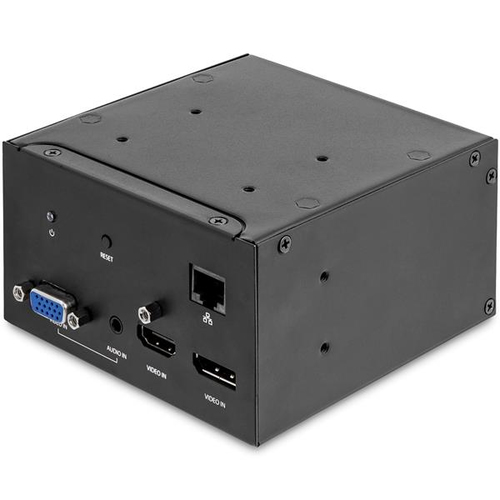

StarTech.com
A/V Module for Conference Table Connectivity Box with HDMI over CAT5e/CAT6
Model MOD4AVHDBT
- Weight
- 195 g
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels

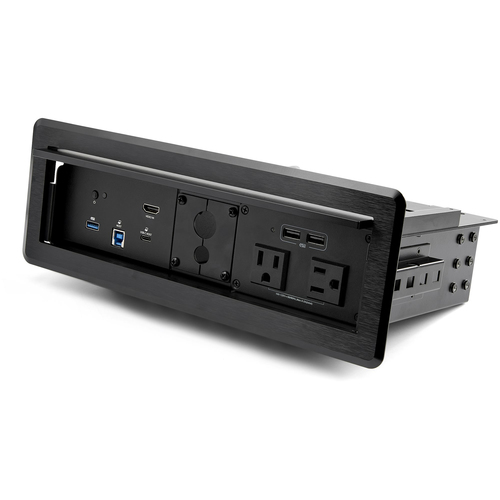

StarTech.com
Conference Room Docking Station with Power and Charging; Table Connectivity Box, Universal USB-C Laptop Dock
Model KITBXDOCKPNA
- Weight
- 2.7 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels

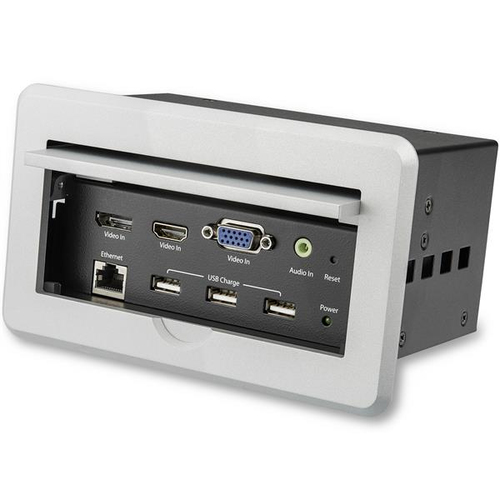

StarTech.com
Conference Table Connectivity Box for A/V - 4K
Model BOX4HDECP2
- Weight
- 1.7 kg
- Colour
- Silver
- Maximum resolution
- 3840 x 2160 pixels

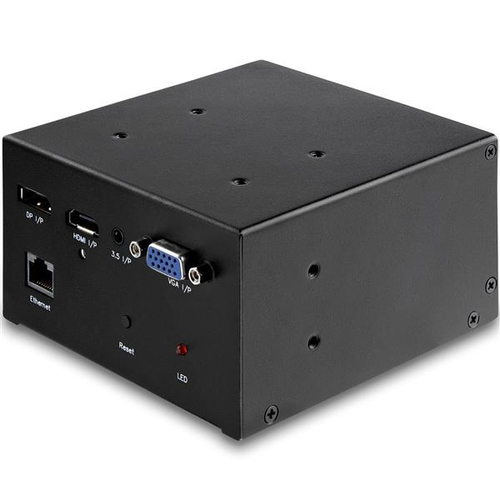

StarTech.com
