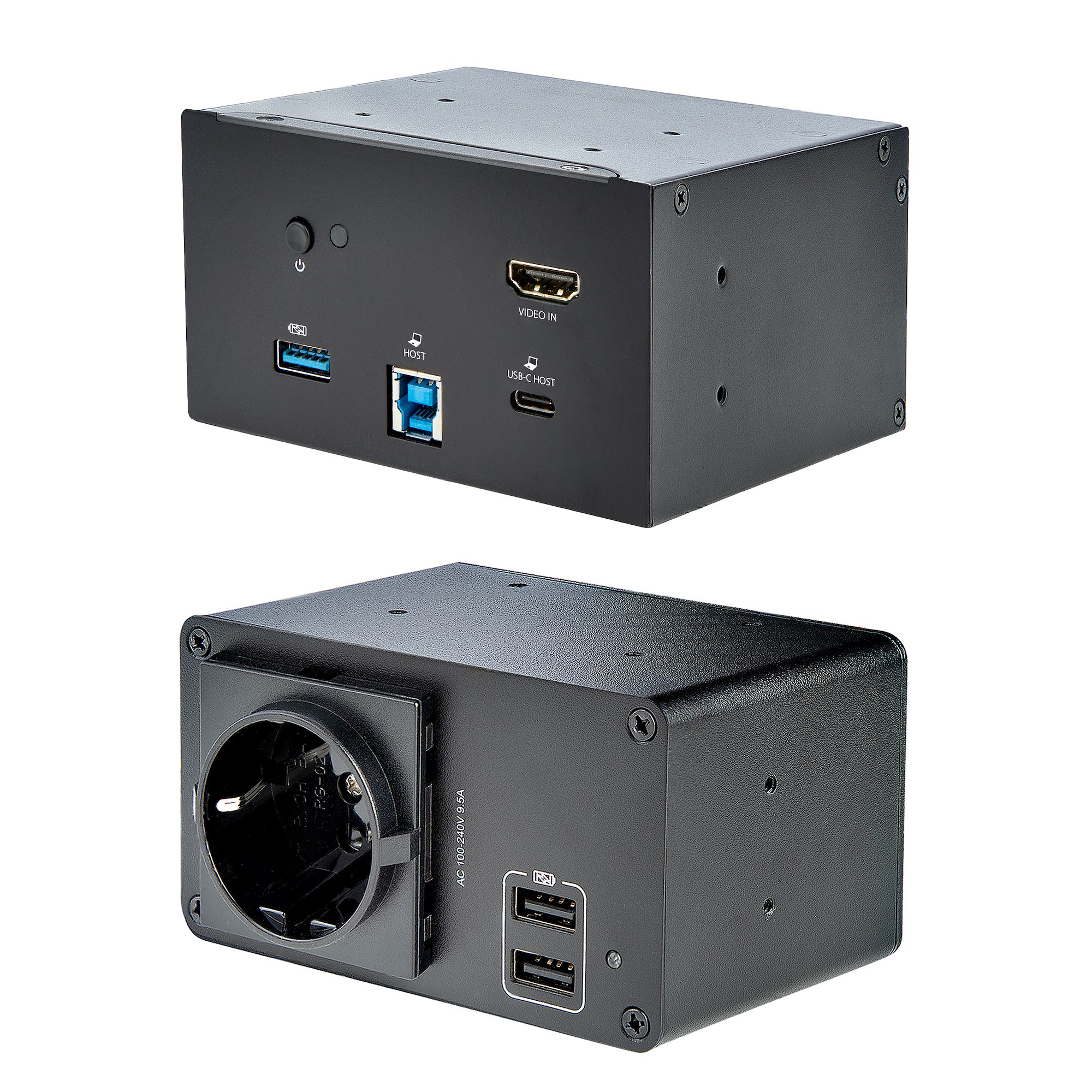

Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock
60W PD, 4K HDMI, USB Hub, Audio, 1x AC Ou
Model KITBXDOCKPEUEAN 065030891172
52 specifications
- Weight2.7 kg
- ColourBlack
- Maximum resolution3840 x 2160 pixels
- Ethernet LANYes
- HDMI input ports quantity2
- DC input voltage100 - 240 V
Overview
- Weight
- 2.7 kg
- Colour
- Black
- Maximum resolution
- 3840 x 2160 pixels
- Ethernet LAN
- Yes
- HDMI input ports quantity
- 2
- DC input voltage
- 100 - 240 V
- Brand
- StarTech.com
- Category
- AV Conferencing Bridge
- Model
- KITBXDOCKPEU
- Part number
- KITBXDOCKPEU
- EAN / UPC
- 065030891172
- Also known as
- StarTech.com Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock, 60W PD, 4K HDMI, USB Hub, Audio, 1x AC Ou
Specifications
52 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium, Plastic, Steel |
| LED indicators | Power |
| Chipset | DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153 |
| Operating systems supported | Windows 7, 8, 8.1, 10, 11 macOS 10.9 - 10.12, 10.14, 10.15, 11.0, 12.0, 13.0 Ventura Chrome OS v55+ |
| Certification | CE, RoHS, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Audio input | 1 |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| UASP support | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 6 A |
| Power plug type | Type N |
| AC outlet types | C13 coupler, Type E / F |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 318 mm |
| Depth | 165 mm |
| Height | 110 mm |
| Weight | 2.7 kg |
| Package width | 360 mm |
| Package depth | 140 mm |
| Package height | 240 mm |
| Package weight | 5.6 kg |

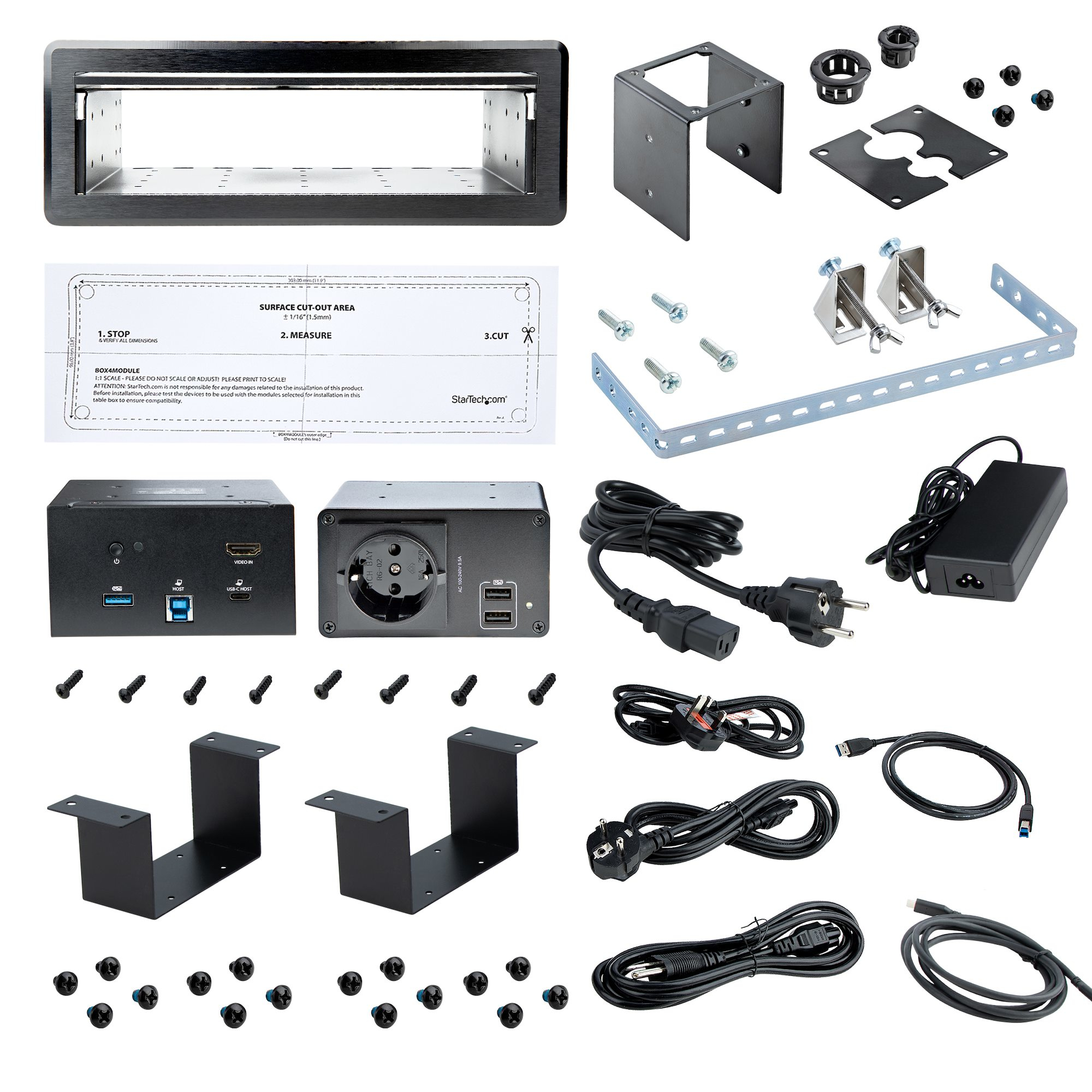

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Included power plug types | EU, NA, UK |
| Number of screws | 36 |
| Screws included | Yes |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 360 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case height | 240 mm |
| Products per master (outer) case | 1 pc(s) |
