Conference Table Connectivity Box for A/V - 4K
Model BOX4HDECP2EAN 065030867498
42 specifications
- Weight1.7 kg
- ColourSilver
- Maximum resolution3840 x 2160 pixels
- Ethernet LANYes
- HDMI version1.4
- Power consumption (typical)24 W
Overview
- Weight
- 1.7 kg
- Colour
- Silver
- Maximum resolution
- 3840 x 2160 pixels
- Ethernet LAN
- Yes
- HDMI version
- 1.4
- Power consumption (typical)
- 24 W
- Brand
- StarTech.com
- Category
- AV Conferencing Bridge
- Model
- BOX4HDECP2
- Part number
- BOX4HDECP2
- EAN / UPC
- 065030867498
- Also known as
- StarTech.com Conference Table Connectivity Box for A/V - 4K
Specifications
42 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported aspect ratios | 16:9 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Maximum cable length | 15.2 m |
| Certification | CE, FCC, TAA, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB 2.0 Type-A ports quantity | 3 |
| Audio input | 3.5 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| USB pass-through | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 24 W |
| External power supply | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power plug type | Type N |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 170 mm |
| Height | 98 mm |
| Weight | 1.7 kg |
| Package width | 100 mm |
| Package depth | 170 mm |
| Package height | 98 mm |
| Package weight | 1.8 kg |

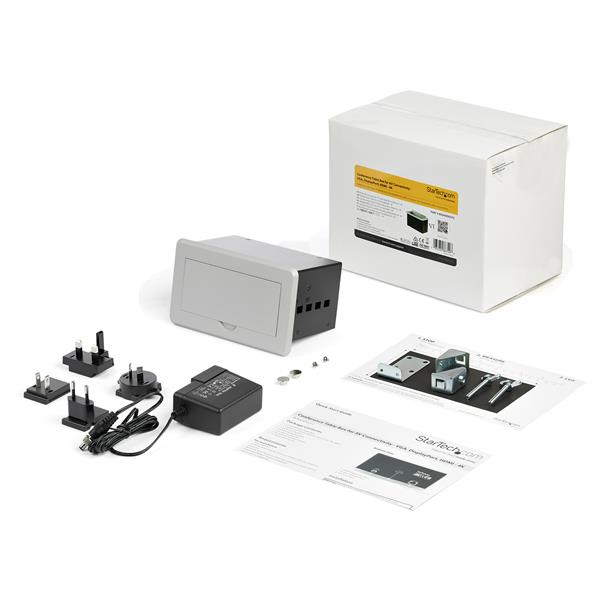

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Number of screws | 2 |
| Screws included | Yes |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
