StarTech.com Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A &
StarTech.com

Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A &

Model KITBXAVHDPEUEAN 065030891202

49 specifications
  • Weight3.1 kg
  • ColourBlack
  • Maximum resolution3840 x 2160 pixels
  • Ethernet LANYes
  • HDMI version1.4
  • AC adapter input voltage100 - 240 V
See all specifications

Overview

Weight
3.1 kg
Colour
Black
Maximum resolution
3840 x 2160 pixels
Ethernet LAN
Yes
HDMI version
1.4
AC adapter input voltage
100 - 240 V
Brand
StarTech.com
Model
KITBXAVHDPEU
Part number
KITBXAVHDPEU
EAN / UPC
065030891202
Also known as
StarTech.com Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A &

Specifications

49 specifications in 9 groups

Video

Maximum resolution3840 x 2160 pixels
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Maximum refresh rate60 Hz

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Product colourBlack
Housing materialAluminium, Plastic, Steel
LED indicatorsPower
Reset buttonYes
Compatible productsParade - PS176, Chrontel - CH7035, Explore Micro - EP9442U, TI - TS3DV64
CertificationCE, FCC, RoHS

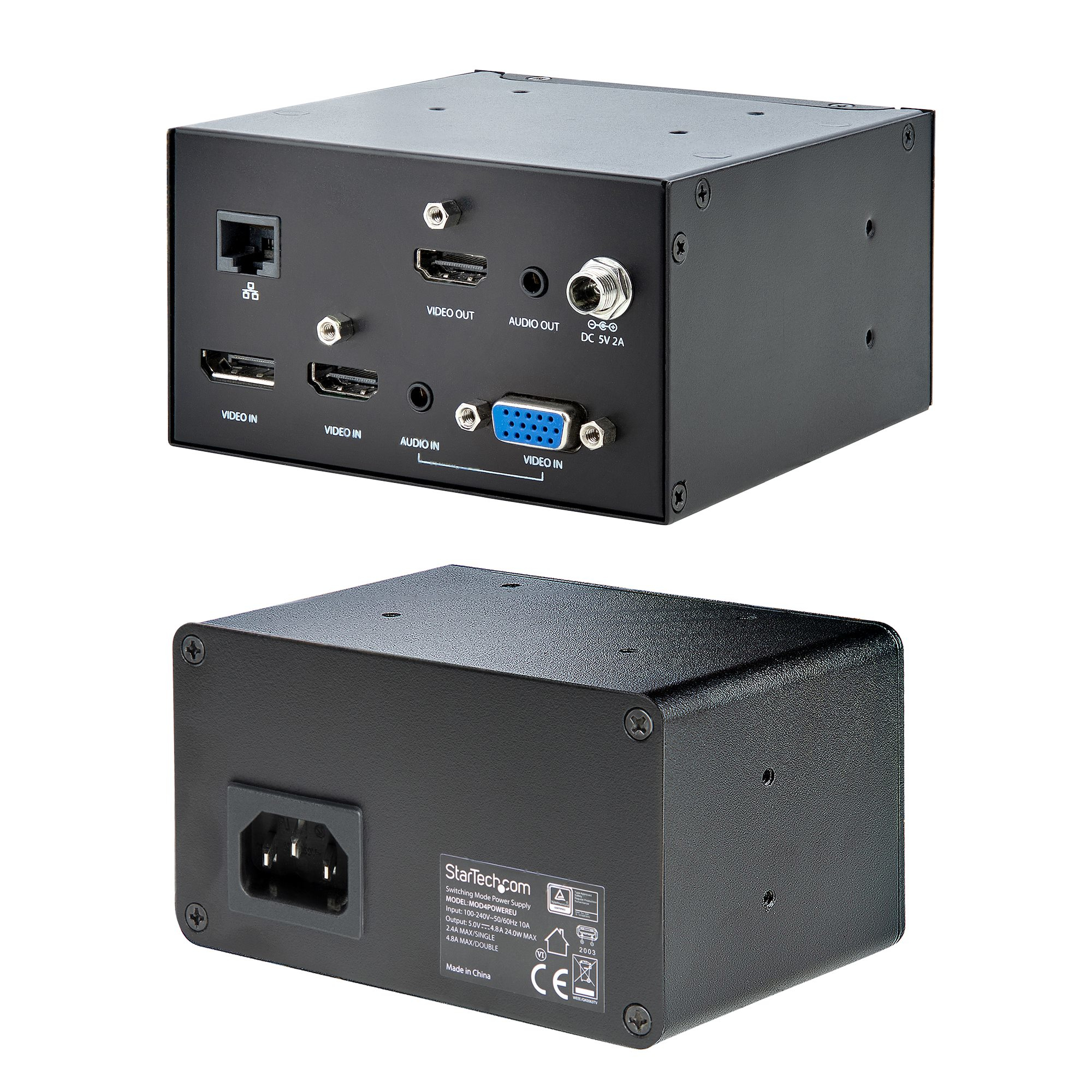

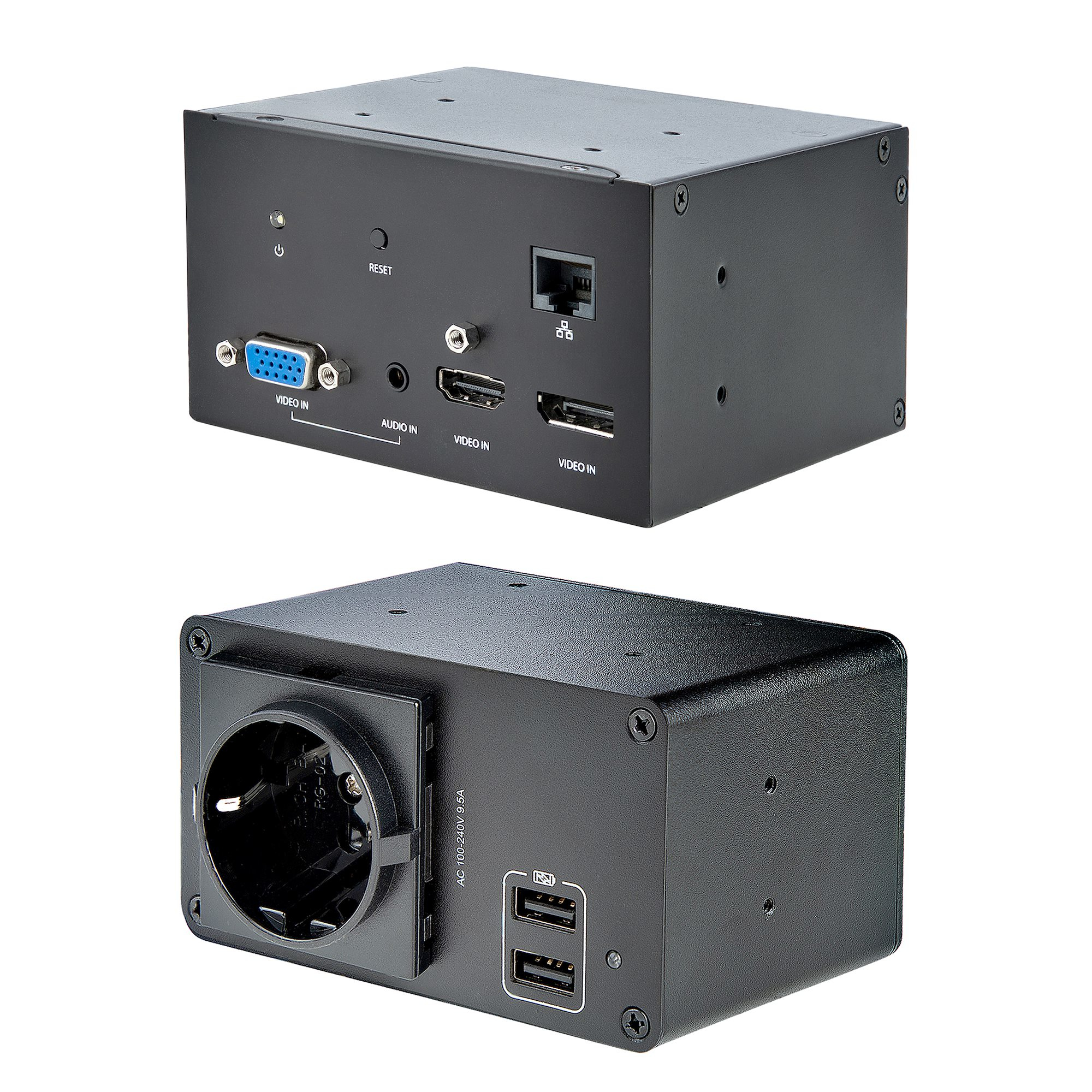

Ports & interfaces

HDMI version1.4
HDMI input ports quantity2
HDMI output ports quantity1
DisplayPort version1.2
DisplayPorts in2
VGA (D-Sub) input ports2
Audio input2
Audio output1
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity2
USB pass-throughNo
DC-in jackYes

Power

AC adapter input voltage100 - 240 V
AC adapter output voltage5 V
AC adapter output current2 A
AC outlet typesC13 coupler, Type F
AC outlets quantity2 AC outlet(s)

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 85%

Weight & dimensions

Width318 mm
Depth165 mm
Height110 mm
Weight3.1 kg
Package width360 mm
Package depth140 mm
Package height240 mm
Package weight5.6 kg

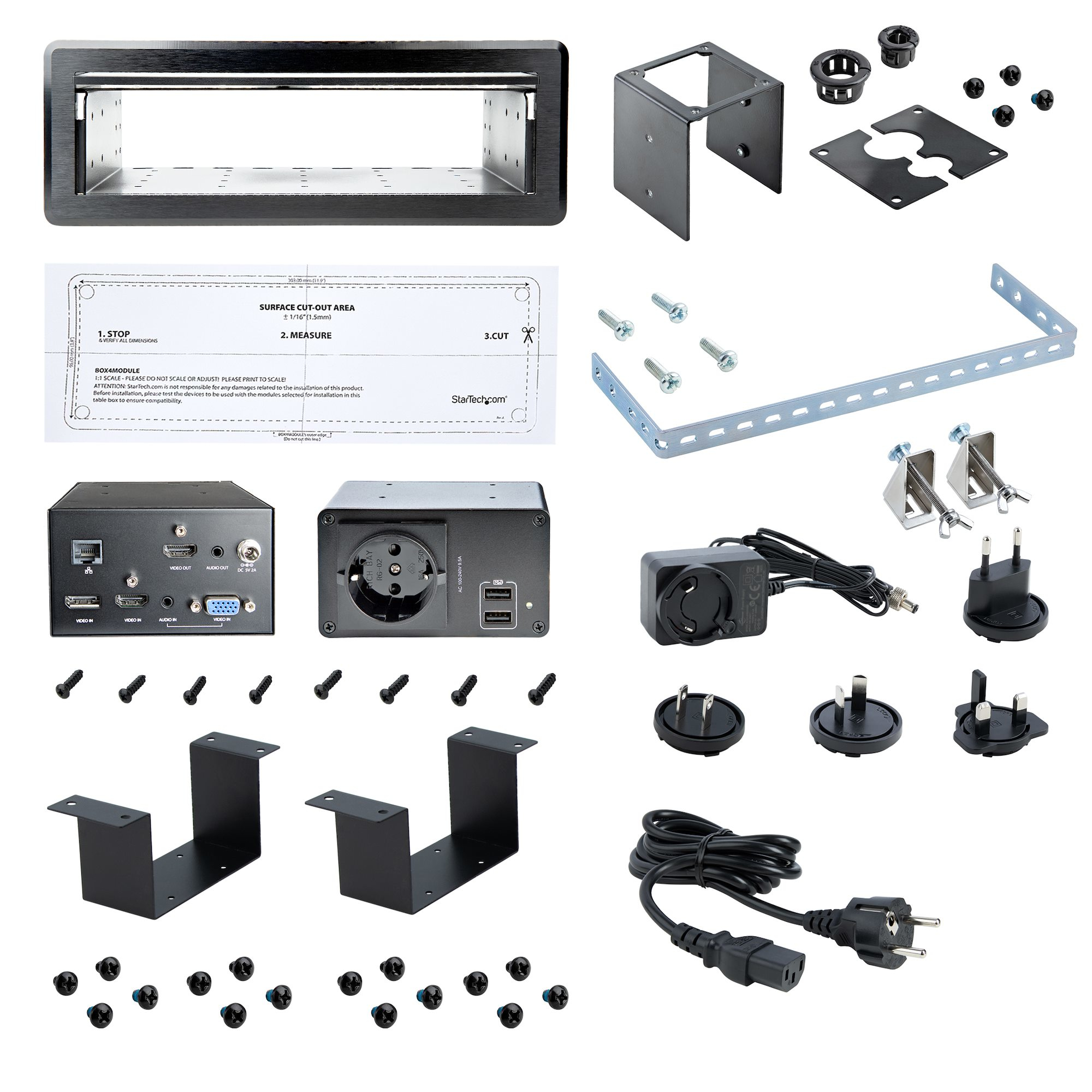

Packaging content

Cables includedAC
Included power plug typesEU, NA, UK
Number of screws36
Screws includedYes
Quick start guideYes
Mounting brackets includedYes

Logistics data

Master (outer) case width360 mm
Master (outer) case length140 mm
Master (outer) case height240 mm
Products per master (outer) case1 pc(s)
