AV Bridge CONFERENCE
Model 999-8215-001EAN 840077501662
36 specifications
- Weight1.42 kg
- ColourBlack
- Maximum resolution1440 x 900 pixels
- Audio formats supportedAAC, PCM
- Ethernet LANYes
- HDMI ports quantity1
Overview
- Weight
- 1.42 kg
- Colour
- Black
- Maximum resolution
- 1440 x 900 pixels
- Audio formats supported
- AAC, PCM
- Ethernet LAN
- Yes
- HDMI ports quantity
- 1
- Brand
- Vaddio
- Category
- AV Conferencing Bridge
- Model
- 999-8215-001
- Part number
- 999-8215-001
- EAN / UPC
- 840077501662
- Also known as
- Vaddio AV Bridge CONFERENCE
Specifications
36 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1440 x 900 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+) |
| Supported video modes | 720p, 1080p |
| Analog signal format system | NTSC, PAL |
| Frame rate | 60 fps |
| Video formats supported | H.264, M-JPEG |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, PCM |
| Balanced line input level | 4 dB |
| Unbalanced line input level | -10 dB |
| Equalizer | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | RTSP, HLS, Telnet |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Built-in display | Yes |
| Reset button | Yes |
| Certification | FCC,TAA |

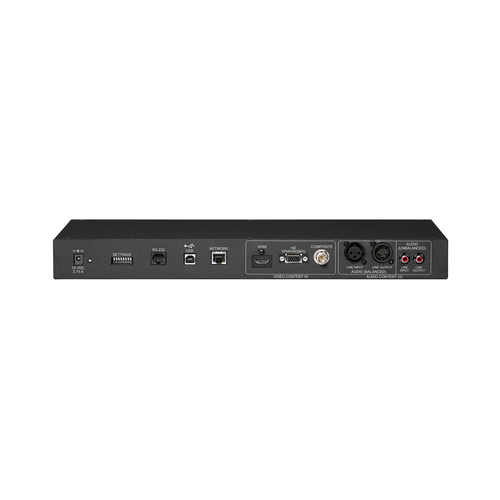

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Composite video in | 1 |
| Audio input | 1 |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| XLR in | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 18 V |
| Input current | 2.75 A |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480.8 mm |
| Depth | 177.8 mm |
| Height | 43.7 mm |
| Weight | 1.42 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB |
| AC adapter included | Yes |
