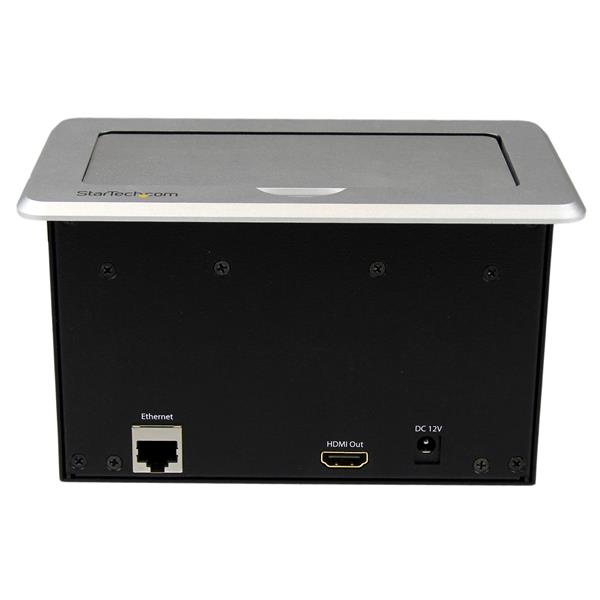

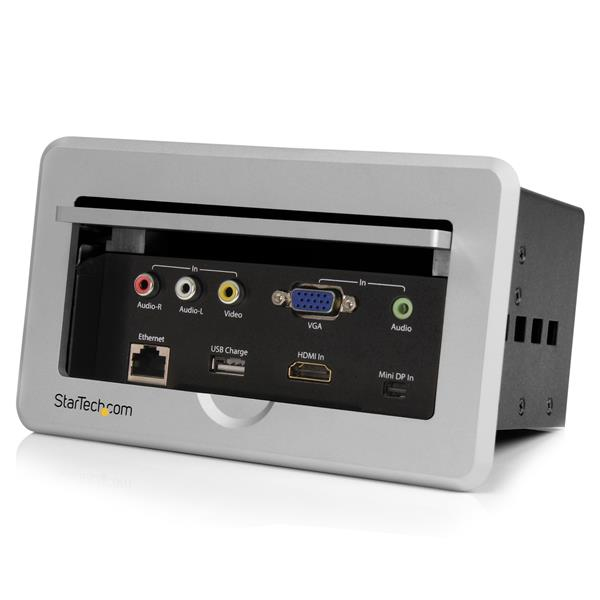

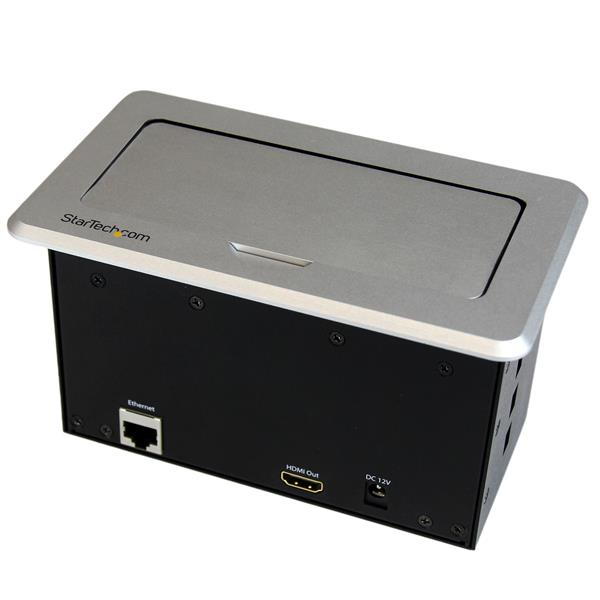

Conference table box for AV connectivity
Model BOX4HDECPEAN 065030858359
34 specifications
- Weight1.1 kg
- ColourBlack, Grey
- Maximum resolution1920 x 1080 pixels
- Ethernet LANYes
- HDMI input ports quantity1
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.1 kg
- Colour
- Black, Grey
- Maximum resolution
- 1920 x 1080 pixels
- Ethernet LAN
- Yes
- HDMI input ports quantity
- 1
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- AV Conferencing Bridge
- Model
- BOX4HDECP
- Part number
- BOX4HDECP
- EAN / UPC
- 065030858359, 689290689227, 5054629085240, 6136005133321
- Also known as
- StarTech.com Conference table box for AV connectivity
Specifications
34 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p, 720p |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Maximum cable length | 15.2 m |
| Certification | FCC, CE, RoHS |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Composite video in | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio input | 3.5 mm, 2 x RCA |
| Ethernet LAN (RJ-45) ports | 2 |
| USB pass-through | No |
Power
| Specification | Value |
|---|---|
| External power supply | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power plug type | Type N |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 170 mm |
| Height | 100 mm |
| Weight | 1.1 kg |
| Package width | 160 mm |
| Package depth | 235 mm |
| Package height | 190 mm |
| Package weight | 1.8 kg |

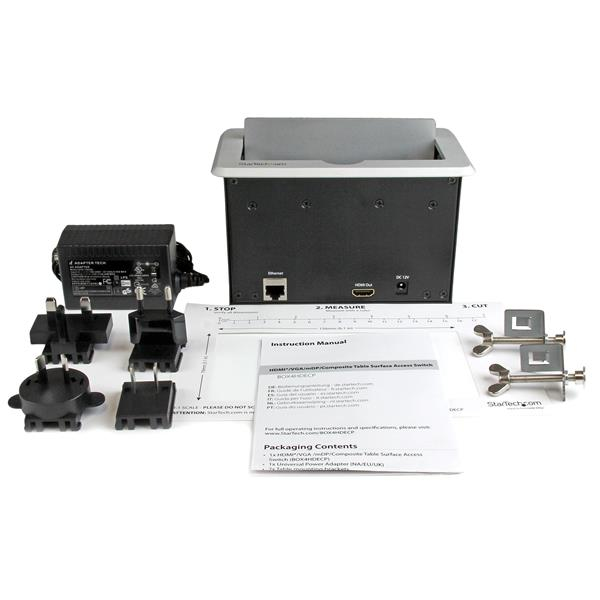

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Quick start guide | Yes |
