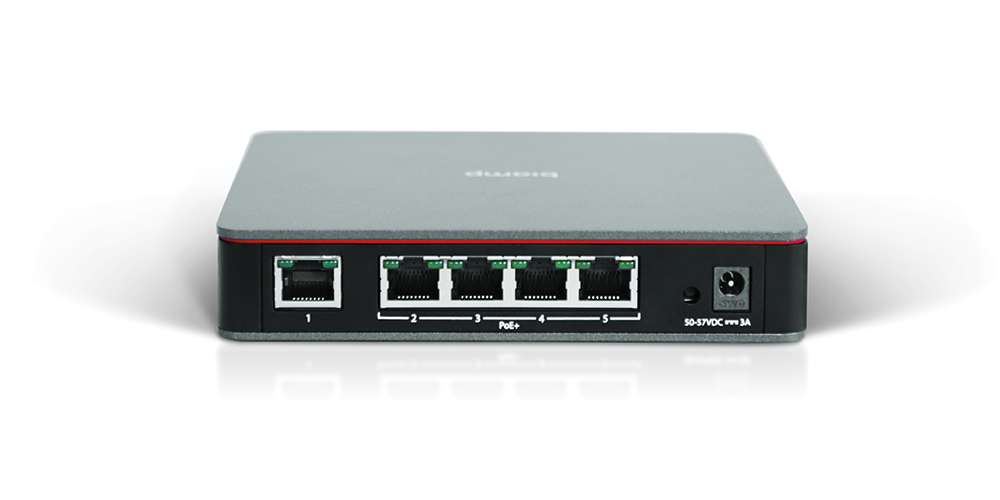

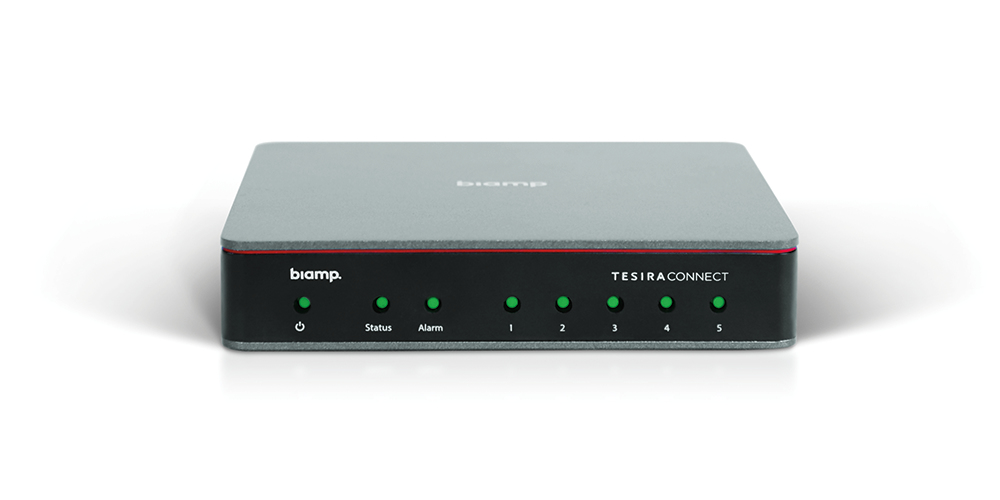

Tesira CONNECT TC-5
Model Tesira CONNECT TC-5Part no. 920-00039-00002EAN 814367028252
22 specifications
- Weight700 g
- ColourBlack, Grey, Red
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports5
- Power consumption (typical)150 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 700 g
- Colour
- Black, Grey, Red
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- Power consumption (typical)
- 150 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Biamp
- Category
- AV Conferencing Bridge
- Model
- Tesira CONNECT TC-5
- Part number
- 920-00039-00002
- EAN / UPC
- 814367028252
- Also known as
- Biamp Tesira CONNECT TC-5 Ethernet LAN Black, Grey, Red
Specifications
22 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Grey, Red |
| LED indicators | Power |
| Certification | FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 150 W |
| AC adapter input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 147 mm |
| Depth | 147 mm |
| Height | 28 mm |
| Weight | 700 g |
| Package width | 254 mm |
| Package depth | 304.8 mm |
| Package height | 101.6 mm |
| Package weight | 1.41 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
| Export Control Classification Number (ECCN) | EAR99 |
