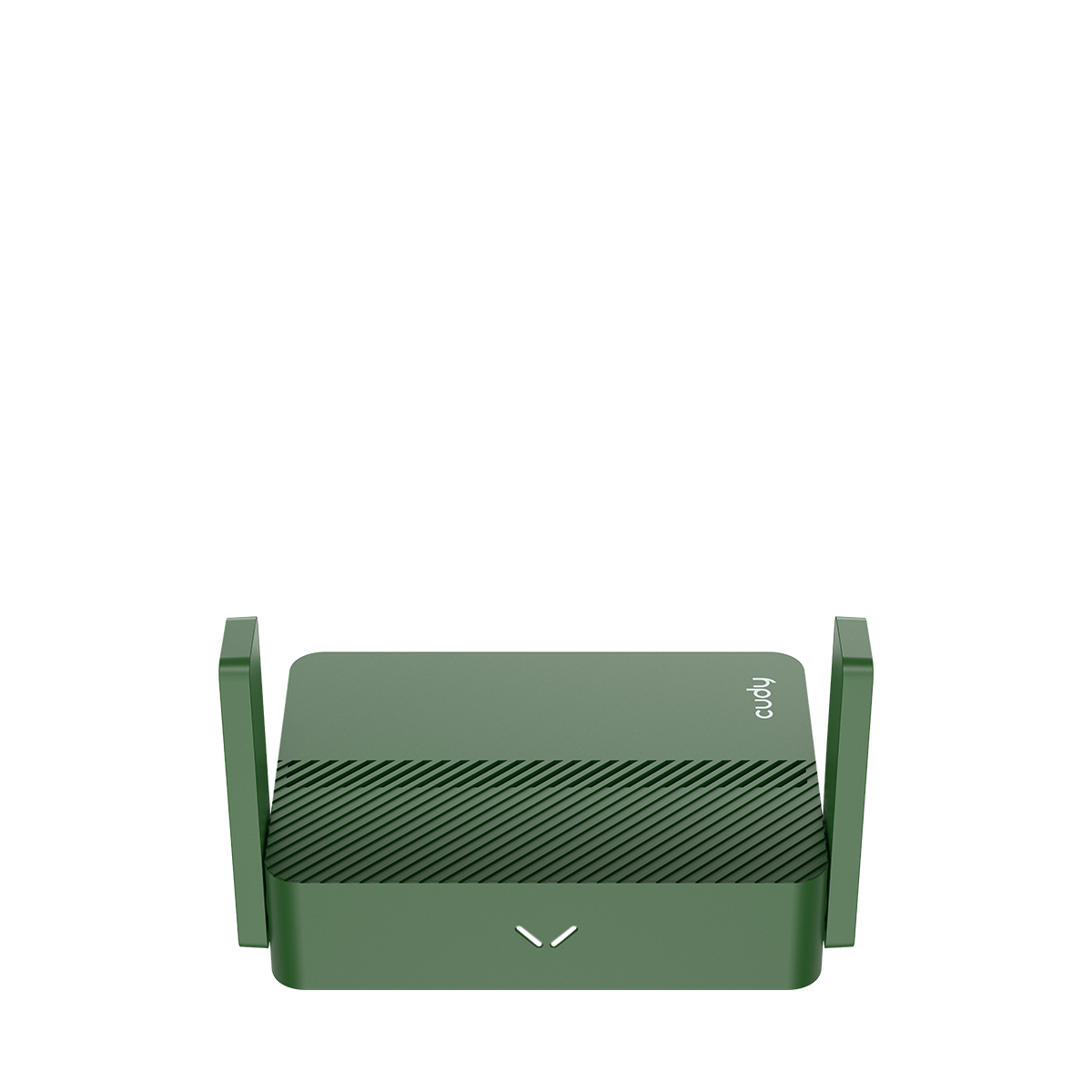

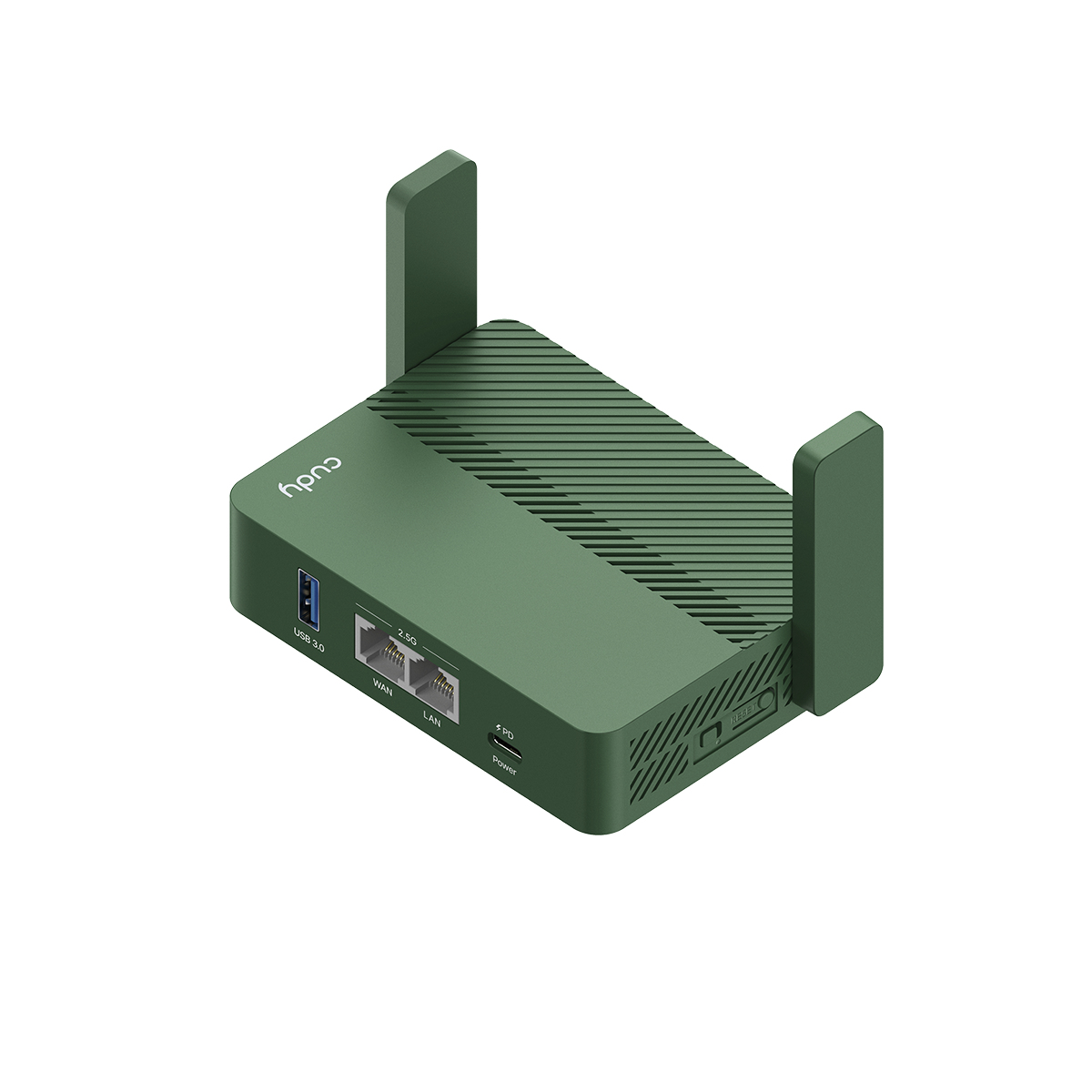

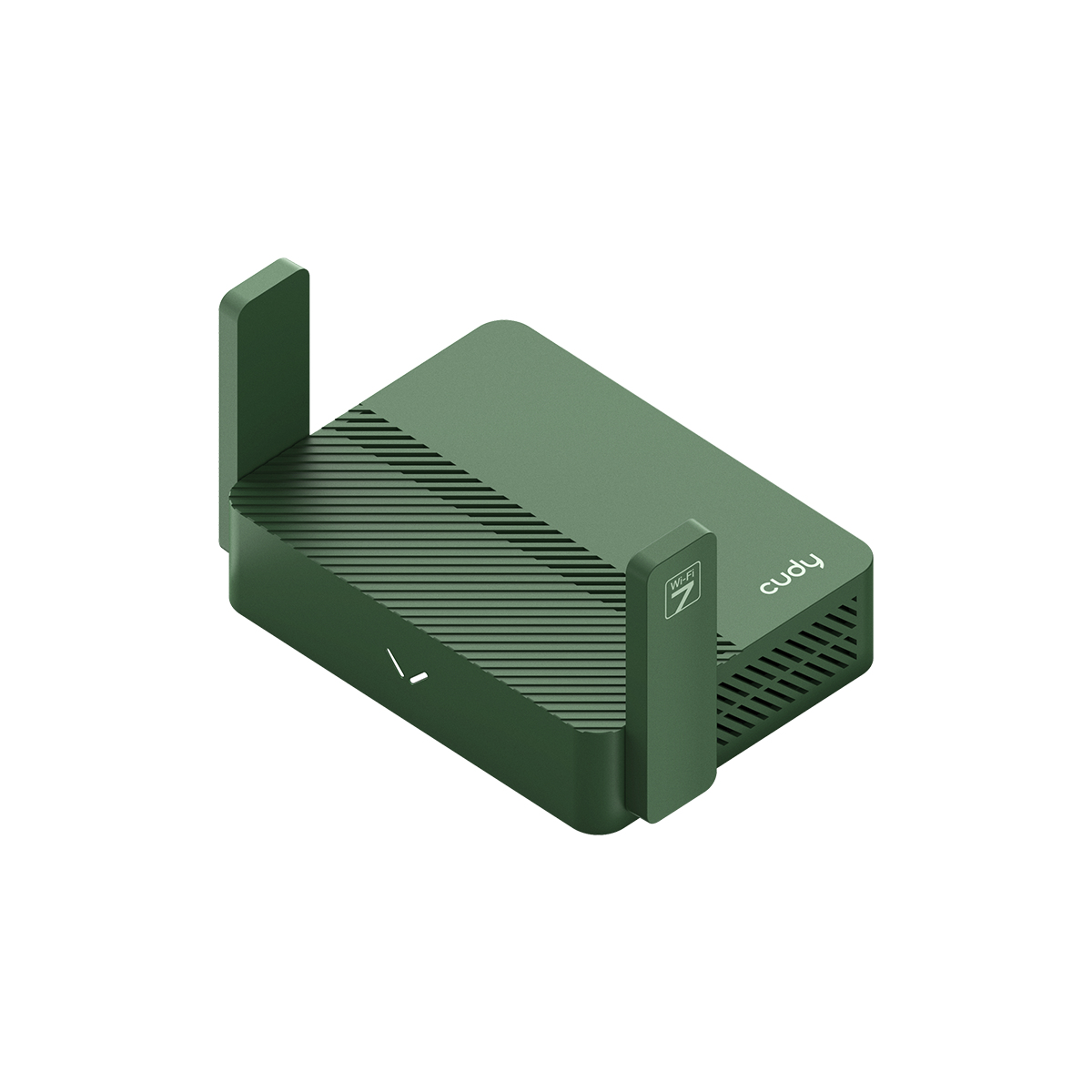

Cudy BE3600 2.5G Wi-Fi 7 Travel Router, TR3600 1.0

BE3600 2.5G Wi-Fi 7 Travel Router, TR3600 1.0

Model BE3600 2.5G Wi-Fi 7 Travel Router, TR3600 1.0Part no. TR3600 1.0EAN 6971690795214

83 specifications

Memory512 MB
SpeedWi-Fi 7 (802.11be)
TypePortable router
ColourGreen
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Memory: 512 MB
Speed: Wi-Fi 7 (802.11be)
Type: Portable router
Colour: Green
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Cudy
Category: Wireless Router
Model: BE3600 2.5G Wi-Fi 7 Travel Router, TR3600 1.0
Part number: TR3600 1.0
EAN / UPC: 6971690795214
Also known as: Cudy BE3600 2.5G Wi-Fi 7 Travel Router, TR3600 1.0 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Green

Specifications

83 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	2882 Mbit/s
WLAN data transfer rate (first band)	688 Mbit/s
WLAN data transfer rate (second band)	2882 Mbit/s
Modulation	4096-QAM, OFDMA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Multicast support	Yes
Port forwarding	Yes
Port triggering	Yes
VPN server	Yes
PPPoE/PPTP/L2TP pass-through	Yes
Ping check	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
DDoS protection	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
System event log	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Portable router
Product colour	Green
LED indicators	System

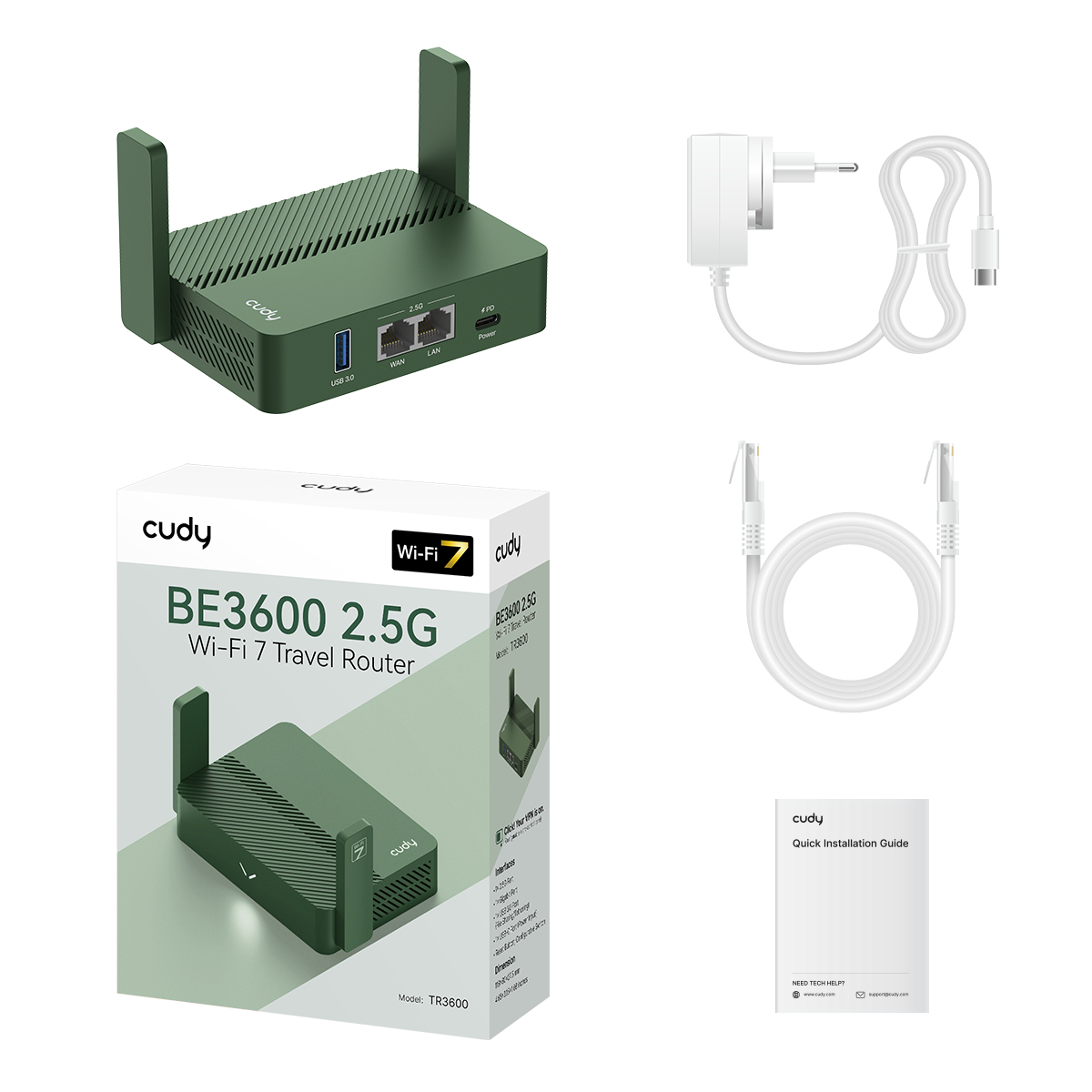

Packaging content

Specification	Value
Cables included	LAN (RJ-45), USB
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC)

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	3

Features

Specification	Value
Built-in processor	Yes
Processor manufacturer	MediaTek
Processor architecture	ARM Cortex-A53
Processor frequency	2000 MHz
Processor cores	2
Internal memory	512 MB
Internal memory type	DDR4
Flash memory	256 MB
Cloudflare DNS	Yes
Languages support	Multi
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	USB
Output voltage	12 V
Output current	3 A
Power consumption (typical)	15 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	80 mm
Height	27.5 mm
Width	118 mm

Packaging data

Specification	Value
Package width	176 mm
Package depth	140.5 mm
Package height	56 mm

Logistics data

Specification	Value
Master (outer) case width	600 mm
Master (outer) case length	300 mm
Master (outer) case height	375 mm
Products per master (outer) case	40 pc(s)

Other features

Specification	Value
Number of users	256 user(s)
