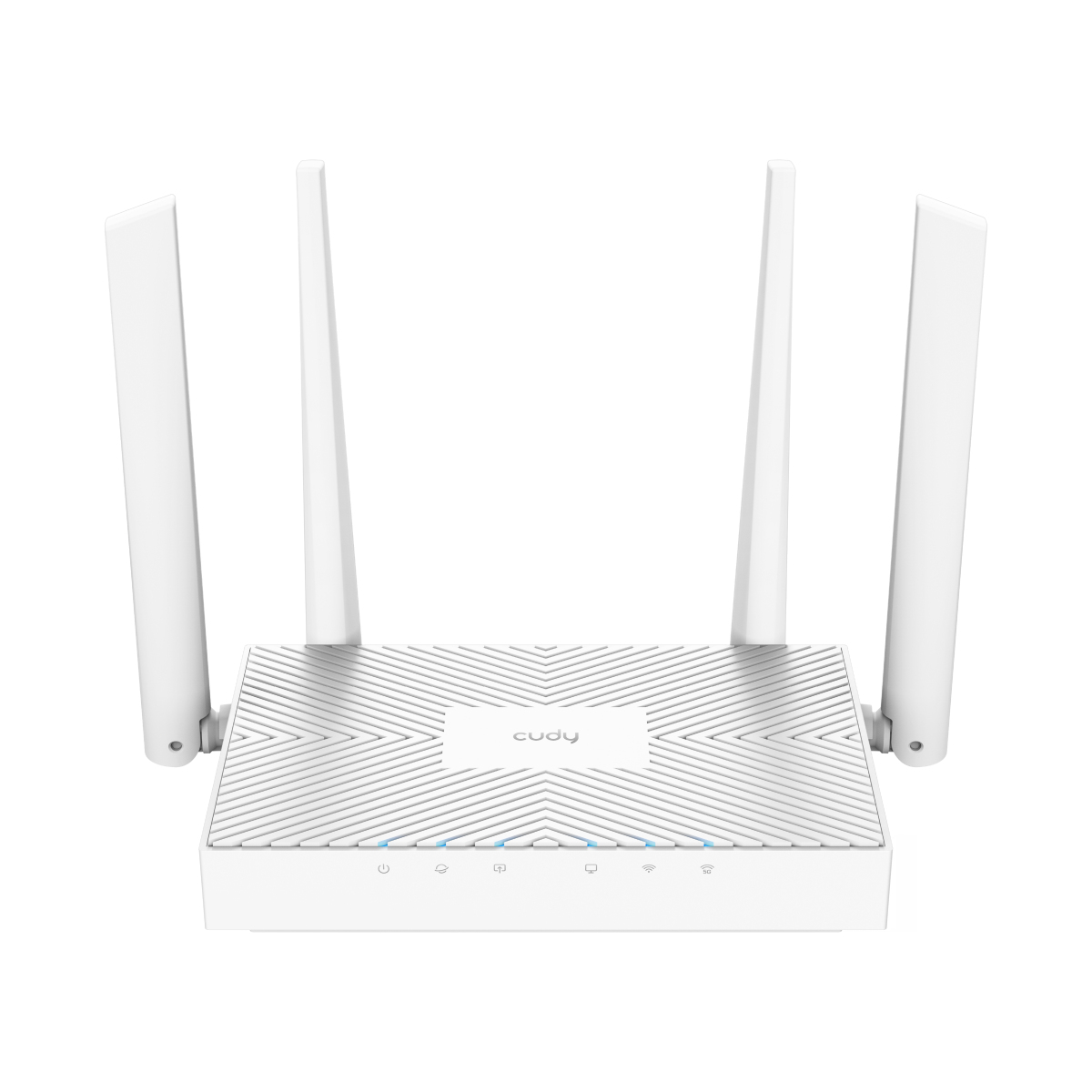

Cudy AX3000 Gigabit Mesh Wi-Fi 6 Router, SP30W 1.0

AX3000 Gigabit Mesh Wi-Fi 6 Router, SP30W 1.0

Model AX3000 Gigabit Mesh Wi-Fi 6 Router, SP30W 1.0Part no. SP30W 1.0EAN 6971690795412

85 specifications

Memory256 MB
SpeedWi-Fi 6 (802.11ax)
TypeDesktop/pole router
Weight326.4 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 256 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Desktop/pole router
Weight: 326.4 g
Colour: White
Ethernet WAN: Yes

Brand: Cudy
Category: Wireless Router
Model: AX3000 Gigabit Mesh Wi-Fi 6 Router, SP30W 1.0
Part number: SP30W 1.0
EAN / UPC: 6971690795412
Also known as: Cudy AX3000 Gigabit Mesh Wi-Fi 6 Router, SP30W 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

85 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Modulation	1024-QAM, OFDMA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Multicast support	Yes
Port forwarding	Yes
Port triggering	Yes
PPPoE/PPTP/L2TP pass-through	Yes
Ping check	Yes

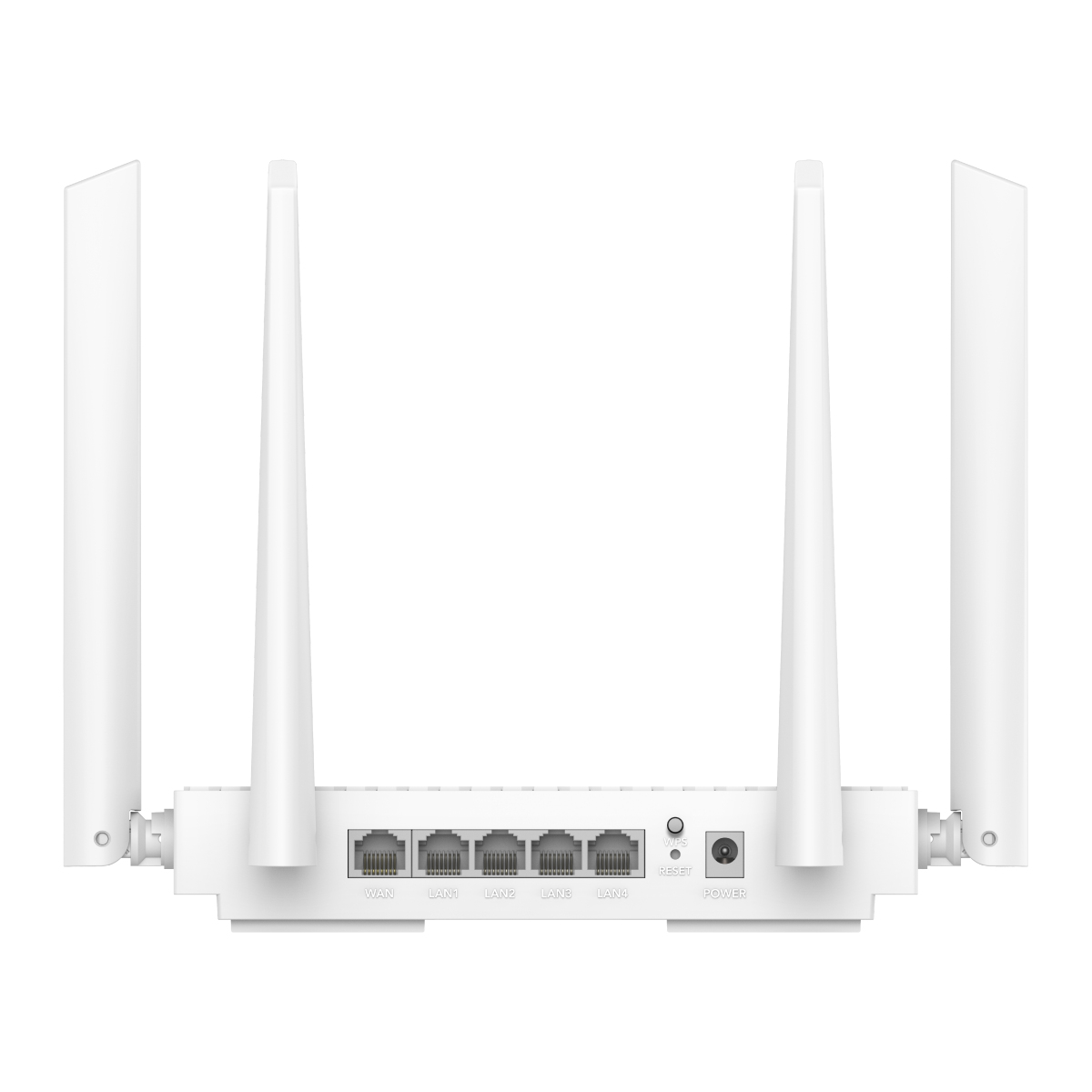

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
DDoS protection	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
System event log	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Desktop/pole router
Product colour	White
LED indicators	Power, LAN, WAN

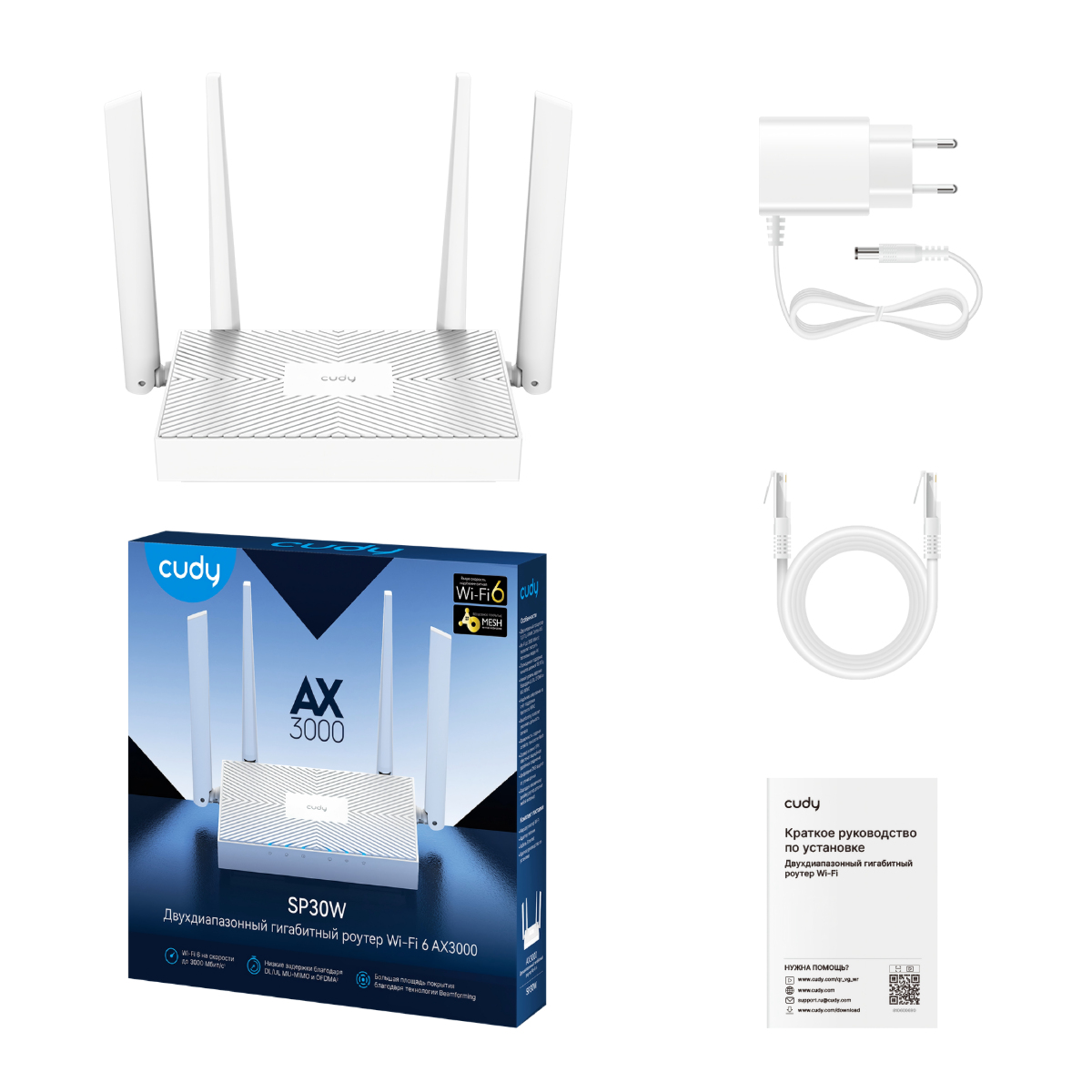

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC)

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4

Features

Specification	Value
Built-in processor	Yes
Processor architecture	ARM Cortex-A53
Processor frequency	1300 MHz
Processor cores	2
Internal memory	256 MB
Internal memory type	DDR3
Flash memory	16 MB
Cloudflare DNS	Yes
Languages support	Multi
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	11.5 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	109 mm
Height	38 mm
Weight	326.4 g
Width	183.3 mm

Packaging data

Specification	Value
Package width	330 mm
Package depth	256 mm
Package height	60 mm
Package weight	603 g

Logistics data

Specification	Value
Master (outer) case width	528 mm
Master (outer) case length	317 mm
Master (outer) case height	347 mm
Master (outer) case gross weight	12.9 kg
Products per master (outer) case	10 pc(s)

Other features

Specification	Value
Number of users	512 user(s)
