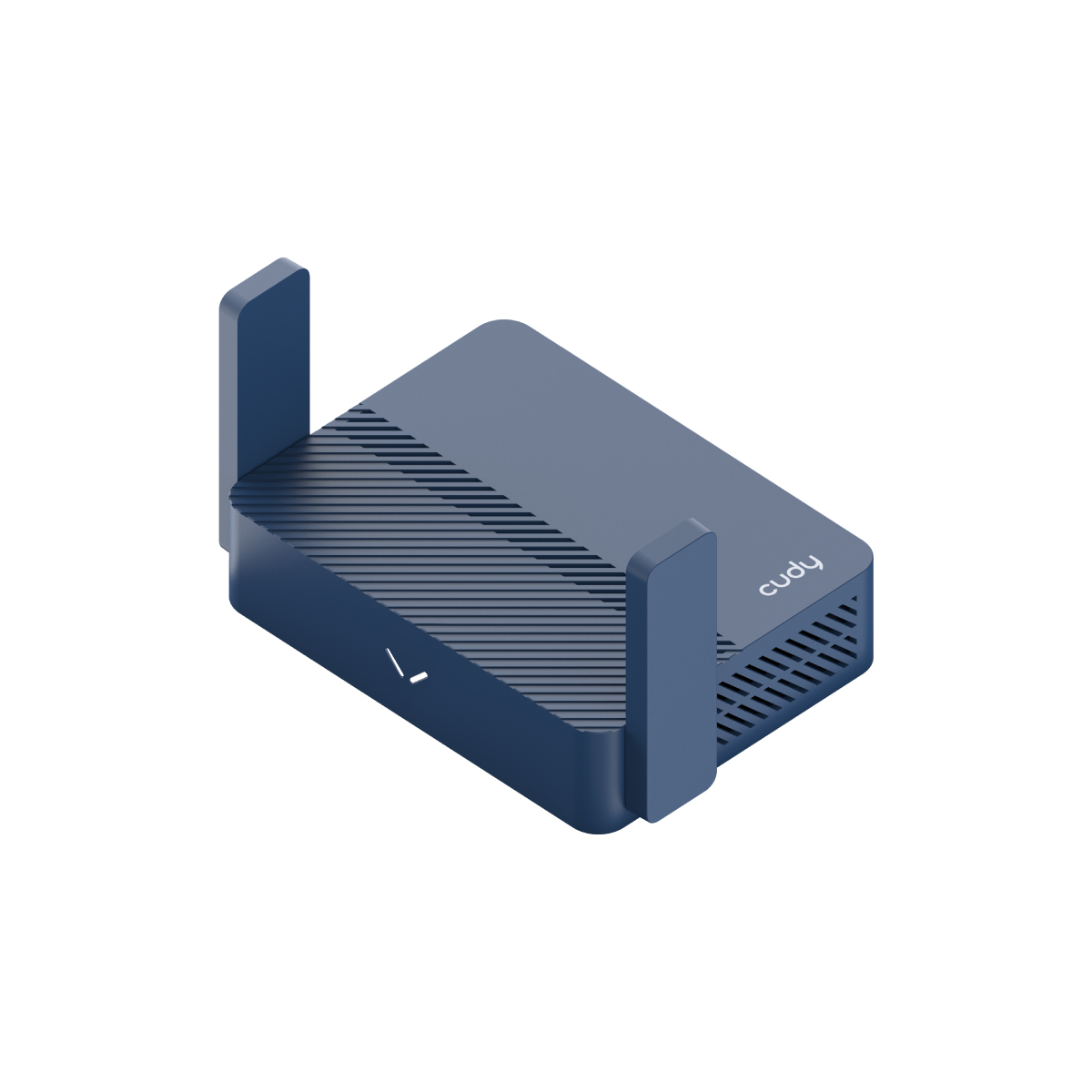

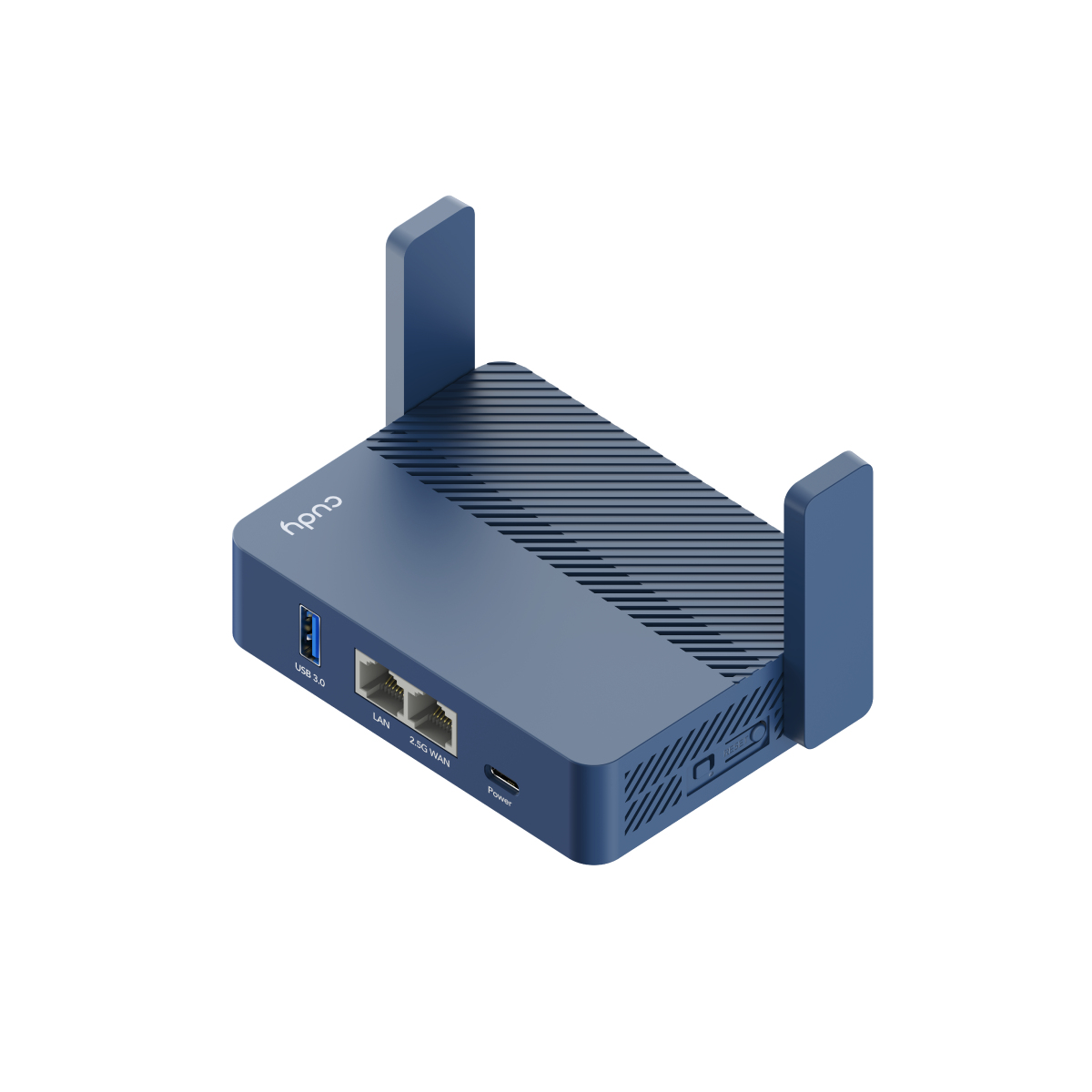

AX3000 2.5G Wi-Fi 6 Mini VPN Router, TR30 1.0

AX3000 2.5G Wi-Fi 6 Mini VPN Router, TR30 1.0

Model AX3000 2.5G Wi-Fi 6 Mini VPN Router, TR30 1.0Part no. TR30 1.0EAN 6971690794903

80 specifications

Memory512 MB
SpeedWi-Fi 6 (802.11ax)
TypeDesktop/pole router
Weight160 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 512 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Desktop/pole router
Weight: 160 g
Colour: White
Ethernet WAN: Yes

Brand: Cudy
Category: Wireless Router
Model: AX3000 2.5G Wi-Fi 6 Mini VPN Router, TR30 1.0
Part number: TR30 1.0
EAN / UPC: 6971690794903
Also known as: Cudy AX3000 2.5G Wi-Fi 6 Mini VPN Router, TR30 1.0 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

80 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Modulation	1024-QAM, OFDMA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000/2500Base-T
Port forwarding	Yes
Port triggering	Yes
VPN server	Yes
PPPoE/PPTP/L2TP pass-through	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
DDoS protection	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
System event log	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Desktop/pole router
Product colour	White
LED indicators	System

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC)

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	3

Features

Specification	Value
Built-in processor	Yes
Processor frequency	1300 MHz
Processor cores	2
Internal memory	512 MB
Flash memory	128 MB
Cloudflare DNS	Yes
Languages support	Multi

Power

Specification	Value
Power source type	USB
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	5 V
Output current	3 A
Power consumption (typical)	11.5 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	80 mm
Height	27.5 mm
Weight	160 g
Width	118 mm

Packaging data

Specification	Value
Package width	176 mm
Package depth	140.5 mm
Package height	56 mm
Package weight	413 g

Logistics data

Specification	Value
Master (outer) case width	600 mm
Master (outer) case length	300 mm
Master (outer) case height	375 mm
Master (outer) case gross weight	17.4 kg
Products per master (outer) case	40 pc(s)

Other features

Specification	Value
Number of users	512 user(s)
