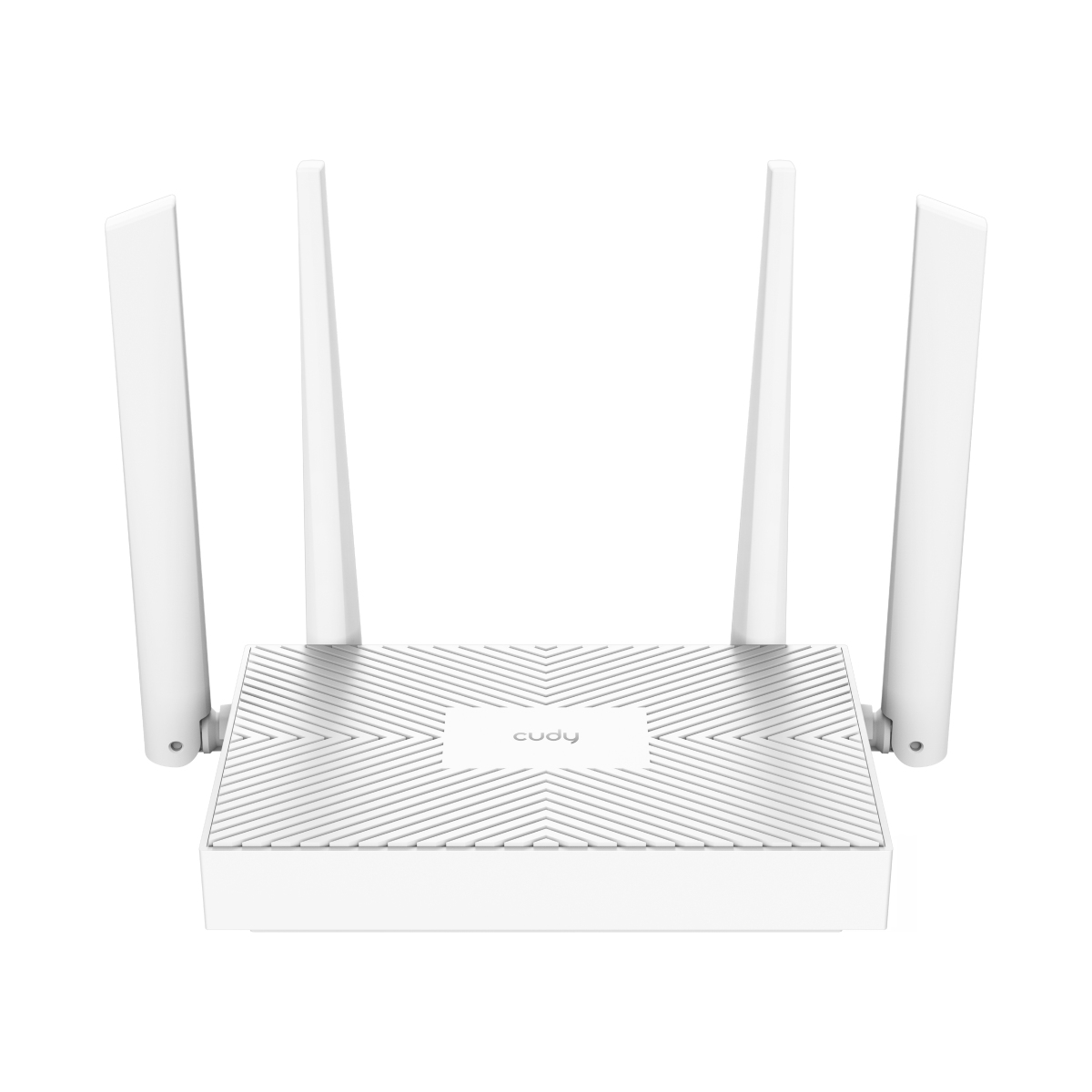

AX1500 Mesh Wi-Fi 6 Router, SP15W 1.0

AX1500 Mesh Wi-Fi 6 Router, SP15W 1.0

Model AX1500 Mesh Wi-Fi 6 Router, SP15W 1.0Part no. SP15W 1.0EAN 6971690795405

80 specifications

Memory128 MB
SpeedWi-Fi 6 (802.11ax)
TypeDesktop/pole router
Weight241.2 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 128 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Desktop/pole router
Weight: 241.2 g
Colour: White
Ethernet WAN: Yes

Brand: Cudy
Category: Wireless Router
Model: AX1500 Mesh Wi-Fi 6 Router, SP15W 1.0
Part number: SP15W 1.0
EAN / UPC: 6971690795405
Also known as: Cudy AX1500 Mesh Wi-Fi 6 Router, SP15W 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

80 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Modulation	1024-QAM

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Multicast support	Yes
Port forwarding	Yes
Maximum coverage	100 m²
PPPoE/PPTP/L2TP pass-through	Yes
Ping check	Yes

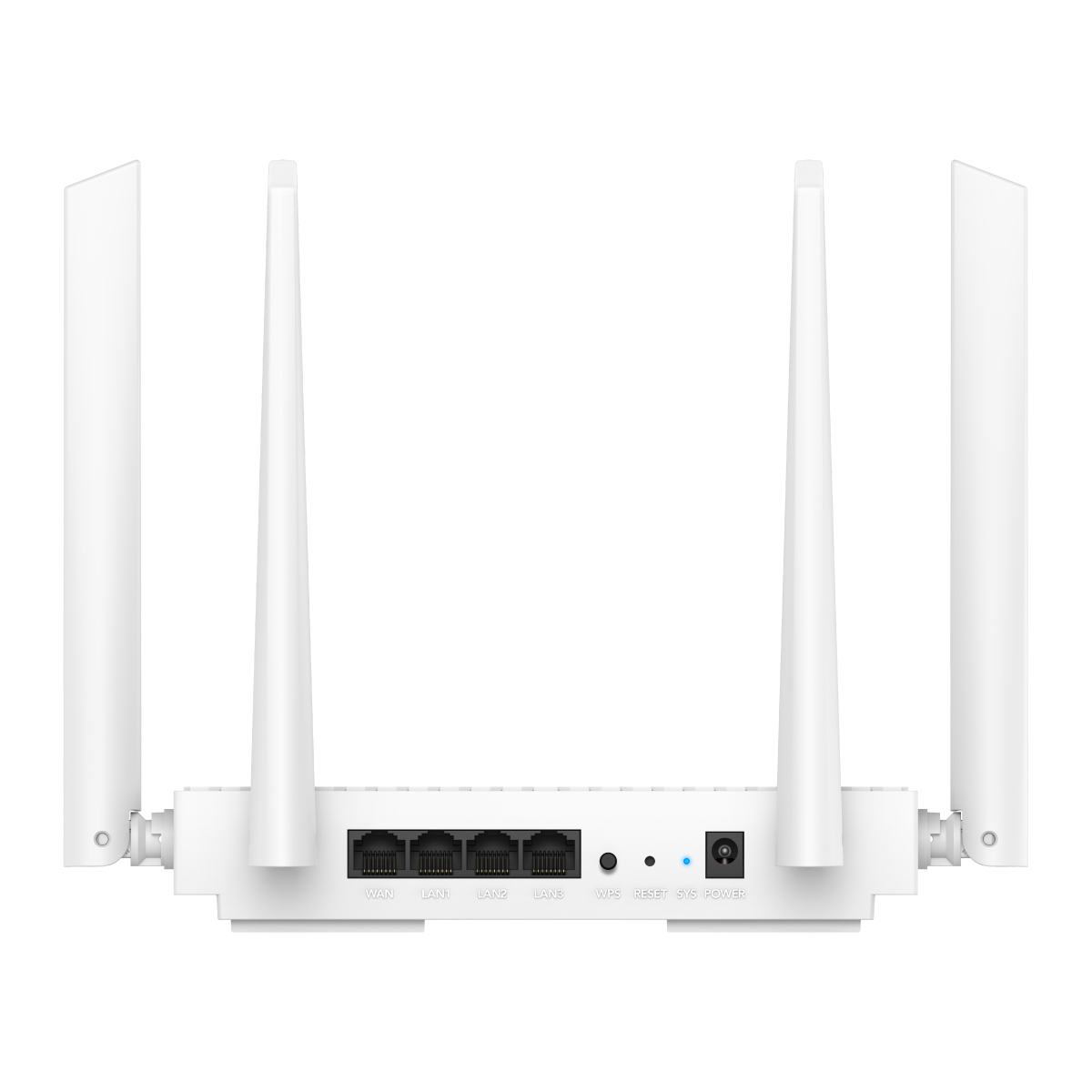

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
IGMP snooping	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Desktop/pole router
Product colour	White
Wall mountable	Yes
LED indicators	System

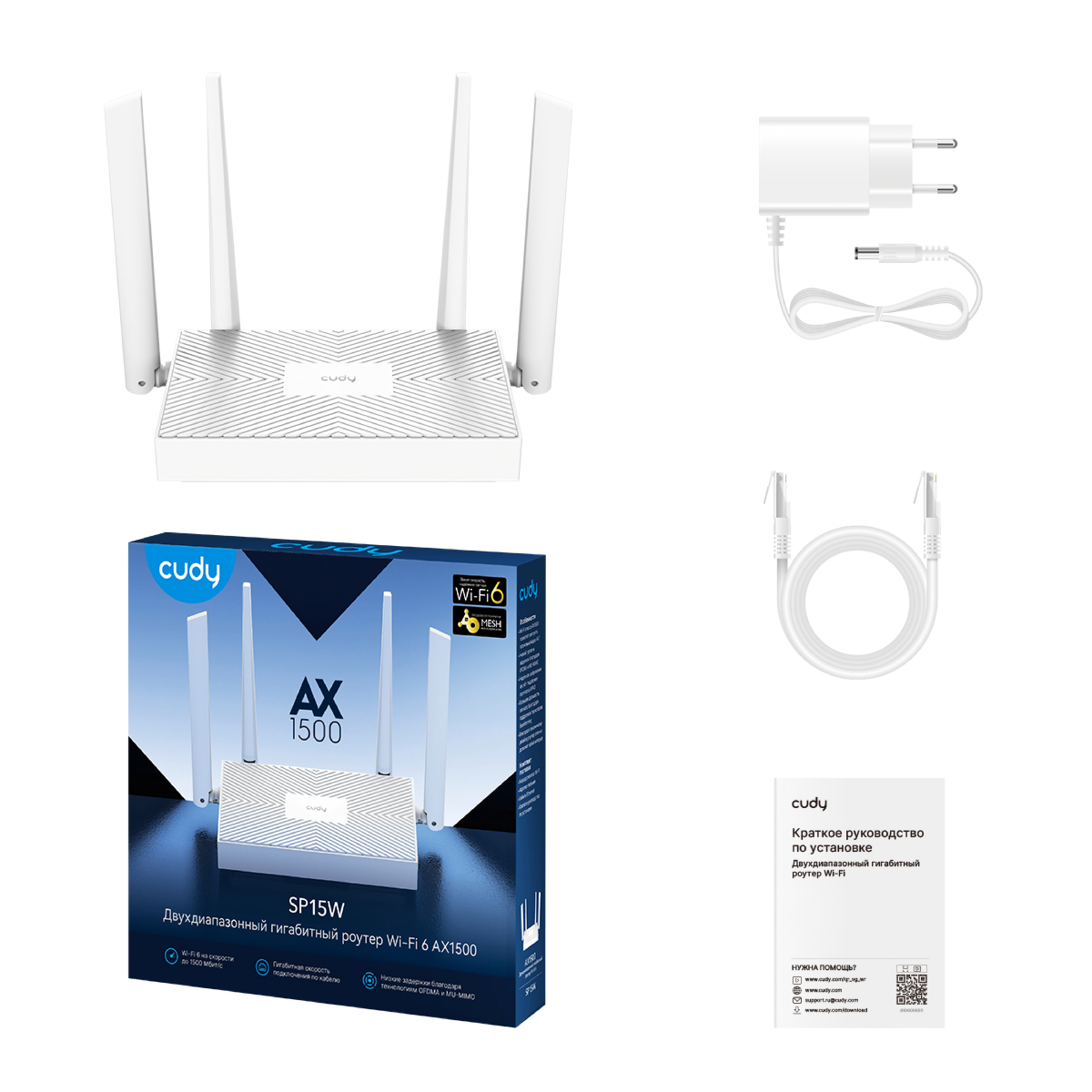

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Compliance certificates	Federal Communications Commission (FCC), CE

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4

Features

Specification	Value
Built-in processor	Yes
Processor frequency	1000 MHz
Internal memory	128 MB
Internal memory type	DDR2
Flash memory	16 MB
Languages support	Multi
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	10 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	109 mm
Height	35 mm
Weight	241.2 g
Width	183.3 mm

Packaging data

Specification	Value
Package width	240 mm
Package depth	230 mm
Package height	60 mm
Package weight	518.2 g

Logistics data

Specification	Value
Master (outer) case width	495 mm
Master (outer) case length	325 mm
Master (outer) case height	480 mm
Master (outer) case gross weight	11.2 kg
Products per master (outer) case	20 pc(s)

Other features

Specification	Value
Number of users	128 user(s)
