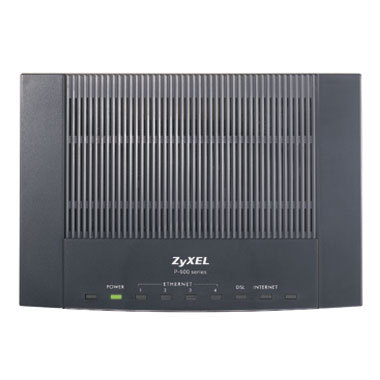

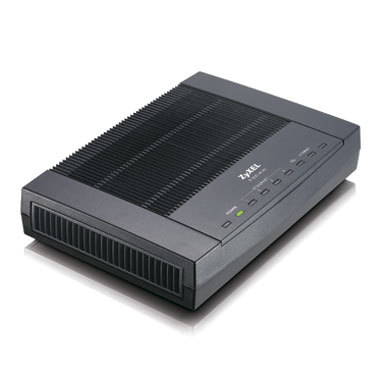

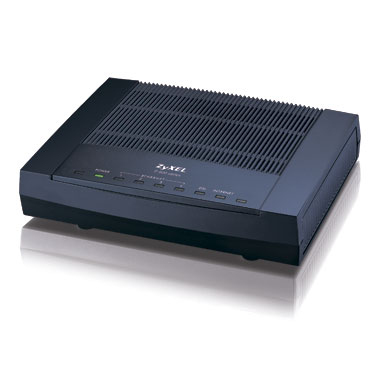

660H-T1 v3s
Model 660H-T1 v3sPart no. 91-004-966001B
32 specifications
- ConnectivityWired
- Weight280 g
- ColourBlack
- Networking standardsIEEE 802.1D
- ADSL2+Yes
- Ethernet LAN (RJ-45) ports4
Overview
- Connectivity
- Wired
- Weight
- 280 g
- Colour
- Black
- Networking standards
- IEEE 802.1D
- ADSL2+
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Zyxel
- Category
- Wired Router
- Model
- 660H-T1 v3s
- Part number
- 91-004-966001B
- Also known as
- Zyxel Prestige 660H-T1 v3s wired router Fast Ethernet Black
Specifications
32 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| ATM features | RFC 1483/2684, RFC 2364 PPP AAL5, RFC 2516 PPP Ethernet, VC / LLC, ATM QoS UBR/CBR/VBR, I.610 OAM F4/F5, AIS, RDI OAM |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| Downstream data rate | 24 Mbit/s |
| DSL specification | ANSI T1.413 Issue 2, ITU G.992.1 G.dmt, ITU G.992.2 G.lite, ITU G.994.1 G.hs, ITU ADSL2 G.992.3, G.992.4, ITU ADSL2+ G.992.5, RE ADSL |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

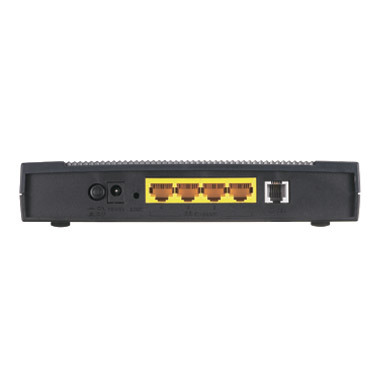

| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | SUA/Multi-NAT, VPN (IPSec, PPTP), DNS proxy, Dynamic DNS, FTP/TFTP |
Security
| Specification | Value |
|---|---|
| Firewall security | Stateful packet inspection (SPI) firewall, Denial of Service (DoS) protection, Distributed Denial of Service (DDoS) protection, IP filtering |
Features
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Status |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 280 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 540 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | 9 V DC, 0.6 A |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 180 x 127 x 37 mm |
| Package dimensions (WxDxH) | 280 x 165 x 51 mm |
| Remote administration | Telnet, FTP, Web, ICMP |
