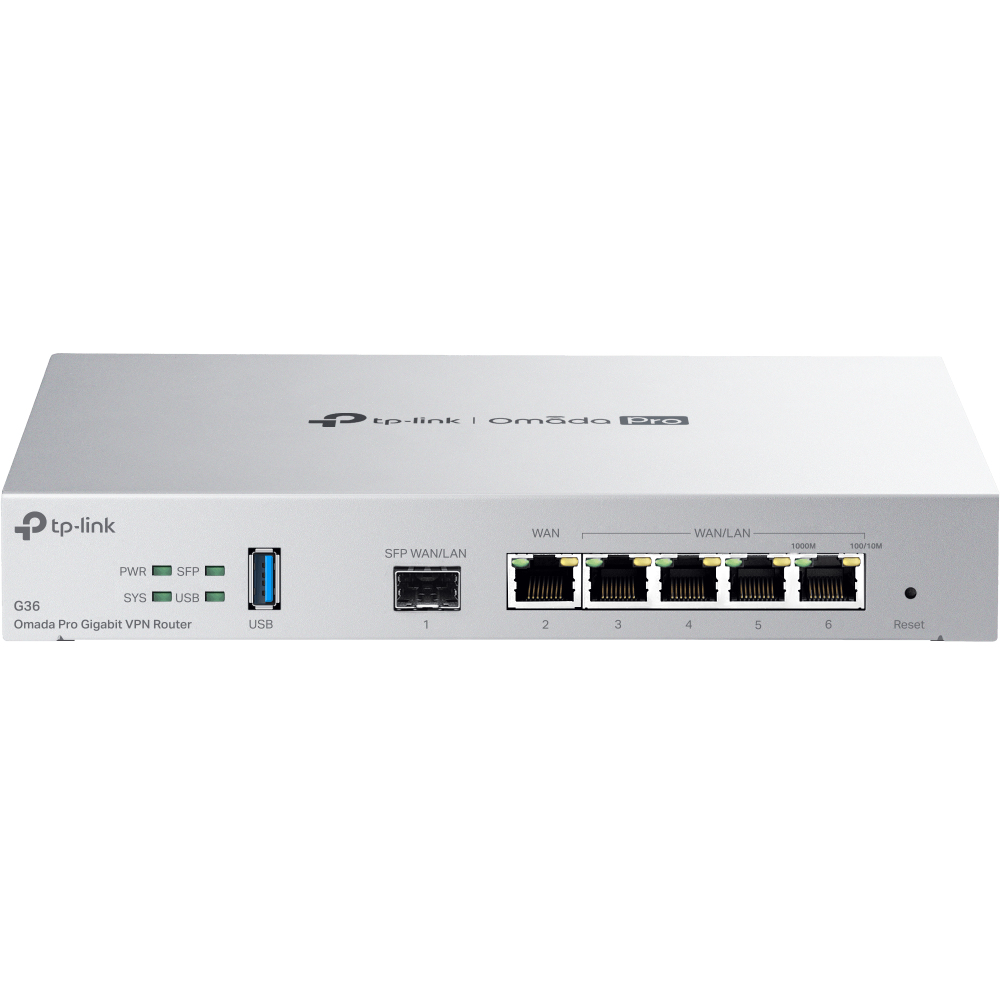

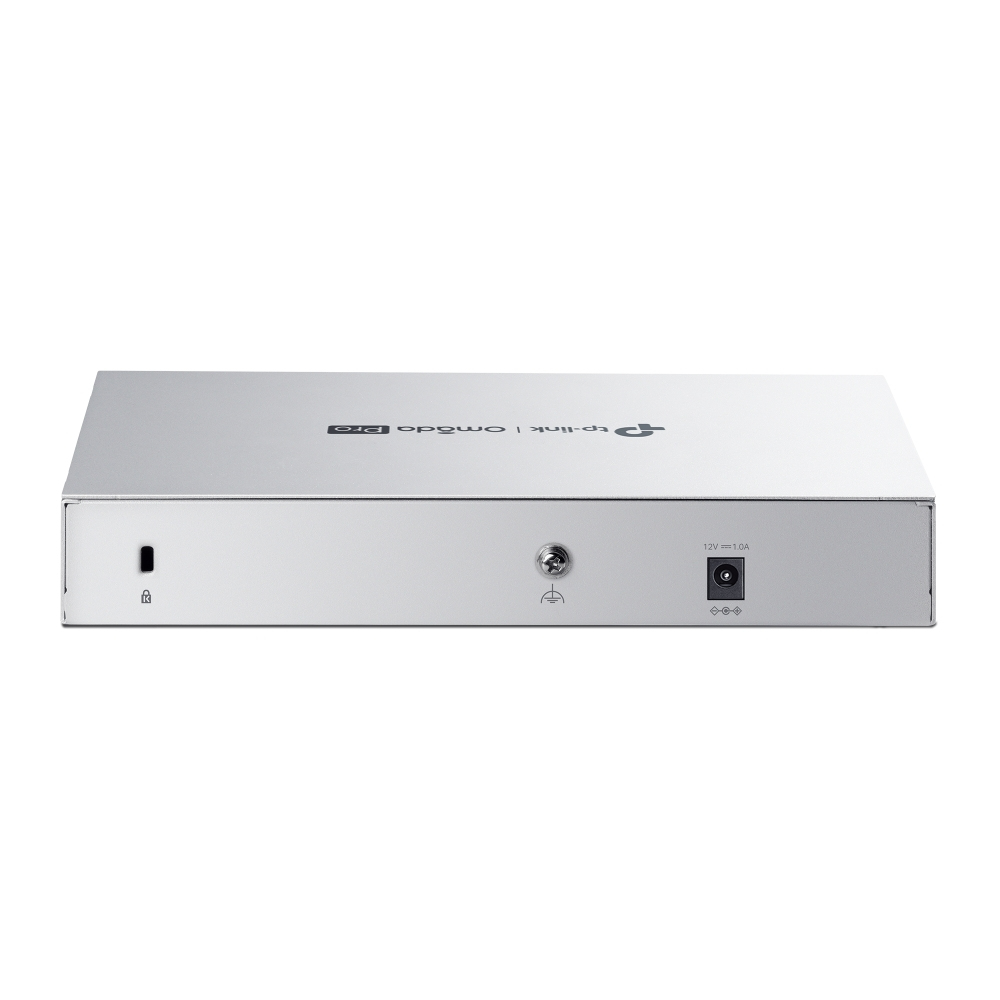

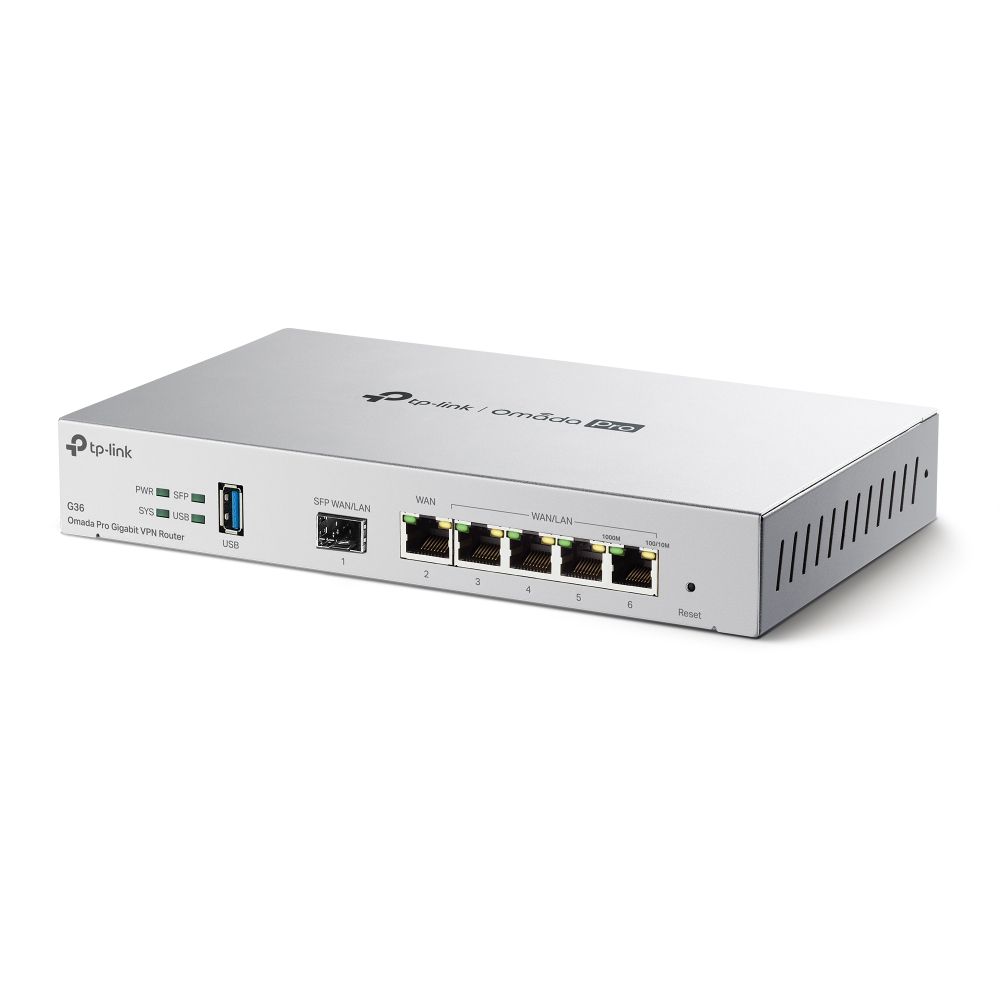

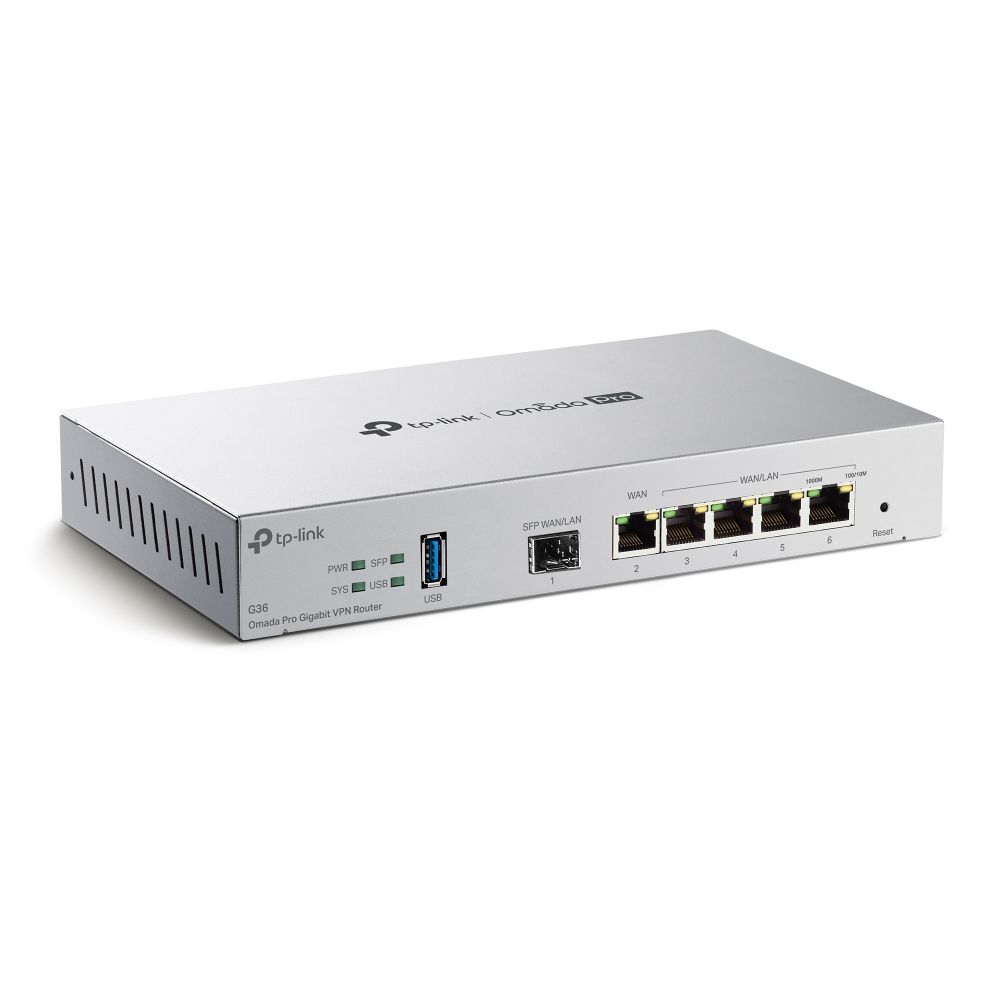

Omada Pro Gigabit VPN Router
Model G36EAN 840030711473
58 specifications
- Memory512 MB
- ColourGrey
- Ethernet WANYes
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports5
- Flash memory128 MB
Overview
- Memory
- 512 MB
- Colour
- Grey
- Ethernet WAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 5
- Flash memory
- 128 MB
- Brand
- TP-Link
- Category
- Wired Router
- Model
- G36
- Part number
- G36
- EAN / UPC
- 840030711473, 4895252505856
- Also known as
- TP-Link Omada Pro Gigabit VPN Router
Specifications
58 specifications in 12 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Traffic control | Yes |
| Port forwarding | Yes |
| Policy-based routing | Yes |
| Concurrent connections | 150000 |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| WAN/Ethernet LAN ports quantity | 4 |
| WAN ports quantity | 1 |
| Combo SFP ports quantity | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Routing protocols | OSPF, RIP |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SHA-1, SHA-256, SHA-384, SHA-512 |
| URL filtering | Yes |
| IP address filtering | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| System event log | Yes |
| VPN tunnels quantity | 100 |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Features
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| Certification | CE, FCC, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4.5 W |
| Power consumption (max) | 7.5 W |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
