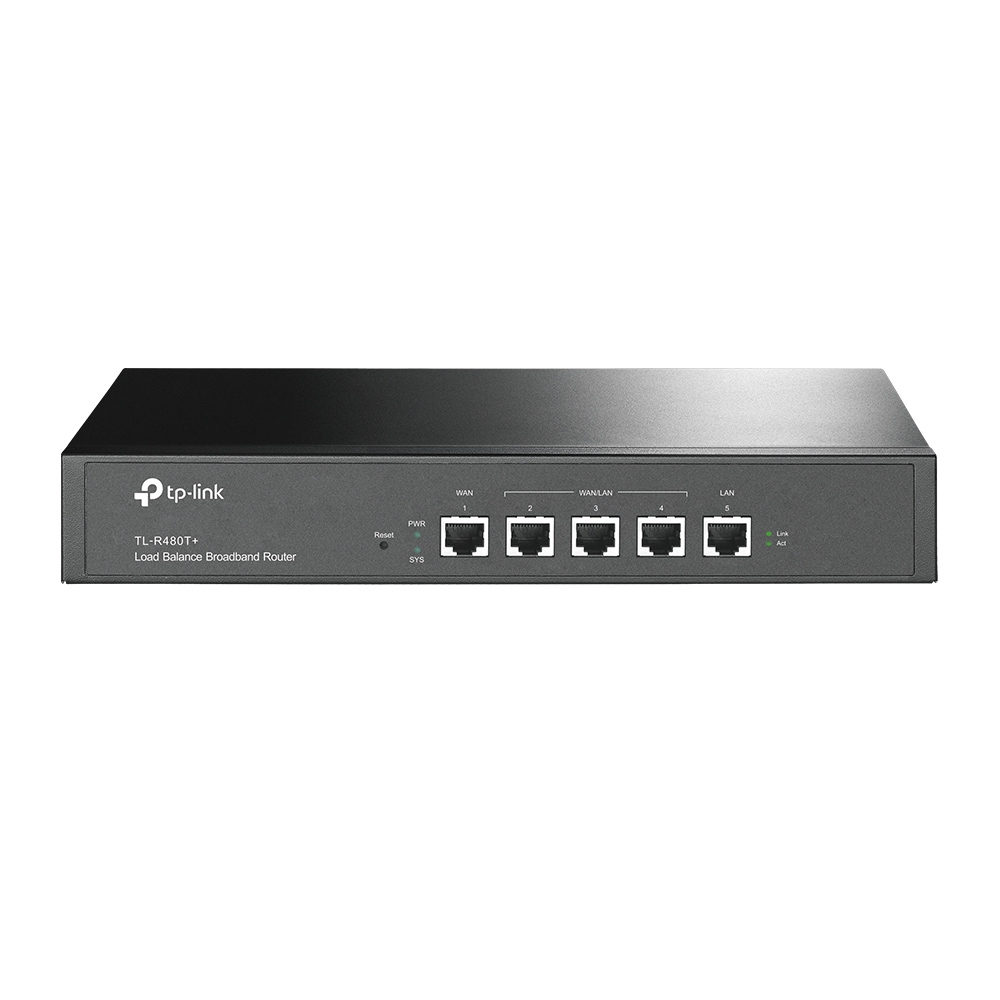

Load Balance Broadband Router
Model TL-R480T+EAN 8459730401236
61 specifications
- Memory64 MB
- Weight2.35 kg
- ColourBlack
- Ethernet WANYes
- Ethernet interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports5
Overview
- Memory
- 64 MB
- Weight
- 2.35 kg
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- TP-Link
- Category
- Wired Router
- Model
- TL-R480T+
- Part numbers
- TL-R480T+, TL-R480T+ V1, TL-R480T+ V5, TL-R480T+ V7
- EAN / UPC
- 8459730401236, 845973040123, 5054533135093, 6935364040123 +12 more
- Also known as
- TP-Link Load Balance Broadband Router
Specifications
61 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Full duplex | Yes |
| Static route | Yes |
| VLAN support | Yes |
| Port forwarding | Yes |
| Policy-based routing | Yes |
| Concurrent connections | 30000 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Fast Ethernet (copper) ports quantity | 5 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | TCP/IP, ICMP, PPPoE, SNTP, HTTP |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| DoS attack prevention | Yes |
| ARP attack prevention | Yes |
| Network address translation (NAT) | Yes |
| System event log | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| User Guide on CD-ROM | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Features
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| Internal memory | 64 MB |
| Internal memory type | DRAM |
| Certification | CE, FCC, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 2.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 1.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
