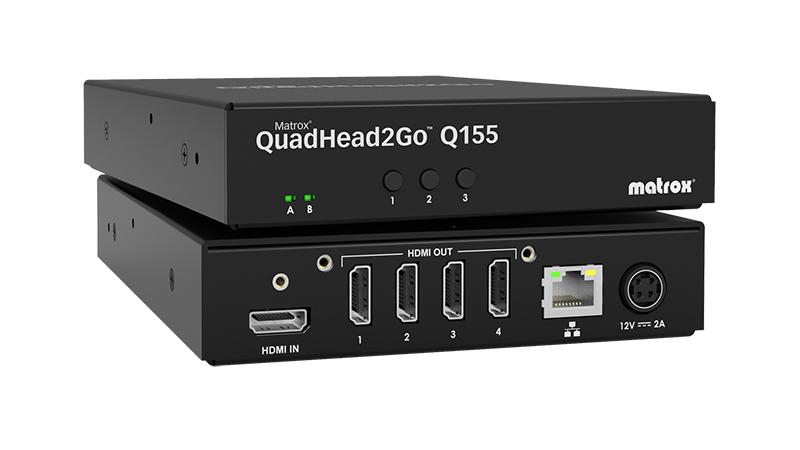

QuadHead2Go Q155 Multi-Monitor Controller Appliance / Q2G-H4K
Model Q2G-H4KEAN 790750256511
24 specifications
- Storage1 GB
- Weight494 g
- ColourBlack
- Ethernet LANYes
- HDMI input ports quantity1
- Power consumption (typical)15 W
Overview
- Storage
- 1 GB
- Weight
- 494 g
- Colour
- Black
- Ethernet LAN
- Yes
- HDMI input ports quantity
- 1
- Power consumption (typical)
- 15 W
- Brand
- Matrox
- Category
- Video Wall Processor
- Model
- Q2G-H4K
- Part number
- Q2G-H4K
- EAN / UPC
- 790750256511
- Also known as
- Matrox QuadHead2Go Q155 Multi-Monitor Controller Appliance / Q2G-H4K
Specifications
24 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Built-in fan | No |
| Rack mounting | Yes |
| Certification | Regulatory/environmental compliance: EMC Class A: FCC, CE, KC, RCM, VCCI |
Features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Built-in processor | Yes |
| Internal storage capacity | 1 GB |
| Bundled software | Matrox PowerWall: https://www.matrox.com/graphics/en/products/video-wall/powerwall/ |
| HDCP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 4 |
| RJ-45 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Power supply location | External |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139.7 mm |
| Depth | 181.1 mm |
| Height | 31.8 mm |
| Weight | 494 g |
