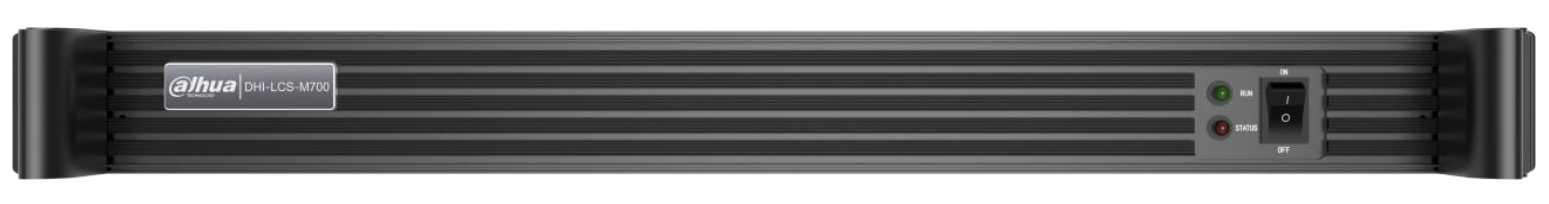

DHI-LCS-M700 video wall processor Black
12 W
Model DHI-LCS-M700
28 specifications
- Weight2.6 kg
- ColourBlack
- Maximum refresh rate60 Hz
- HDMI input ports quantity1
- Power consumption (max)12 W
- Operating temperature (T-T)-20 - 60 °C
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Maximum refresh rate
- 60 Hz
- HDMI input ports quantity
- 1
- Power consumption (max)
- 12 W
- Operating temperature (T-T)
- -20 - 60 °C
- Brand
- Dahua Technology
- Category
- Video Wall Processor
- Model
- DHI-LCS-M700
- Part number
- DHI-LCS-M700
- Also known as
- Dahua Technology DHI-LCS-M700 video wall processor Black 12 W
Specifications
28 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
Features
| Specification | Value |
|---|---|
| Maximum refresh rate | 60 Hz |
| Colour depth | 8 bit |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Maximum resolution | 1920 x 1200 pixels |

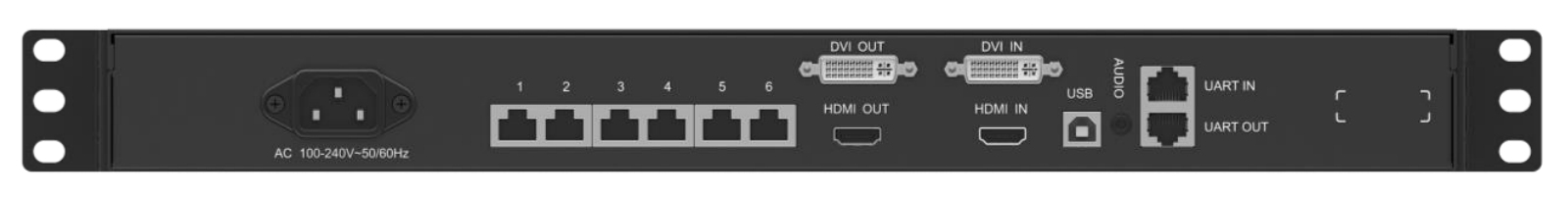

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI version | 1.3 |
| DVI input ports | 1 |
| DVI output ports | 1 |
| RJ-45 ports quantity | 6 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 12 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 268.5 mm |
| Height | 44.4 mm |
| Weight | 2.6 kg |
| Package width | 585 mm |
| Package depth | 353 mm |
| Package height | 113 mm |
