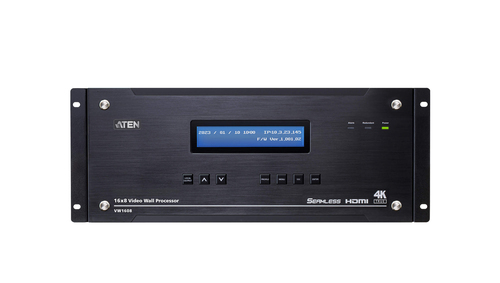

16 × 8 Modular Video Wall Processor
ATEN

16 × 8 Modular Video Wall Processor

Model VW1608-AT-GEAN 4711581522268

27 specifications
  • Weight11.7 kg
  • ColourBlack
  • Supported video modes2160p
  • HDMI input ports quantity4
  • Power consumption (max)550 W
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Weight
11.7 kg
Colour
Black
Supported video modes
2160p
HDMI input ports quantity
4
Power consumption (max)
550 W
Operating temperature (T-T)
0 - 40 °C
Brand
ATEN
Model
VW1608-AT-G
Part number
VW1608-AT-G
EAN / UPC
4711581522268
Also known as
ATEN 16 × 8 Modular Video Wall Processor

Specifications

27 specifications in 7 groups

Design

Product colourBlack
Built-in displayYes
Built-in fanYes
Rack mountingYes
Rack capacity4U

Features

Supported video modes2160p
Number of displays supported16
Scaled resolutions3840 x 2160

Ports & interfaces

HDMI input ports quantity4
HDMI output ports quantity5
RJ-45 ports quantity1
RJ-45 input ports1
RJ-45 output ports1
USB 2.0 Type-A ports quantity3
RS-232/422 connectorYes

Power

Power consumption (max)550 W
Input voltage100 - 240 V
Input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Logistics data

Country of originTaiwan

Weight & dimensions

Width466.1 mm
Depth482 mm
Height176.7 mm
Weight11.7 kg
