CVCA video wall processor Black
50 W
Model CVCAEAN 195174003411
27 specifications
- Memory8 GB
- Weight4.9 kg
- ColourBlack
- Maximum refresh rate60 Hz
- HDMI input ports quantity1
- Power consumption (max)50 W
Overview
- Memory
- 8 GB
- Weight
- 4.9 kg
- Colour
- Black
- Maximum refresh rate
- 60 Hz
- HDMI input ports quantity
- 1
- Power consumption (max)
- 50 W
- Brand
- LG
- Category
- Video Wall Processor
- Model
- CVCA
- Part number
- CVCA
- EAN / UPC
- 195174003411, 195174004074, 8806091129581
- Also known as
- LG CVCA video wall processor Black 50 W
Specifications
27 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Maximum refresh rate | 60 Hz |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Internal memory | 8 GB |
| HDCP | Yes |
| HDCP version | 2.2 |
| Bluetooth | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Wi-Fi | Yes |

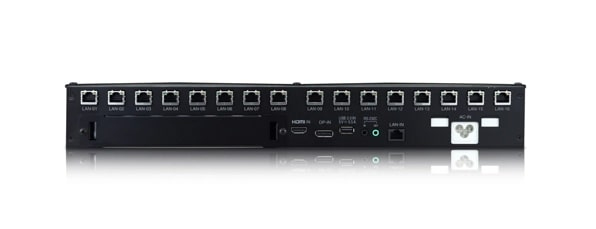

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| RJ-45 ports quantity | 16 |
| USB 2.0 Type-A ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 50 W |
| Input voltage | 100-240 V |
| Input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | KC, CB, Federal Communications Commission (FCC), CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 443 mm |
| Depth | 307.5 mm |
| Height | 63 mm |
| Weight | 4.9 kg |
