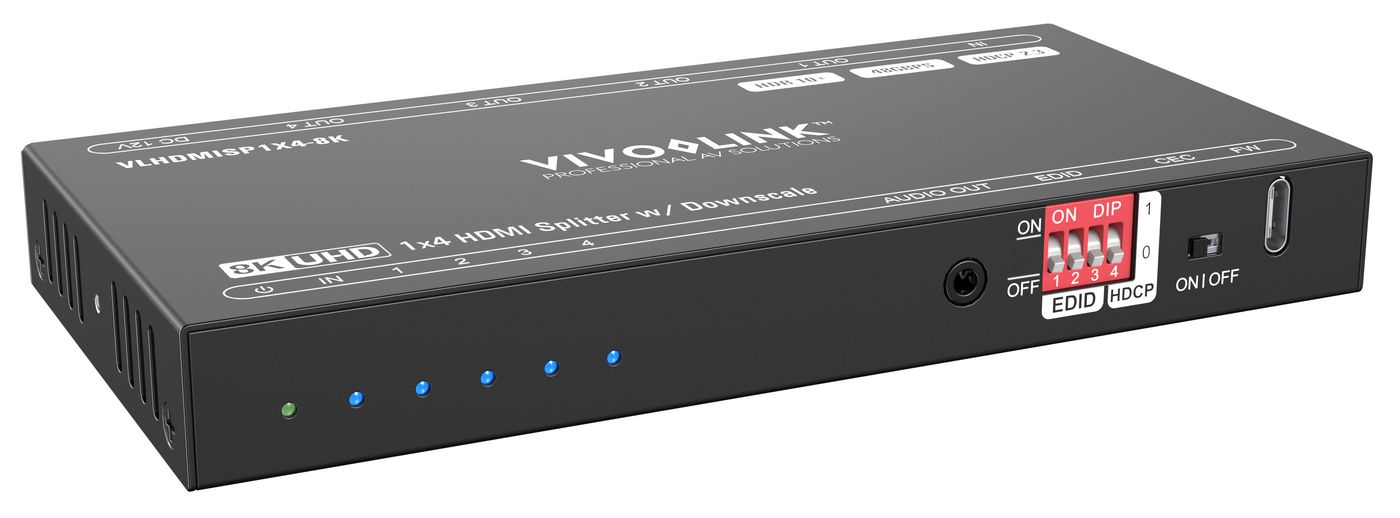

VLHDMISP1X4-8K video splitter HDMI 4x HDMI
Model VLHDMISP1X4-8KEAN 5715063697887
38 specifications
- Weight360 g
- ColourBlack
- Video ports quantity4
- Ethernet LANNo
- AC input voltage110 -230 V
- Width180 mm
Overview
- Weight
- 360 g
- Colour
- Black
- Video ports quantity
- 4
- Ethernet LAN
- No
- AC input voltage
- 110 -230 V
- Width
- 180 mm
- Brand
- Vivolink
- Category
- Video Splitter
- Model
- VLHDMISP1X4-8K
- Part number
- VLHDMISP1X4-8K
- EAN / UPC
- 5715063697887
- Also known as
- Vivolink VLHDMISP1X4-8K video splitter HDMI 4x HDMI
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video in | 1X HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4/2.2/2.3 |
| HDCP | Yes |
| Easy to install | Yes |
| LED indicators | Yes |
| Number of displays supported | 4 |
| Plug and Play | Yes |
| Power LED | Yes |
| Supported video modes | 4320p |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 -230 V |
| Power consumption (typical) | 2.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 121 mm |
| Height | 114 mm |
| Dimensions (WxDxH) | 142 x 70.6 x 17.6 mm |
| Weight | 360 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 180 mm |
| Package depth | 121 mm |
| Package height | 114 mm |
| Package weight | 460 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Technical details
| Specification | Value |
|---|---|
| Cascadable | Yes |
| Connector type | HDMI |
| Maximum cable length | 100 m |
