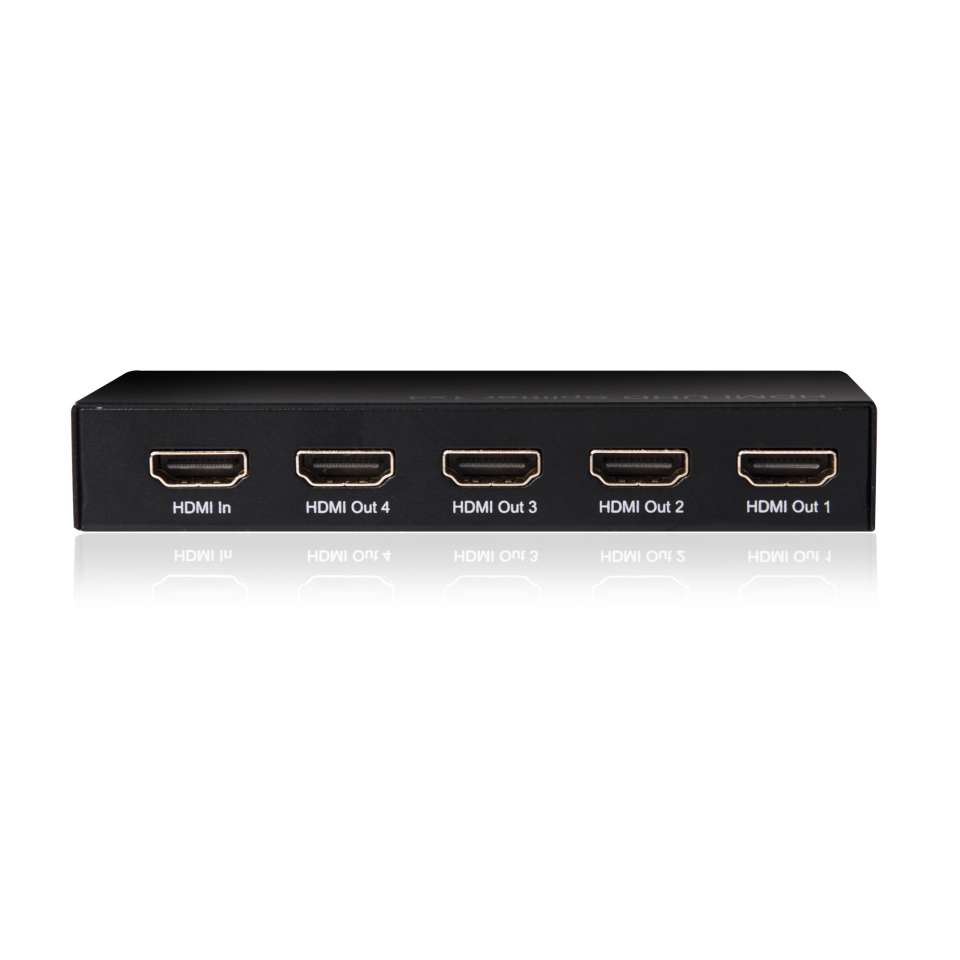

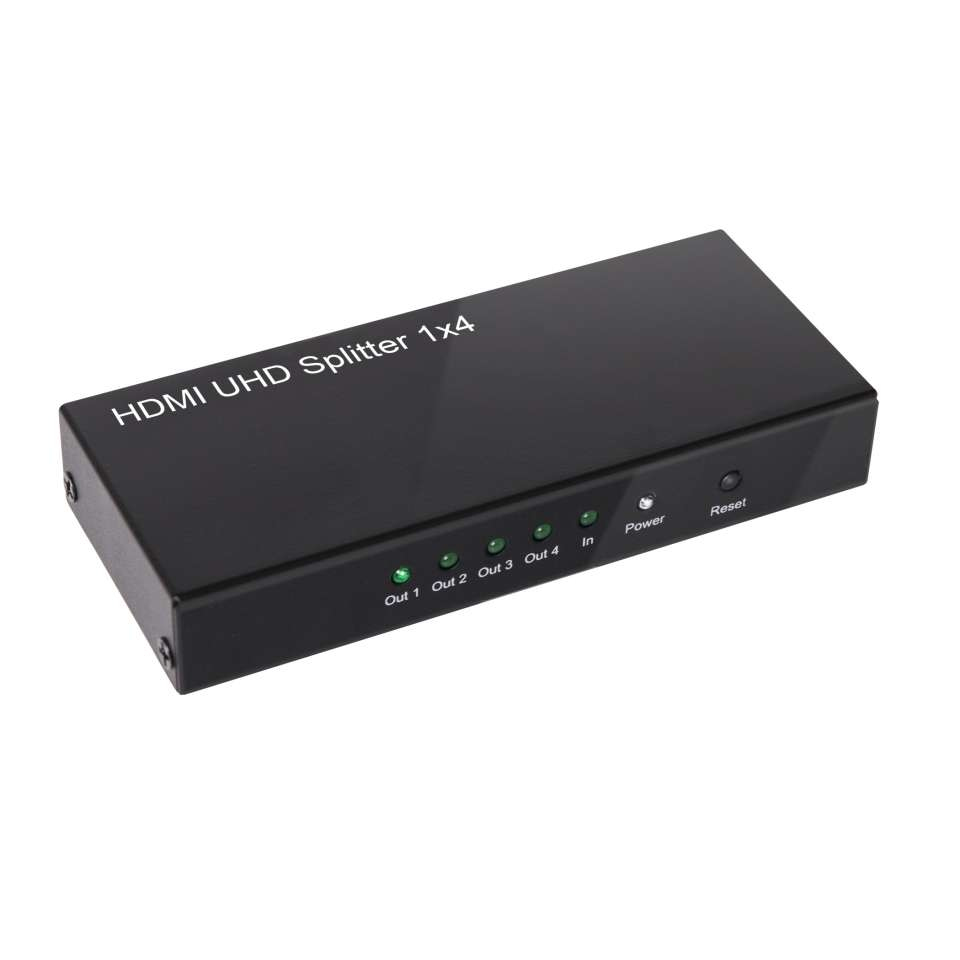

HDMI™ 4K@60Hz UHD Splitter AC Power 4 ports
Model CSV-1380EAN 841615101191
48 specifications
- Weight156 g
- ColourBlack
- Video ports quantity4
- Wi-FiNo
- AC input voltage5 V
- Dimensions (WxDxH)122 x 50 x 20 mm
Overview
- Weight
- 156 g
- Colour
- Black
- Video ports quantity
- 4
- Wi-Fi
- No
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 122 x 50 x 20 mm
- Brand
- CLUB3D
- Category
- Video Splitter
- Model
- CSV-1380
- Part number
- CSV-1380
- EAN / UPC
- 841615101191, 8719214471002
- Also known as
- CLUB3D HDMI™ 4K@60Hz UHD Splitter AC Power 4 ports
Specifications
48 specifications in 9 groups

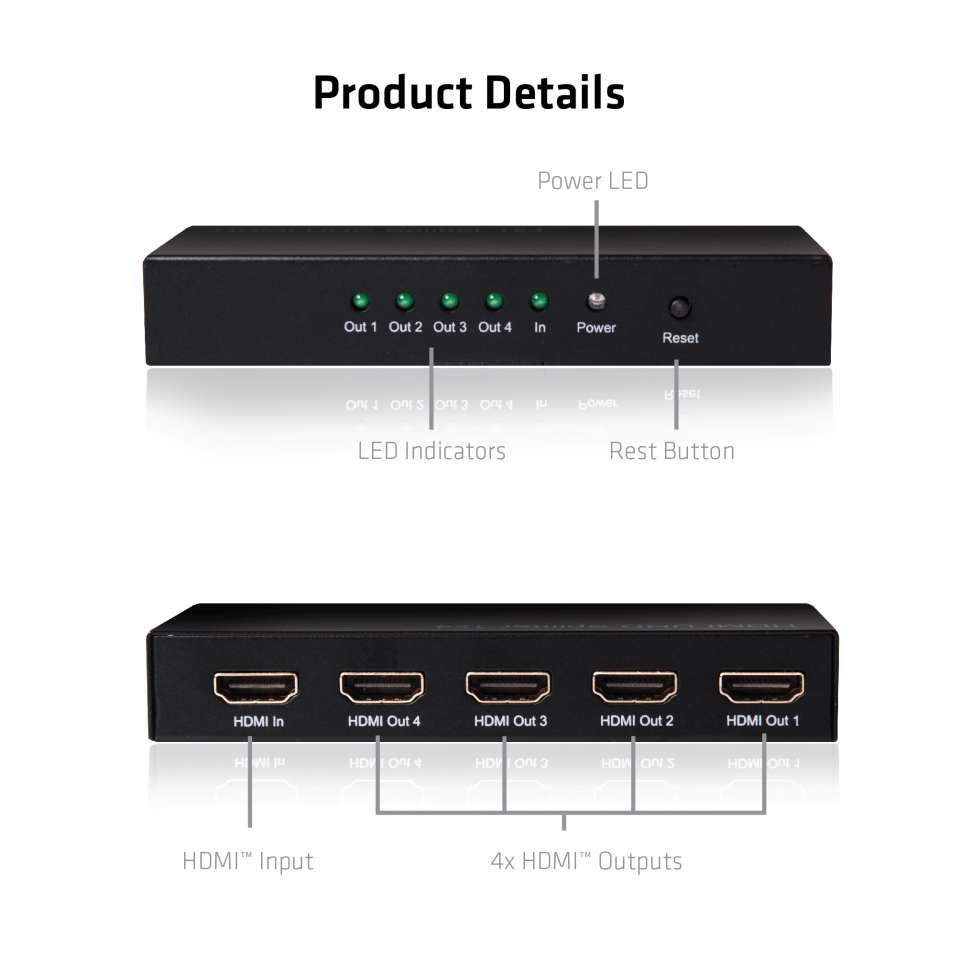

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video in | 1 |
| Video out | 4 |
| HDMI version | 2.0a |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4/2.2 |
| Data transfer rate | 6 Gbit/s |
| HD-Ready | Yes |
| HDCP | Yes |
| Easy to install | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Power LED | Yes |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 10 W |
| USB powered | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 122 x 50 x 20 mm |
| Weight | 156 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 137 mm |
| Package height | 80 mm |
| Package type | Box |
| Paper/cardboard packaging weight | 30 g |
| Plastic packaging weight | 20 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| Manual | Yes |
| Packaging content | CSV-1380 Power Adapter |
Technical details
| Specification | Value |
|---|---|
| Connector type | HDMI 2.0 |
| Resolution | 4096 x 2160 pixels |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
| Products per master (outer) case | 10 pc(s) |
