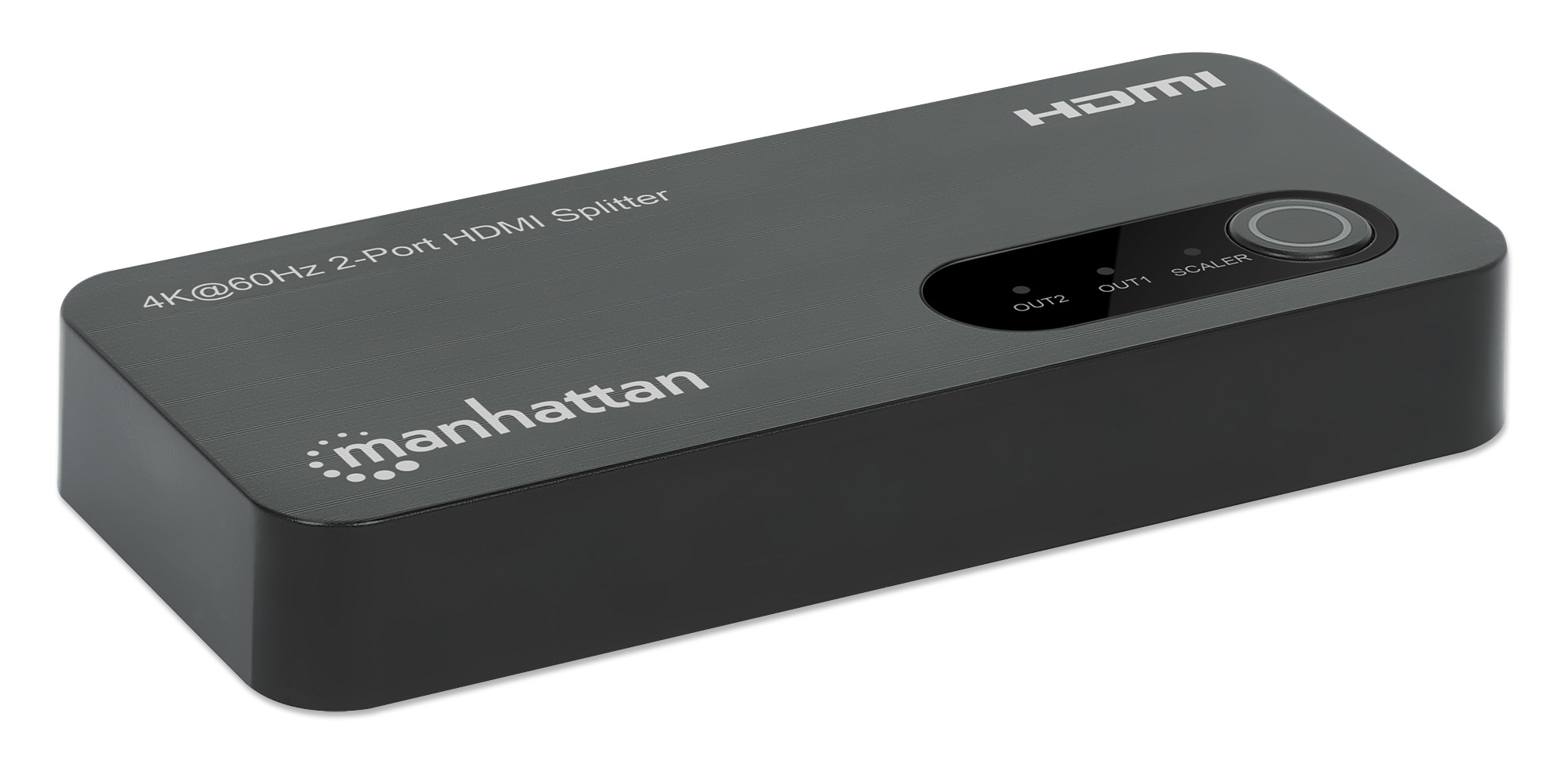

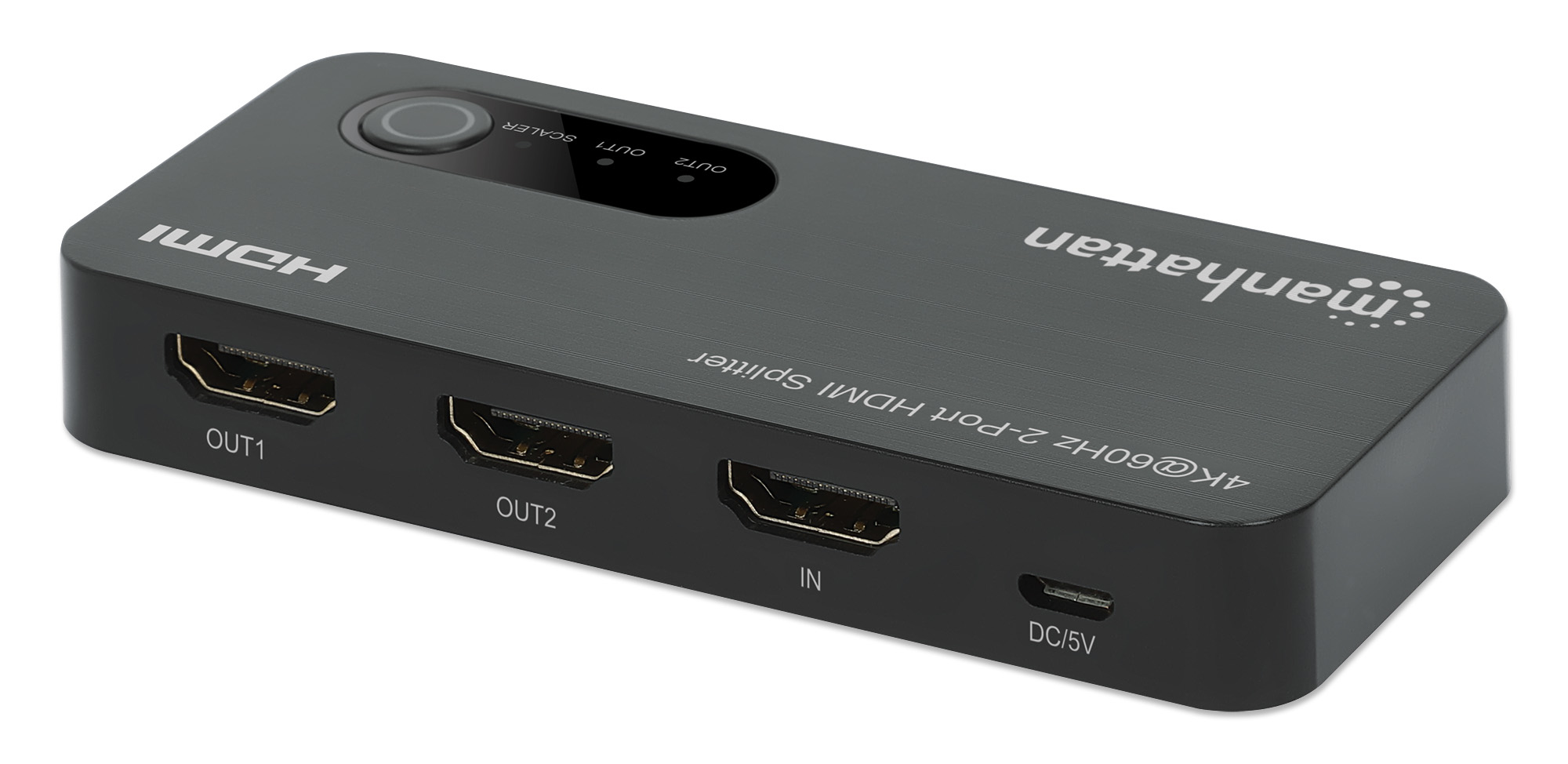

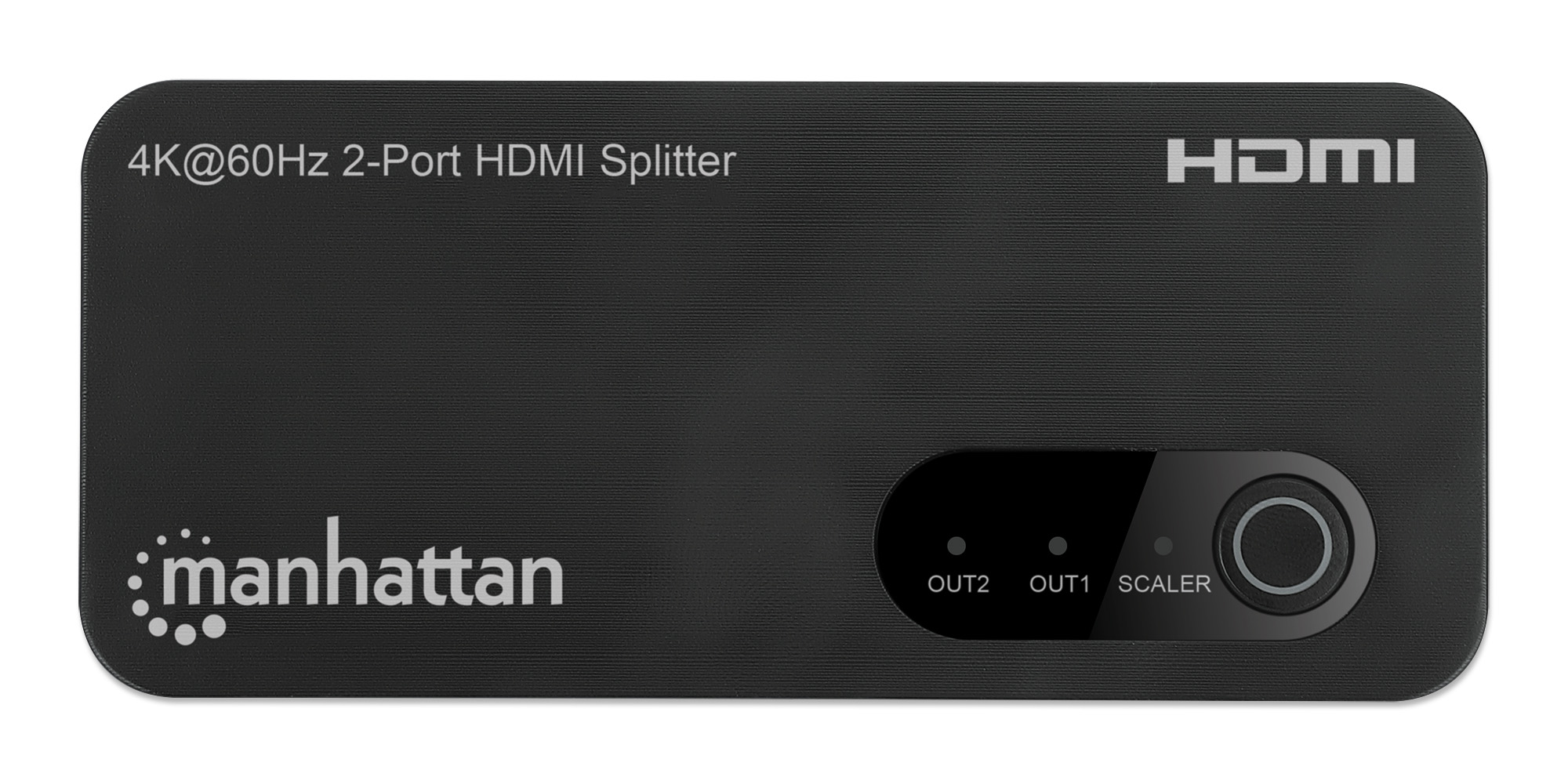

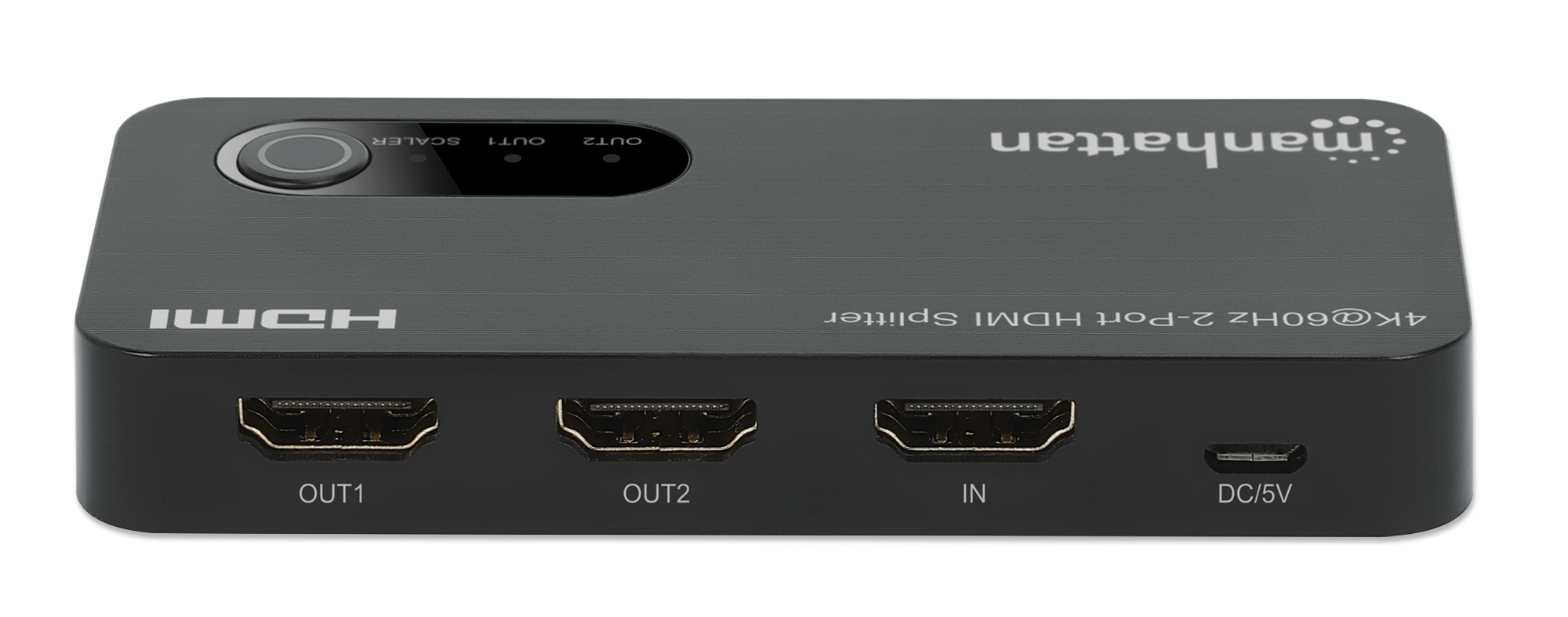

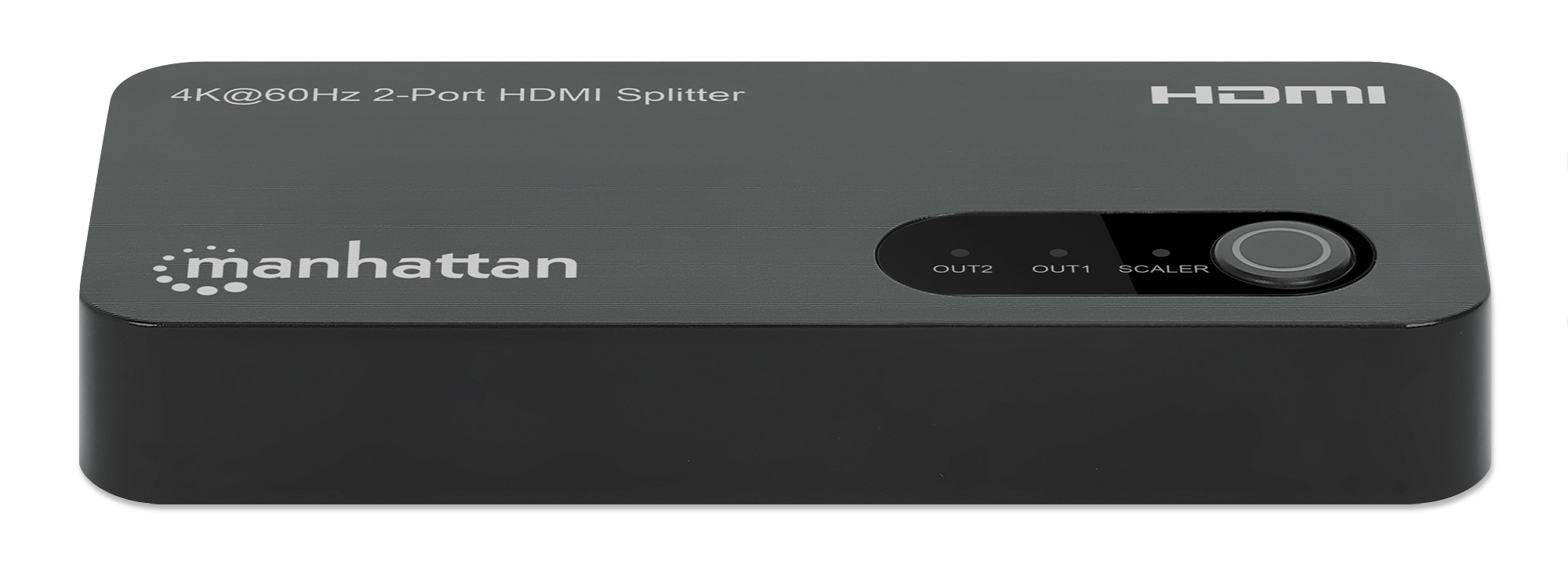

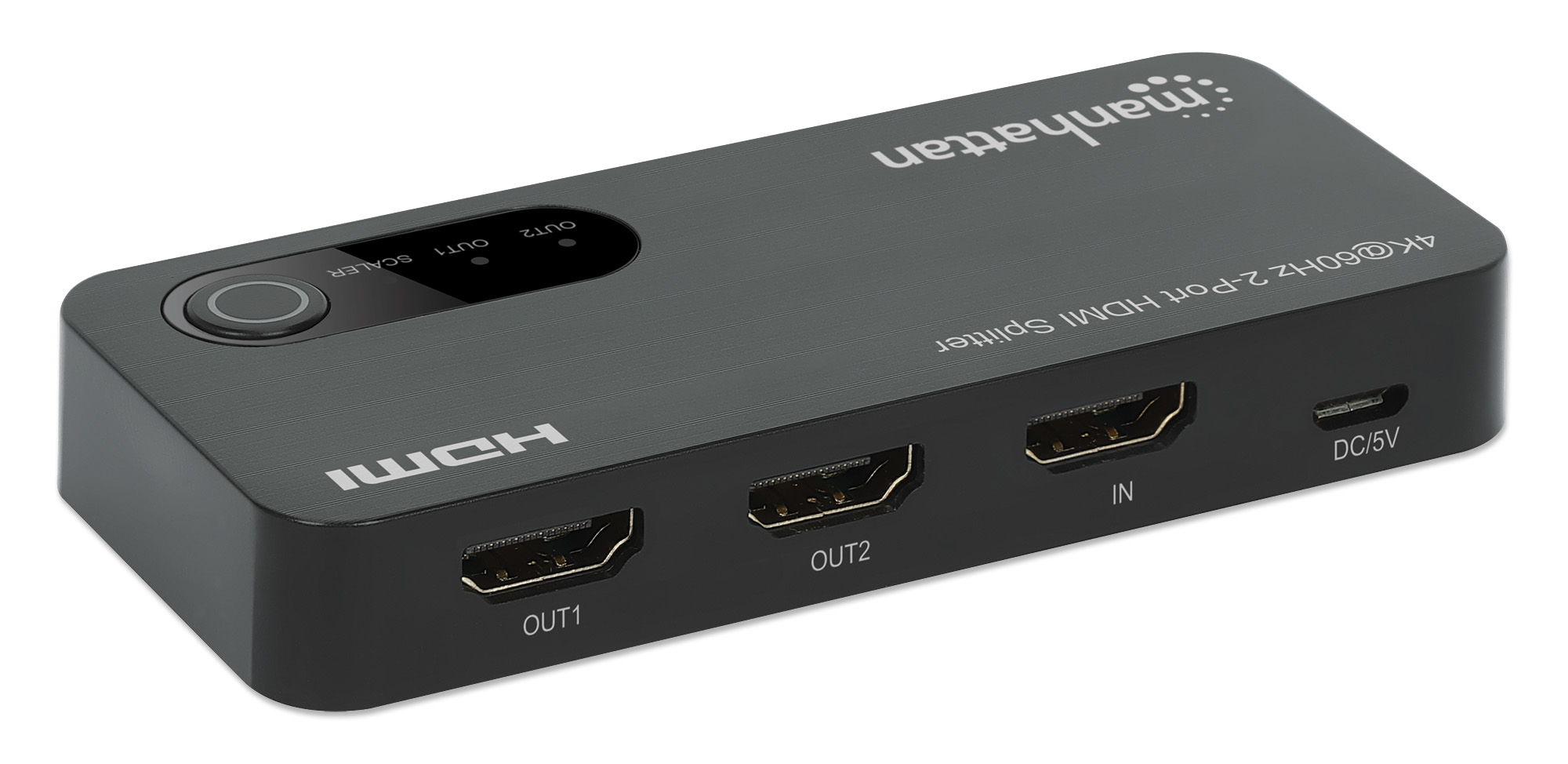

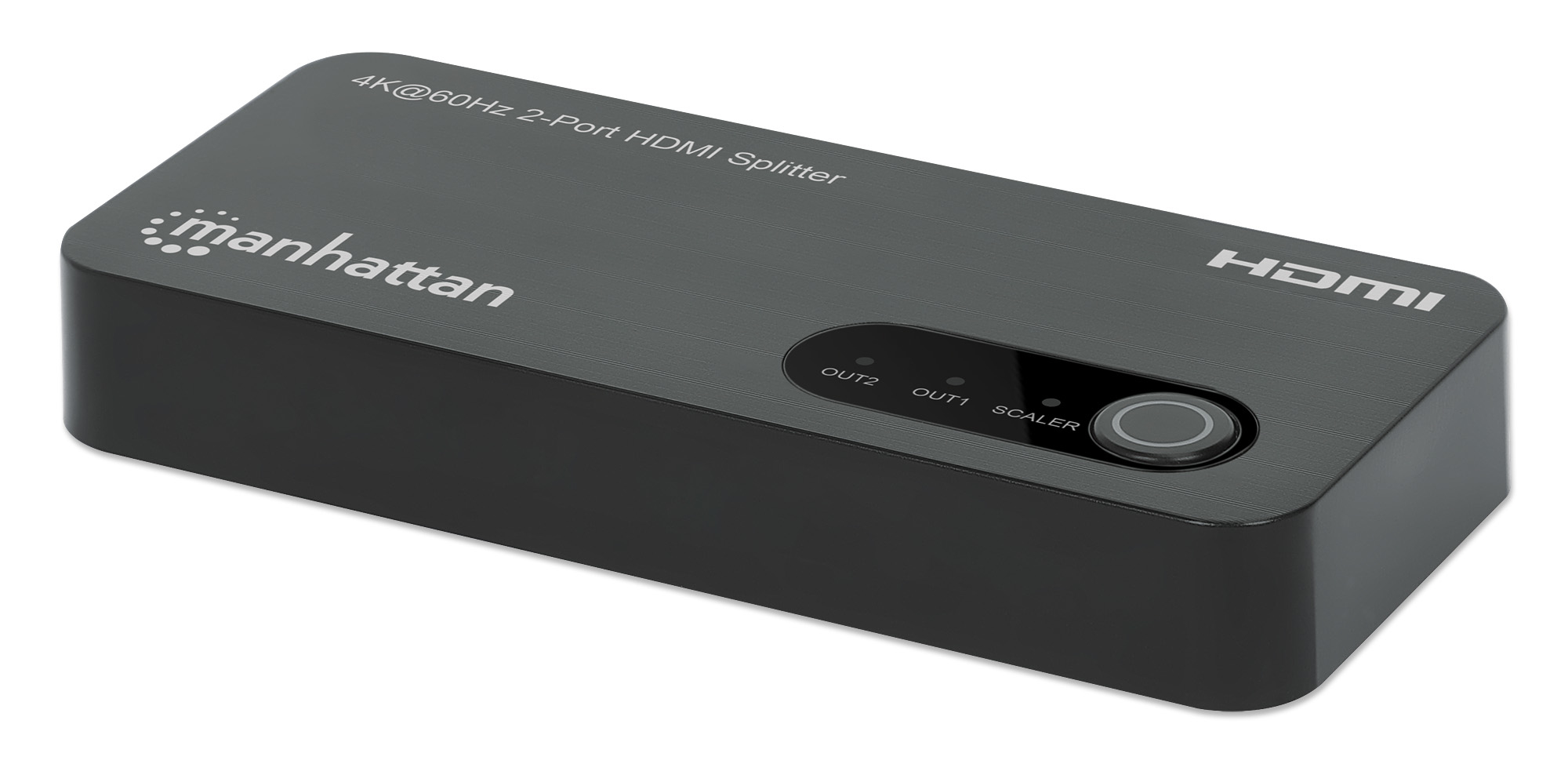

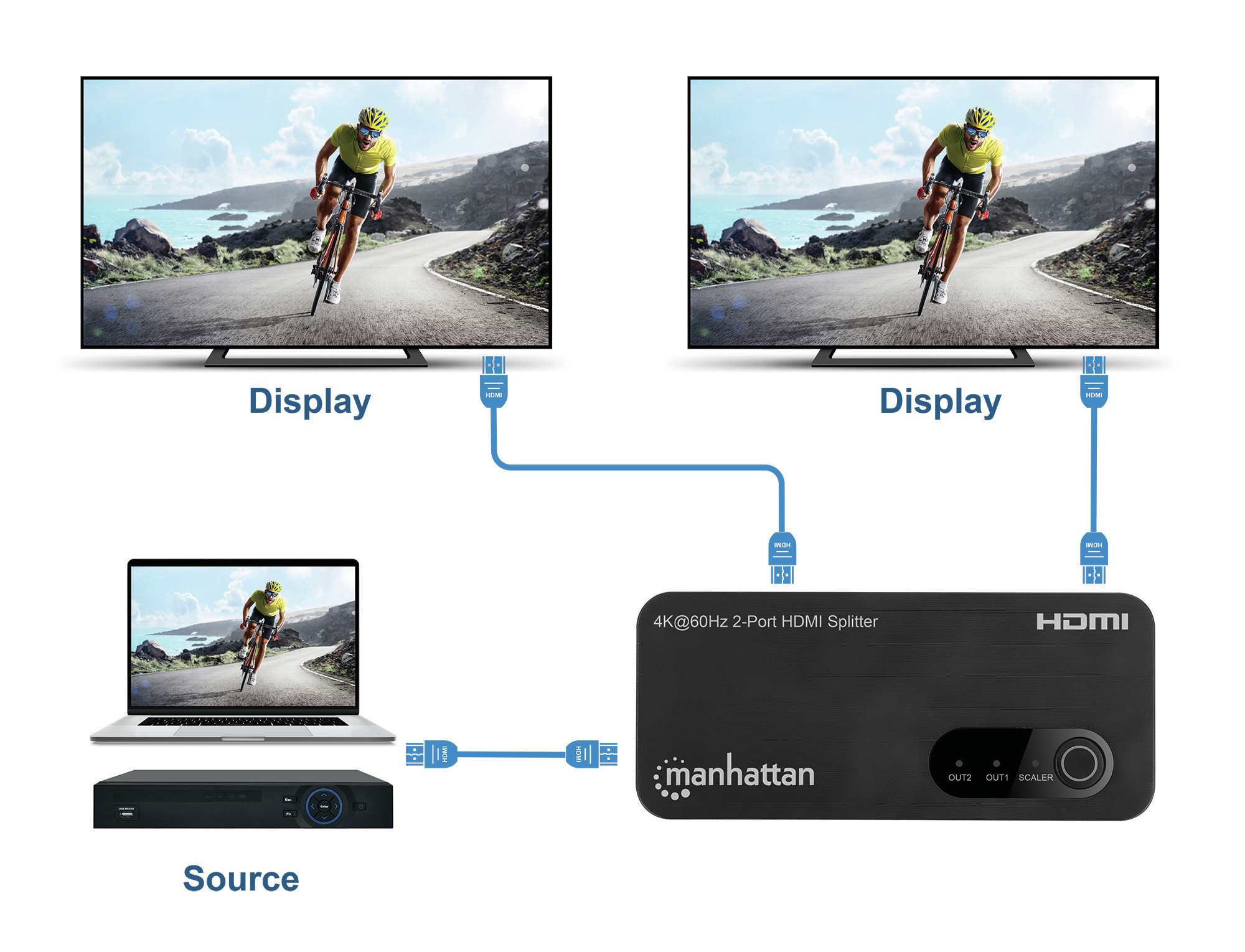

4K@60Hz 2-Port HDMI Splitter Splits One HDMI Input to Two HDMI Outputs (1x2)
18G, Micro-USB input for power, EDID Switch for Downscaling to 1080p, Bl
Model 207614EAN 766623207614
44 specifications
- Weight47 g
- ColourBlack
- Video ports quantity2
- Power consumption (max)5 W
- Width45 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 47 g
- Colour
- Black
- Video ports quantity
- 2
- Power consumption (max)
- 5 W
- Width
- 45 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207614
- Part number
- 207614
- EAN / UPC
- 766623207614, 7666232076140
- Also known as
- Manhattan 4K@60Hz 2-Port HDMI Splitter Splits One HDMI Input to Two HDMI Outputs (1x2), 18G, Micro-USB input for power, EDID Switch for Downscaling to 1080p, Bl
Specifications
44 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 600 MHz |
| HDCP version | 2.3 |
| Extended display identification data (EDID) | Yes |
| Cable length | 0.8 m |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| LED indicators | Yes |
| Number of displays supported | 2 |
| Supported video modes | 480p, 576i, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 102 mm |
| Height | 15 mm |
| Weight | 47 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 125 mm |
| Package height | 17 mm |
| Package weight | 185 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to Micro USB-B |
| Manual | Yes |

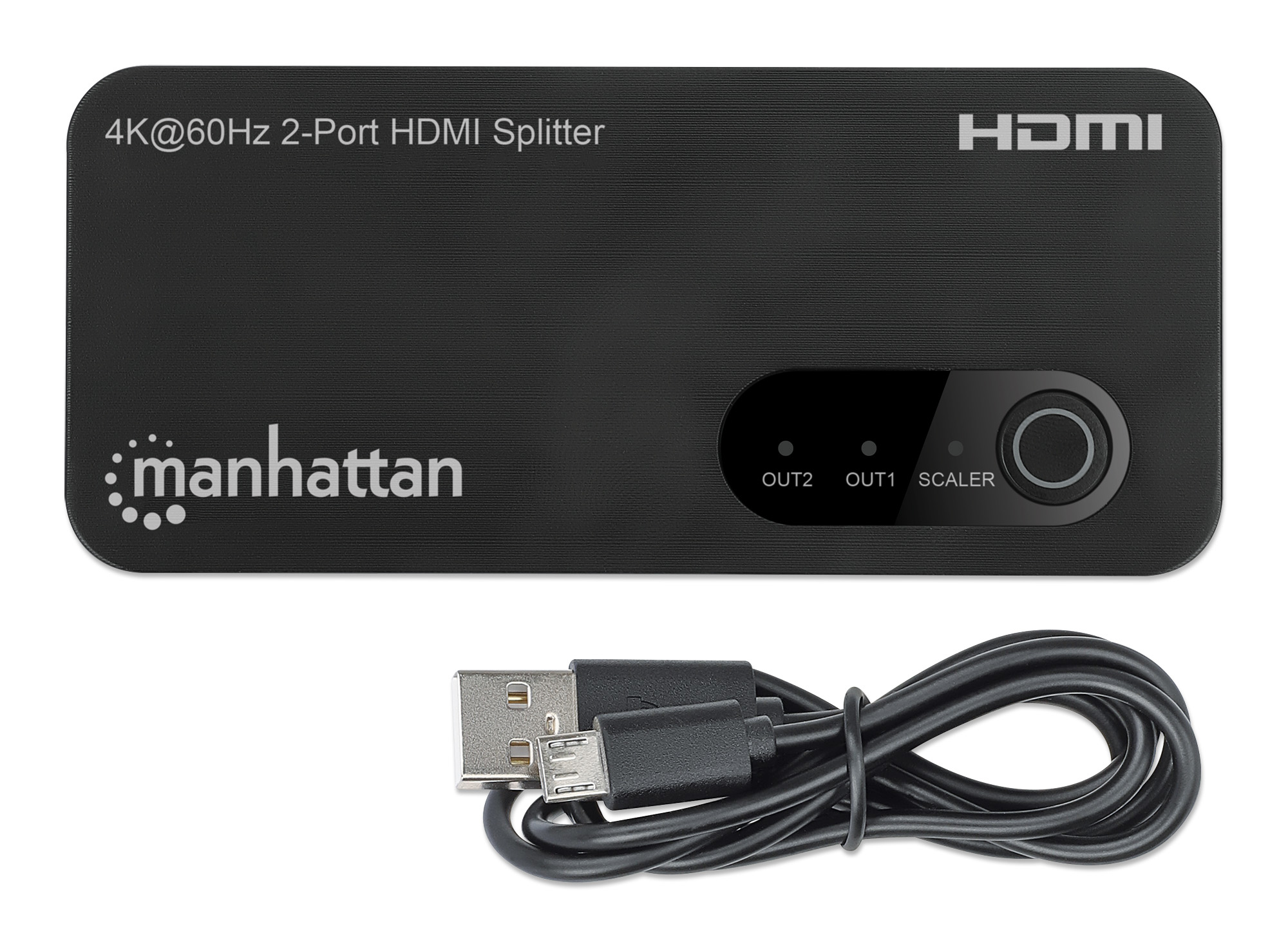

| Packaging content | 4K@60Hz 2-Port HDMI Splitter with Downscaling Micro-USB to USB-A power cable, 0.8 m (2.6 ft.) Instructions |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Maximum cable length | 5 m |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 210 mm |
| Master (outer) case gross weight | 7.5 kg |
| Products per master (outer) case | 80 pc(s) |
