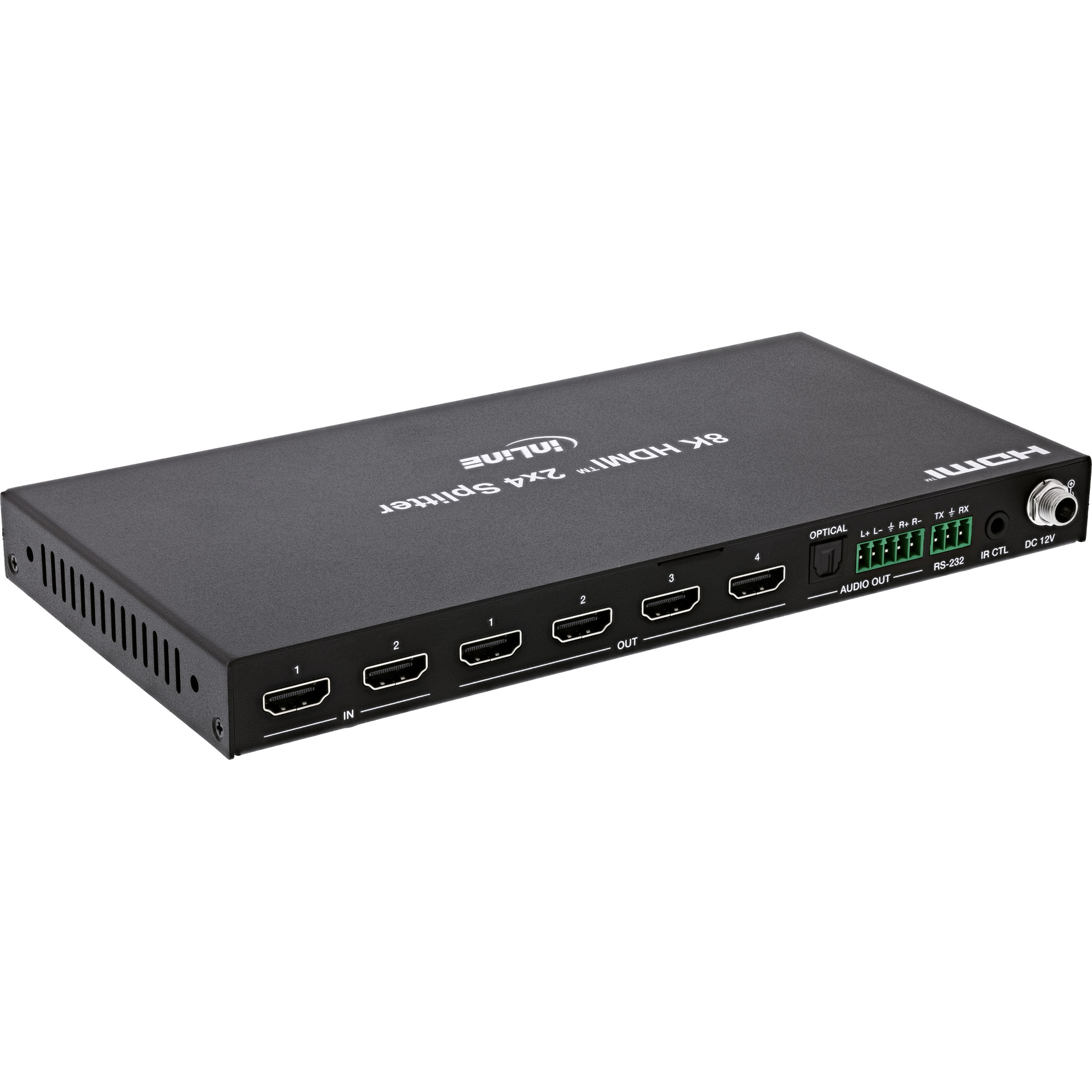

57887D video splitter HDMI 4x HDMI
Model 57887DEAN 4043718348862
45 specifications
- Weight600 g
- ColourBlack
- Video ports quantity2
- AC input voltage100 - 240 V
- Width120 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 600 g
- Colour
- Black
- Video ports quantity
- 2
- AC input voltage
- 100 - 240 V
- Width
- 120 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- InLine
- Category
- Video Splitter
- Model
- 57887D
- Part number
- 57887D
- EAN / UPC
- 4043718348862
- Also known as
- InLine 57887D video splitter HDMI 4x HDMI
Specifications
45 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.1 |
| Audio ports quantity | 3 |
| Digital audio optical out | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 7680 x 4320 pixels |
| Colour depth | 12 bit |
| Maximum refresh rate | 120 Hz |
| HDCP version | 2.3 |
| Extended display identification data (EDID) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Dolby Vision, Hybrid Log-Gamma (HLG) |
| Data transfer rate | 48 Gbit/s |
| Audio decoders | Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DSD |
| HDCP | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (max) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 220 mm |
| Height | 26 mm |
| Dimensions (WxDxH) | 120 x 220 x 26 mm |
| Weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 280 mm |
| Package height | 80 mm |
| Package weight | 1.04 kg |
Packaging content
| Specification | Value |
|---|---|
| IR receiver included | Yes |
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |

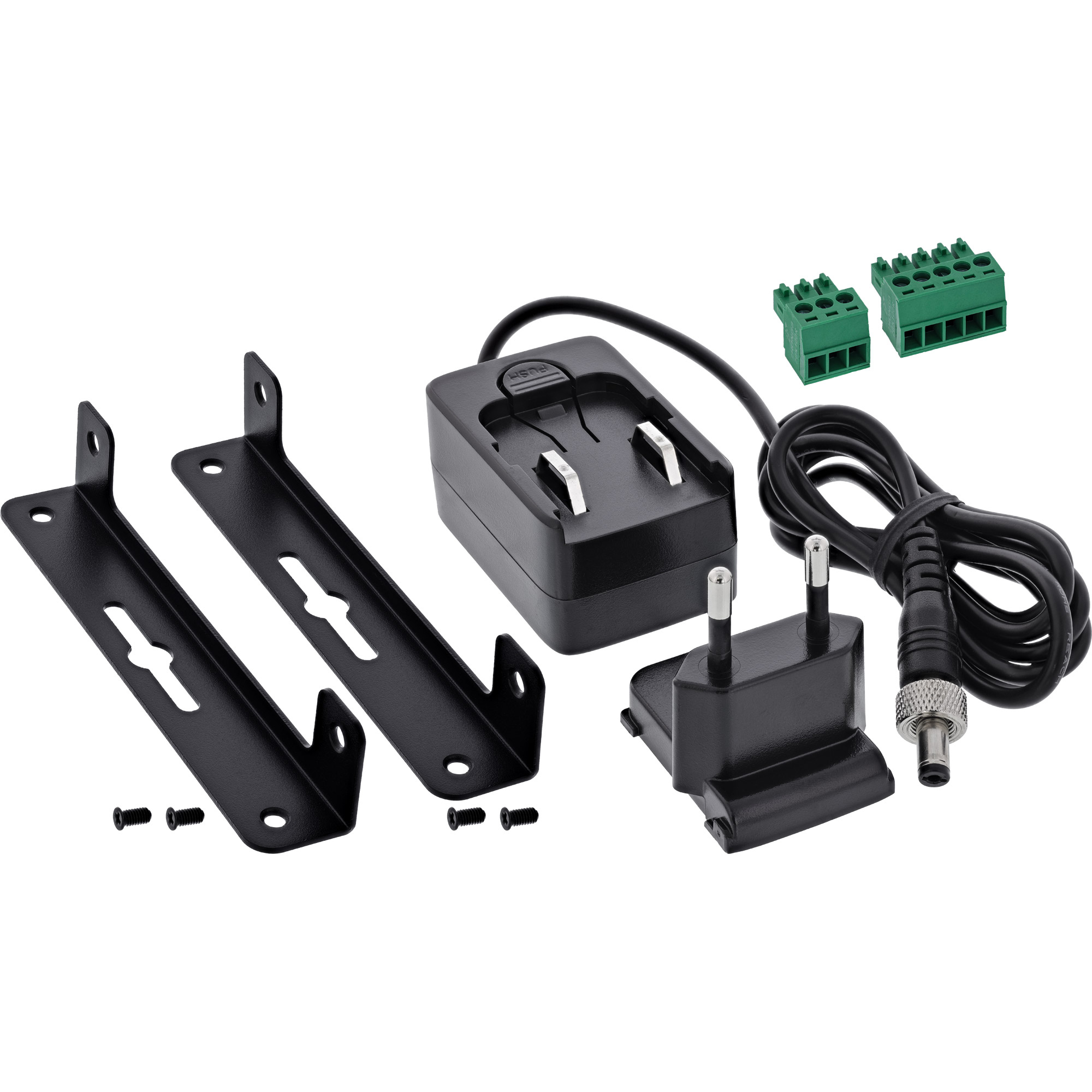

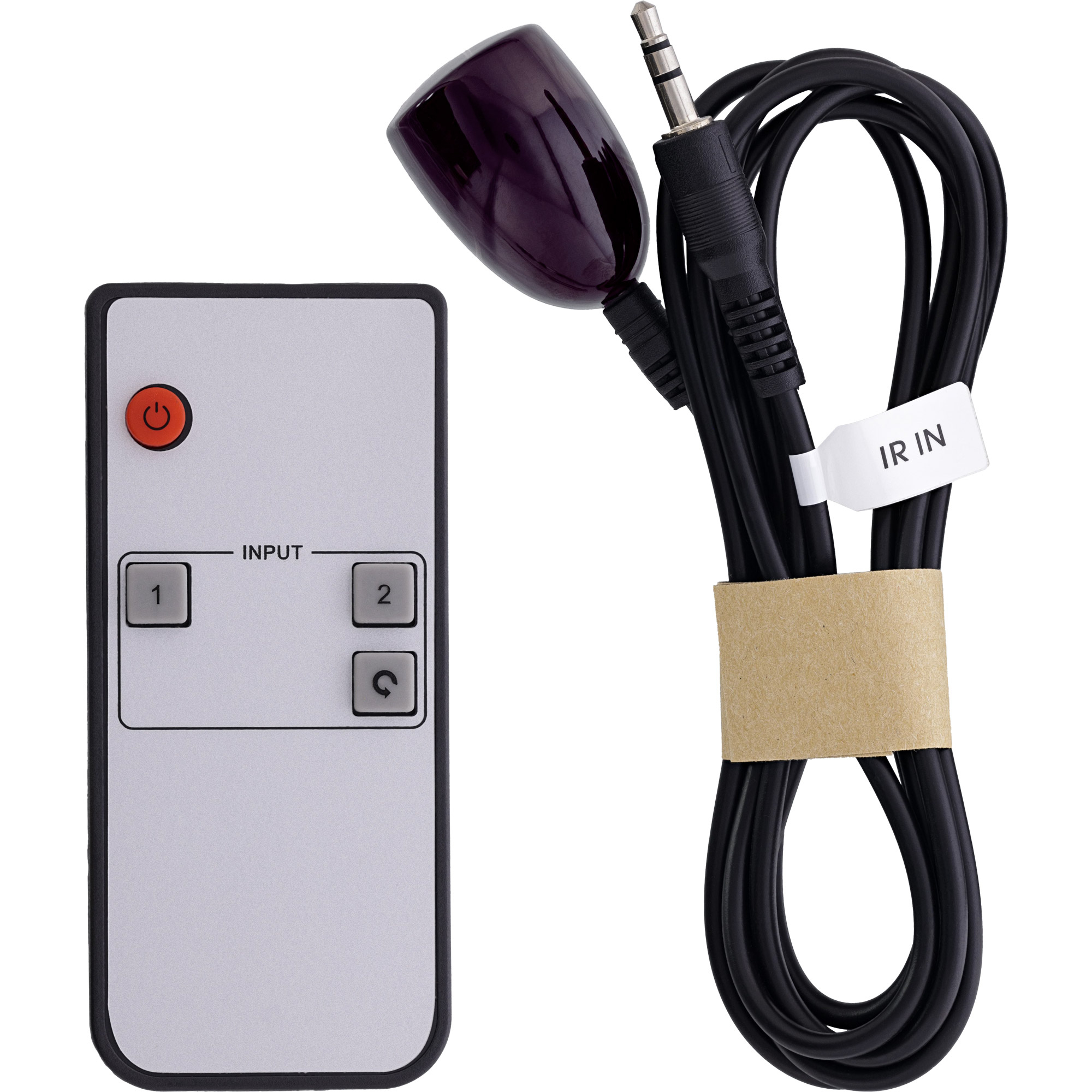

| Packaging content | 1 x 2x4 HDMI splitter 1 x power supply (DC 12 V / 1 A, lockable) 1 x IR remote control 1 x IR receiver cable (approx. 1.5 m) 1 x 3-pin screw terminal connector (RS-232) 1 x 5-pin screw terminal connector (audio L/R) 2 x mounting brackets 4 x machine screws (M3 x 6) 1 x operating instructions (German |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
