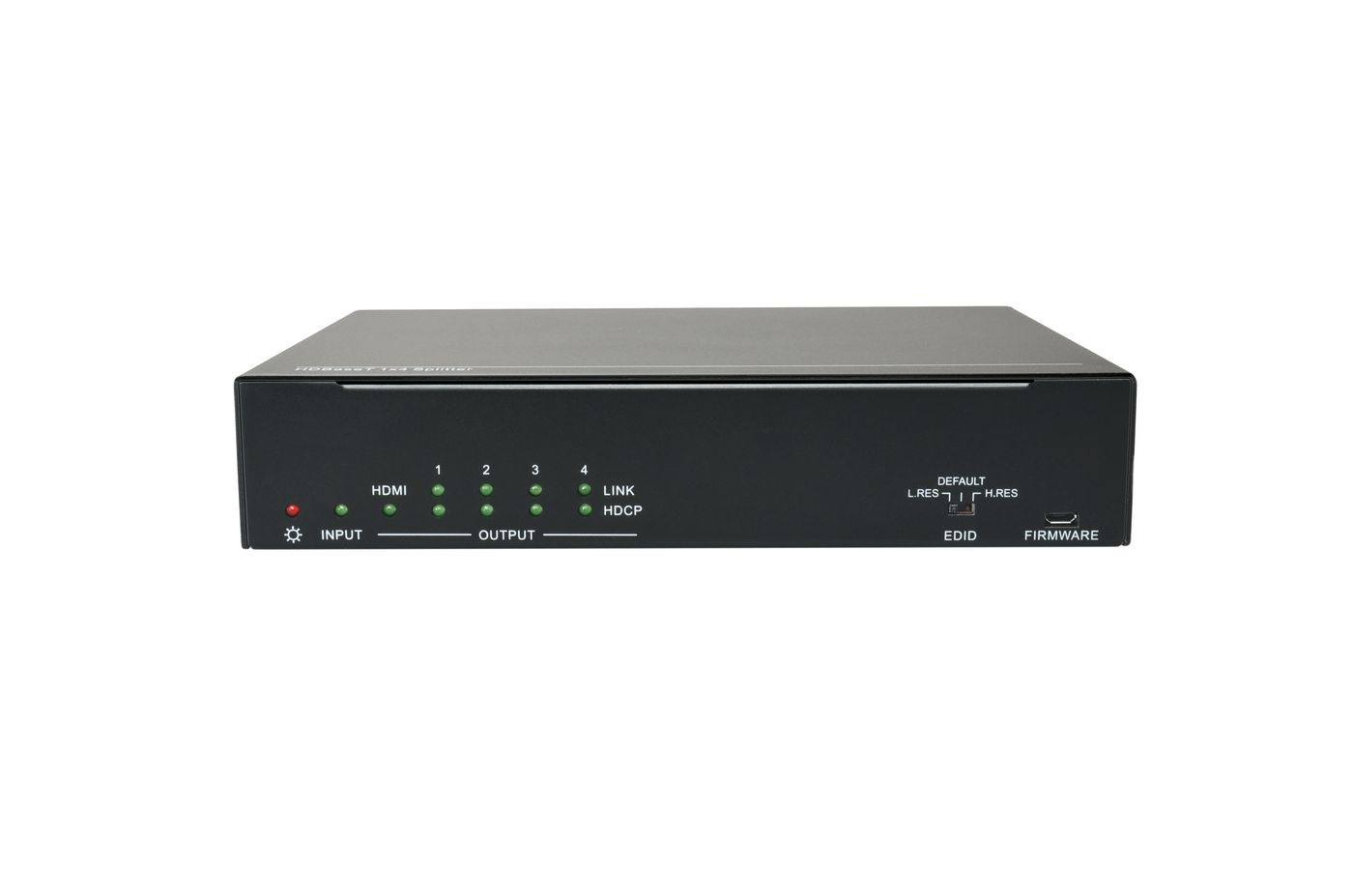

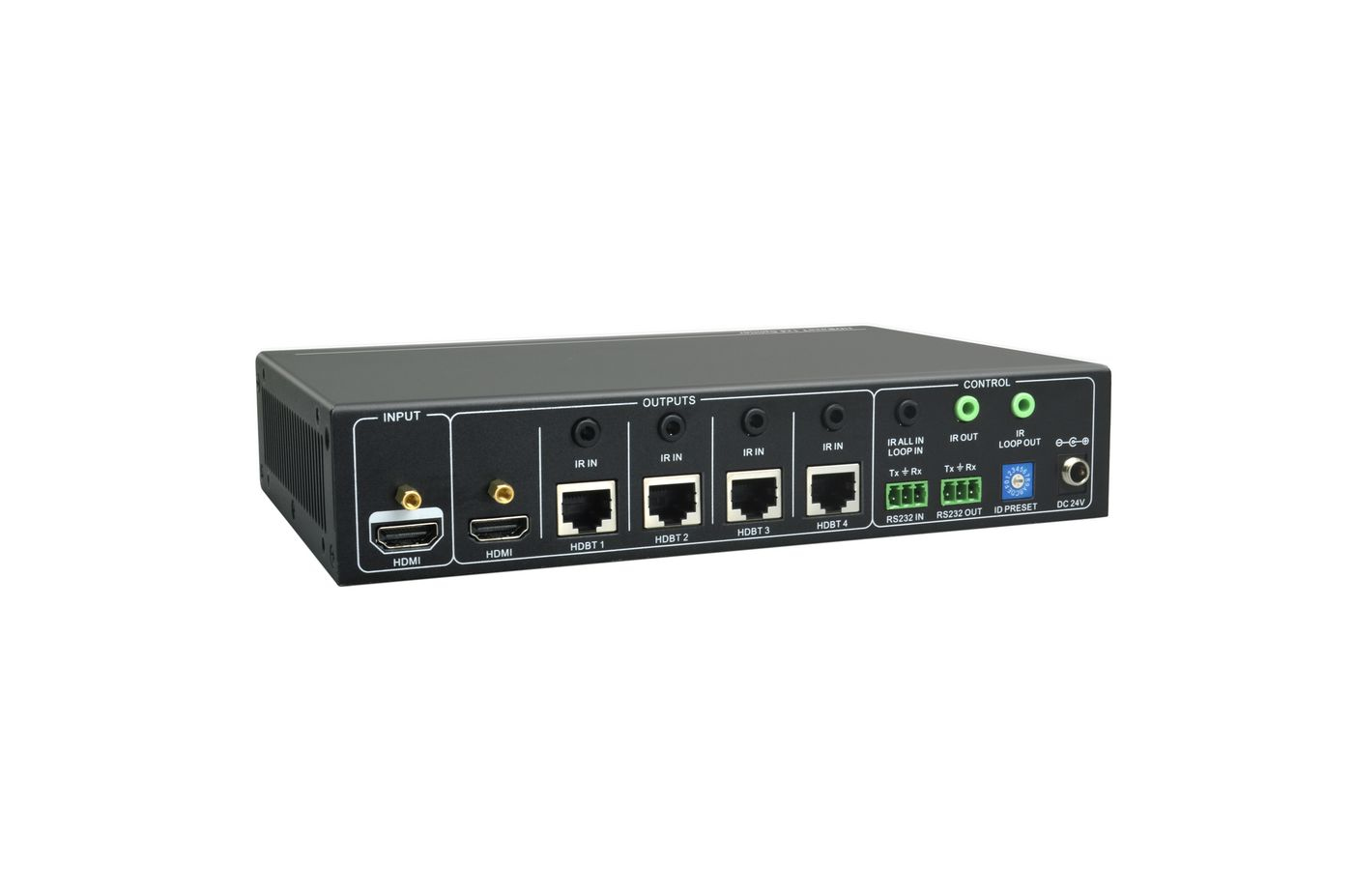

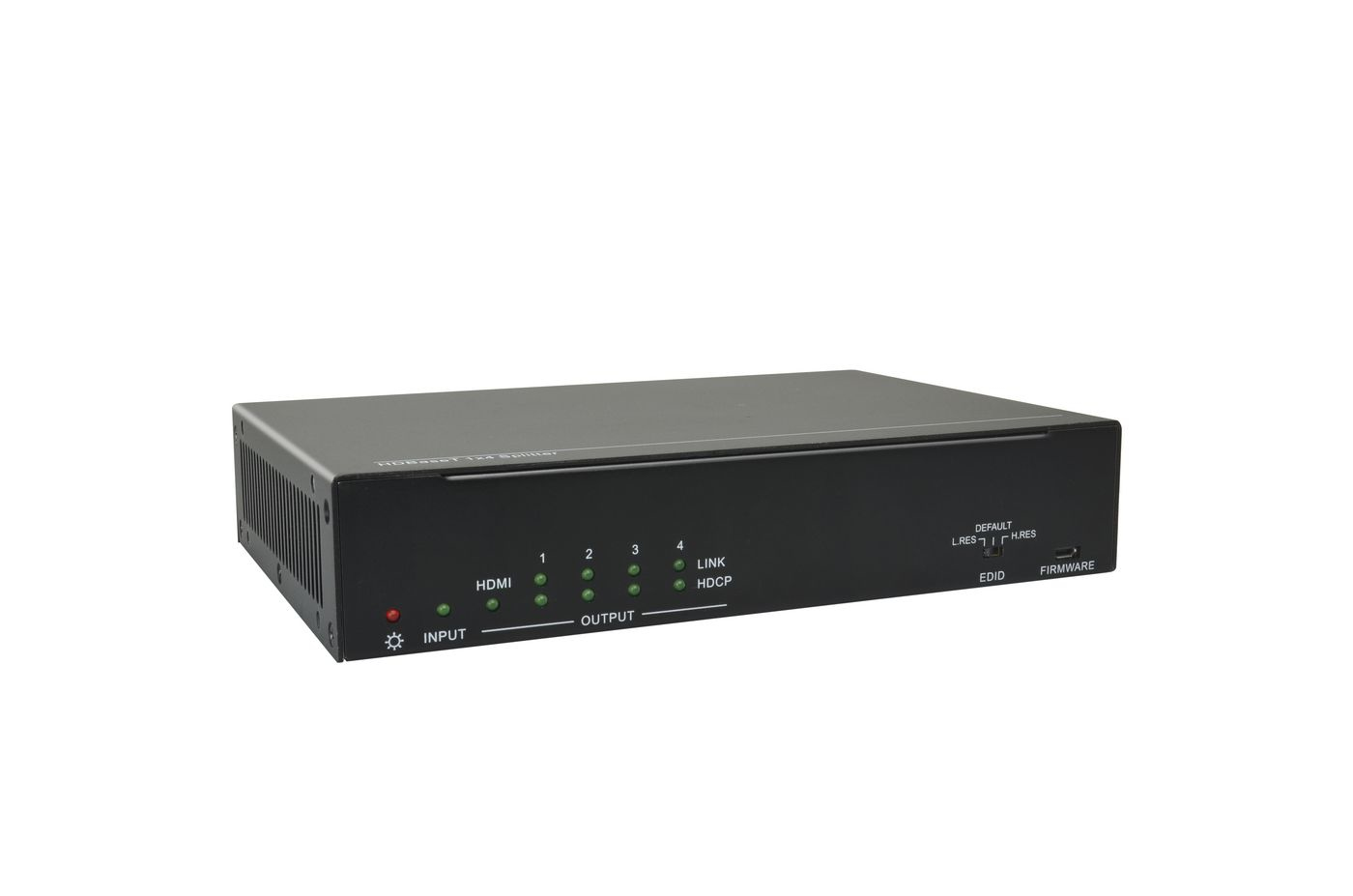

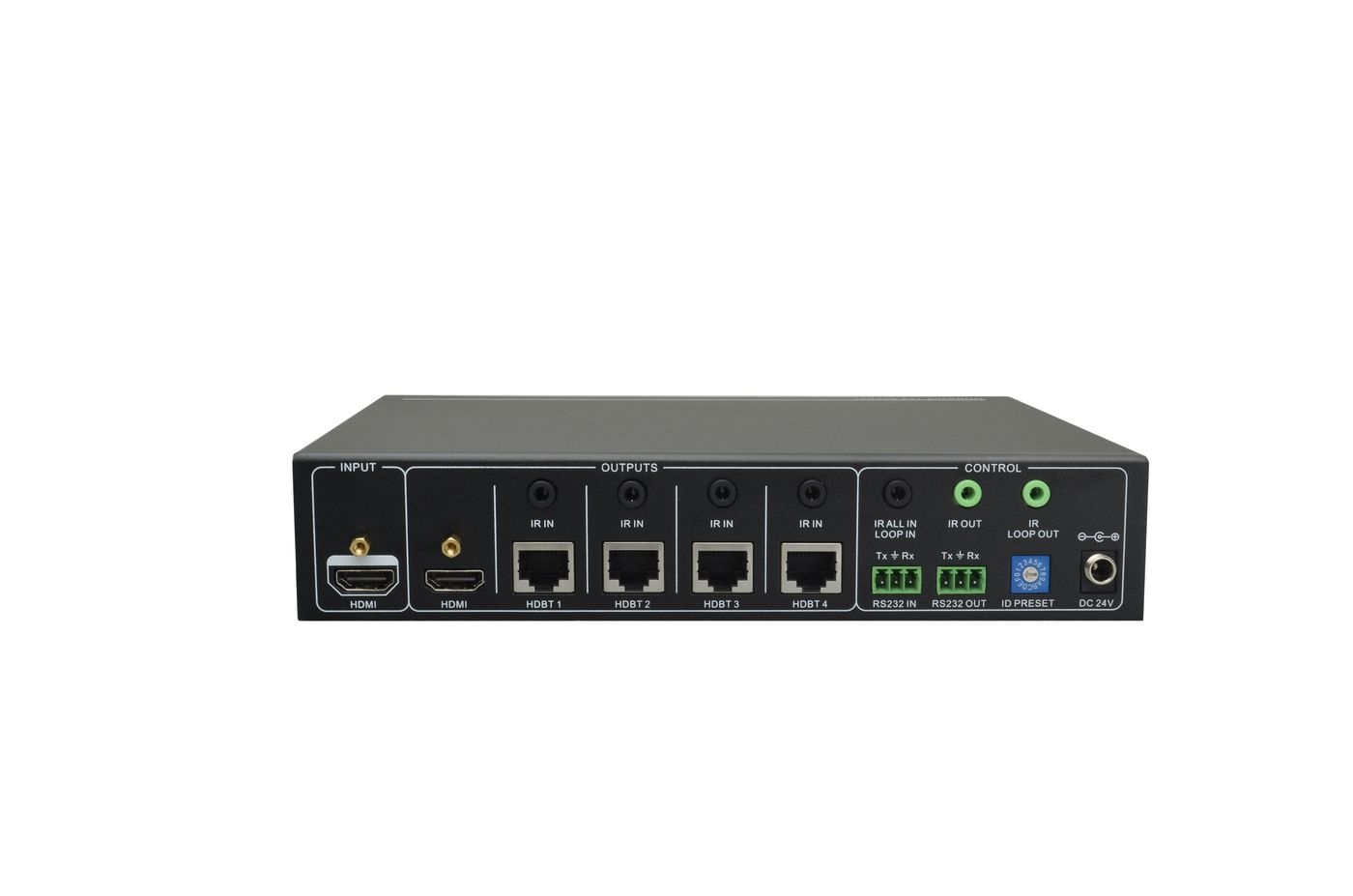

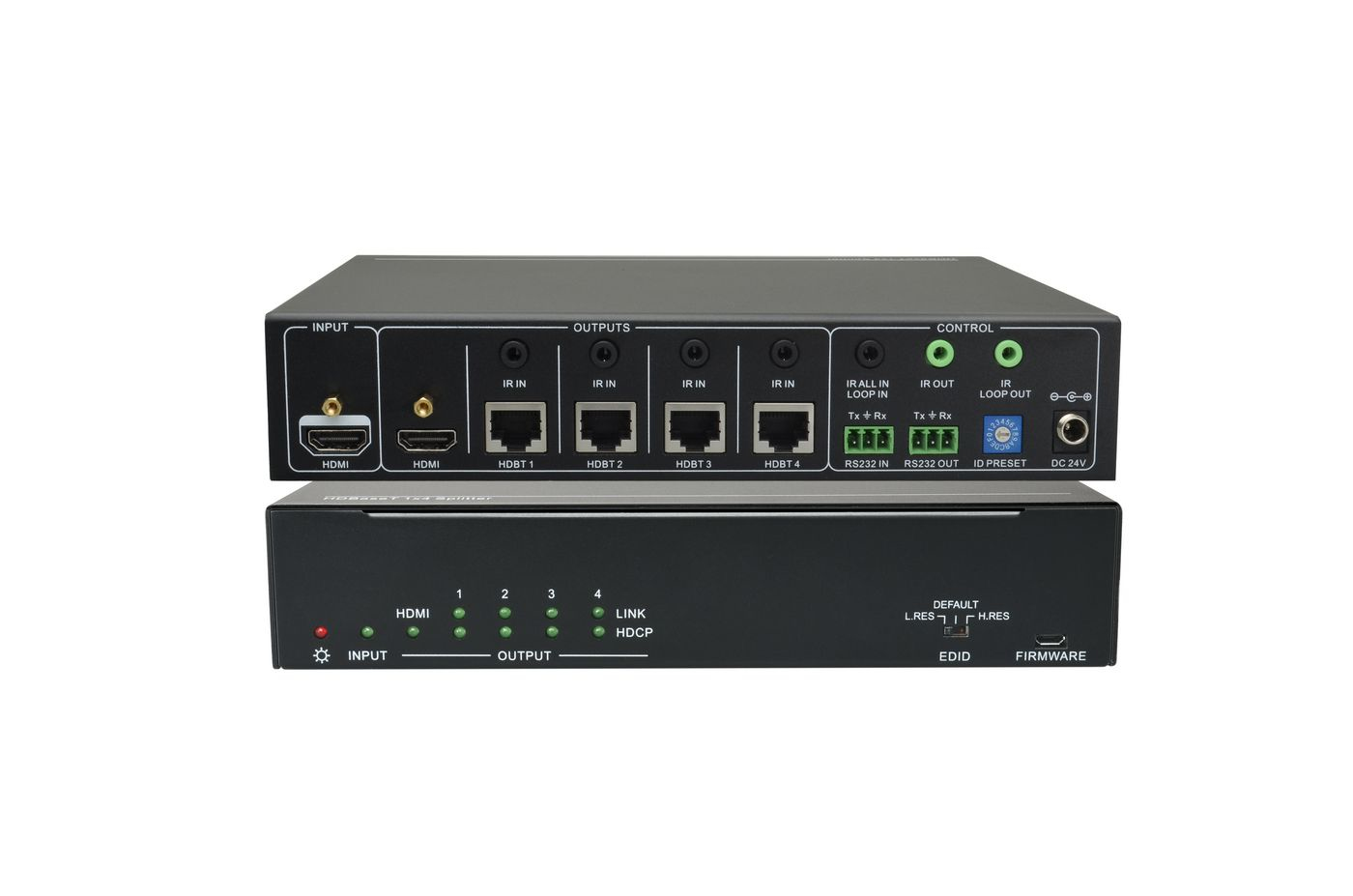

VLHDBSP1X4 video splitter HDMI
Model VLHDBSP1X4EAN 5704174093152
32 specifications
- Weight500 g
- ColourBlack
- Video ports quantity5
- Ethernet LANNo
- AC input voltage110 - 240 V
- Width220 mm
Overview
- Weight
- 500 g
- Colour
- Black
- Video ports quantity
- 5
- Ethernet LAN
- No
- AC input voltage
- 110 - 240 V
- Width
- 220 mm
- Brand
- Vivolink
- Category
- Video Splitter
- Model
- VLHDBSP1X4
- Part number
- VLHDBSP1X4
- EAN / UPC
- 5704174093152
- Also known as
- Vivolink VLHDBSP1X4 video splitter HDMI
Specifications
32 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video in | 1 x HDMI |
| HDMI version | 1.4 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Rack mounting | No |
| HDCP | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Power LED | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| Output voltage | 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 148 mm |
| Height | 44 mm |
| Dimensions (WxDxH) | 220 x 148 x 44 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.59 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Cascadable | Yes |
| Connection to PC | Yes |
| Connector type | HDMI + RJ45 |
| Maximum cable length | 70 m |
