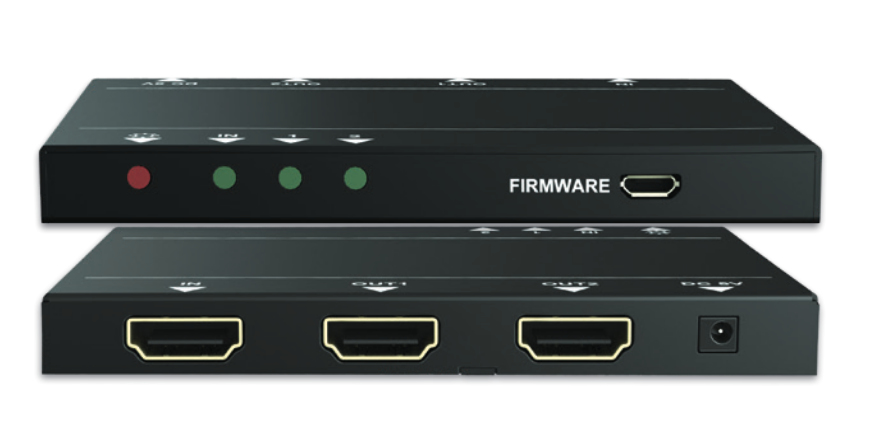

Vivolink VL120009 video splitter HDMI 2x HDMI
Model VL120009EAN 5712505764893
21 specifications
- Weight80 g
- ColourBlack
- Video ports quantity2
- Ethernet LANNo
- Output voltage5 V
- Width100 mm
Overview
- Weight
- 80 g
- Colour
- Black
- Video ports quantity
- 2
- Ethernet LAN
- No
- Output voltage
- 5 V
- Width
- 100 mm
- Brand
- Vivolink
- Category
- Video Splitter
- Model
- VL120009
- Part number
- VL120009
- EAN / UPC
- 5712505764893
- Also known as
- Vivolink VL120009 video splitter HDMI 2x HDMI
Specifications
21 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 1.4 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| LED indicators | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 2.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 70 mm |
| Height | 11 mm |
| Weight | 80 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
