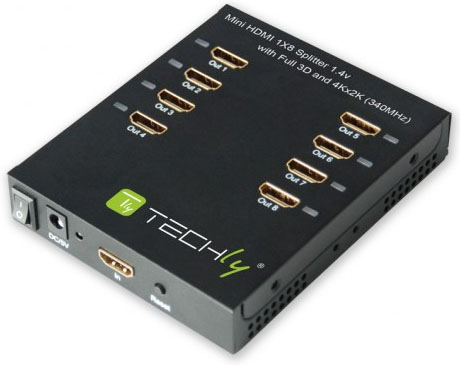

IDATA HDMI4-18
Model IDATA HDMI4-18EAN 766623914086
23 specifications
- Weight300 g
- ColourBlack
- Video ports quantity9
- AC input voltage5 V
- Dimensions (WxDxH)120 x 100 x 23 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 300 g
- Colour
- Black
- Video ports quantity
- 9
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 120 x 100 x 23 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Techly
- Category
- Video Splitter
- Model
- IDATA HDMI4-18
- Part number
- IDATA HDMI4-18
- EAN / UPC
- 766623914086, 8057685305106
- Also known as
- Techly HDMI Splitter 8 Way Full 3D High Resolution 4K IDATA HDMI4-18
Specifications
23 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| 3D | Yes |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Power LED | Yes |
| Supported graphics resolutions | 3840 x 2160, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080i, 1080p, 2160p, 480i, 480p, 576i, 576p, 720p |
| Certification | CE, FCC, UL |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (typical) | 16 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 120 x 100 x 23 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
