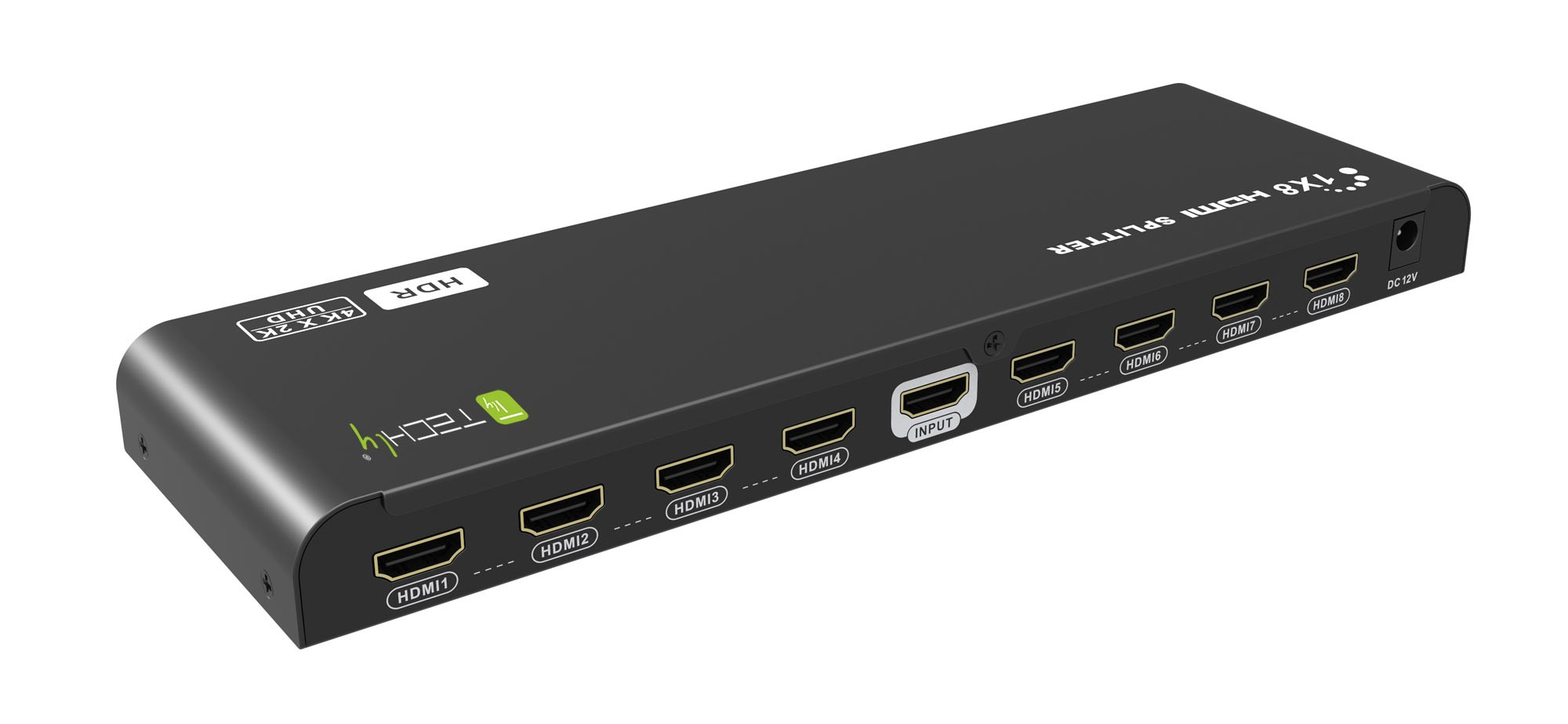

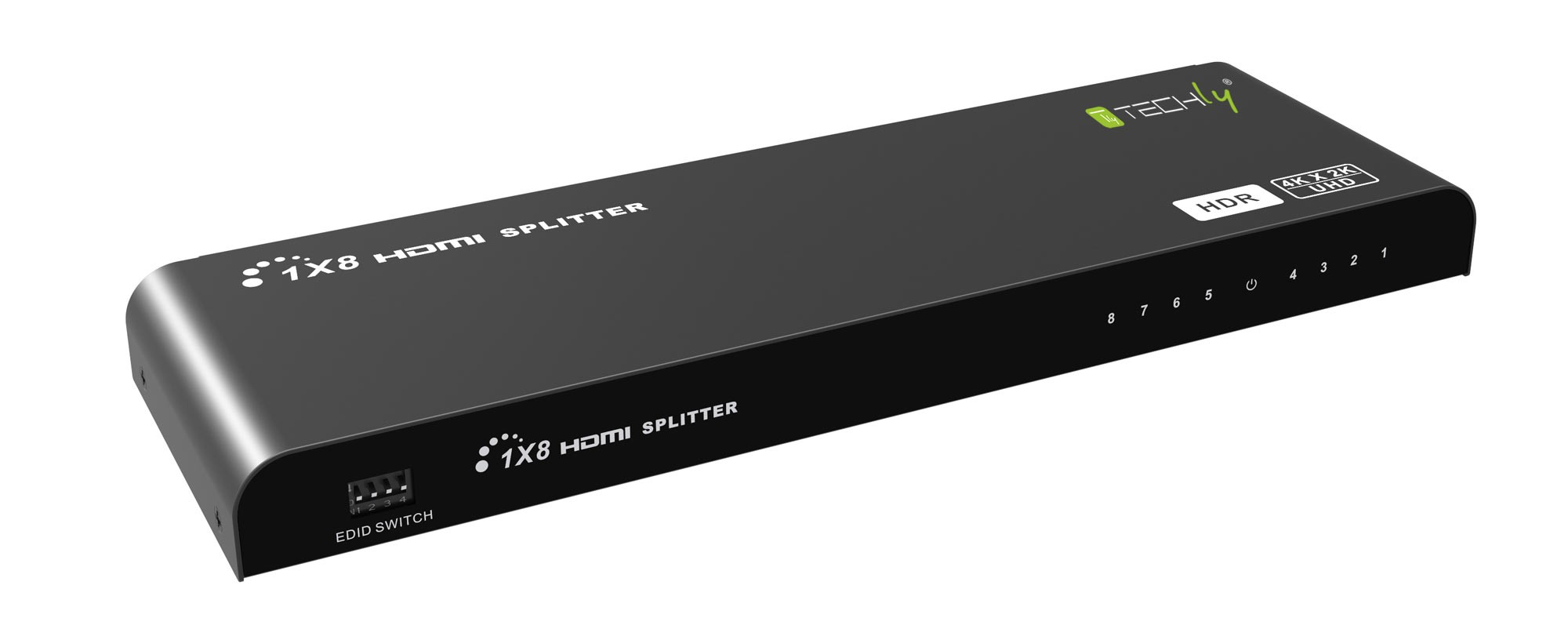

IDATA HDMI2-4K8HDR
Model IDATA HDMI2-4K8HDREAN 8051128104851
27 specifications
- Weight1.02 kg
- ColourBlack
- Video ports quantity9
- AC input voltage5 V
- Dimensions (WxDxH)260 x 90 x 21 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 1.02 kg
- Colour
- Black
- Video ports quantity
- 9
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 260 x 90 x 21 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Techly
- Category
- Video Splitter
- Model
- IDATA HDMI2-4K8HDR
- Part number
- IDATA HDMI2-4K8HDR
- EAN / UPC
- 8051128104851
- Also known as
- Techly IDATA HDMI2-4K8HDR video splitter HDMI 8x HDMI
Specifications
27 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video in | 1 x HDMI |
| Video out | 8x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum operating distance | 5 m |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, 2160p |
| Certification | WEEE, RAEE, CE |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 3 A |
| Power consumption (typical) | 13 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 260 x 90 x 21 mm |
| Weight | 1.02 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
