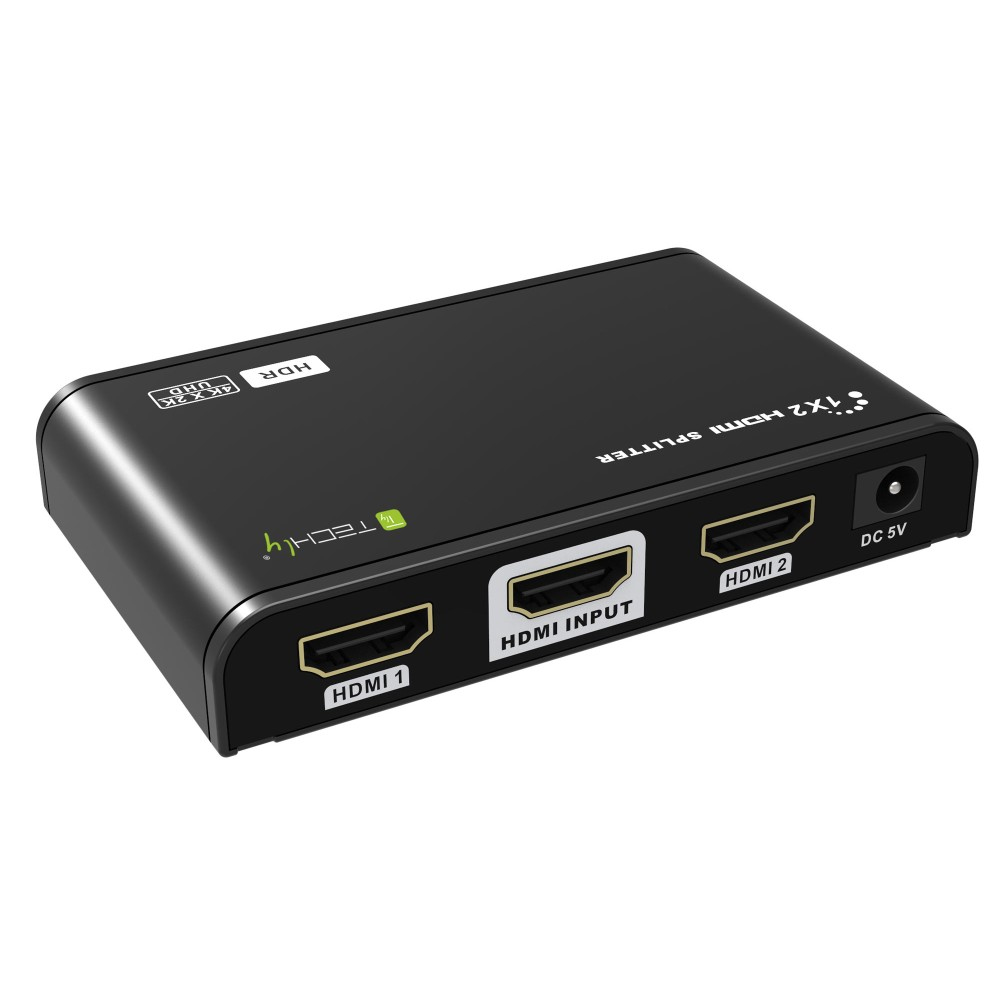

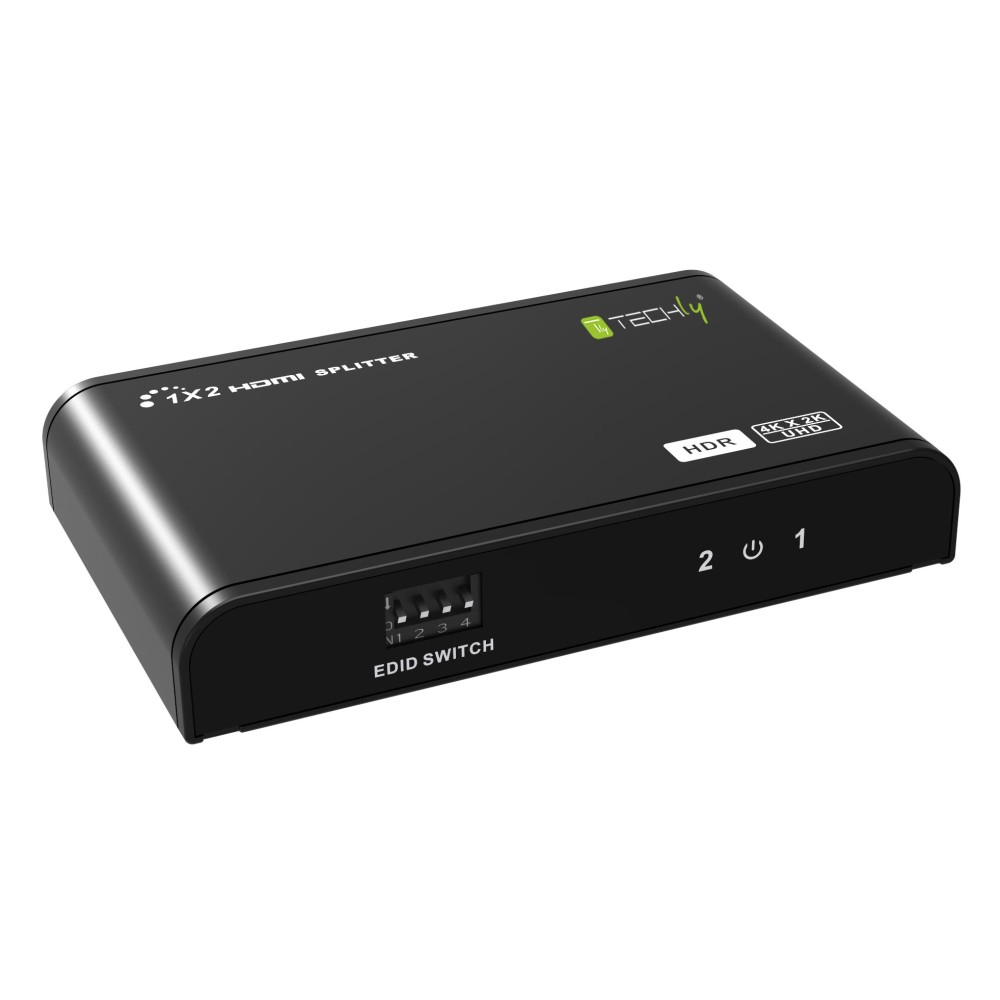

IDATA HDMI2-4K2HDR
Model IDATA HDMI2-4K2HDREAN 8051128104837
31 specifications
- TypeSplitter
- Weight248 g
- ColourBlack
- Video ports quantity2
- Power consumption (typical)5 W
- Width96 mm
Overview
- Type
- Splitter
- Weight
- 248 g
- Colour
- Black
- Video ports quantity
- 2
- Power consumption (typical)
- 5 W
- Width
- 96 mm
- Brand
- Techly
- Category
- Video Splitter
- Model
- IDATA HDMI2-4K2HDR
- Part number
- IDATA HDMI2-4K2HDR
- EAN / UPC
- 8051128104837
- Also known as
- Techly IDATA HDMI2-4K2HDR video splitter HDMI 2x HDMI
Specifications
31 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video in | 1 x HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum operating distance | 5 m |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| HDCP | Yes |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Certification | CE, WEEE |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 59 mm |
| Height | 17 mm |
| Dimensions (WxDxH) | 96 x 59 x 17 mm |
| Weight | 248 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Type | Splitter |
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
