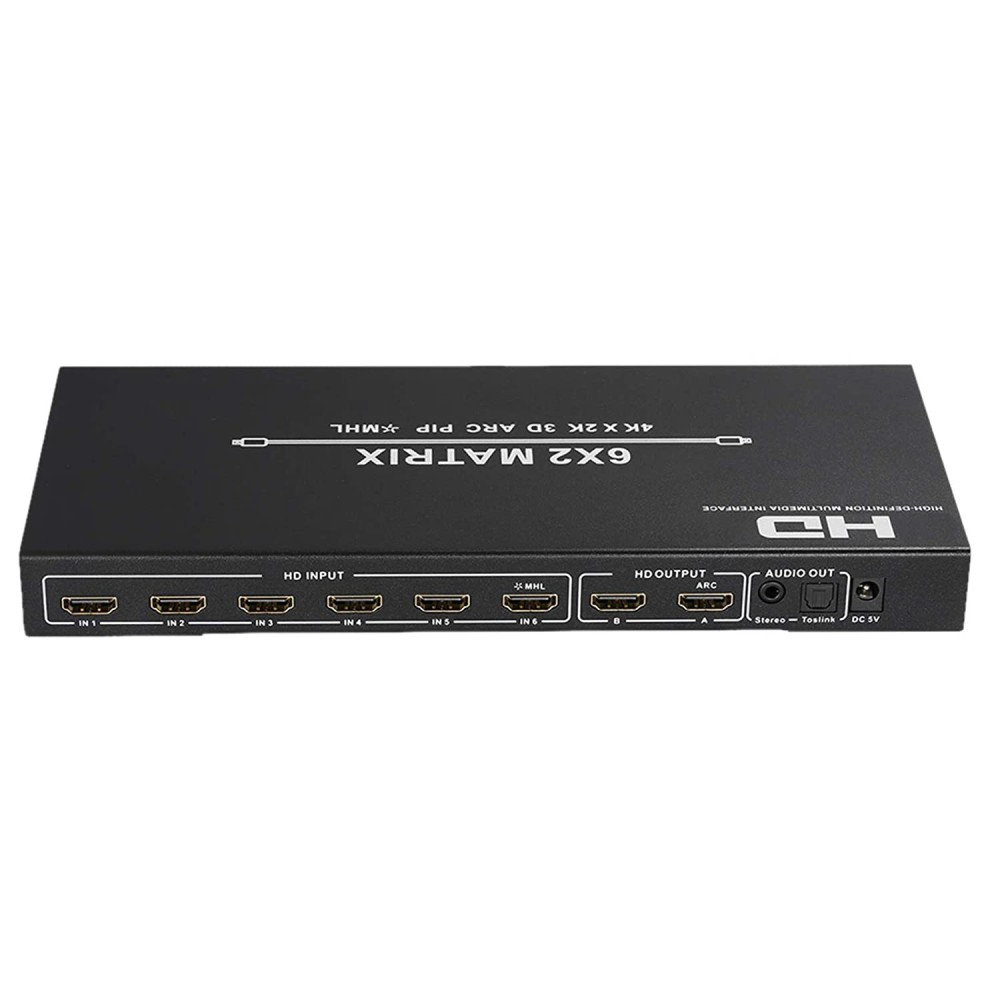

Techly IDATA HDMI-H62
Model IDATA HDMI-H62EAN 8054529026272
35 specifications
- TypeMatrix
- Weight1.17 kg
- ColourBlack
- Video ports quantity2
- Input current2 A
- Width250 mm
Overview
- Type
- Matrix
- Weight
- 1.17 kg
- Colour
- Black
- Video ports quantity
- 2
- Input current
- 2 A
- Width
- 250 mm
- Brand
- Techly
- Category
- Video Splitter
- Model
- IDATA HDMI-H62
- Part number
- IDATA HDMI-H62
- EAN / UPC
- 8054529026272
- Also known as
- Techly Switch Matrix HDMI 6x2 4K UHD 3D IDATA HDMI-H62
Specifications
35 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |

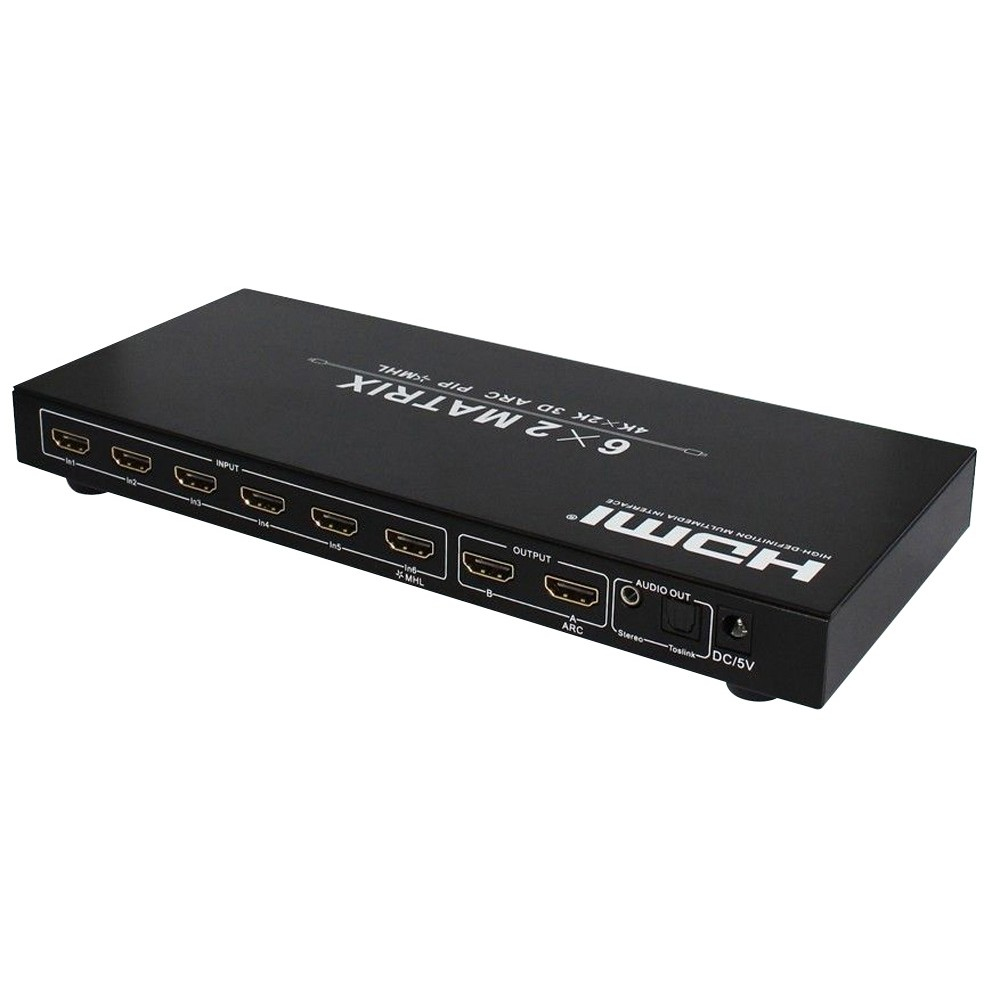

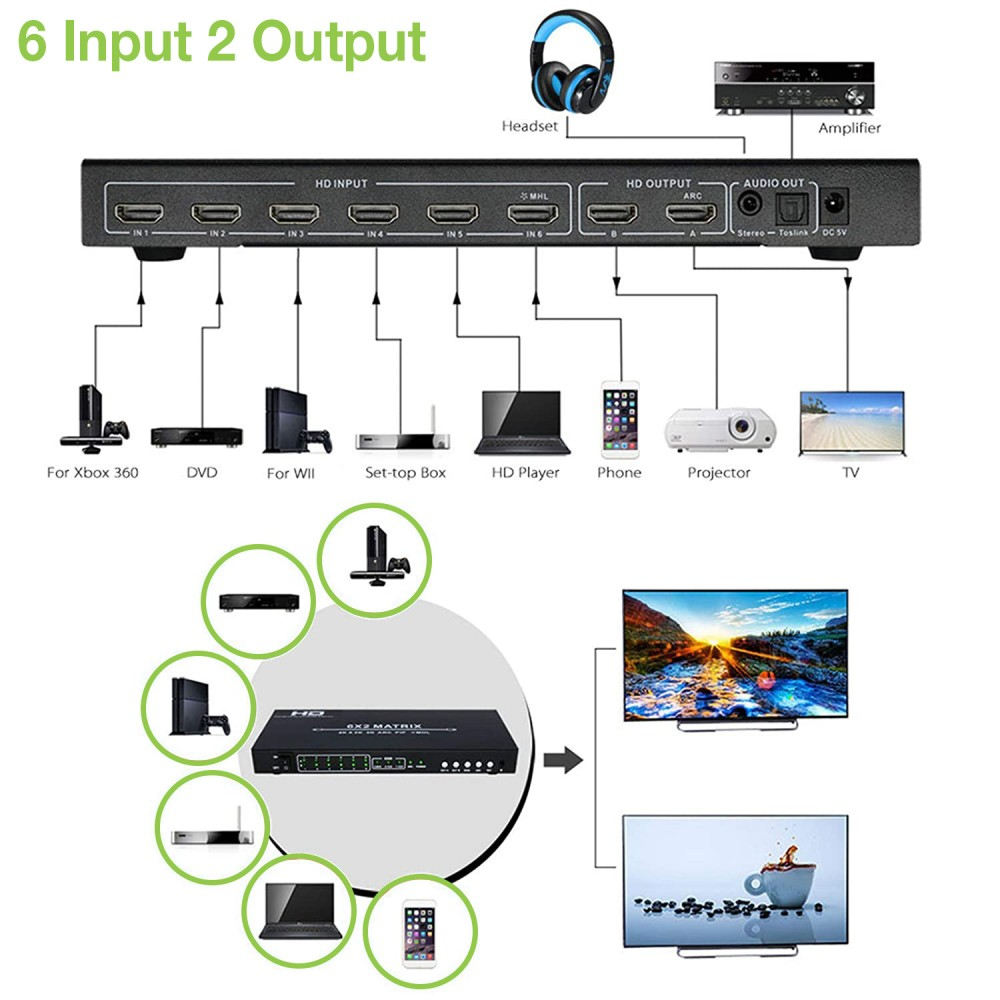

| Video in | 6x HDMI F |
| Video out | 2x HDMI |
| HDMI version | 1.4 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| 3D | Yes |
| HDCP version | 2.2 |
| Remote control included | Yes |
| HDCP | Yes |
| Dolby technologies | DTS Premium Sound 5.1, DTS-HD, Dolby Digital 5.1 Surround Sound, Dolby TrueHD |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080p, 2160p |
| Certification | EC WEEE |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Output voltage | 5 V |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Dimensions (WxDxH) | 250 x 110 x 26 mm |
| Weight | 1.17 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |

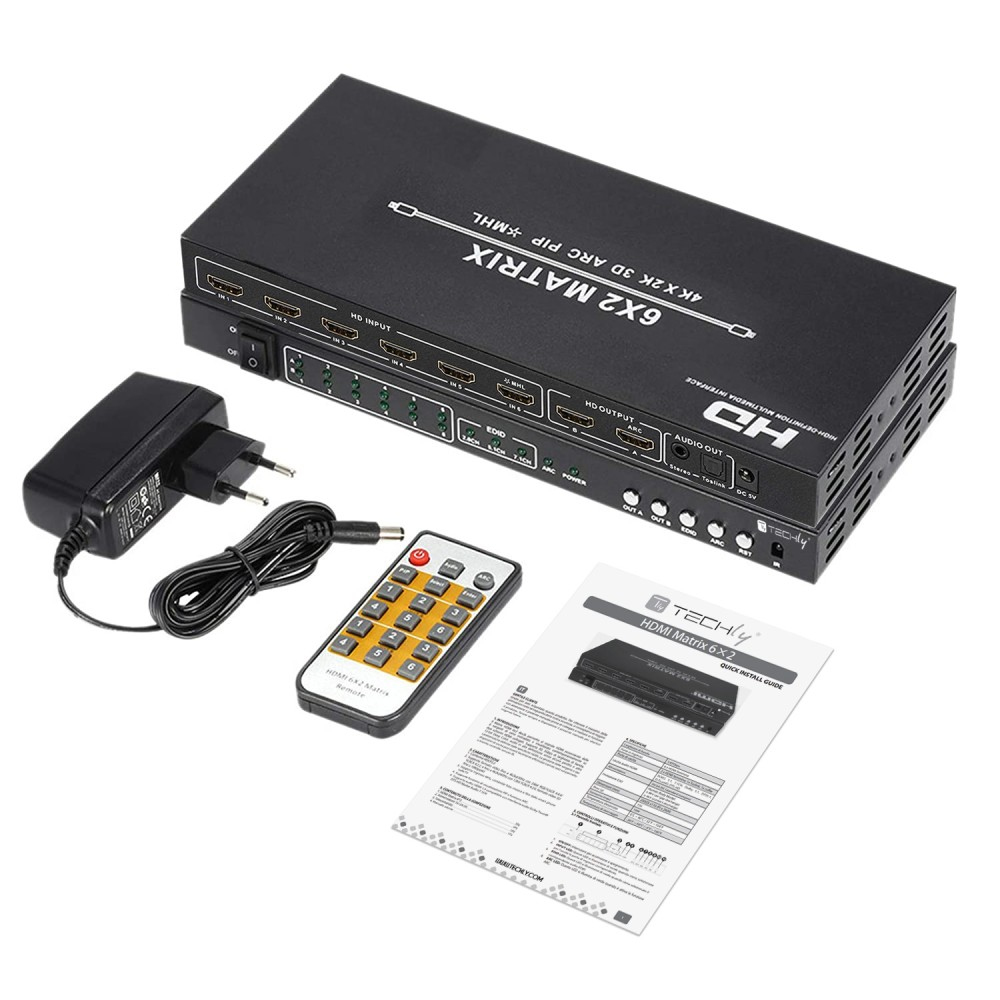

| Packaging content | 1x Remote Control 2x Mounting Brackets |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Supported audio channels | 7.1 |
| Type | Matrix |
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
