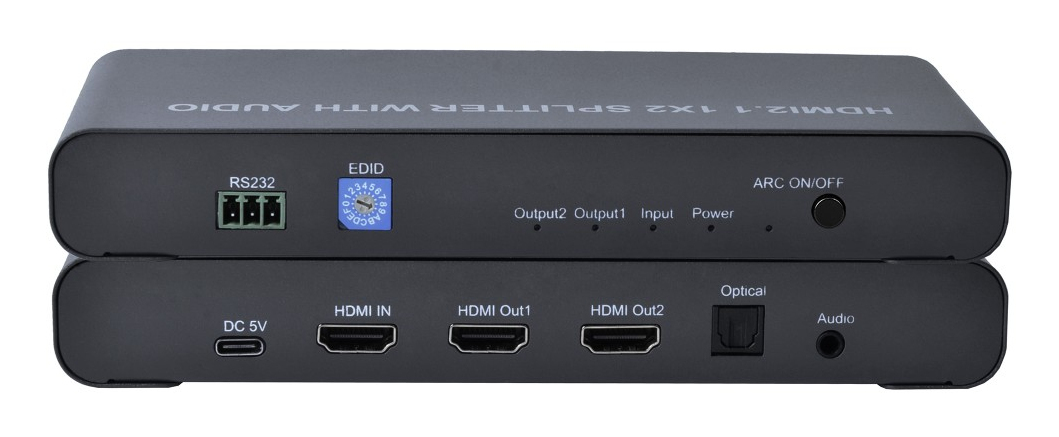

IDATA HDMI-8K2A
Model IDATA HDMI-8K2AEAN 8059018366624
35 specifications
- Weight525 g
- ColourBlack
- Video ports quantity3
- Output voltage5 V
- Width180 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 525 g
- Colour
- Black
- Video ports quantity
- 3
- Output voltage
- 5 V
- Width
- 180 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Techly
- Category
- Video Splitter
- Model
- IDATA HDMI-8K2A
- Part number
- IDATA HDMI-8K2A
- EAN / UPC
- 8059018366624
- Also known as
- Techly IDATA HDMI-8K2A video splitter 2x HDMI
Specifications
35 specifications in 7 groups

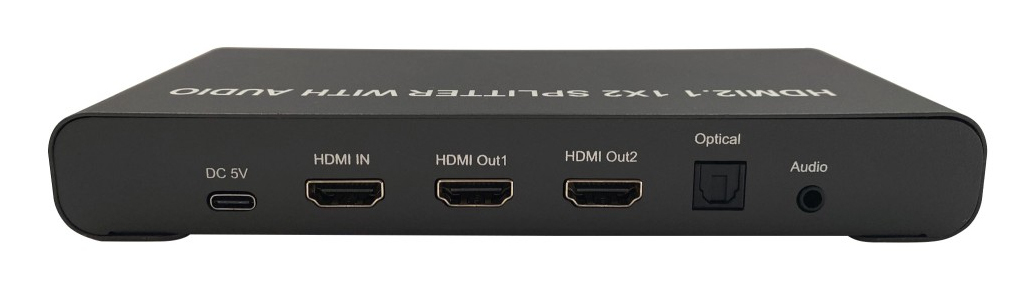

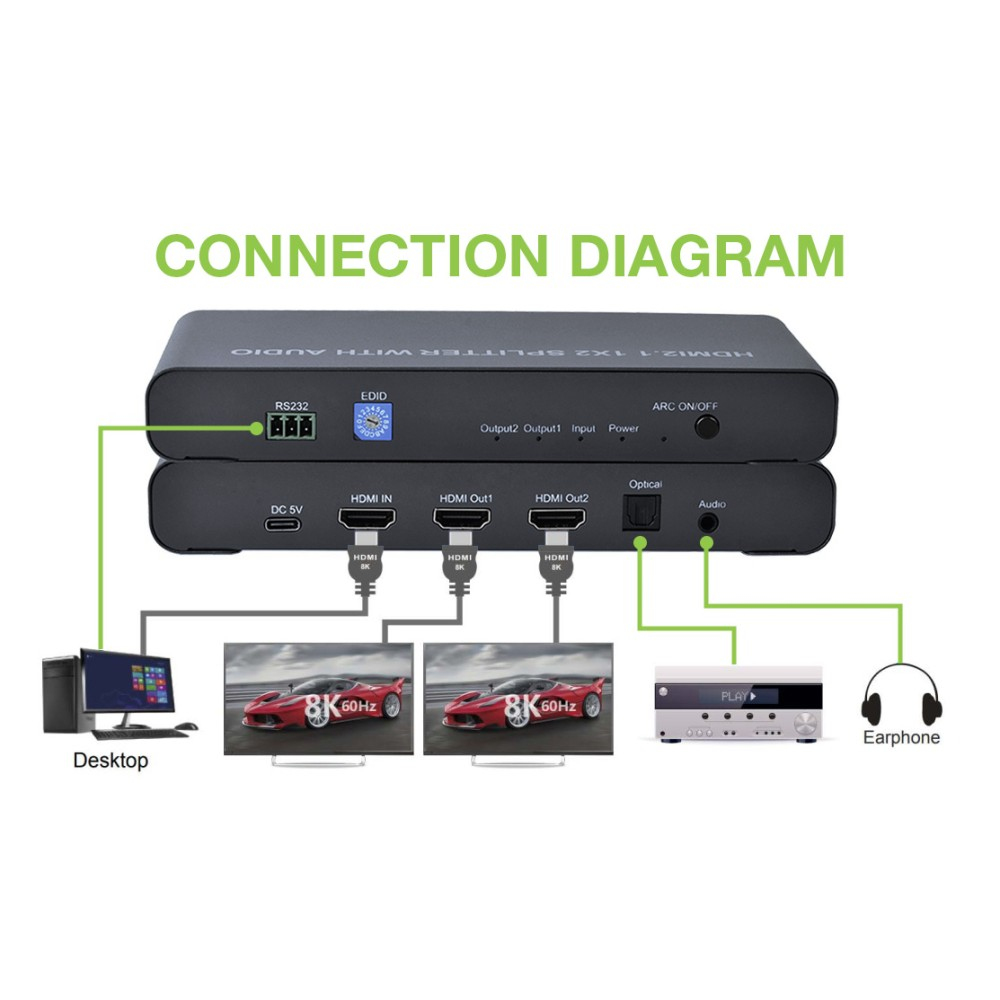

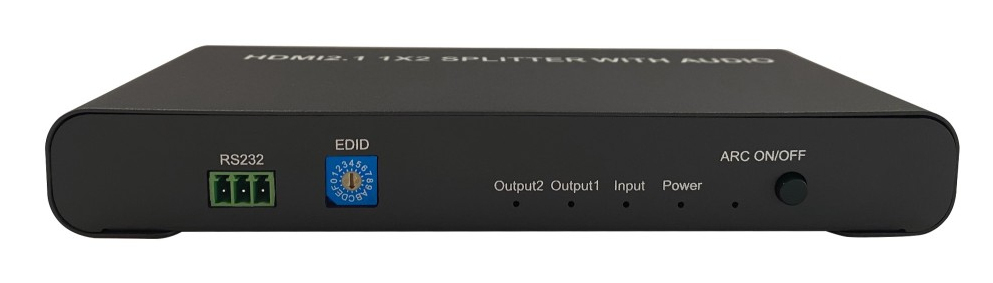

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.1 |
| Audio ports quantity | 2 |
| Digital audio optical out | 1 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 120 Hz |
| HDCP version | 2.3 |
| Data transfer rate | 40 Gbit/s |
| HDCP | Yes |
| Dolby technologies | DTS, Dolby Atmos, Dolby Digital AC3, Dolby Digital Plus, Dolby MAT, Dolby TrueHD |
| Number of displays supported | 2 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 75 mm |
| Height | 26 mm |
| Weight | 525 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 75 mm |
| Package height | 26 mm |
| Package weight | 525 g |

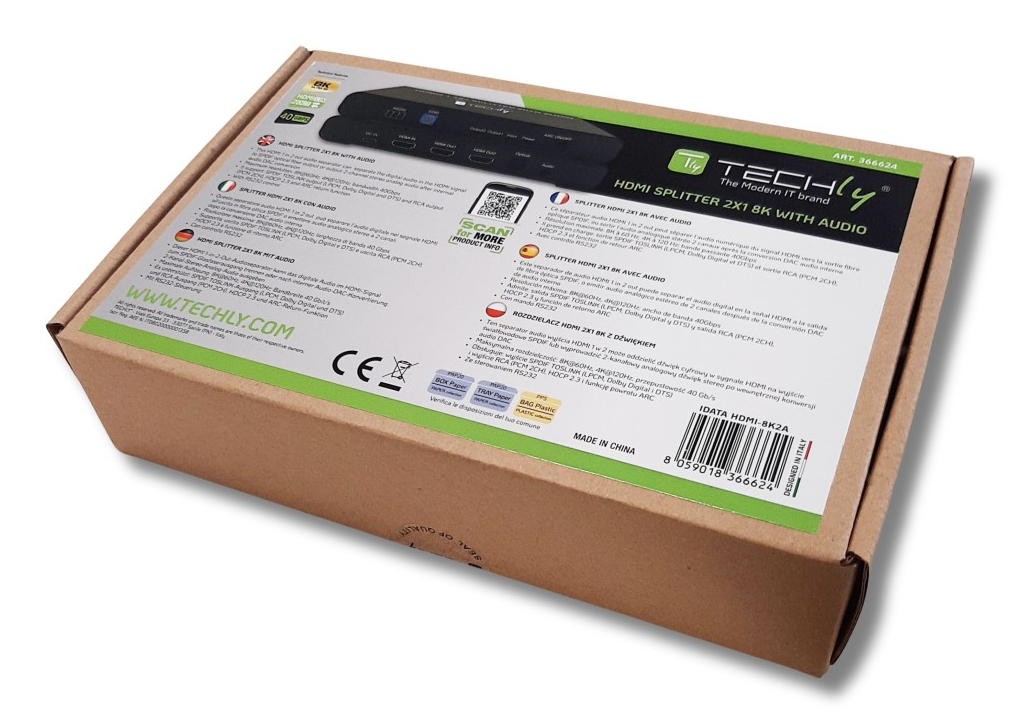

| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
