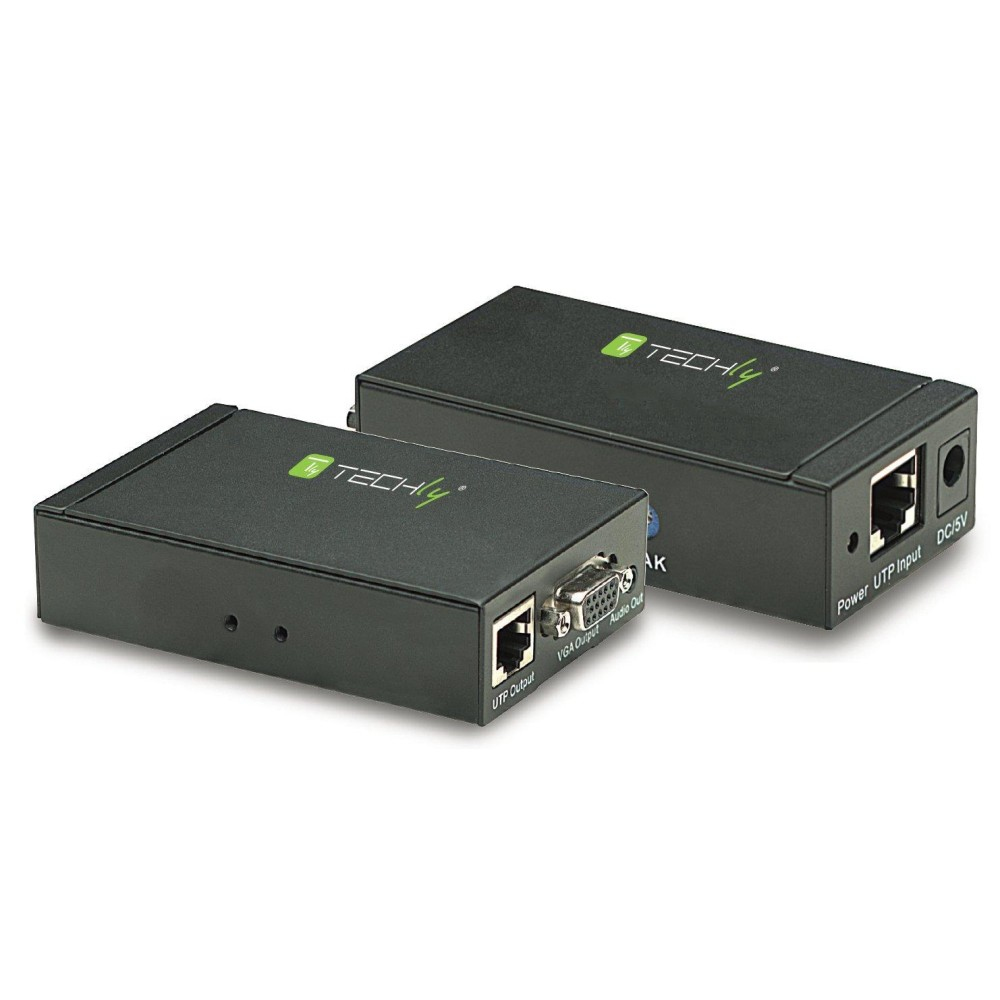

IDATA EX-DL344
Model IDATA EX-DL344EAN 8057685301122
27 specifications
- TypeAmplificatore
- Weight716 g
- ColourBlack
- Video ports quantity1
- Cable types supportedCat5, Cat5e, Cat6
- AC input voltage5 V
Overview
- Type
- Amplificatore
- Weight
- 716 g
- Colour
- Black
- Video ports quantity
- 1
- Cable types supported
- Cat5, Cat5e, Cat6
- AC input voltage
- 5 V
- Brand
- Techly
- Category
- Video Splitter
- Model
- IDATA EX-DL344
- Part number
- IDATA EX-DL344
- EAN / UPC
- 8057685301122
- Also known as
- Techly Amplifier Extender VGA and Audio over Network Cable IDATA EX-DL344
Specifications
27 specifications in 8 groups

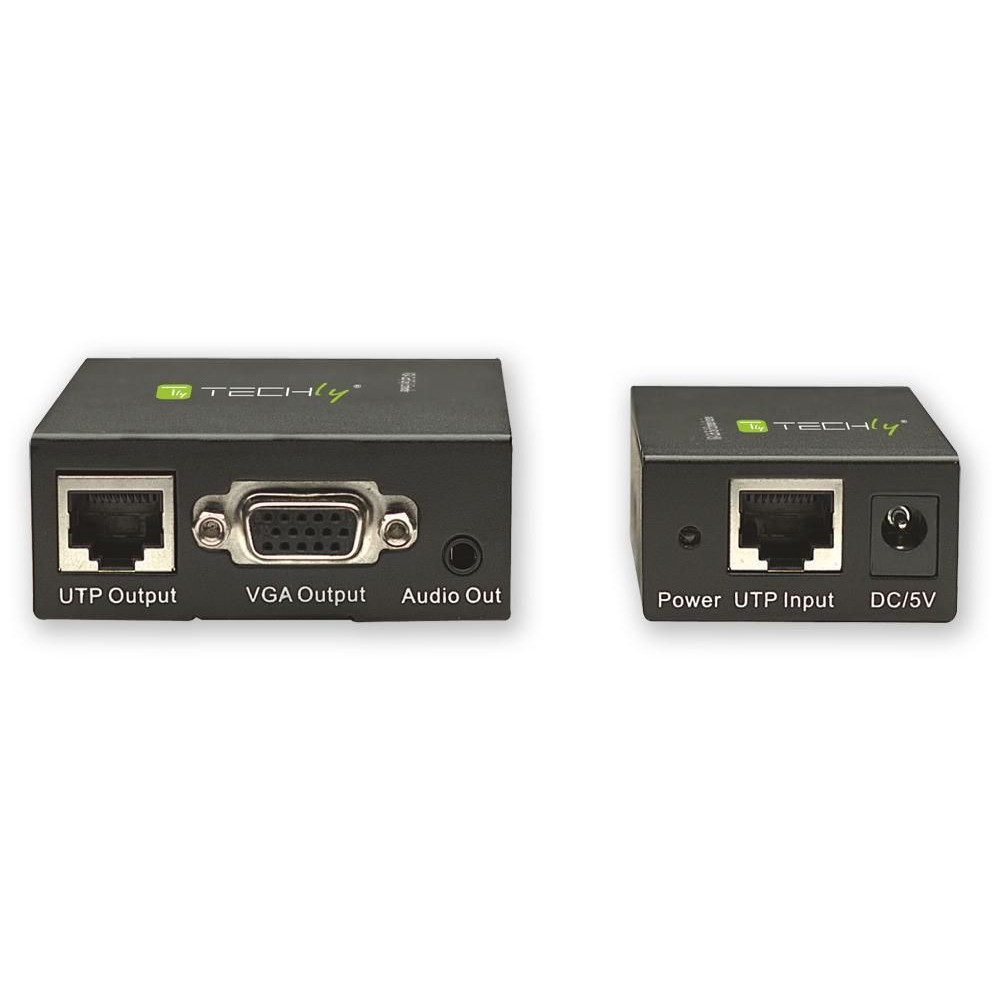

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 1 |
| Video port type | VGA |
| Video in | 1 |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio ports quantity | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| 3D | No |
| Maximum operating distance | 300 m |
| HD-Ready | Yes |
| HDCP | No |
| Supported graphics resolutions | 1280 x 960, 1600 x 900, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
Network
| Specification | Value |
|---|---|
| Cable types supported | Cat5, Cat5e, Cat6 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| USB powered | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 716 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio input | 1 |
| Audio output | 2 |
| Type | Amplificatore |
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
