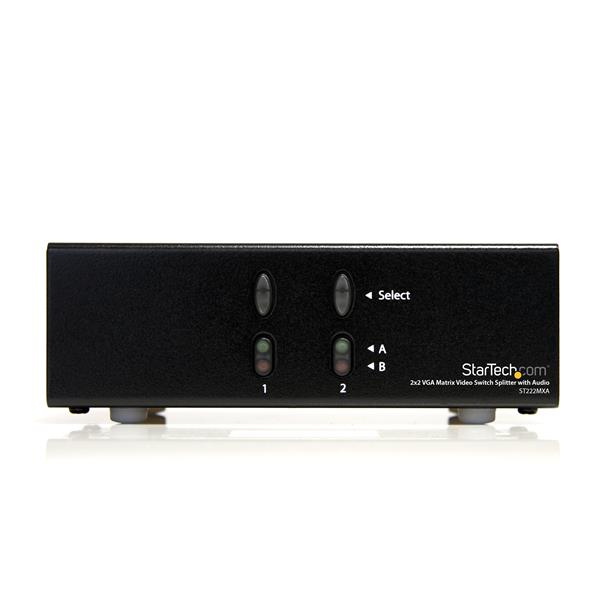

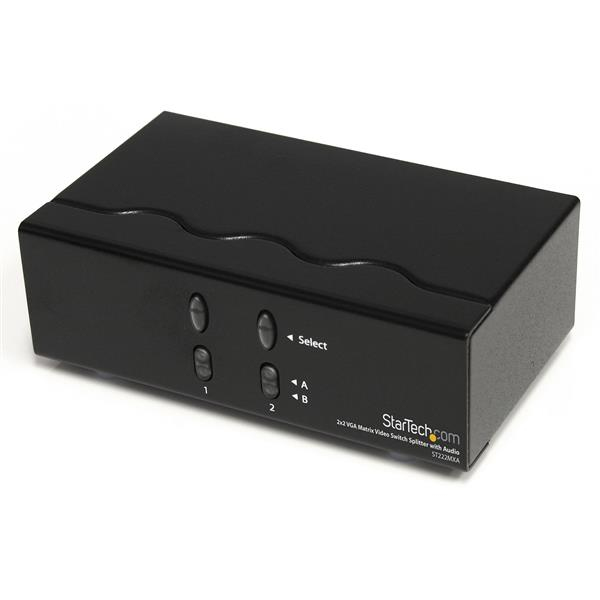

2x2 VGA Matrix Video Switch Splitter with Audio
Model ST222MXAEAN 5054484362302
28 specifications
- Weight450 g
- ColourSilver
- Video ports quantity4
- Ethernet LANNo
- AC input voltage115 V
- Dimensions (WxDxH)130 x 75 x 42 mm
Overview
- Weight
- 450 g
- Colour
- Silver
- Video ports quantity
- 4
- Ethernet LAN
- No
- AC input voltage
- 115 V
- Dimensions (WxDxH)
- 130 x 75 x 42 mm
- Brand
- StarTech.com
- Category
- Video Splitter
- Model
- ST222MXA
- Part number
- ST222MXA
- EAN / UPC
- 5054484362302, 065030841825, 099802215675, 120214598077 +4 more
- Also known as
- StarTech.com 2x2 VGA Matrix Video Switch Splitter with Audio
Specifications
28 specifications in 9 groups

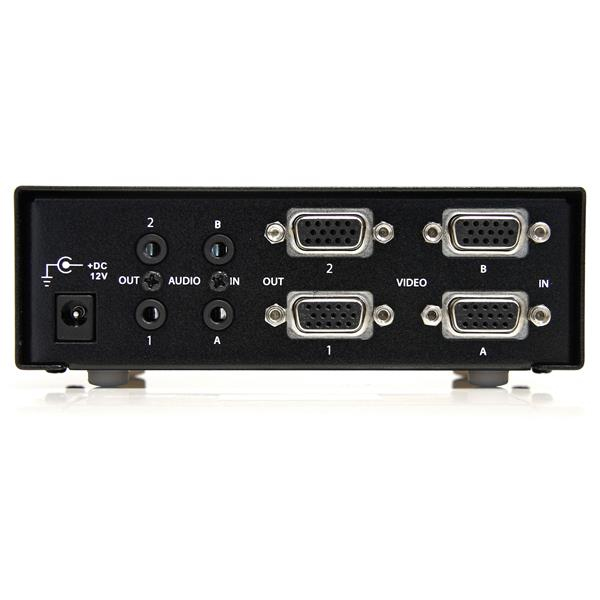

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 4 |
| Video port type | VGA |
| Video out | 2x VGA |
| Ethernet LAN (RJ-45) ports | 0 |
| Audio ports quantity | 4 |
| Serial ports quantity | 0 |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Maximum resolution | 1920 x 1440 pixels |
| Full HD | No |
| Maximum operating distance | 95 m |
| Bandwidth | 250 MHz |
| HD-Ready | No |
| Power LED | Yes |
| Certification | DDC, DDC2, DDC2B |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 115 V |
| Output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 130 x 75 x 42 mm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 156 mm |
| Package depth | 245 mm |
| Package height | 68 mm |
| Package weight | 793 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
