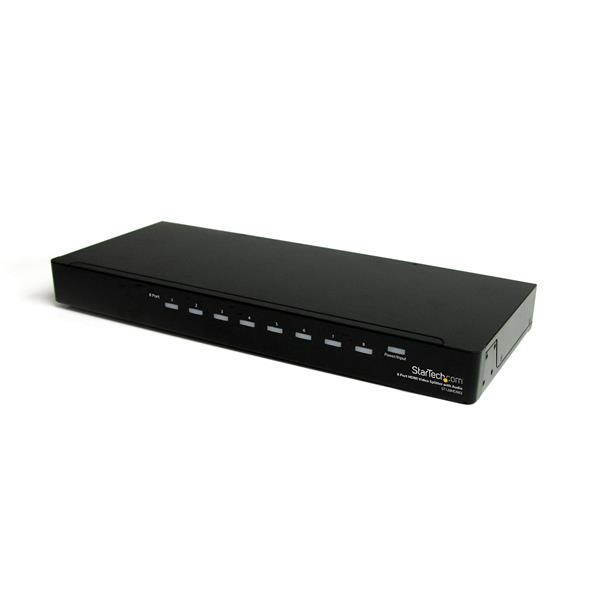

8-port HDMI splitter and signal amplifier
Model ST128HDMI2EAN 872182670124
31 specifications
- Weight2.18 kg
- ColourBlack
- Video ports quantity8
- AC input voltage110-240 V
- Dimensions (WxDxH)440 x 183 x 45 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.18 kg
- Colour
- Black
- Video ports quantity
- 8
- AC input voltage
- 110-240 V
- Dimensions (WxDxH)
- 440 x 183 x 45 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Video Splitter
- Model
- ST128HDMI2
- Part number
- ST128HDMI2
- EAN / UPC
- 872182670124, 065030843423, 100177415024, 102930728778 +9 more
- Also known as
- StarTech.com 8-port HDMI splitter and signal amplifier
Specifications
31 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 8 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| Audio ports quantity | 8 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| Rack mounting | Yes |
| HD-Ready | Yes |
| HDCP | Yes |
| LED indicators | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 10.2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 183 x 45 mm |
| Weight | 2.18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 271 mm |
| Package depth | 595 mm |
| Package height | 89 mm |
| Package weight | 3.31 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Maximum cable length | 5 m |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
