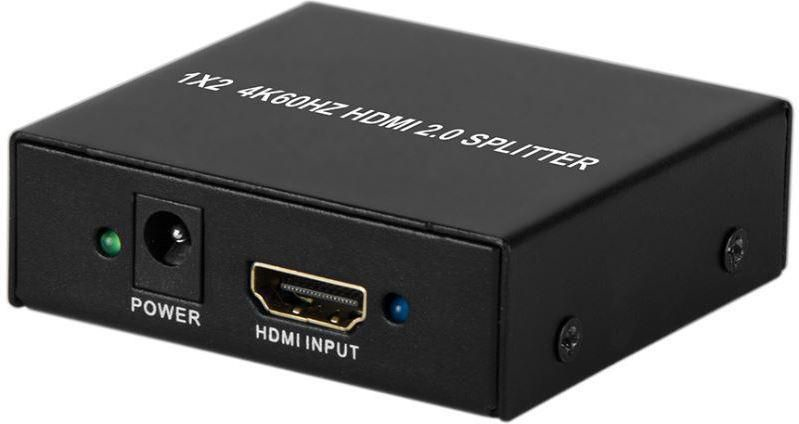

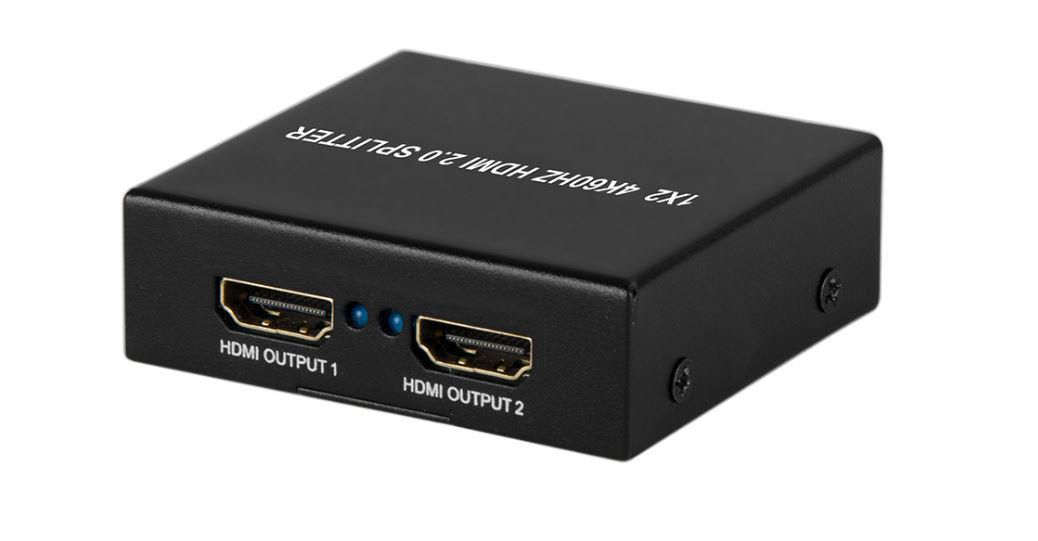

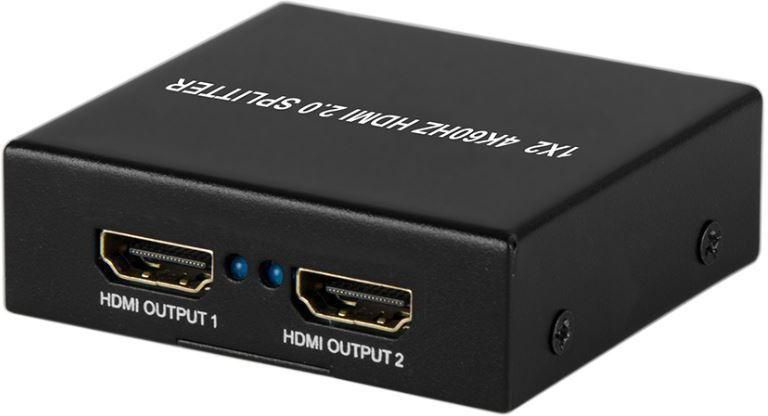

MC-HMSP102S video splitter HDMI 2x HDMI
Model MC-HMSP102S
27 specifications
- Weight88 g
- ColourBlack
- Video ports quantity3
- Width70.4 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 88 g
- Colour
- Black
- Video ports quantity
- 3
- Width
- 70.4 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Microconnect
- Category
- Video Splitter
- Model
- MC-HMSP102S
- Part number
- MC-HMSP102S
- Also known as
- Microconnect MC-HMSP102S video splitter HDMI 2x HDMI
Specifications
27 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| Dolby technologies | DTS-HD Master Audio |
| LED indicators | Yes |
| Number of displays supported | 2 |

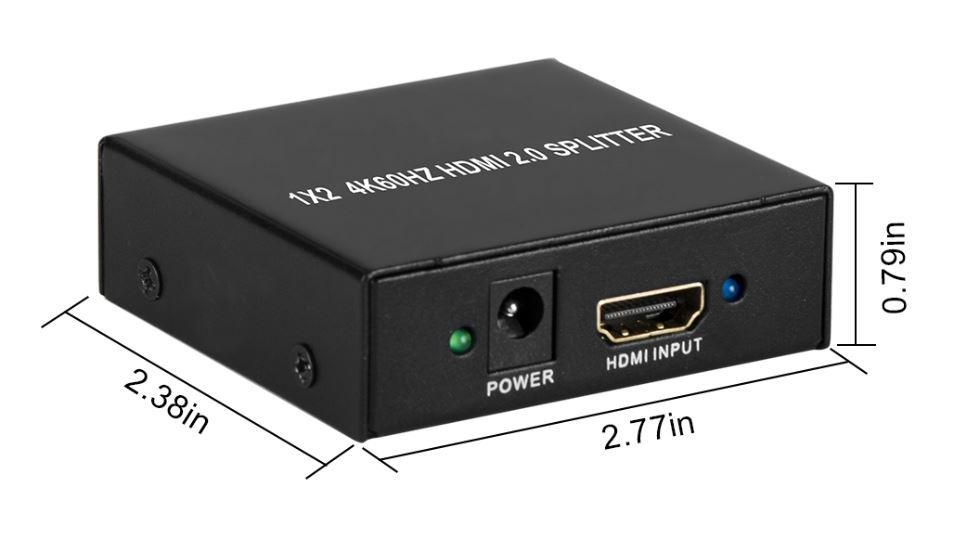

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.4 mm |
| Depth | 60.5 mm |
| Height | 20.1 mm |
| Weight | 88 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 91 mm |
| Package depth | 77 mm |
| Package height | 72 mm |
| Package weight | 188 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
