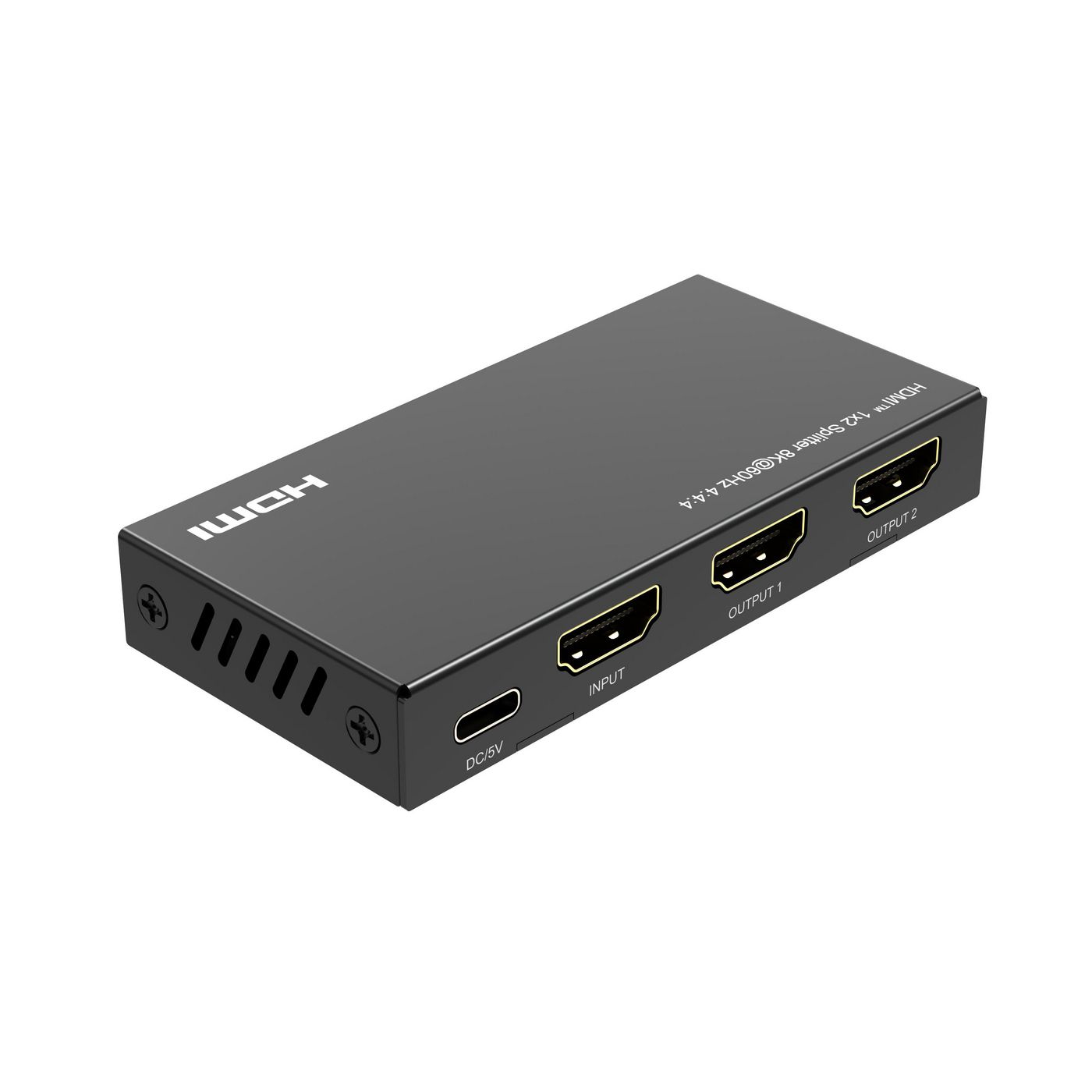

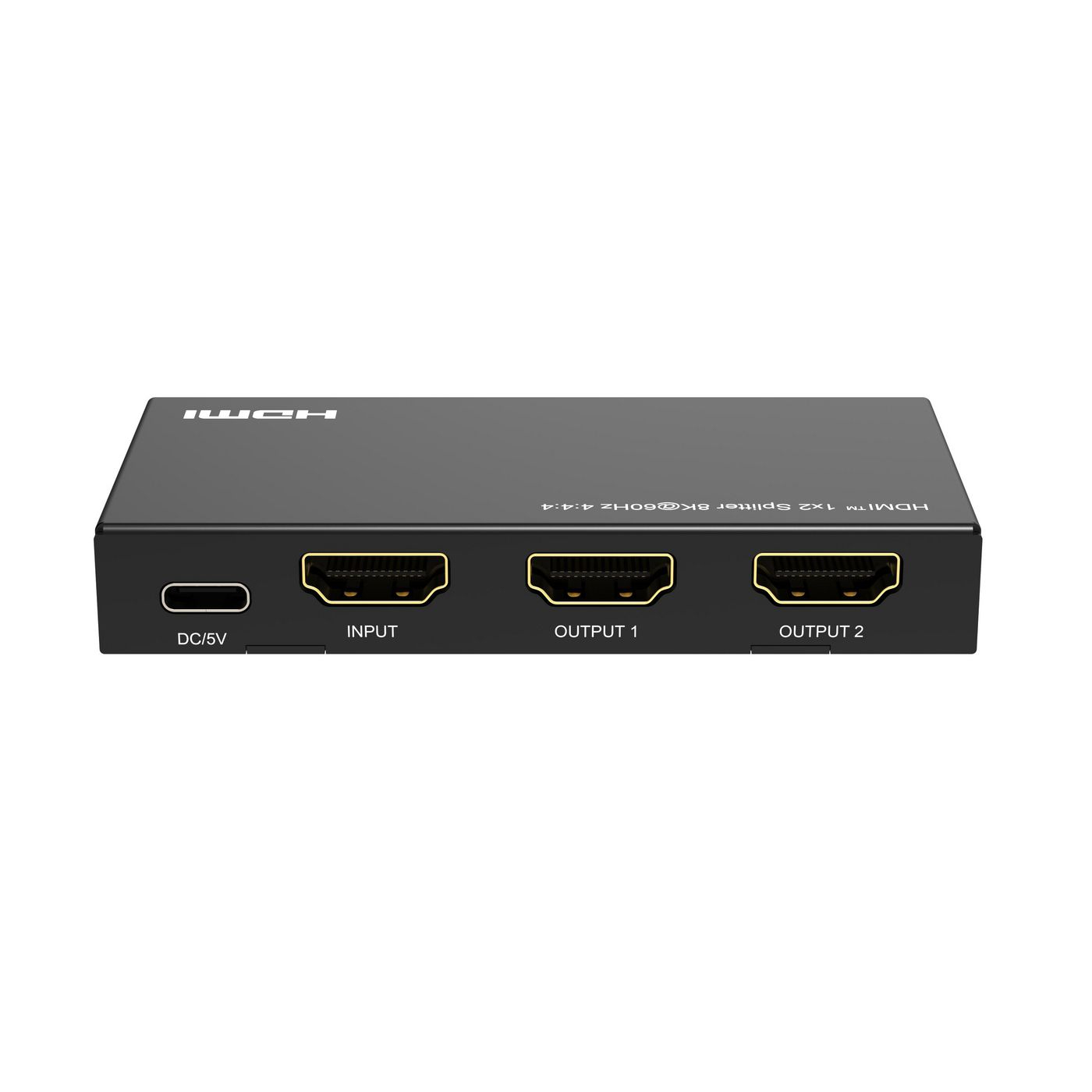

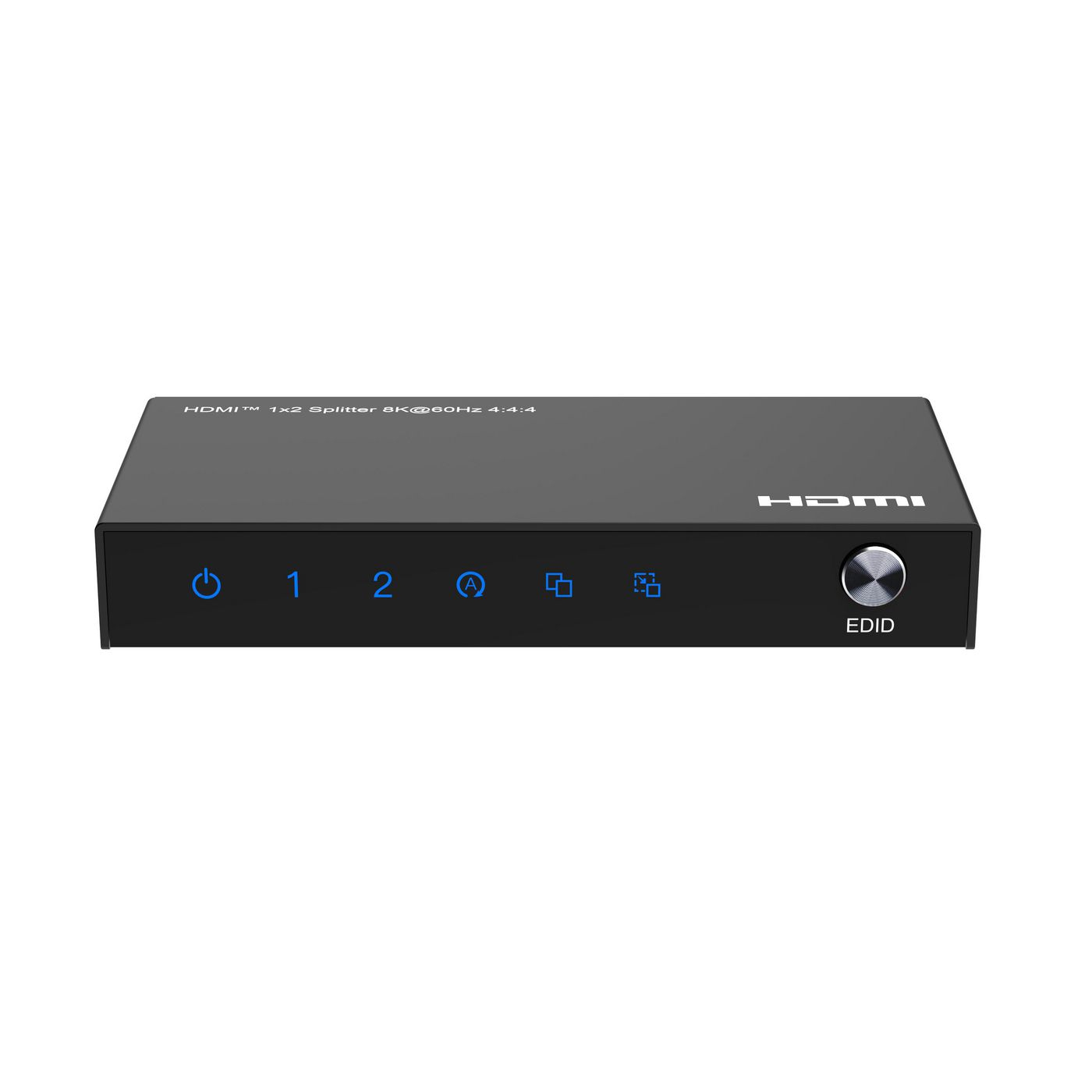

MC-HDMISPLITTER0102-8K video splitter HDMI
Model MC-HDMISPLITTER0102-8KEAN 5715063739594
36 specifications
- Weight90 g
- ColourBlack
- Video ports quantity3
- Width127 mm
Overview
- Weight
- 90 g
- Colour
- Black
- Video ports quantity
- 3
- Width
- 127 mm
- Brand
- Microconnect
- Category
- Video Splitter
- Model
- MC-HDMISPLITTER0102-8K
- Part number
- MC-HDMISPLITTER0102-8K
- EAN / UPC
- 5715063739594
- Also known as
- Microconnect MC-HDMISPLITTER0102-8K video splitter HDMI
Specifications
36 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | HDMI |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 7680 x 4320 pixels |
| Full HD | Yes |
| HD type | 8K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 8 m |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.3 |
| Extended display identification data (EDID) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Dolby technologies | Dolby Digital |

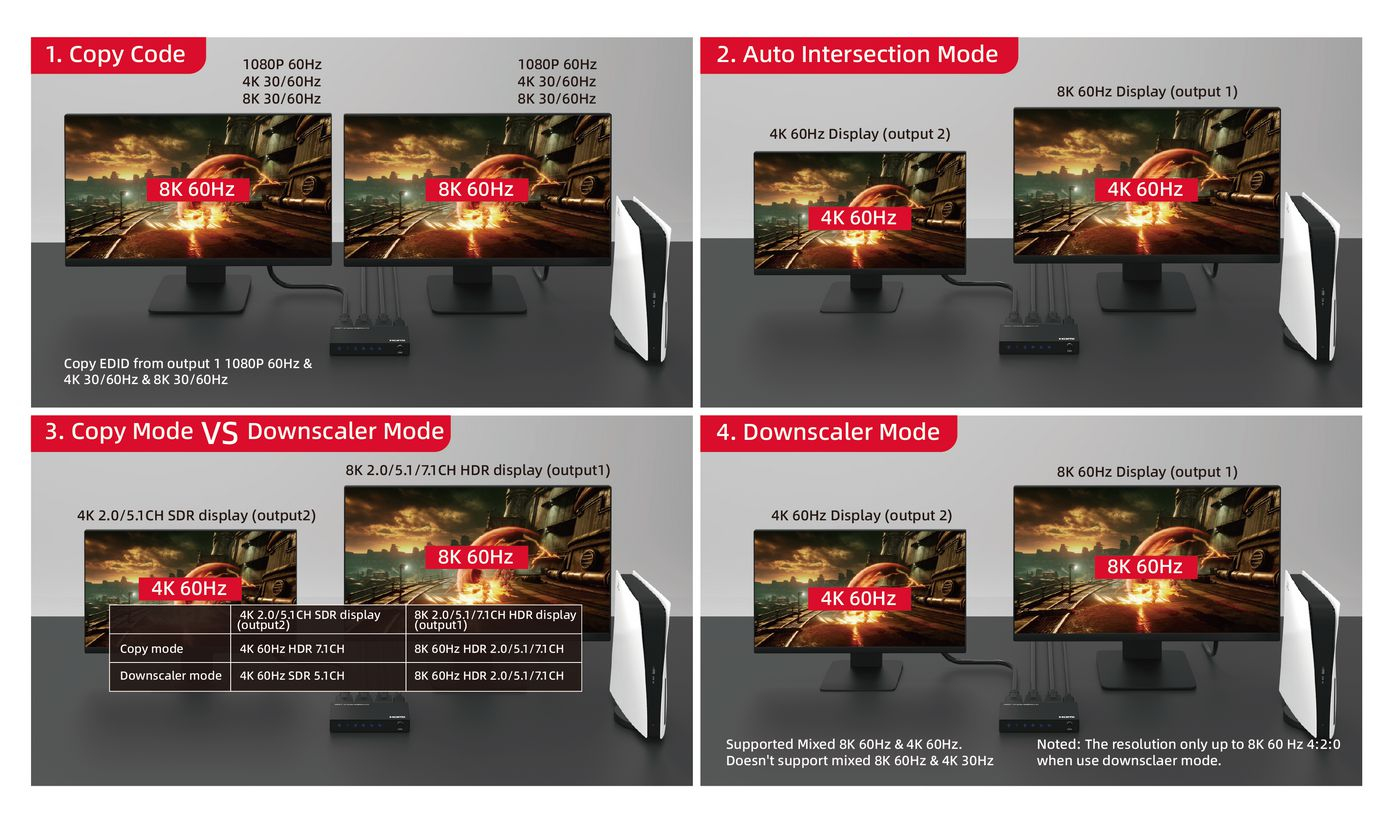

| Downscaler | Yes |
| Easy to install | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Power LED | Yes |
| Certification | CE, RoHS and FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 93 mm |
| Height | 17 mm |
| Weight | 90 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 127 mm |
| Package depth | 93 mm |
| Package height | 17 mm |
| Package weight | 222 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
| User guide | Yes |
| Packaging content | 1x main unit, 1x user manual, 1x USB A to USB-C and 1x power charger |
