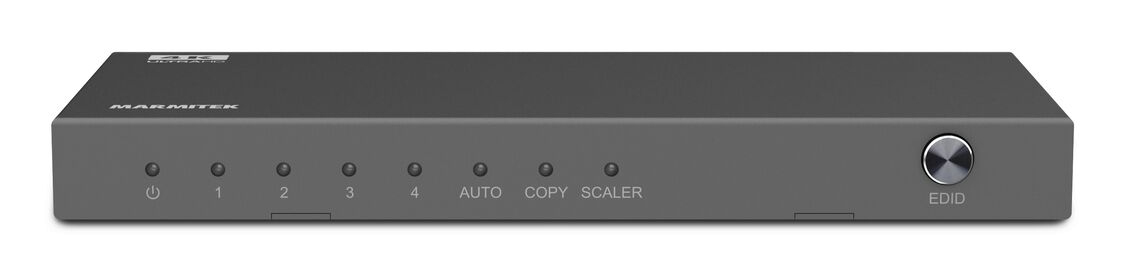

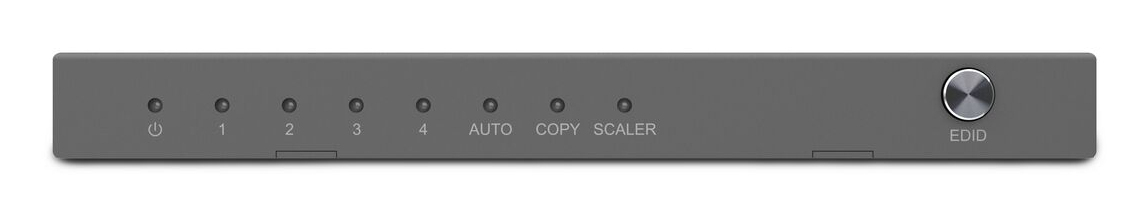

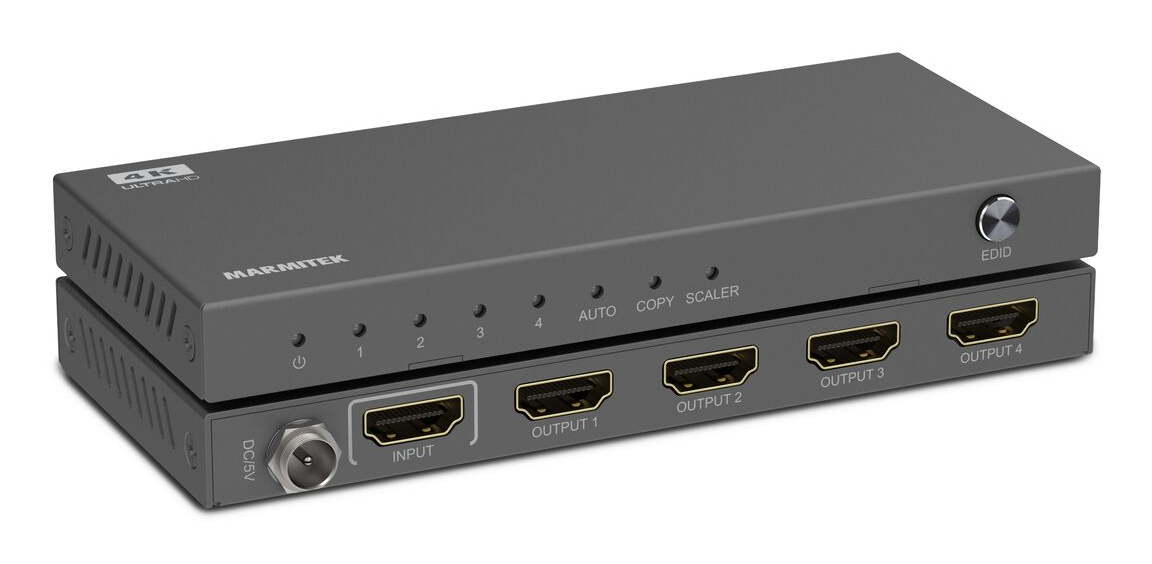

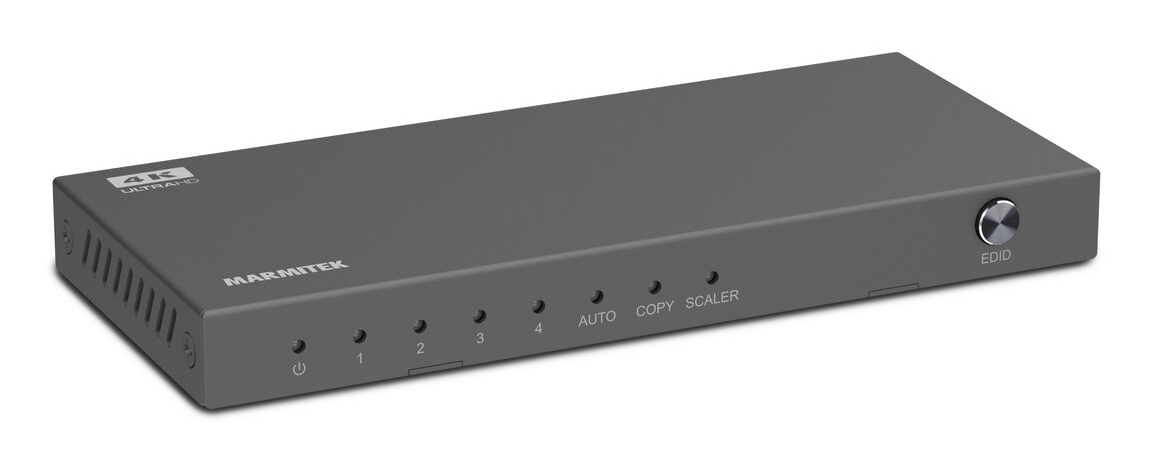

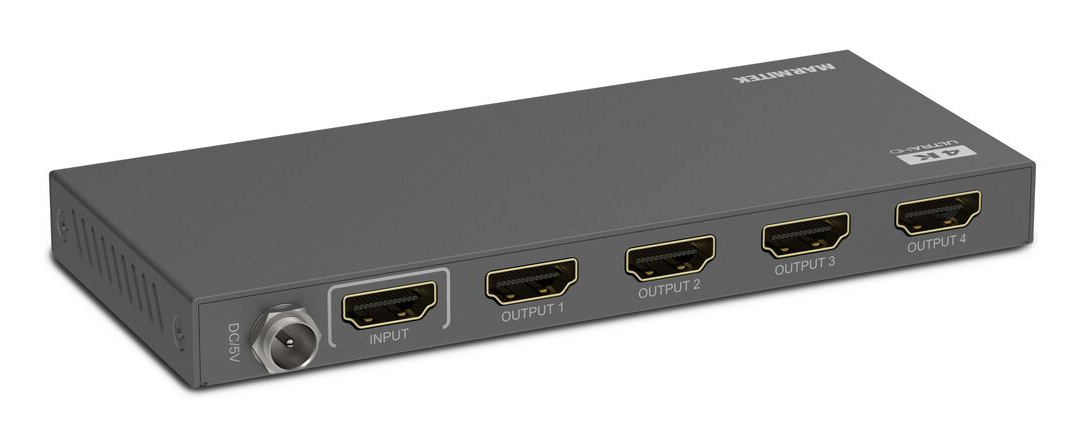

Split 614 Pro - HDMI splitter 4K

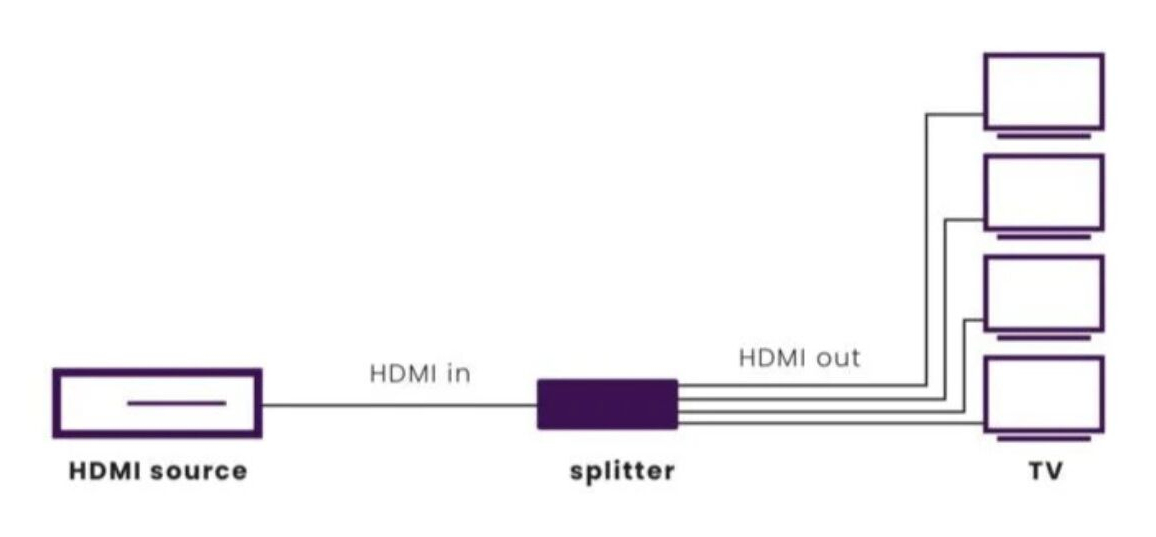

60Hz - 1 in / 4 out
Model 25008641EAN 8718164536410
36 specifications
- Weight180 g
- ColourBlack
- Video ports quantity5
- AC input voltage100 - 240 V
- Width136 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 180 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 100 - 240 V
- Width
- 136 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Marmitek
- Category
- Video Splitter
- Model
- 25008641
- Part number
- 25008641
- EAN / UPC
- 8718164536410, 8718164536816
- Also known as
- Marmitek Split 614 Pro - HDMI splitter 4K 60Hz - 1 in / 4 out
Specifications
36 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0b |
| Digital audio optical out | 1 |
| Headphone out | Yes |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Colour depth | 12 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4/2.2 |
| Extended display identification data (EDID) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Cable length | 1.5 m |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| Dolby technologies | DTS, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital AC3, Dolby TrueHD |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 5 V |
| Power consumption (max) | 10 W |

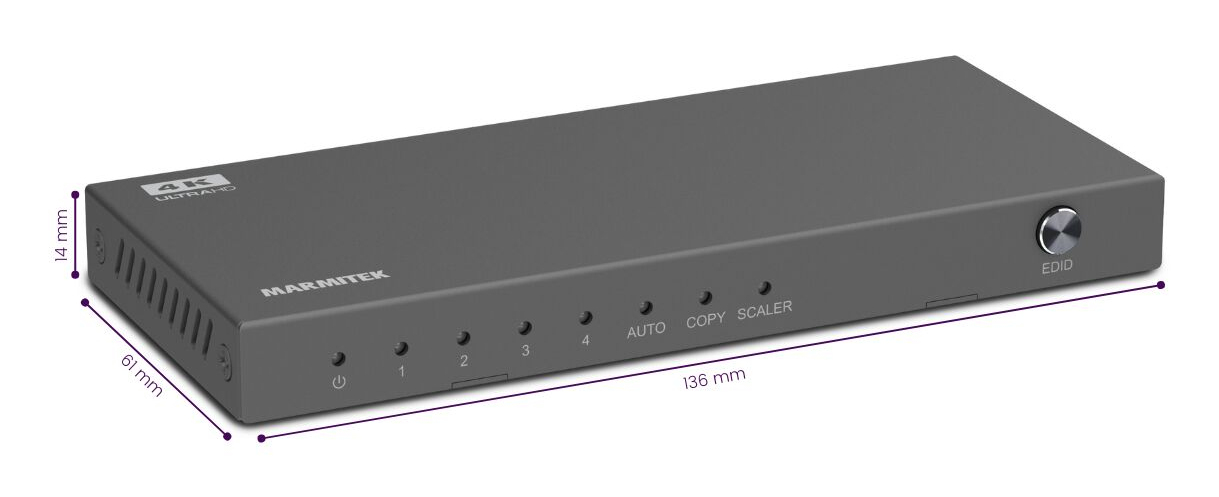

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 136 mm |
| Depth | 61 mm |
| Height | 14 mm |
| Weight | 180 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
