Split 618 Pro - HDMI splitter 4K
120Hz - 1 in / 8 out
Model 25008482EAN 8718164534829
28 specifications
- Weight362 g
- ColourBlack
- Video ports quantity9
- AC input voltage100 - 240 V
- Width230 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 362 g
- Colour
- Black
- Video ports quantity
- 9
- AC input voltage
- 100 - 240 V
- Width
- 230 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Marmitek
- Category
- Video Splitter
- Model
- 25008482
- Part number
- 25008482
- EAN / UPC
- 8718164534829
- Also known as
- Marmitek Split 618 Pro - HDMI splitter 4K 120Hz - 1 in / 8 out
Specifications
28 specifications in 6 groups

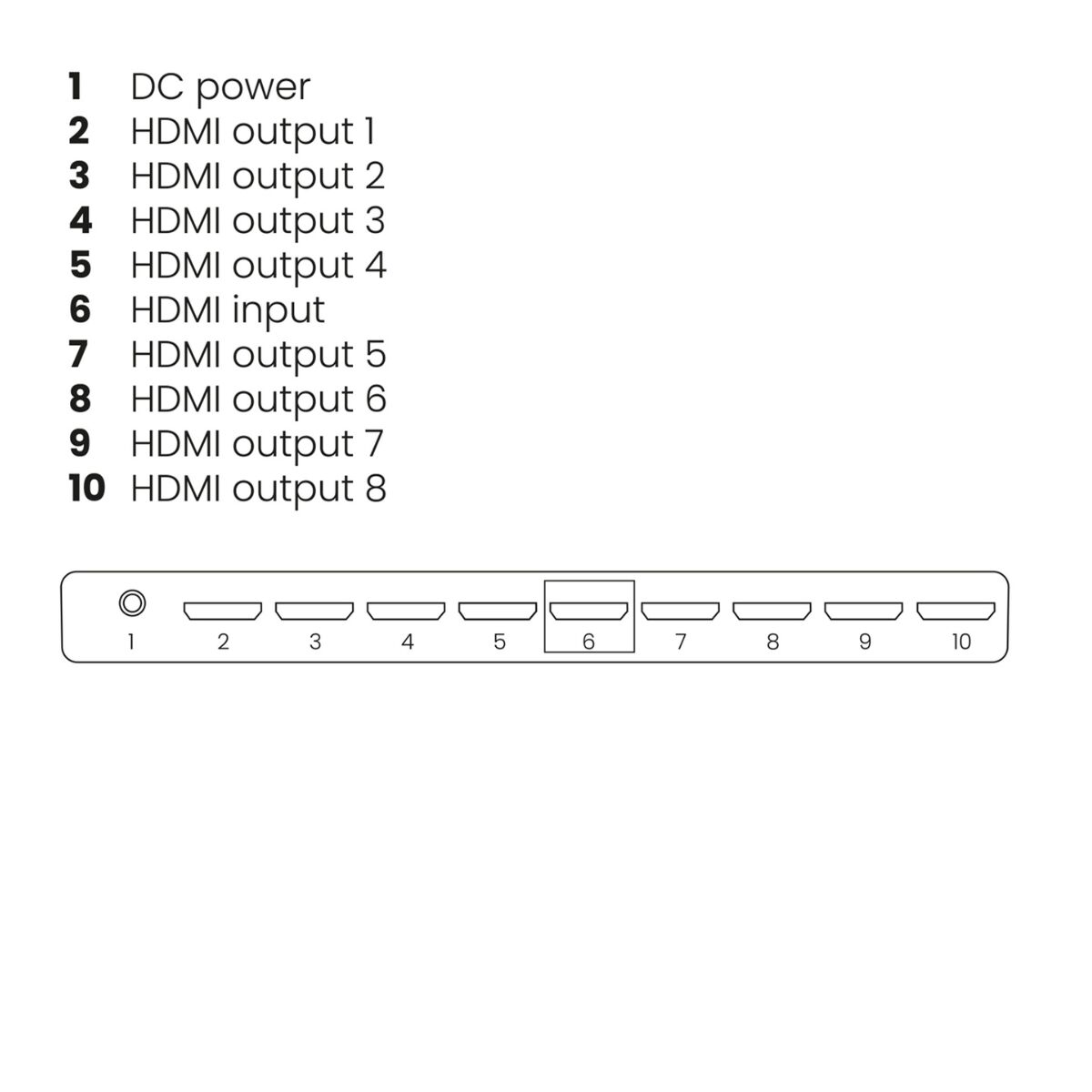

Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| HDMI version | 2.0b |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 120 Hz |
| HDCP version | 1.4/2.2 |
| Extended display identification data (EDID) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| Dolby technologies | DTS, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital AC3, Dolby TrueHD |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 5 V |

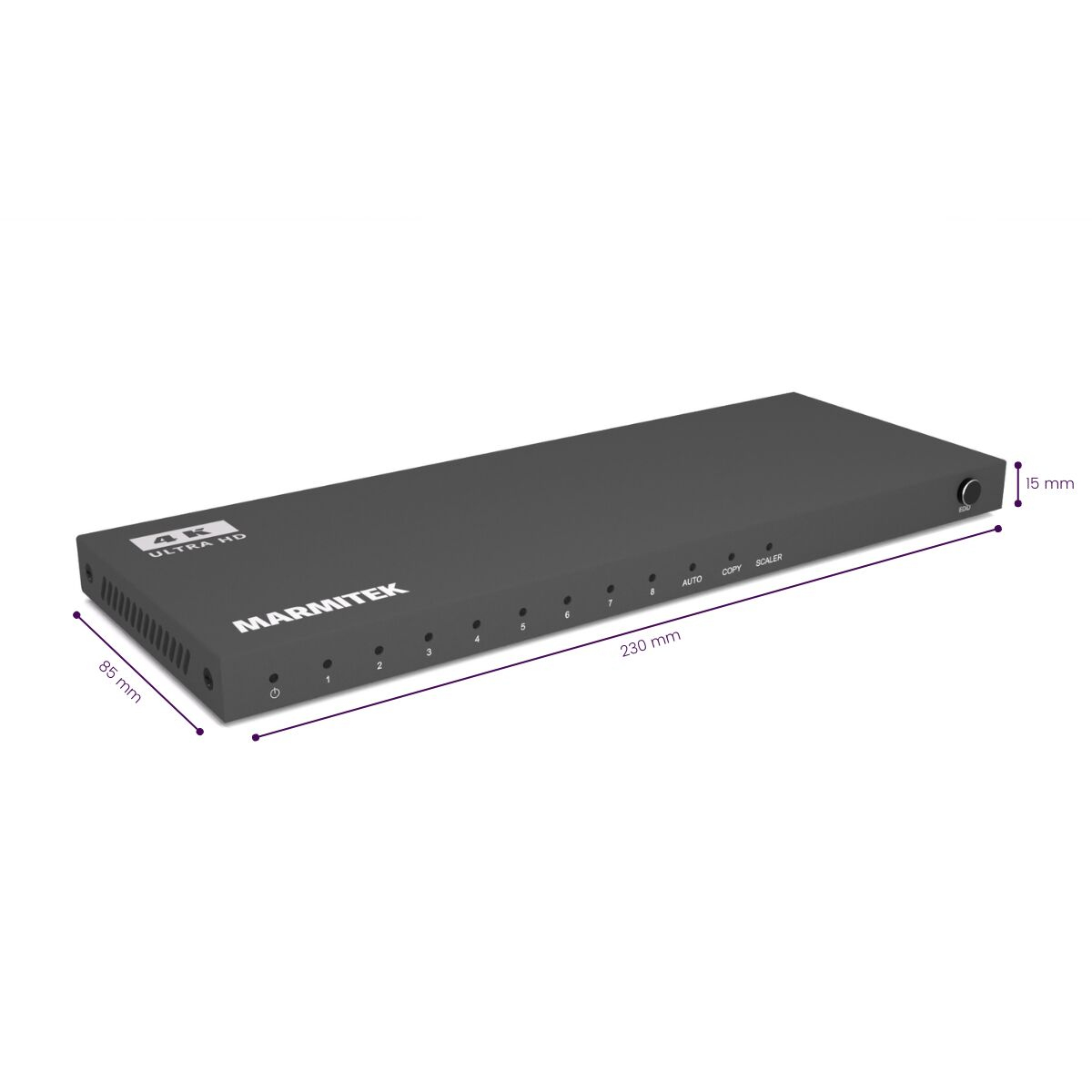

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 85 mm |
| Height | 15 mm |
| Weight | 362 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
