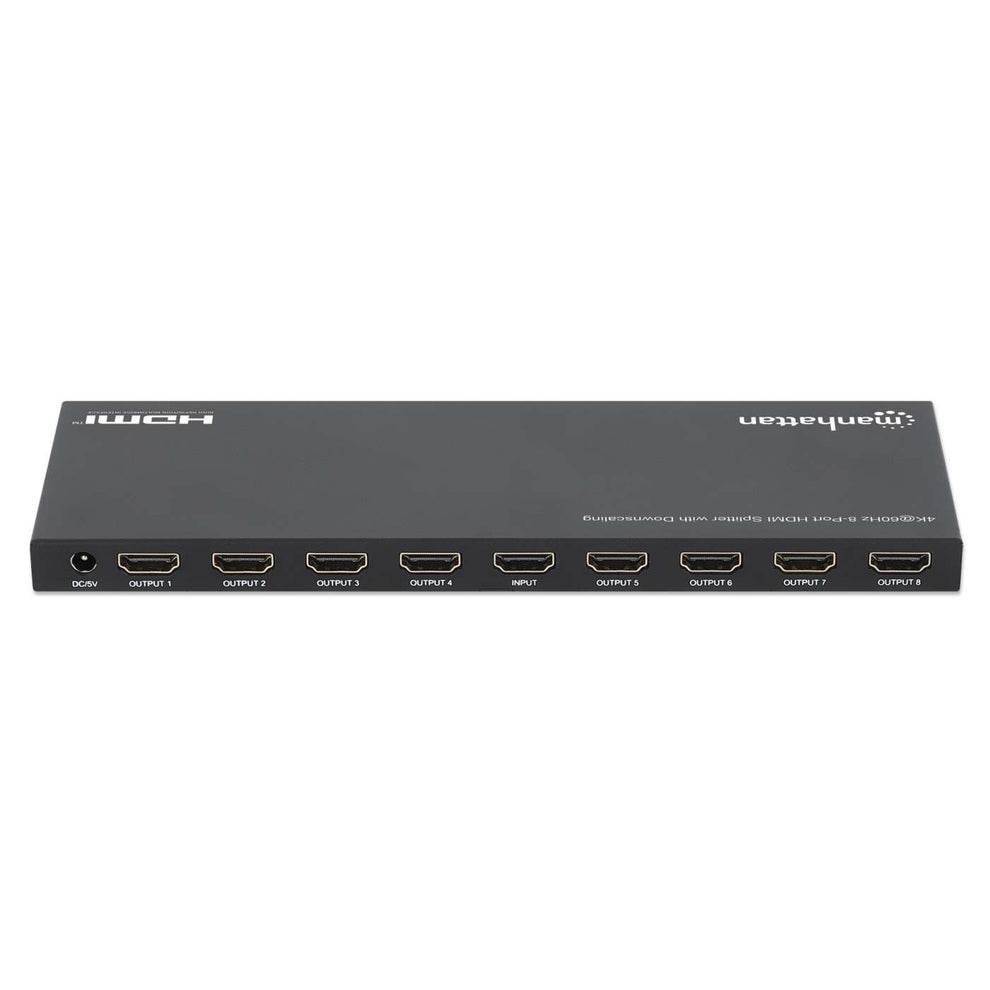

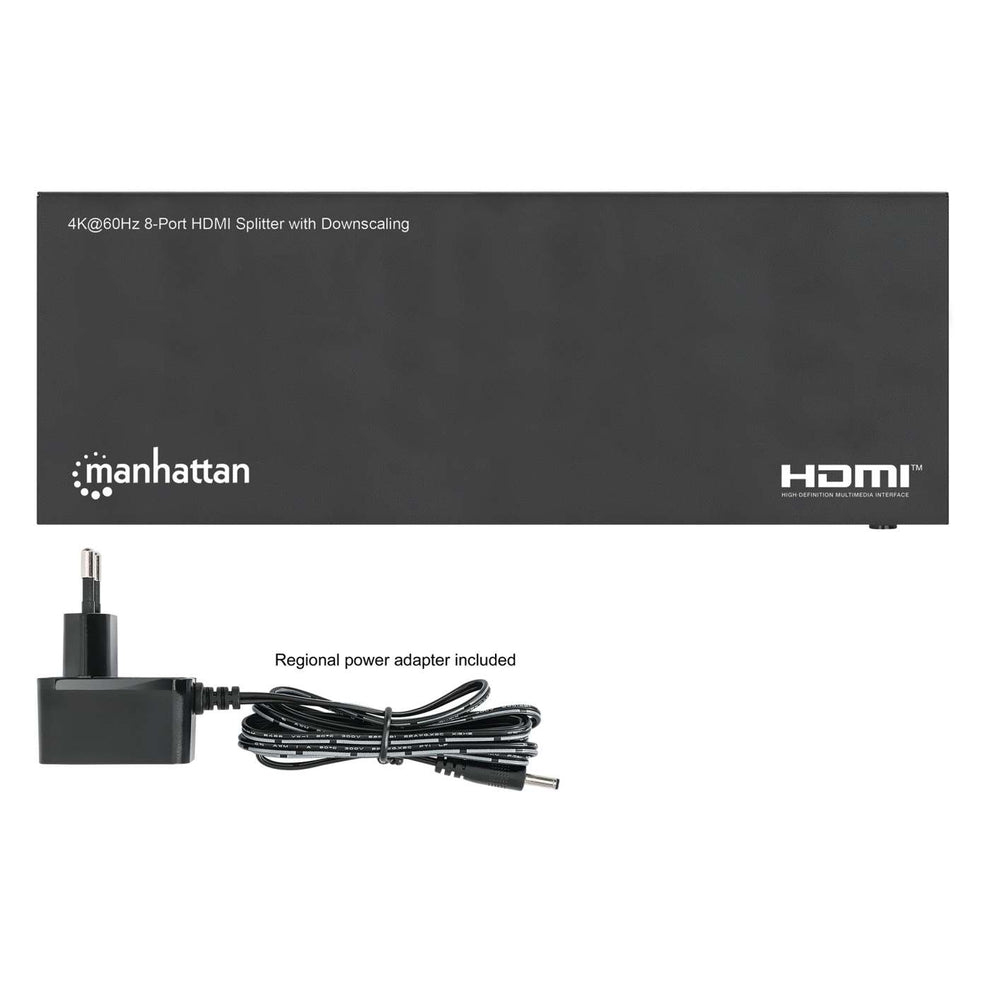

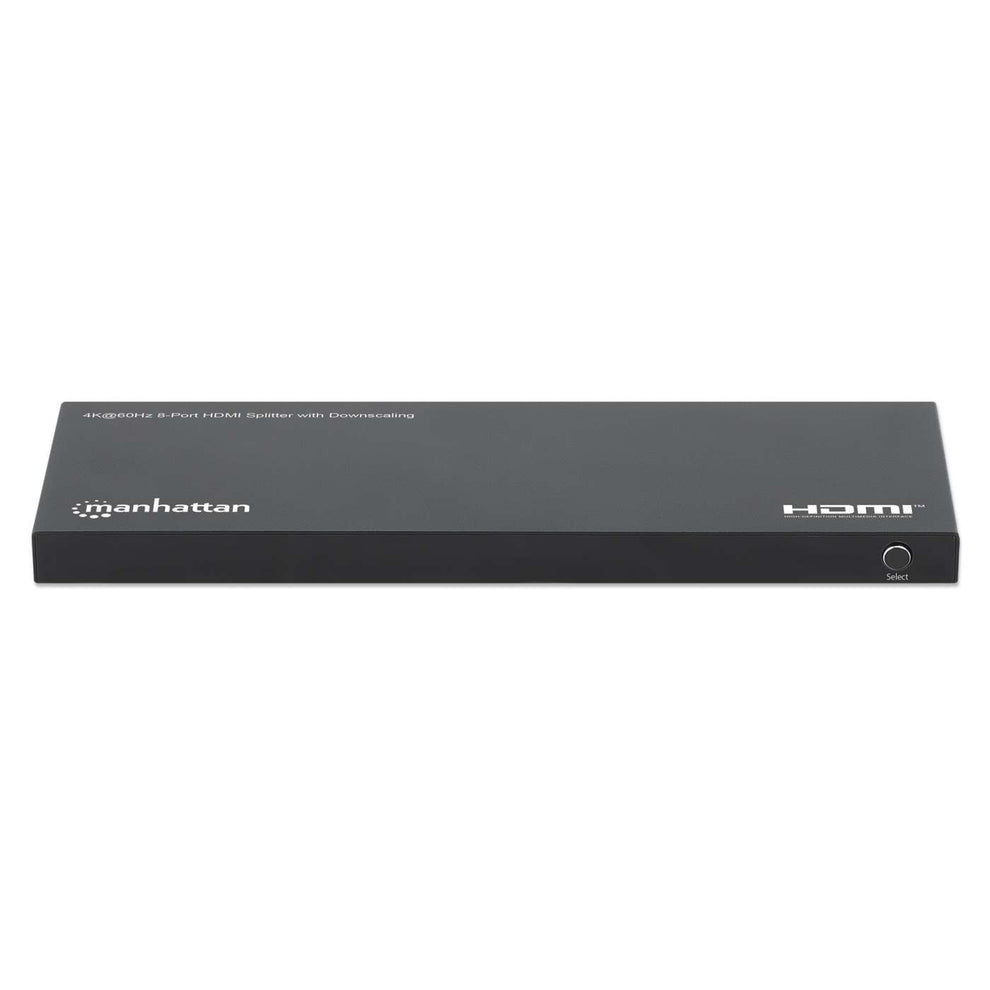

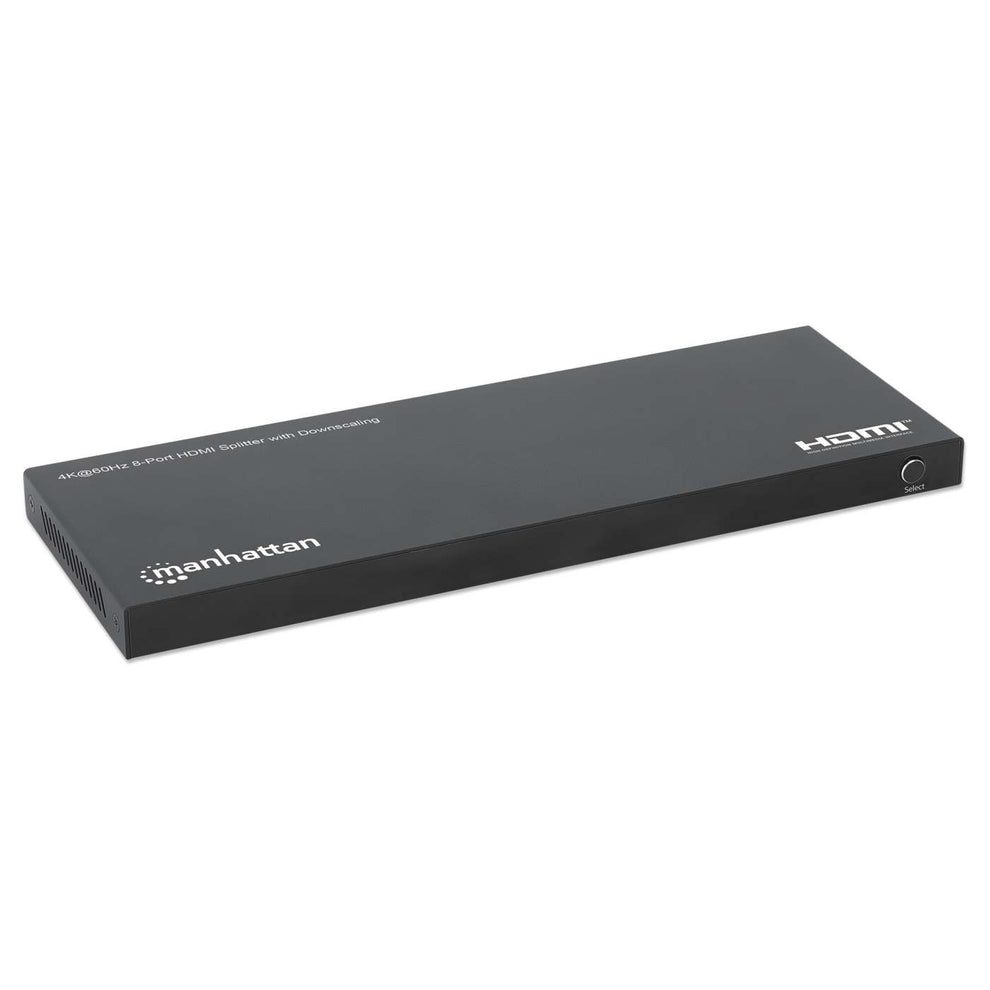

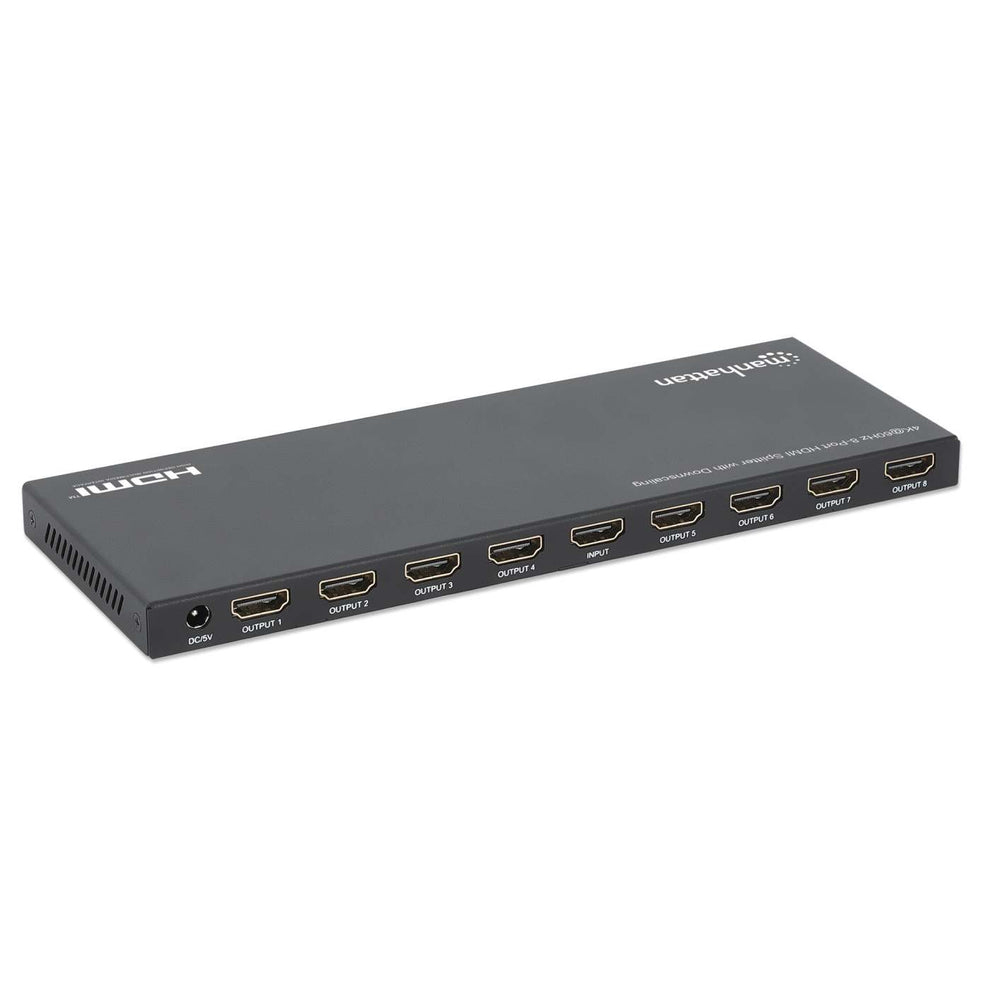

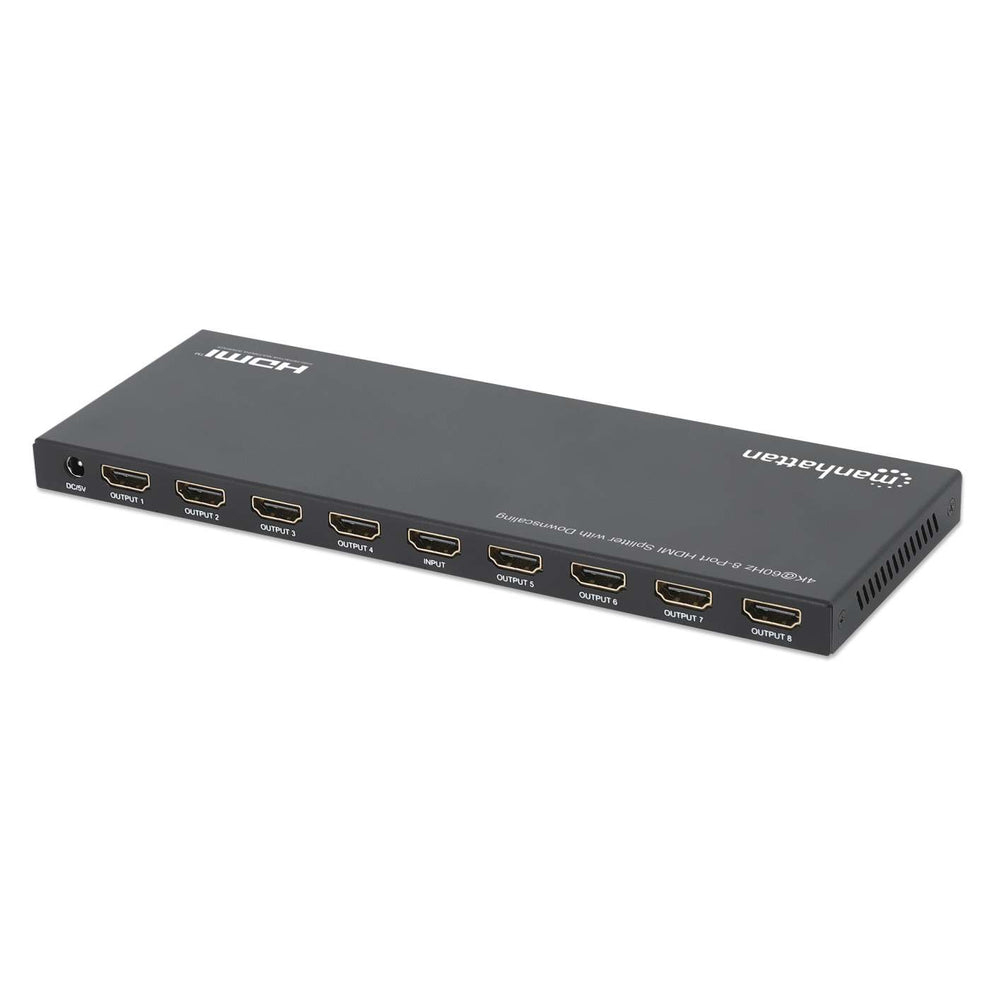

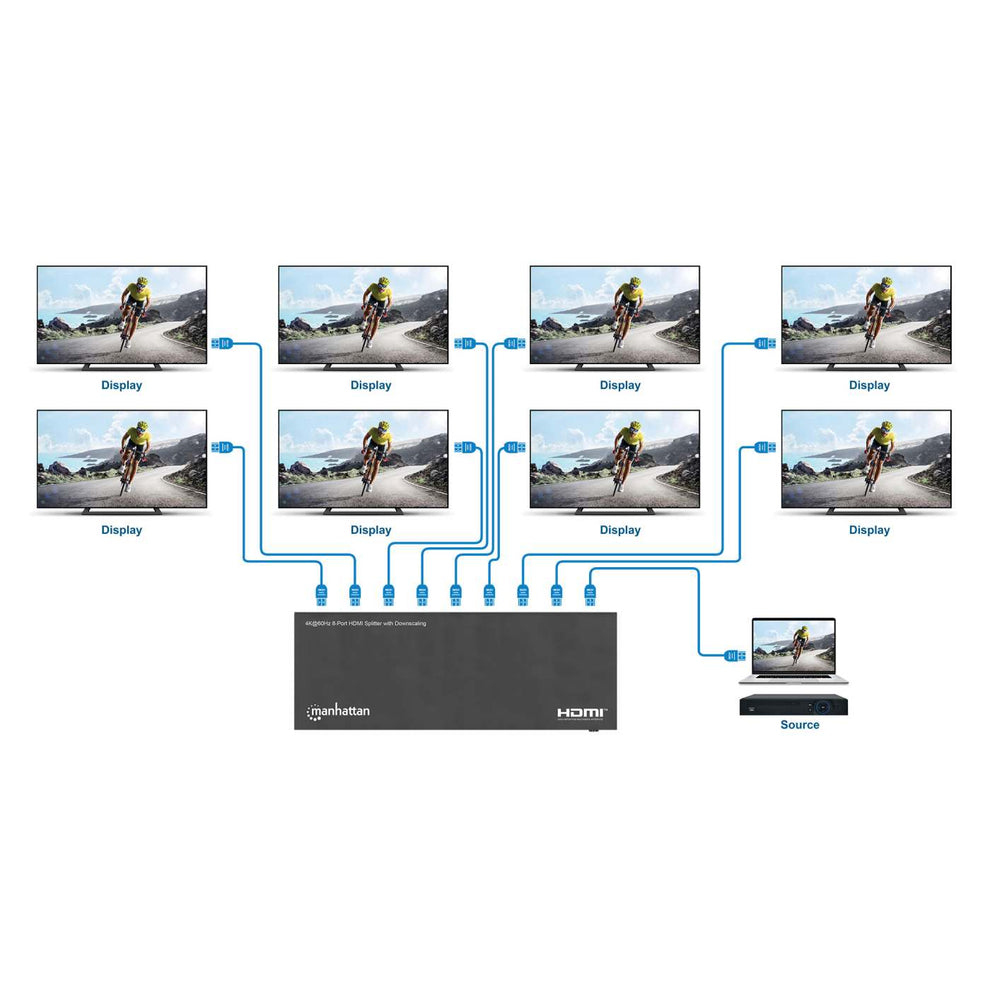

4K@60Hz 8-Port HDMI Splitter with Downscaling, Splits One HDMI Input to Eight HDMI Outputs (1x8)
18G, EDID Switch for Downscaling, Black
Model 208451EAN 766623208451
33 specifications
- Weight387 g
- ColourBlack
- Video ports quantity9
- Output voltage5 V
- Width228 mm
Overview
- Weight
- 387 g
- Colour
- Black
- Video ports quantity
- 9
- Output voltage
- 5 V
- Width
- 228 mm
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 208451
- Part number
- 208451
- EAN / UPC
- 766623208451
- Also known as
- Manhattan 4K@60Hz 8-Port HDMI Splitter with Downscaling, Splits One HDMI Input to Eight HDMI Outputs (1x8), 18G, EDID Switch for Downscaling, Black
Specifications
33 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video out | 8x HDMI |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal, Rubber |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 600 MHz |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Data transfer rate | 18 Gbit/s |
| Audio decoders | DTS-HD Master Audio, Dolby TrueHD |
| HDCP | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| LED indicators | Yes |
| Number of displays supported | 22 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (max) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 228 mm |
| Depth | 84 mm |
| Height | 15 mm |
| Weight | 387 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 292 mm |
| Package depth | 238 mm |
| Package height | 55 mm |
| Package weight | 700 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC) |
