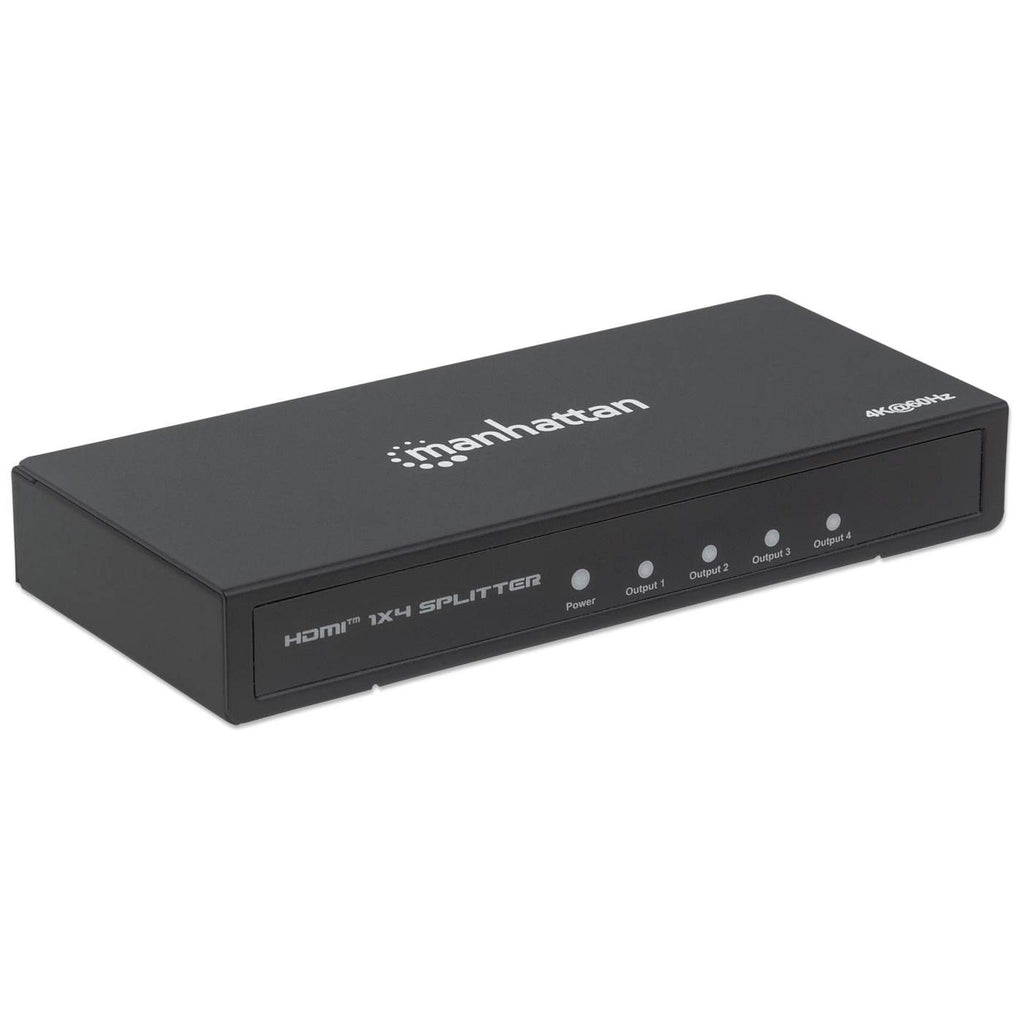

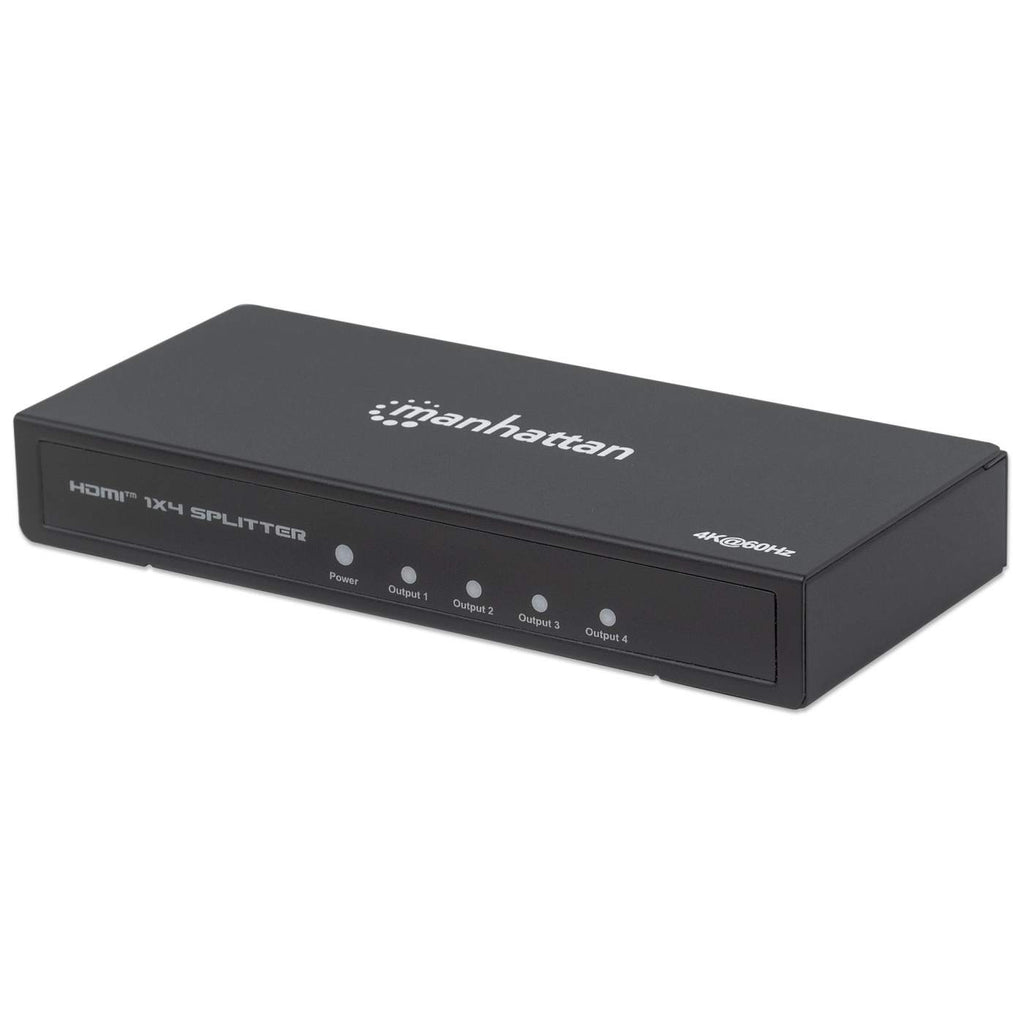

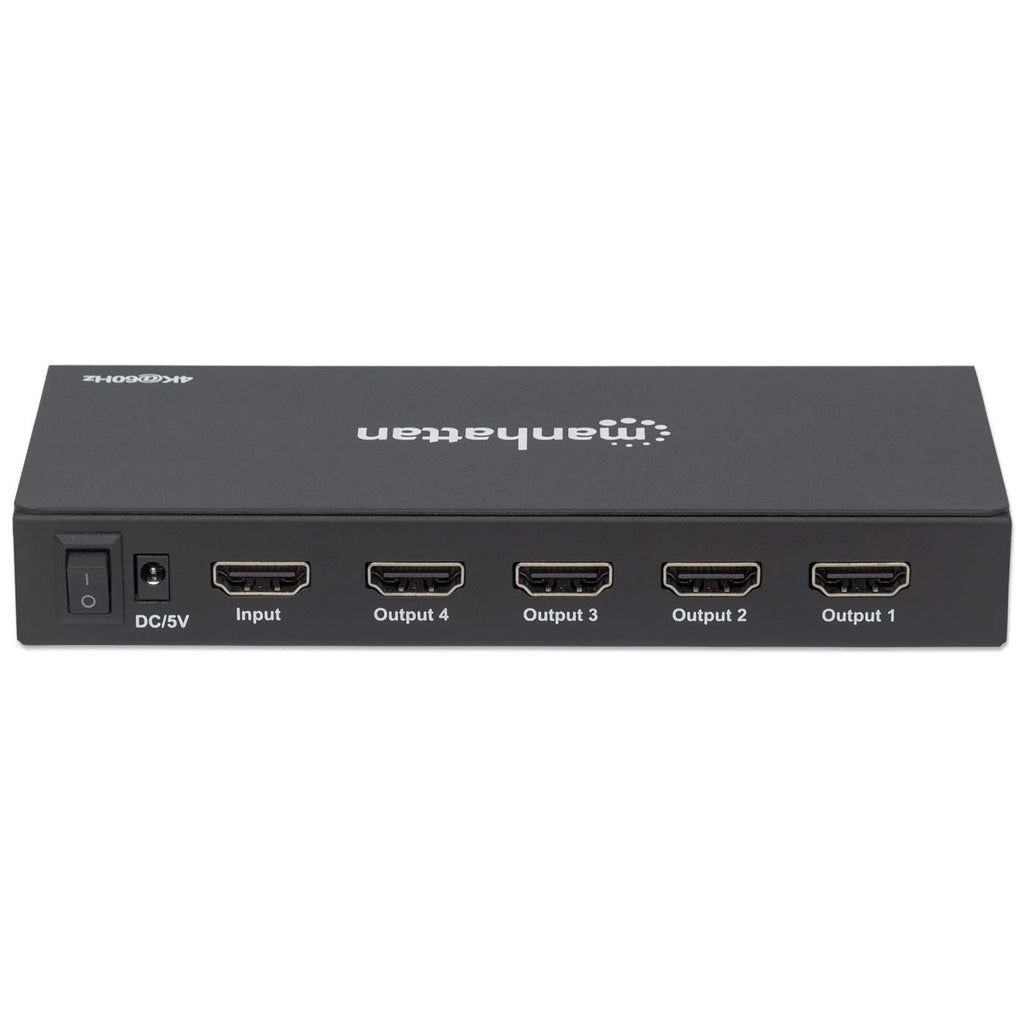

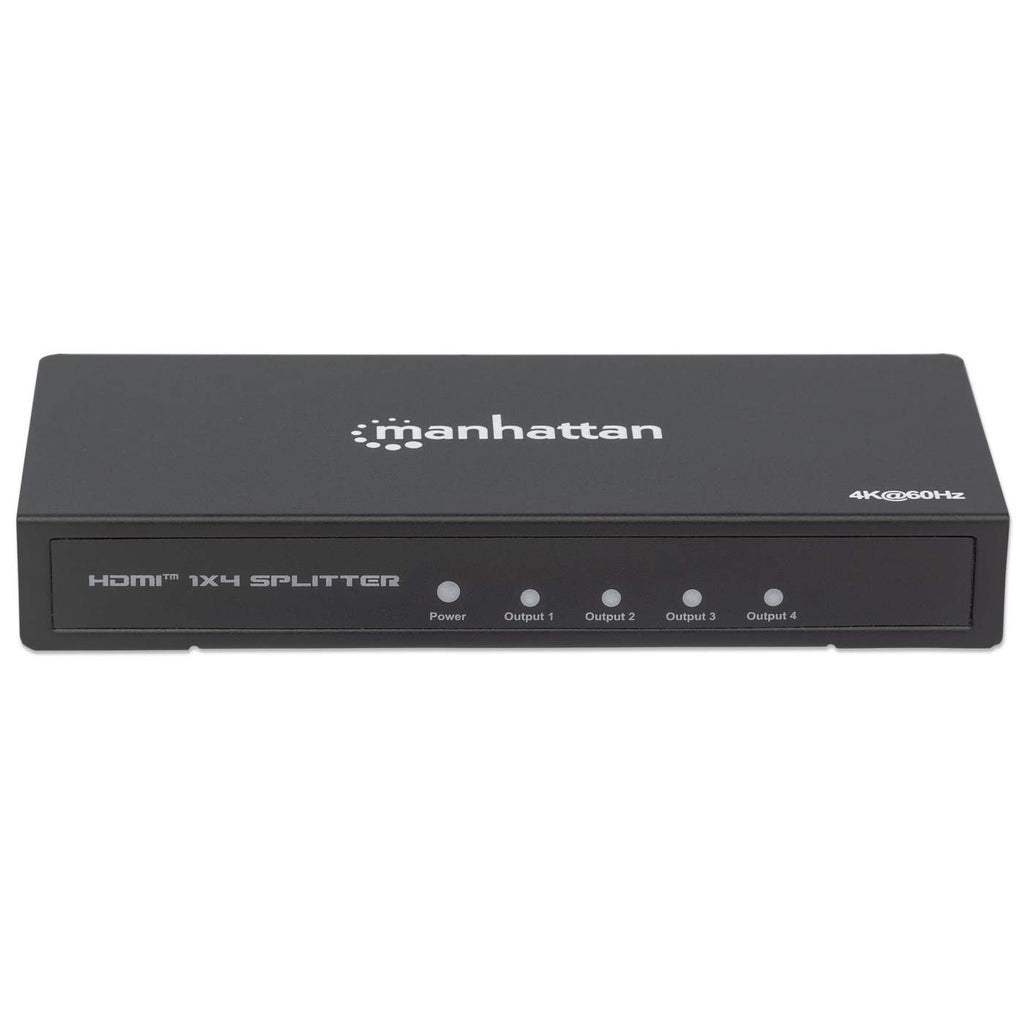

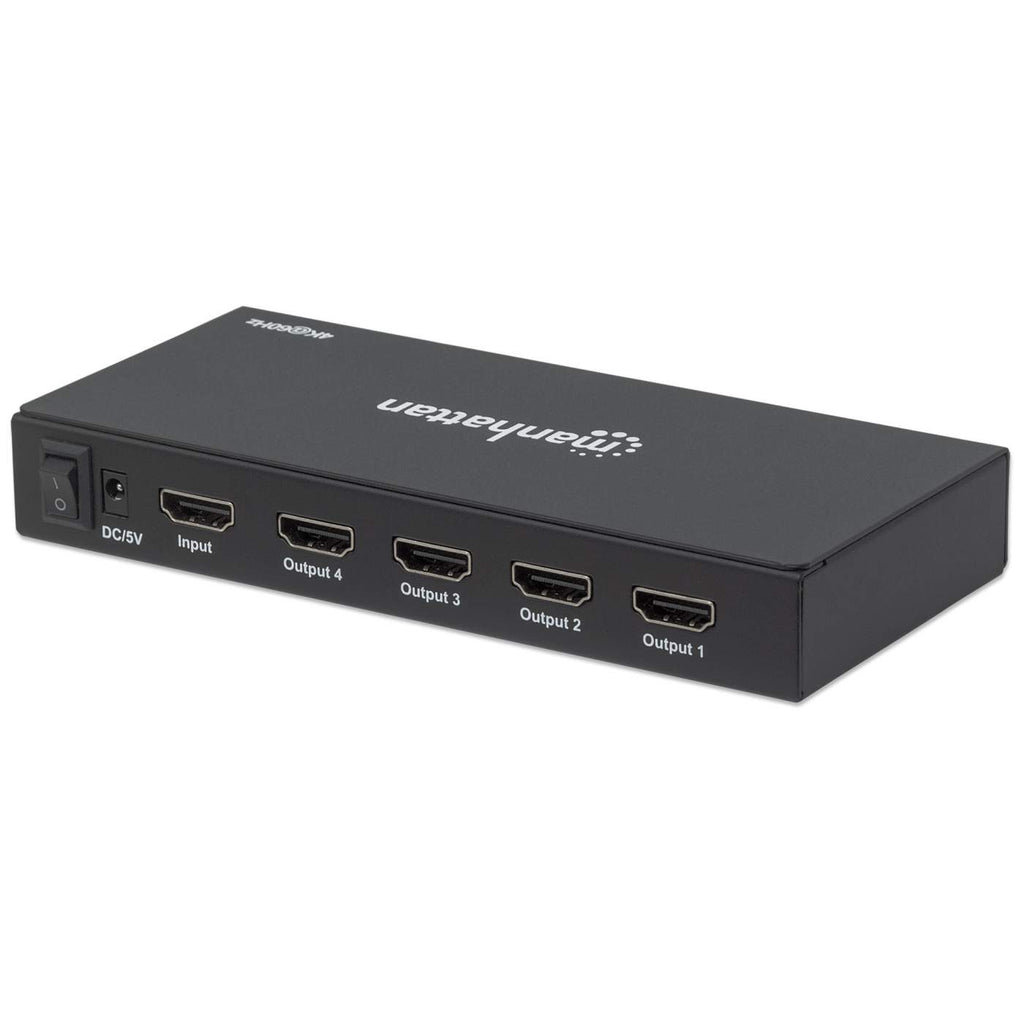

HDMI Splitter 4-Port , 4K@60Hz, Displays output from x1 HDMI source to x4 HD displays (same output to four displays), AC Powered (cable 1.2m), Black,
Model 207805EAN 766623207805
32 specifications
- Weight250 g
- ColourBlack
- Video ports quantity5
- AC input voltage5 V
- Width69 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 250 g
- Colour
- Black
- Video ports quantity
- 5
- AC input voltage
- 5 V
- Width
- 69 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207805
- Part number
- 207805
- EAN / UPC
- 766623207805
- Also known as
- Manhattan HDMI Splitter 4-Port , 4K@60Hz, Displays output from x1 HDMI source to x4 HD displays (same output to four displays), AC Powered (cable 1.2m), Black,
Specifications
32 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 20 m |
| Colour depth | 36 bit |
| Bandwidth | 600 MHz |
| Cable length | 1.2 m |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| LED indicators | Yes |
| Certification | CTS 1.4b CE FCC RoHS2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
| Power consumption (typical) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 154 mm |
| Height | 23 mm |
| Weight | 250 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
