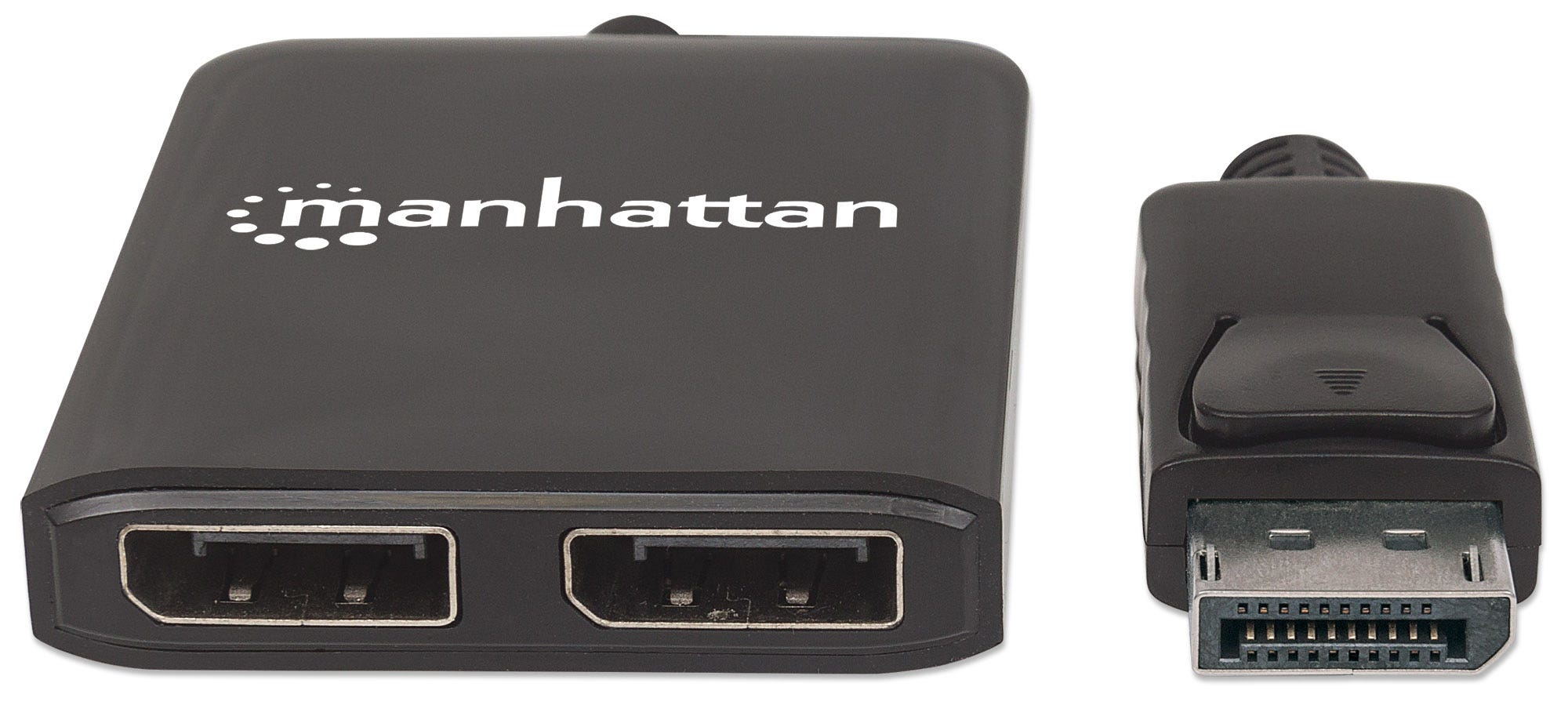

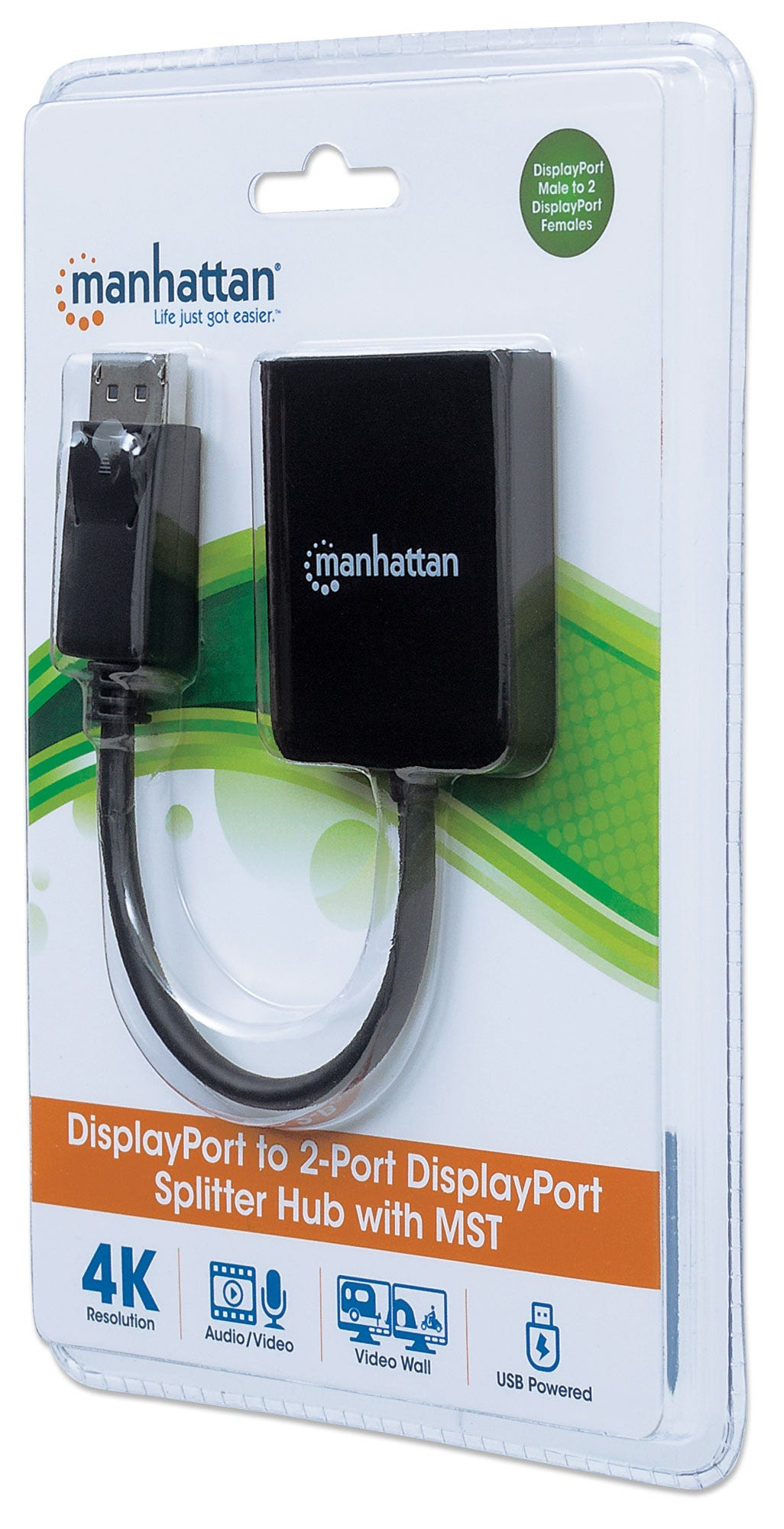

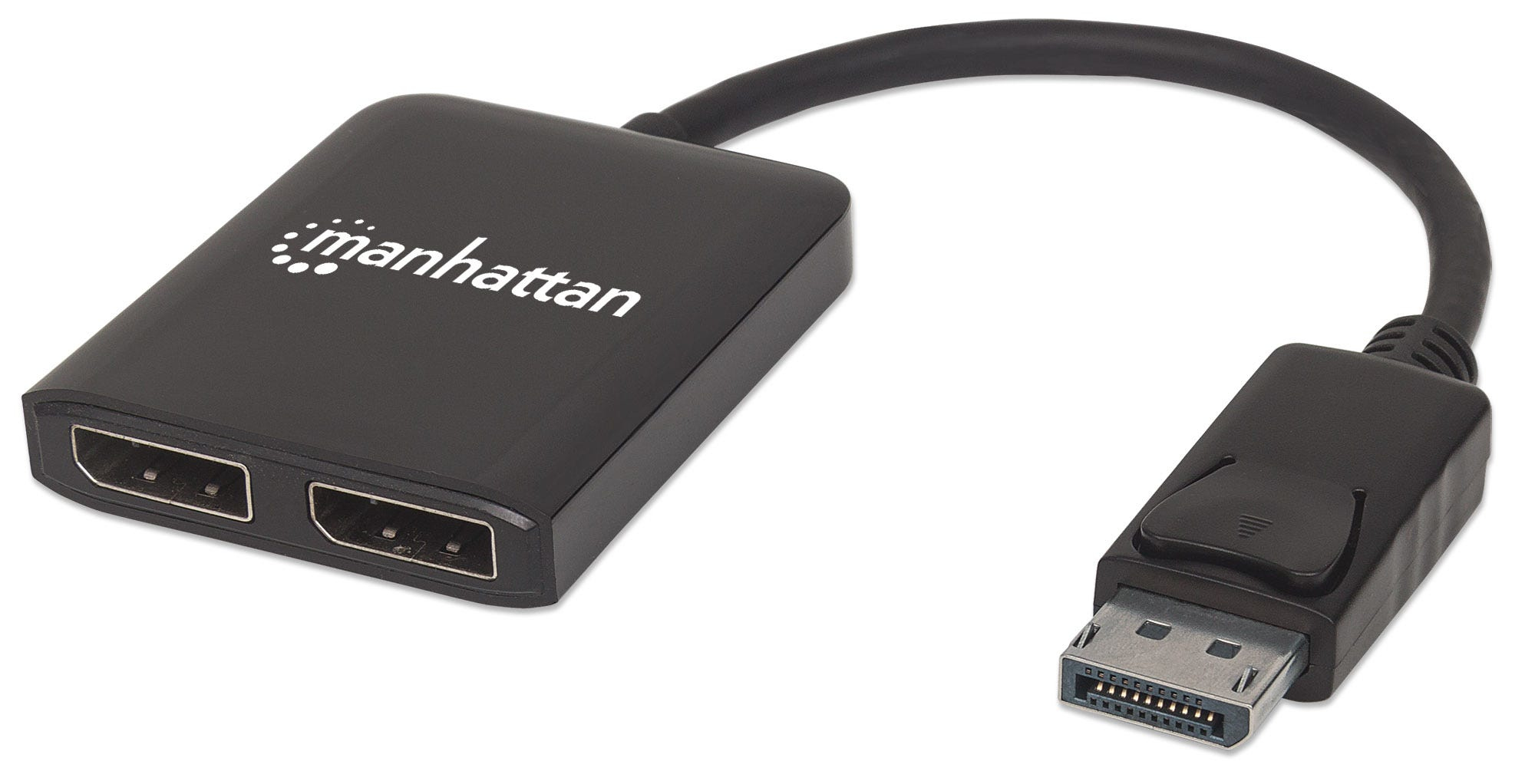

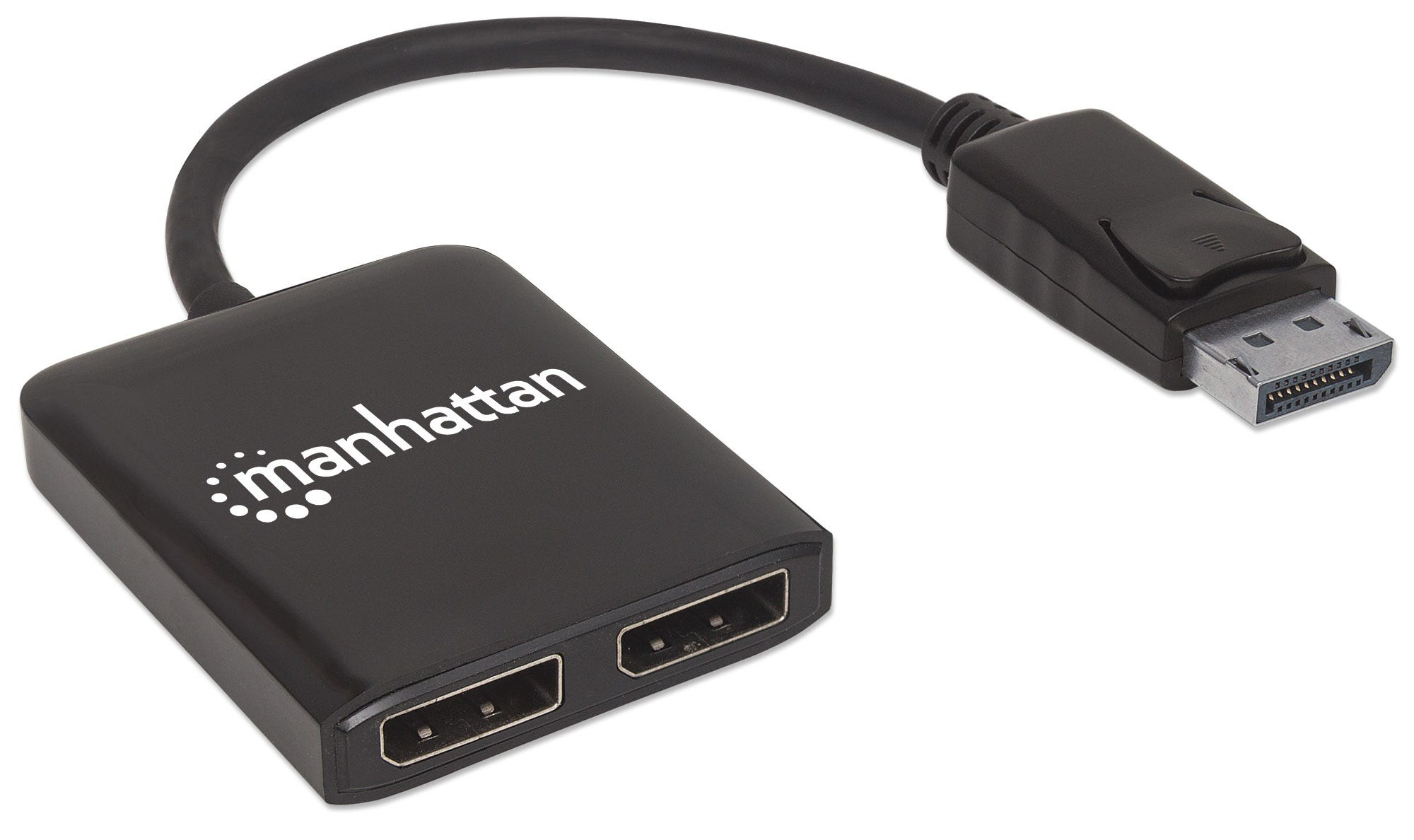

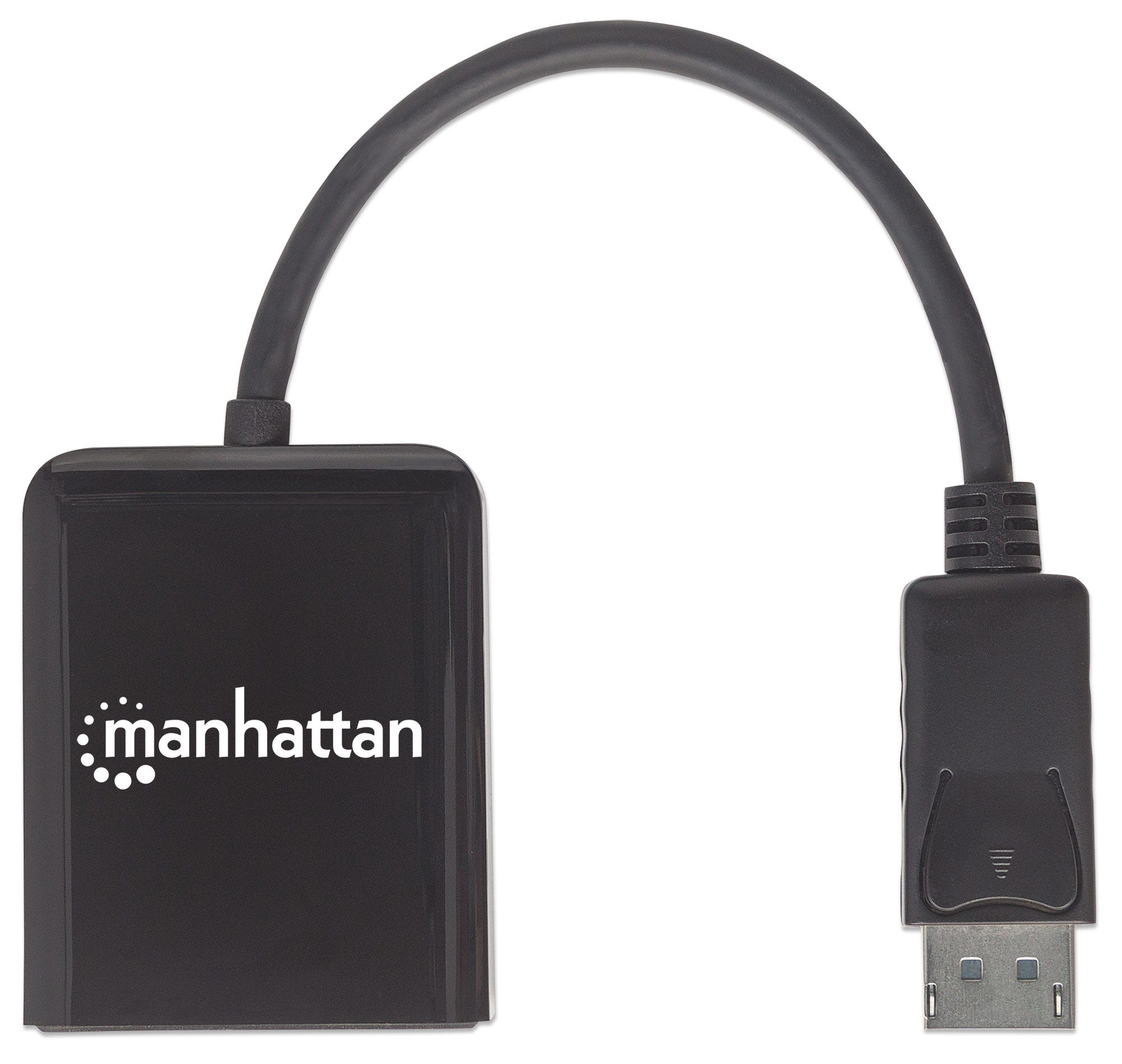

DisplayPort 1.2 to 2-Port DisplayPort 1.2 Splitter Hub with MST, 4K@30Hz, USB-A Powered, Video Wall Function, Black, MST = Multi-Stream Transport, 3 Y
Model 207768EAN 766623207768
27 specifications
- Weight50 g
- ColourBlack
- Video ports quantity2
- AC input voltage5 V
- Width50 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 50 g
- Colour
- Black
- Video ports quantity
- 2
- AC input voltage
- 5 V
- Width
- 50 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207768
- Part number
- 207768
- EAN / UPC
- 766623207768
- Also known as
- Manhattan DisplayPort 1.2 to 2-Port DisplayPort 1.2 Splitter Hub with MST, 4K@30Hz, USB-A Powered, Video Wall Function, Black, MST = Multi-Stream Transport, 3 Y
Specifications
27 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x DisplayPort |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Certification | CTS 1.4a CE FCC RoHS2 |
| Windows operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 255 mm |
| Height | 11 mm |
| Weight | 50 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Micro-USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
