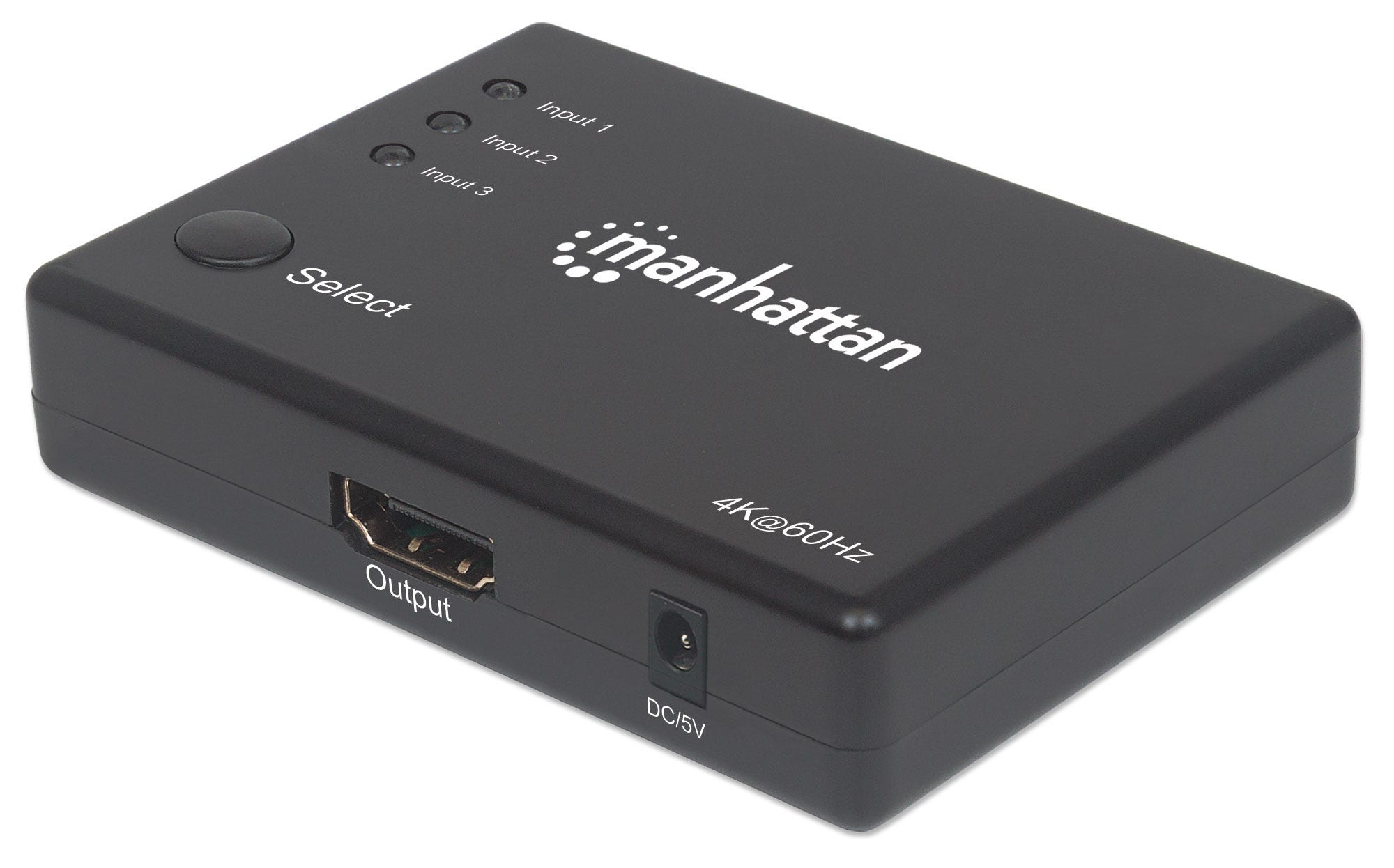

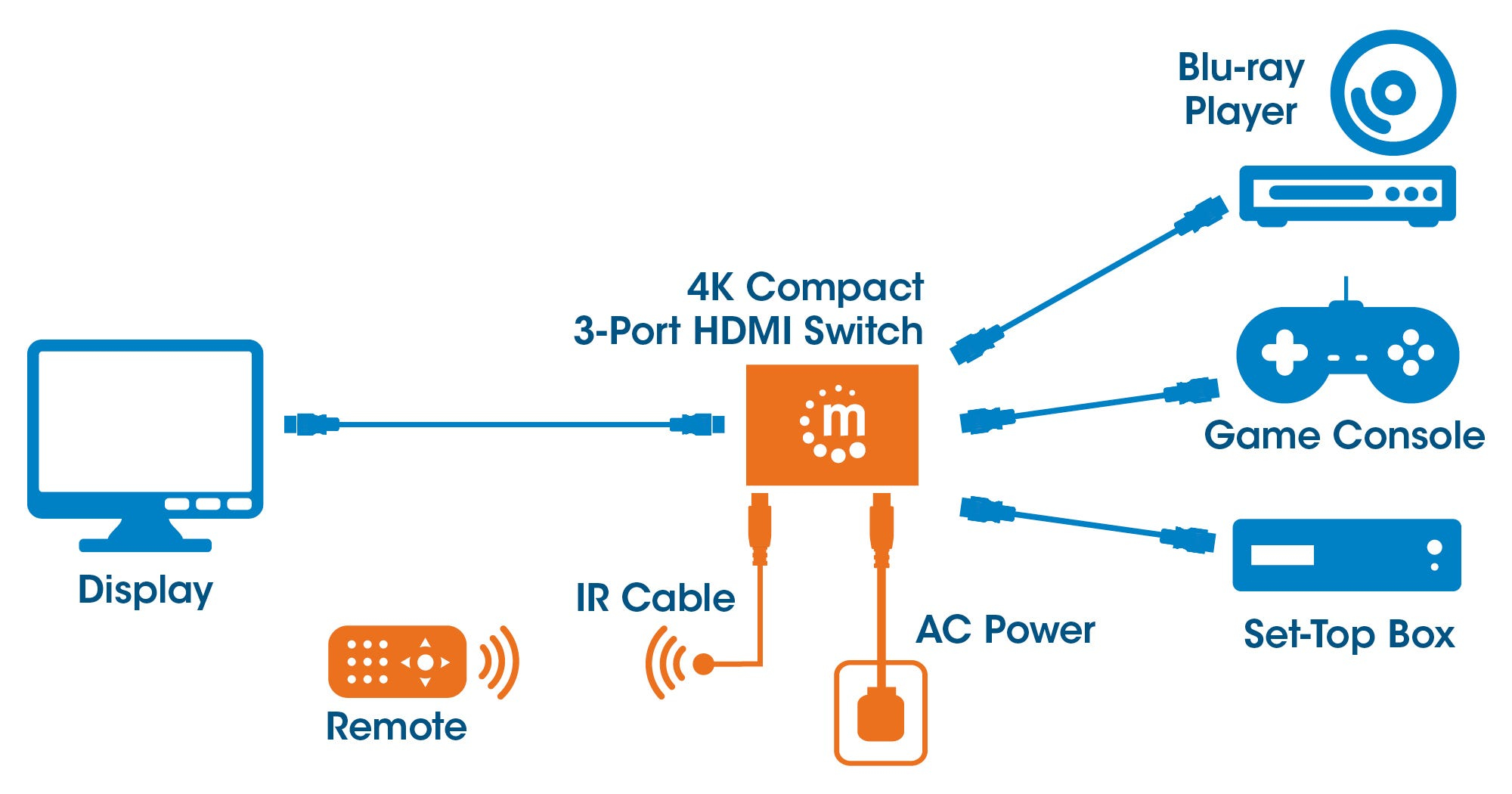

HDMI Switch 3-Port (Compact), 4K@60Hz, Connects x3 HDMI sources to x1 display, Remote Control and Manual Switching (via button), AC Powered (cable 1.2
Model 207676EAN 766623207676
28 specifications
- Weight50 g
- ColourBlack
- Video ports quantity4
- AC input voltage5 V
- Width58 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 50 g
- Colour
- Black
- Video ports quantity
- 4
- AC input voltage
- 5 V
- Width
- 58 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207676
- Part number
- 207676
- EAN / UPC
- 766623207676
- Also known as
- Manhattan HDMI Switch 3-Port (Compact), 4K@60Hz, Connects x3 HDMI sources to x1 display, Remote Control and Manual Switching (via button), AC Powered (cable 1.2
Specifications
28 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video out | HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 600 MHz |
| Remote control included | Yes |
| HDCP | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CTS 1.4a CE FCC RoHS2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 81 mm |
| Height | 18 mm |
| Weight | 50 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
