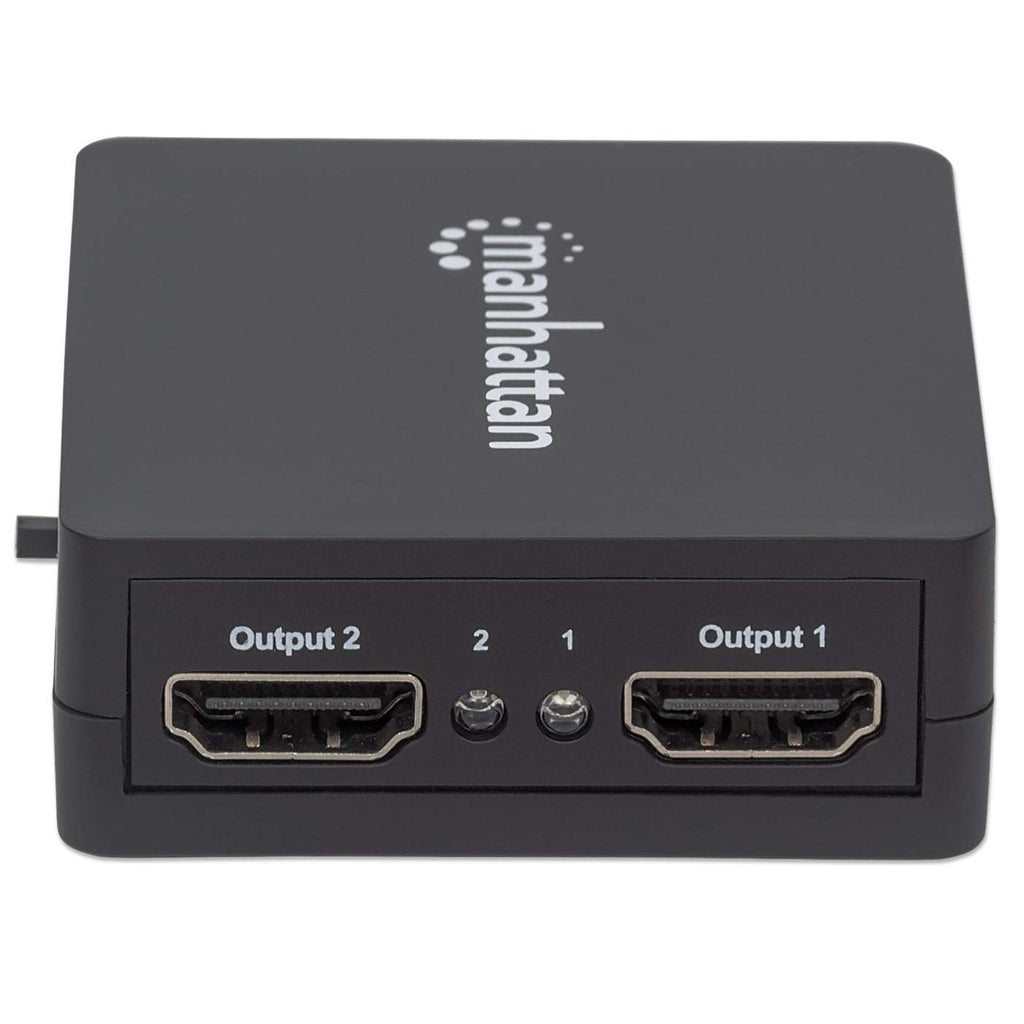

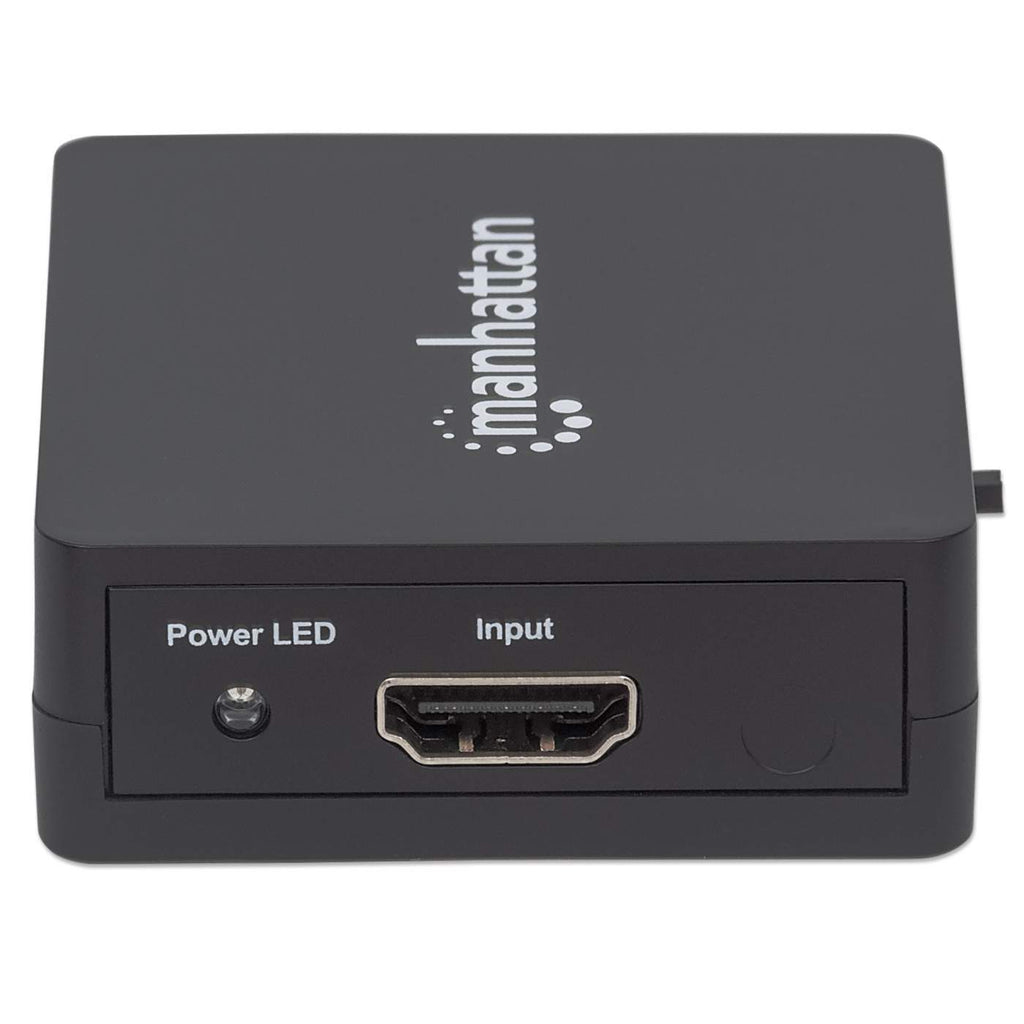

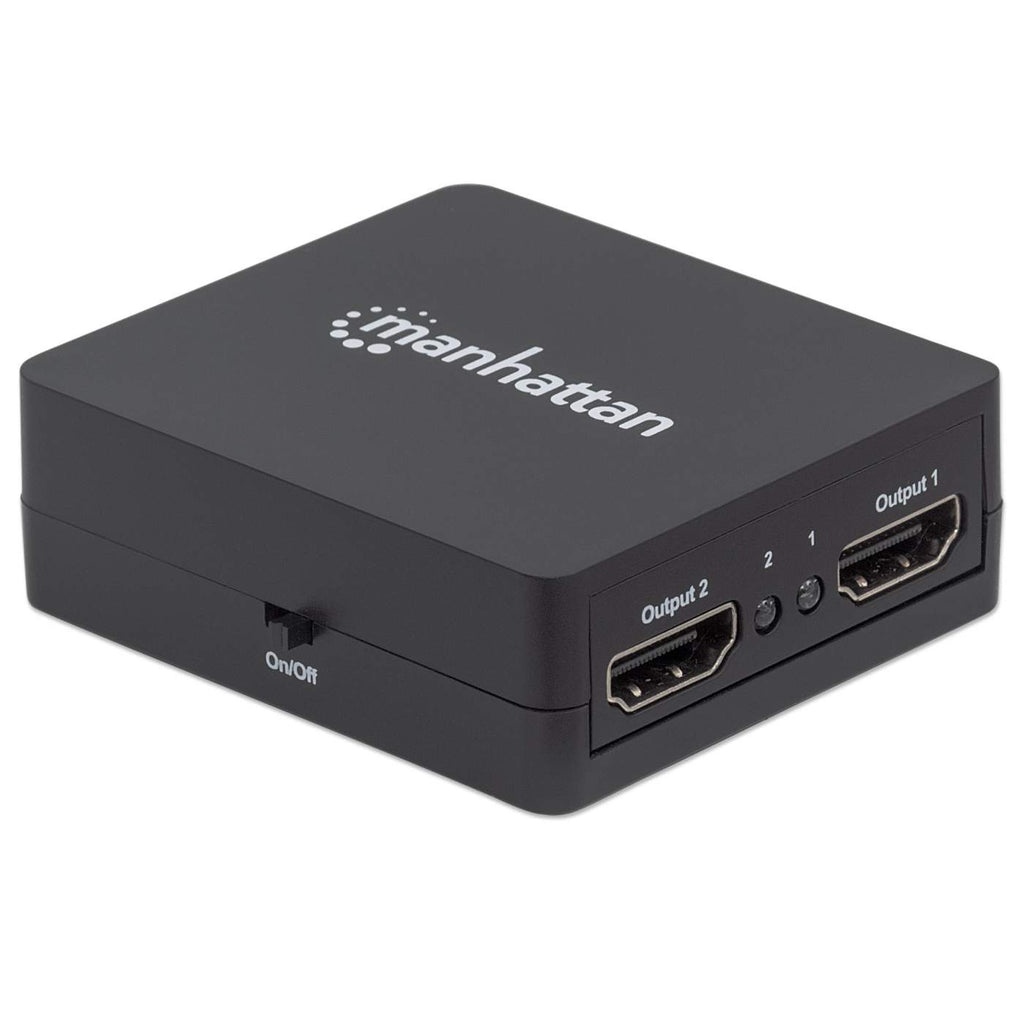

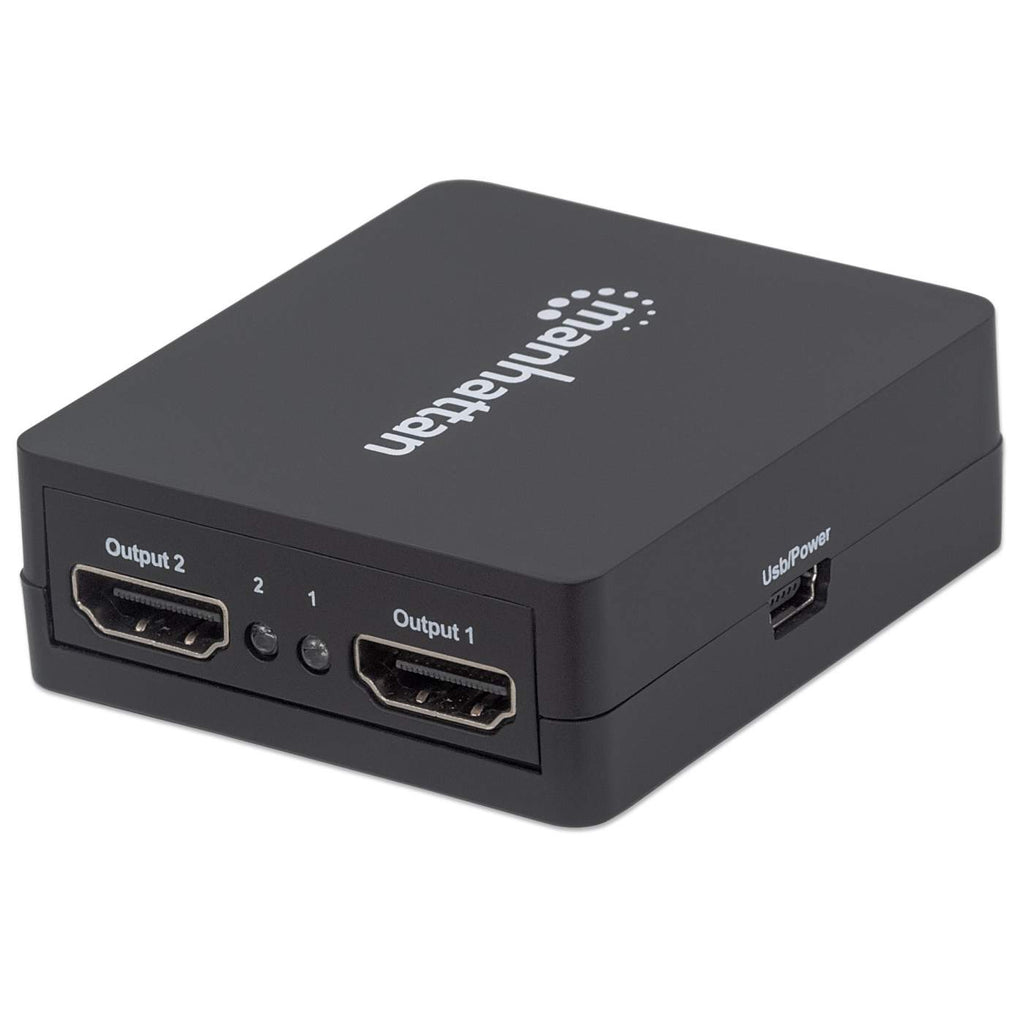

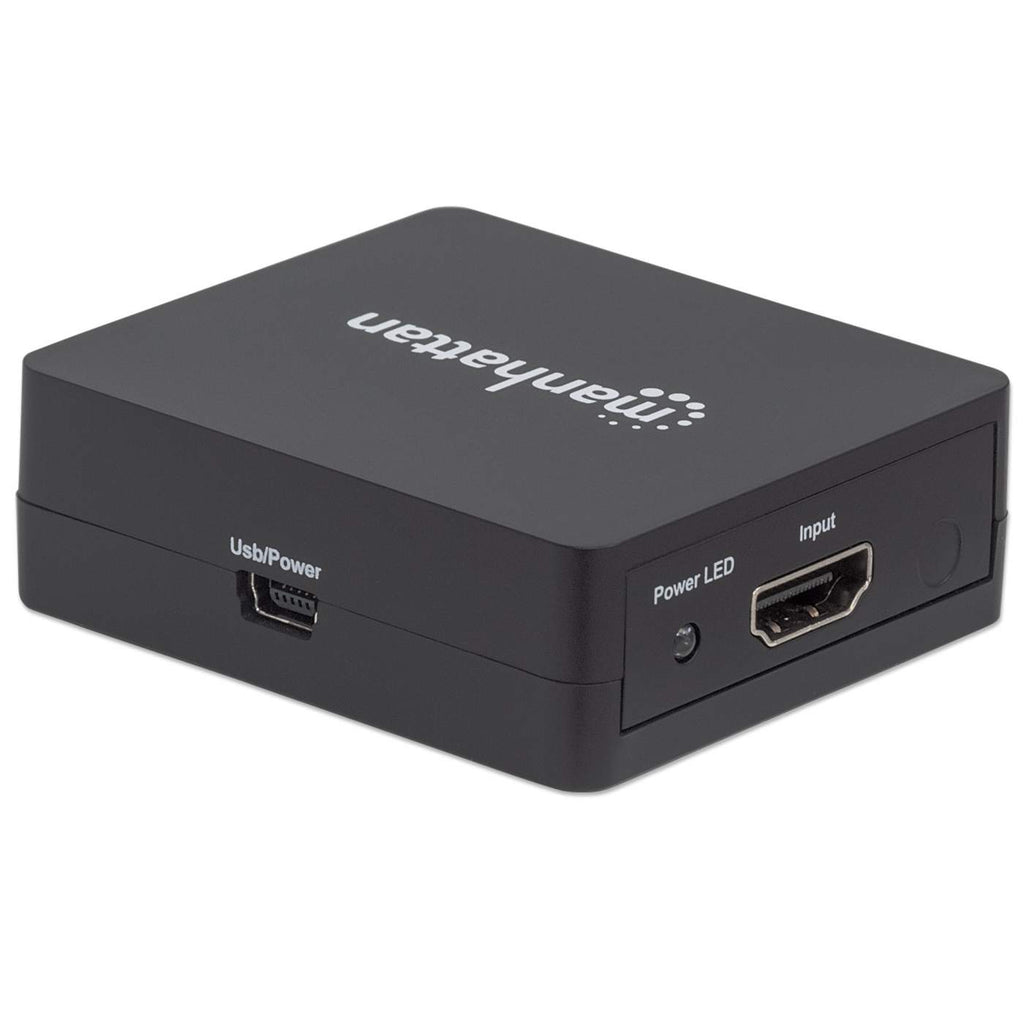

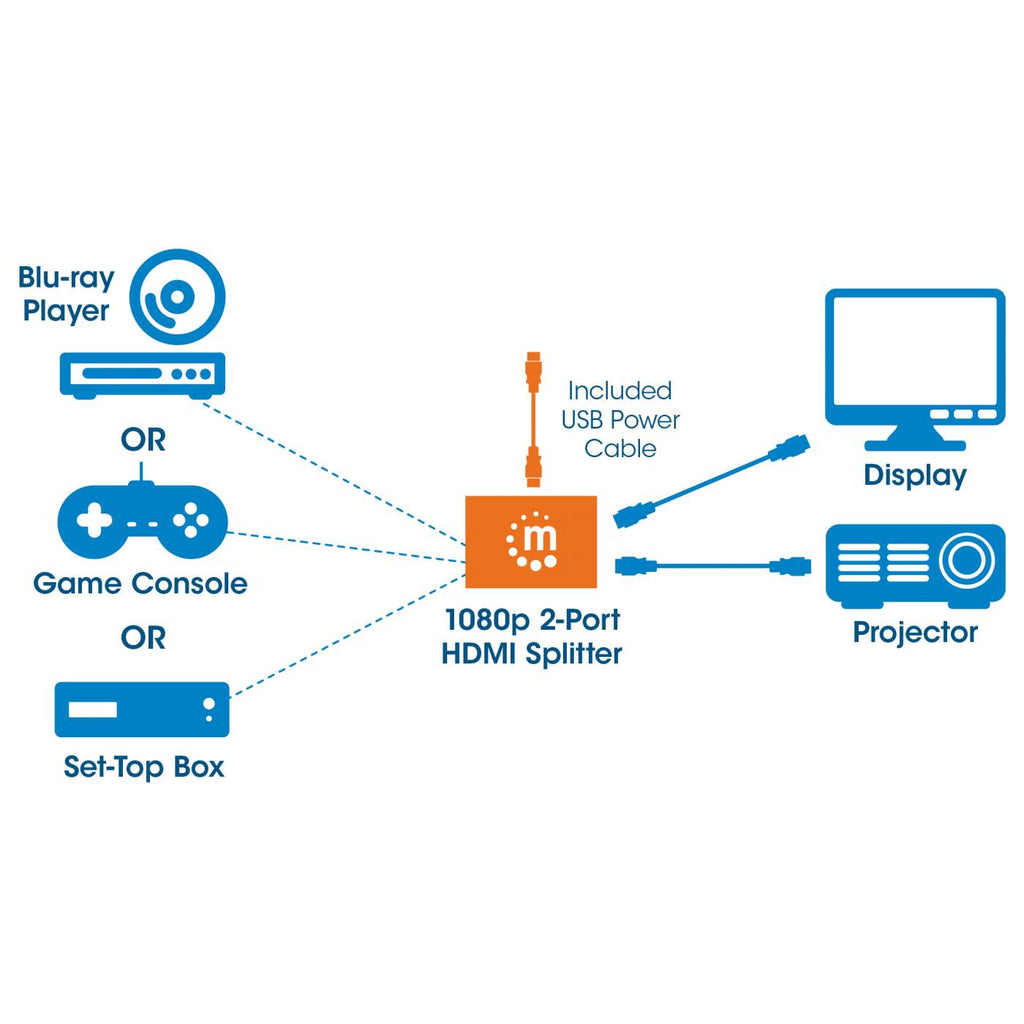

Manhattan HDMI Splitter 2-Port , 1080p, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), USB-A Powered (cable includ
Model 207652EAN 766623207652
31 specifications
- Weight40 g
- ColourBlack
- Video ports quantity3
- Power consumption (typical)5 W
- Width54 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 40 g
- Colour
- Black
- Video ports quantity
- 3
- Power consumption (typical)
- 5 W
- Width
- 54 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207652
- Part number
- 207652
- EAN / UPC
- 766623207652
- Also known as
- Manhattan HDMI Splitter 2-Port , 1080p, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), USB-A Powered (cable includ
Specifications
31 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 1.3b |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Maximum resolution | 1920 x 1200 pixels |
| 3D | Yes |
| Maximum operating distance | 15 m |
| Bandwidth | 225 MHz |
| Cable length | 0.7 m |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| LED indicators | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS2 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| USB powered | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 40 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
