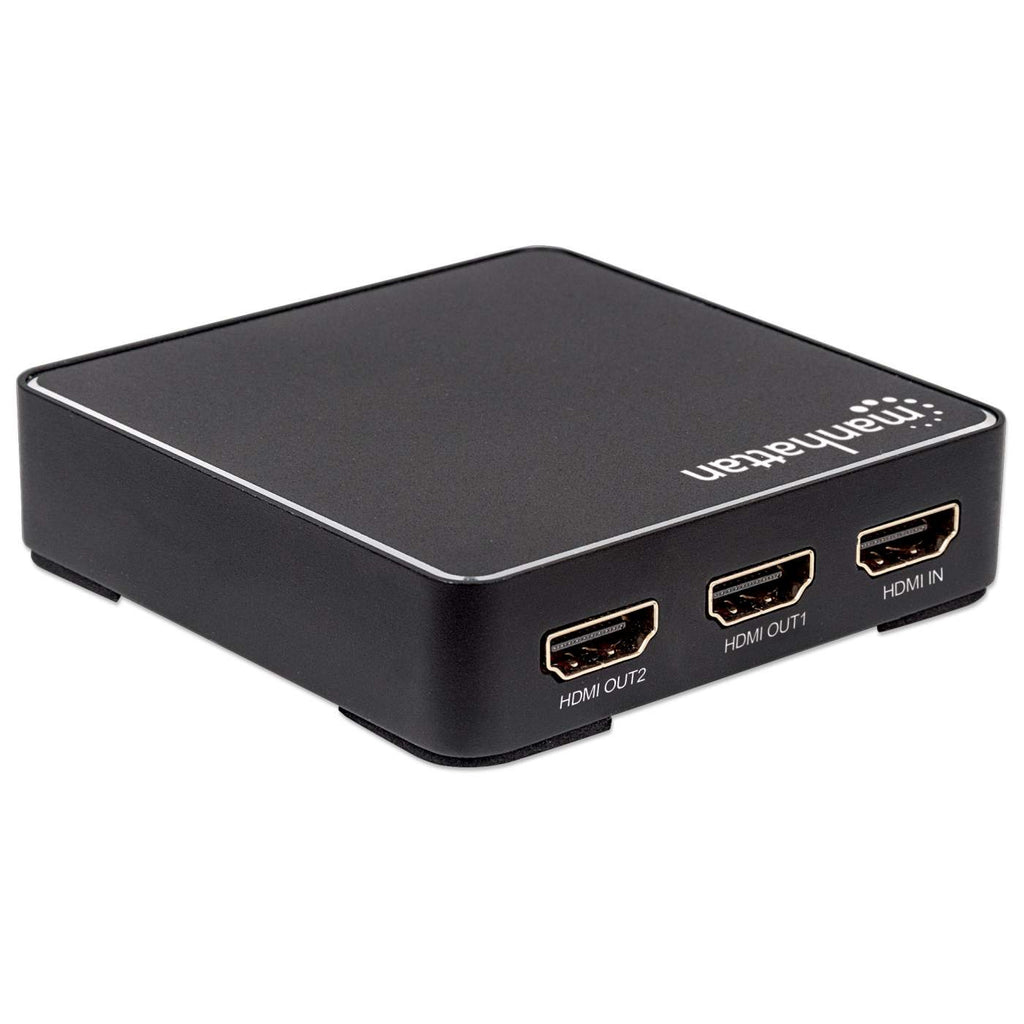

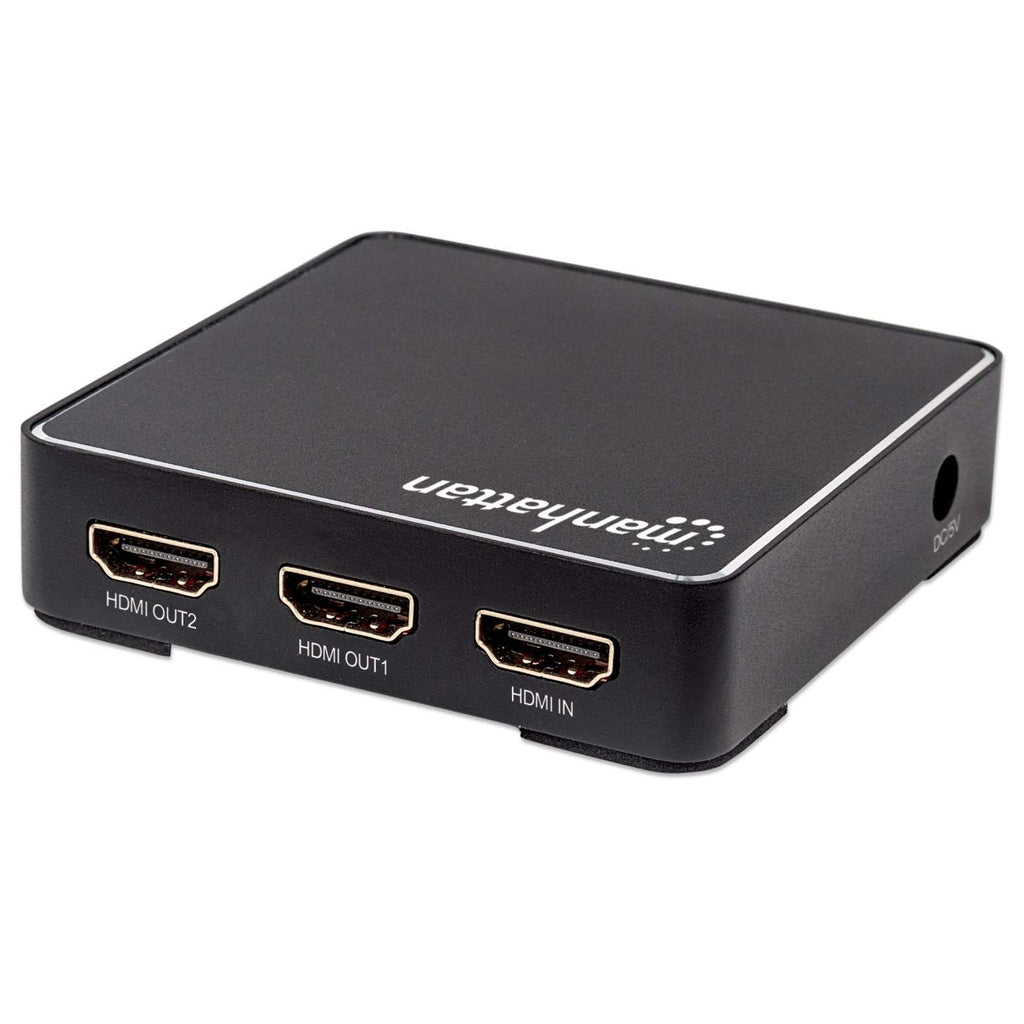

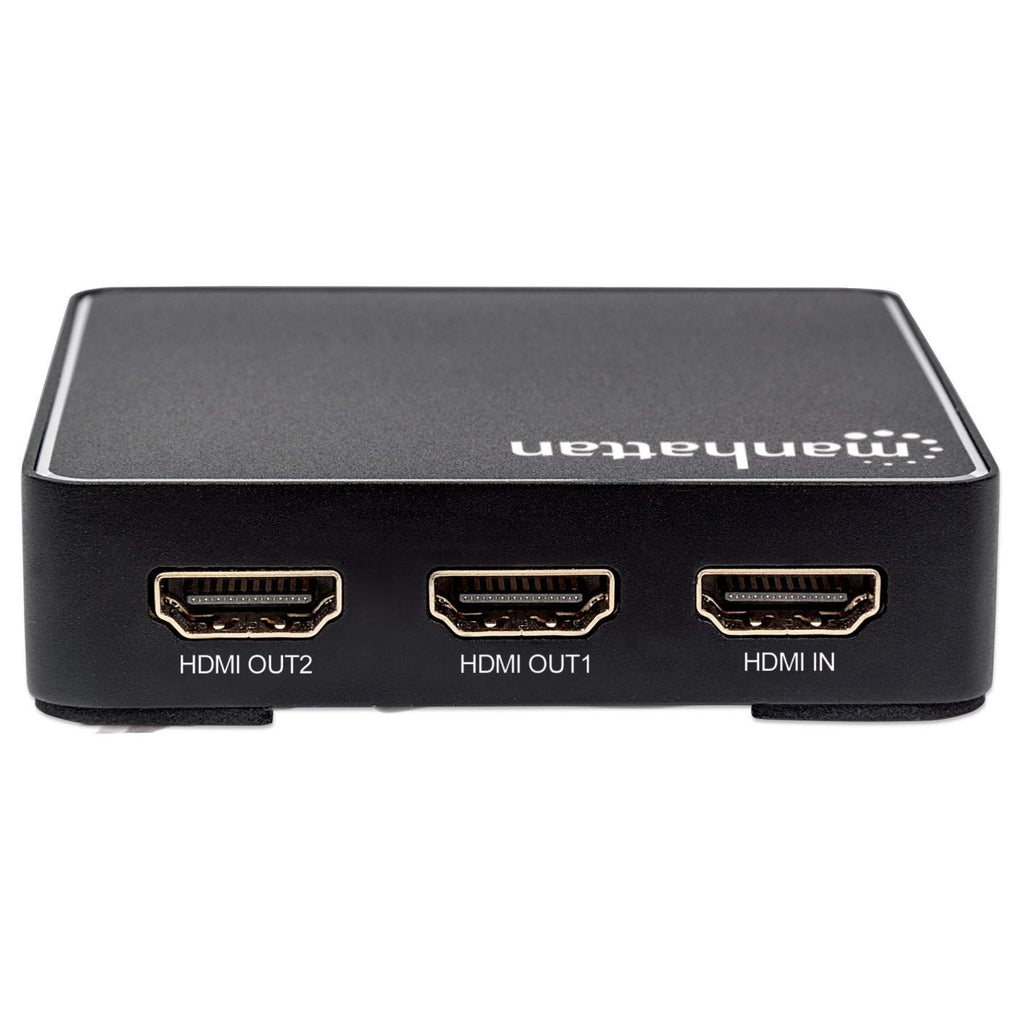

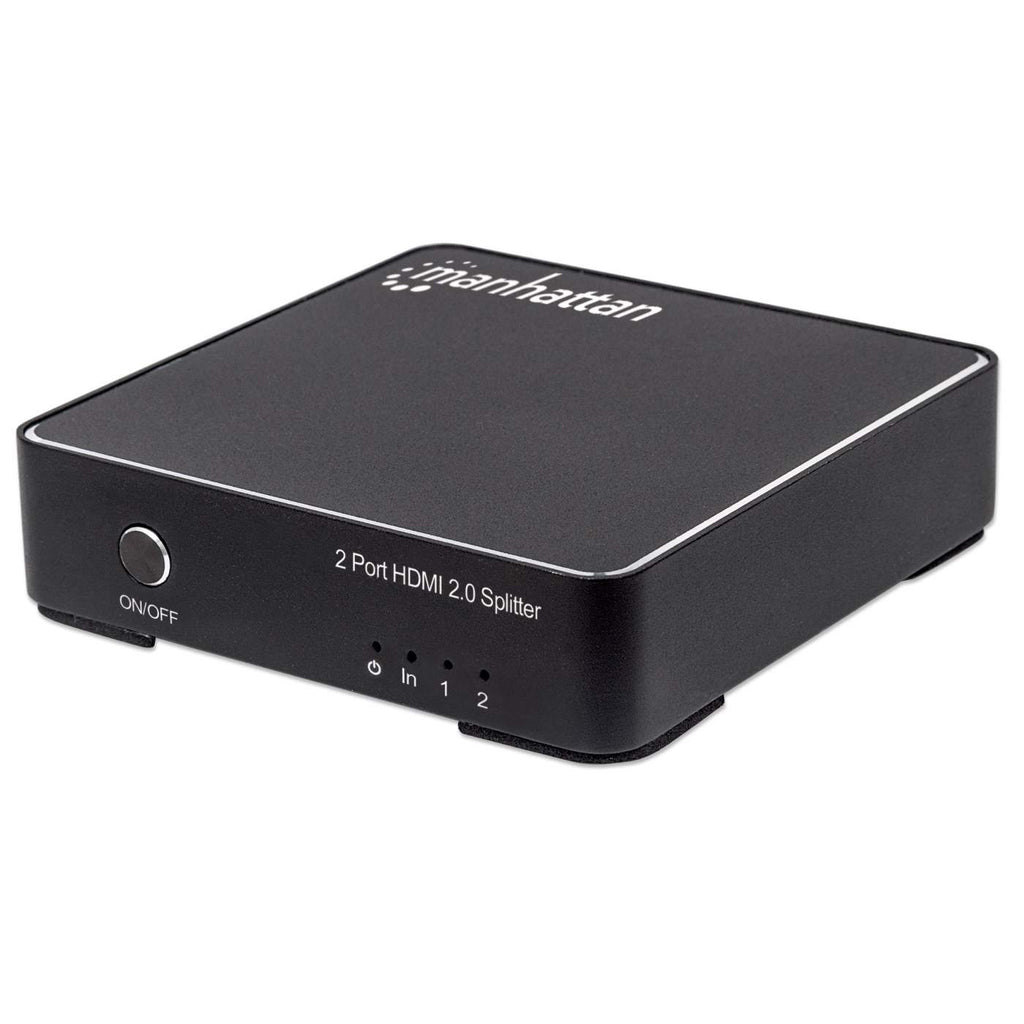

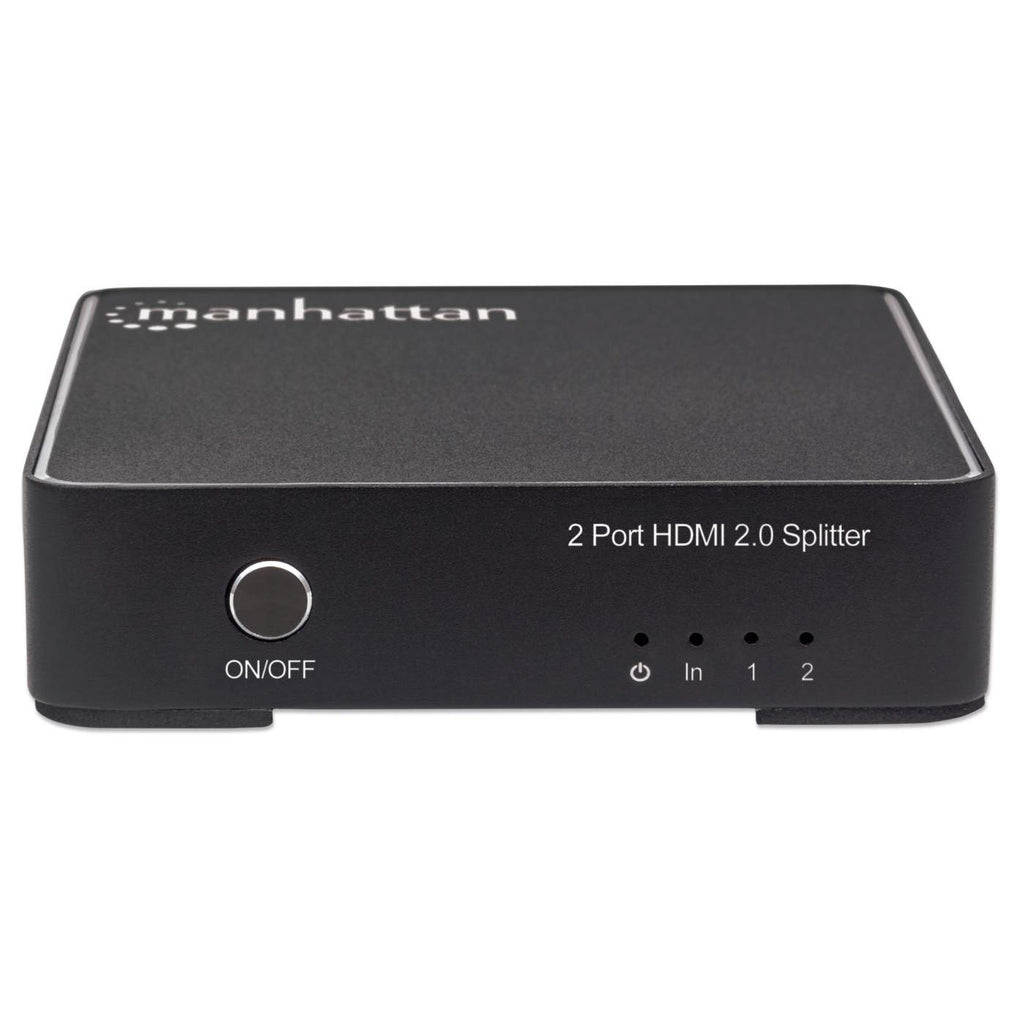

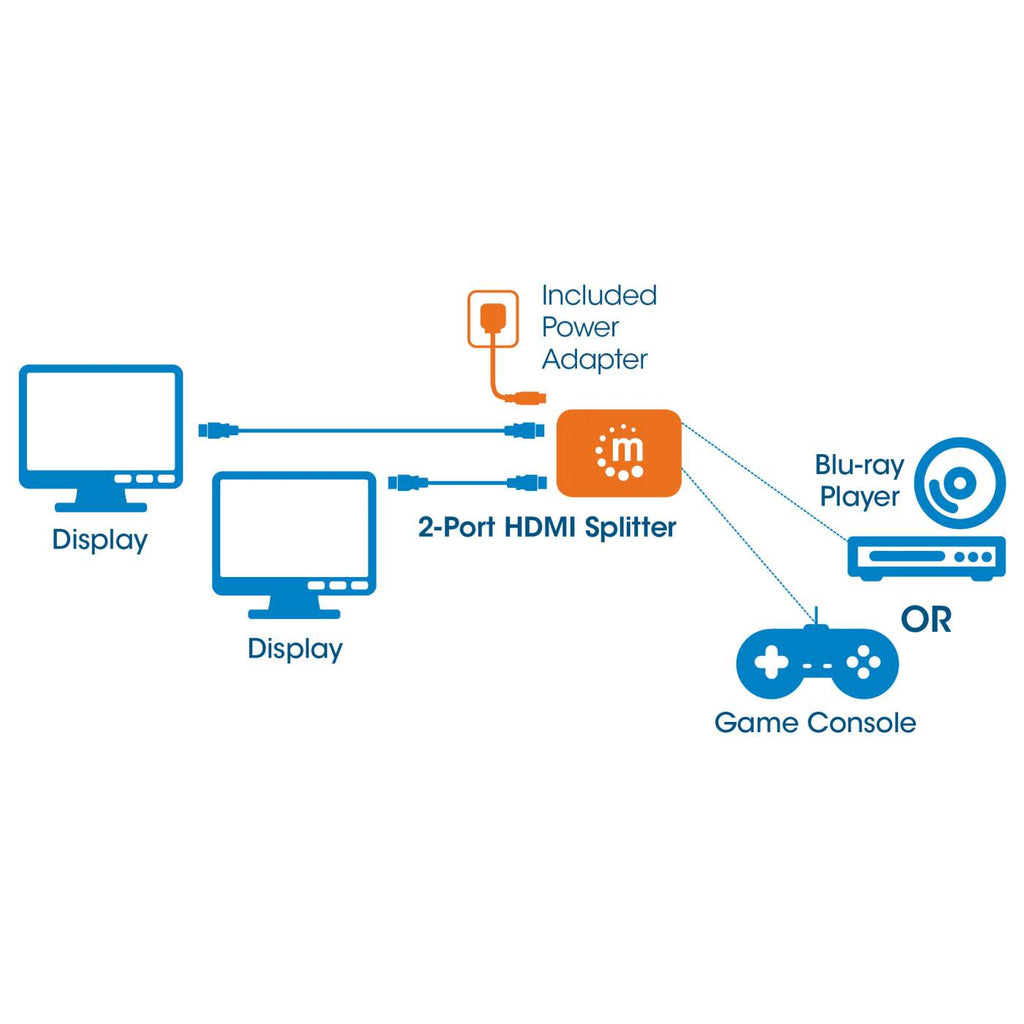

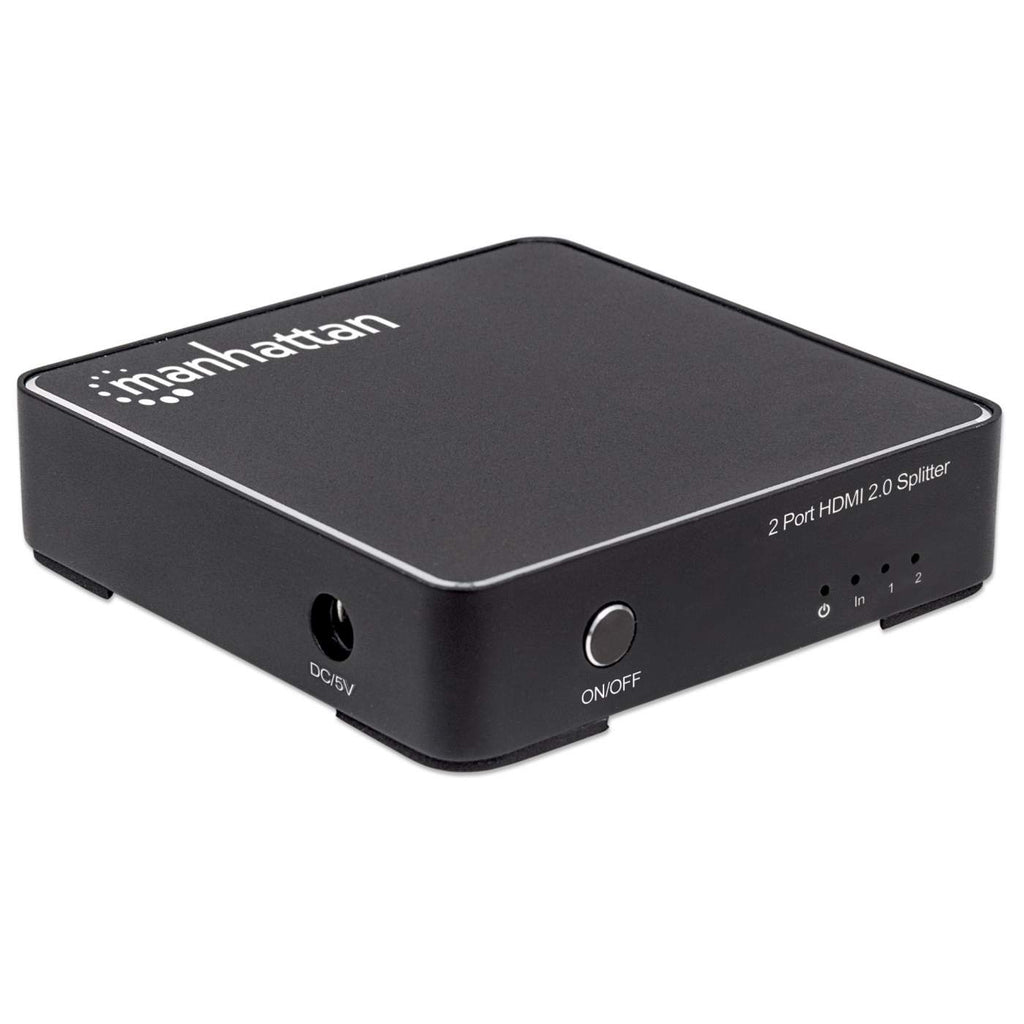

HDMI Splitter 2-Port , 4K@60Hz, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), AC Powered (cable 1.2m), Black,
Model 207591EAN 766623207591
27 specifications
- Weight125 g
- ColourBlack
- Video ports quantity2
- AC input voltage5 V
- Width80 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 125 g
- Colour
- Black
- Video ports quantity
- 2
- AC input voltage
- 5 V
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207591
- Part number
- 207591
- EAN / UPC
- 766623207591
- Also known as
- Manhattan HDMI Splitter 2-Port , 4K@60Hz, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), AC Powered (cable 1.2m), Black,
Specifications
27 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| Bandwidth | 300 MHz |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| LED indicators | Yes |
| Plug and Play | Yes |
| Certification | DVI 1.0 CTS 1.4a CE FCC RoHS2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 80 mm |
| Height | 20 mm |
| Weight | 125 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
