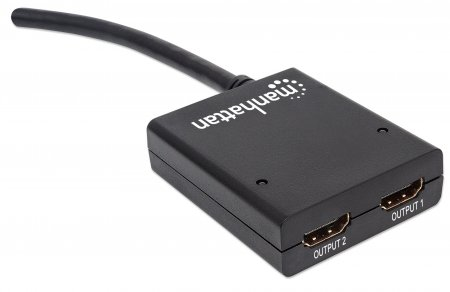

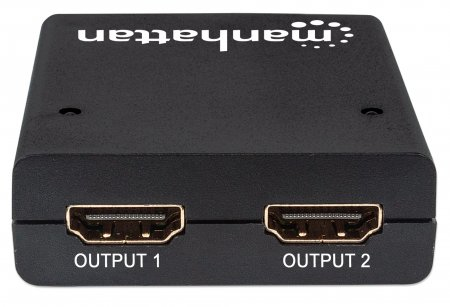

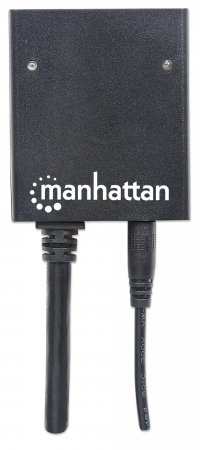

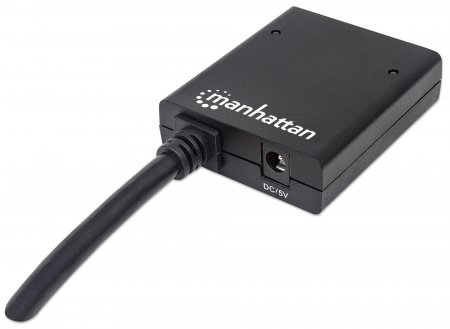

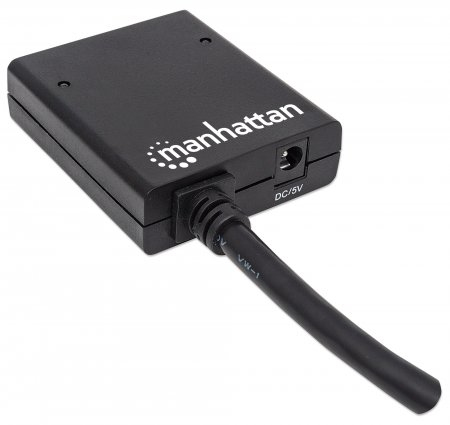

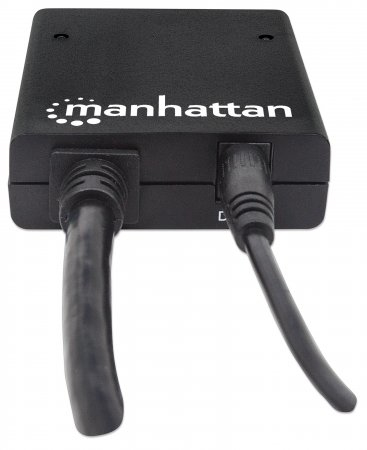

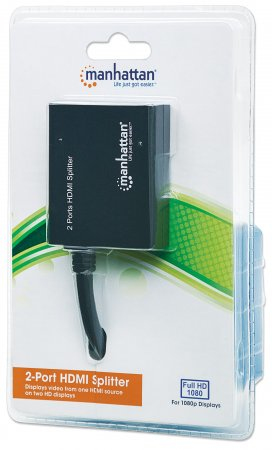

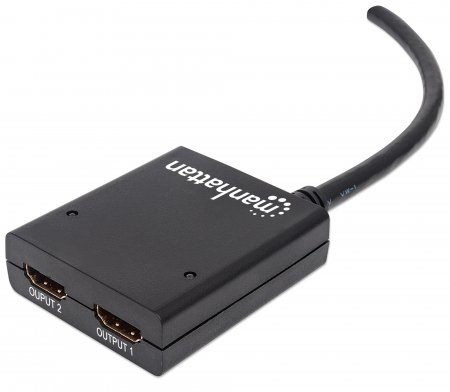

Manhattan 207430 video splitter HDMI 2x HDMI
Model 207430EAN 766623207430
21 specifications
- Weight170 g
- ColourBlack
- Video ports quantity2
- AC input voltage5 V
- Dimensions (WxDxH)63 x 53 x 18 mm
Overview
- Weight
- 170 g
- Colour
- Black
- Video ports quantity
- 2
- AC input voltage
- 5 V
- Dimensions (WxDxH)
- 63 x 53 x 18 mm
- Brand
- Manhattan
- Category
- Video Splitter
- Model
- 207430
- Part number
- 207430
- EAN / UPC
- 766623207430, 4923143166203
- Also known as
- Manhattan 207430 video splitter HDMI 2x HDMI
Specifications
21 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 1.3 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 15 m |
| Cable length | 0.5 m |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Power LED | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Certification | CE, FCC, UL, RoHS |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 63 x 53 x 18 mm |
| Weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
